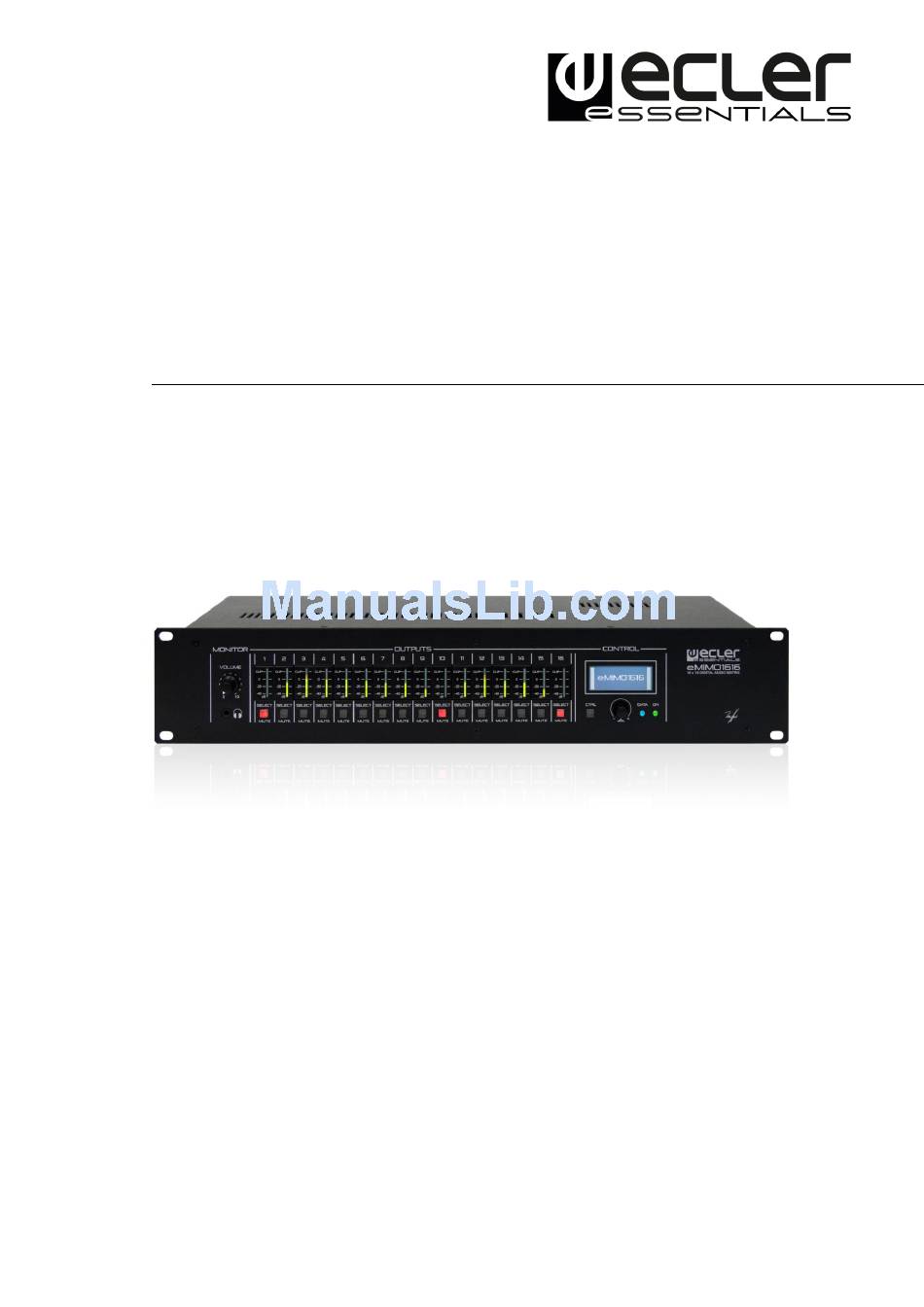

  • Page 1 DIGITAL MATRIXES Digital audio matrix 16x16 USER MANUAL...

  • Page 2: Table Of Contents

    INDEX IMPORTANT REMARK ..................3 IMPORTANT SAFETY INSTRUCTIONS .............. 4 IMPORTANT NOTE ..................6 INTRODUCTION ..................... 6 INSTALLATION AND CONNECTION ..............9 5.1. Location, assembly and ventilation ............... 9 5.2. Connection to the mains supply and switching on ........9 5.3.

  • Page 3: Important Remark

    1. IMPORTANT REMARK The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

  • Page 4: Important Safety Instructions

    2. IMPORTANT SAFETY INSTRUCTIONS Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
  • Page 5 NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

  • Page 6: Important Note

    3. IMPORTANT NOTE Thank you for your trust in choosing our eMIMO1616 digital audio matrix. To achieve optimum operability and performance for your unit it is VERY IMPORTANT, prior to connecting, to carefully read and take into account the points specified in this manual.
  • Page 7  8 REMOTE ports for connecting eMCONTROL1 wall format remote digital panels. RJ45 connectors on rear panel.  Ethernet interface with RJ45 connector, for programming and remote control of the unit via integrated web application (embedded web server) and/or TP-NET protocol for third-party integration. ...
  • Page 8  Processing available for outputs: o Mono mode (outputs managed individually) or stereo mode (outputs managed in natural pairs): 1-2, 3-4, etc.). Automatic handling of mono or stereo audio sources routed towards mono or stereo outputs. o Selection of program source (local or remote audio inputs) o 3-band EQ adjustment via BASS-MID-TREBLE controls.

  • Page 9: Installation And Connection

    5.2. Connection to the mains supply and switching on The eMIMO1616 is powered by an AC voltage of 90 to 264V at 47 to 63Hz. The unit features an overdimensioned power supply unit capable of adapting to the supply voltage in any country in the world without the need for adjustment.

  • Page 10: Local Audio Input Connections

    5.3. Local audio input connections The eMIMO1616 has a rear panel with 8 local audio inputs, with the following connection types available:  INPUT 1 to INPUT 4: unbalanced stereo line-level signals, with double connector format (RCA and Euroblock). Use either of the connectors, based...
  • Page 11 IN5 to IN8 local mono balanced inputs on the eMIMO1616 unit, you can do it via the following stereo to mono conversion, simply by using a pair of external resistors:...

  • Page 12: Remote Audio Input Connections

    It is thus possible to increase the number of audio inputs for the unit using these 8 remote inputs, in addition to the 8 local inputs...

  • Page 13: Pager A, Pager B Connections And Priority Pager / Ducker Modules

    CAT5 standard cable is connected between the eMCONTROL1 panel and a REMOTE port on the eMIMO1616 unit, to provide the DC power supply, transmit digital control data, and send remote audio signals from a physical input on the eMCONTROL1 complementary panel to the eMIMO1616 unit.
  • Page 14 (paging) to output zones within the installation, using a priority module on the eMIMO1616 unit which fades or fully mutes the sound content of the existing program in those zones at the time of the action.

  • Page 15: Remote Inputs 1 To 8 Connections

    5.6. REMOTE INPUTS 1 to 8 connections On the eMIMO1616 rear panel there are 8 control ports, REMOTE INPUTS 1 to 8, which are enabled for the connection of eMCONTROL1 zone control wall panels. Each port has an RJ45 connector, and each eMCONTROL1 panel also has an RJ45...

  • Page 16: Audio Output Connections

    5.7. Audio output connections The eMIMO1616 has16 audio output channels (zone outputs), with independently configurable balanced line, such as:  mono outputs (1 channel per output)  stereo outputs (2 channels per output, natural pairs, 1-2, 3-4, 5-6, etc.) Each output has a 3-contact Euroblock connector, ...

  • Page 17: Ethernet And Rs-232 Ports For Programming And Control

    Ethernet interface, point to point. This connection enables, within a local network, the following:  The Programming and overall management of the eMIMO1616 unit via the embedded web application and a standard web browser running on a computer, a tablet, etc.

  • Page 18: Mute Port

    5.9. MUTE port The eMIMO1616 has a control input, or MUTE port, on the rear panel, which allows the enabling / disabling of mute for audio outputs (zones) from the unit via a button, relay or the closing of an external potential-free contact.
  • Page 19 Note: the eMIMO1616 has an information screen which is activated by pushing and holding simultaneously (>3 seconds) the CTRL key and the encoder on the front panel: The screen shows the following information:  Firmware version being used by the unit ...

  • Page 20: Front Panel Control

    6.2. Front panel control Using the physical controls on the front panel of the eMIMO1616 it is possible to make adjustments to the various output zones from the unit. The settings available for the various zones will be those that the admin user enabled via the web...
  • Page 21 Example pressing the SELECT key for output 1 or 2 (the same effect in this case, at they are set as a stereo pair): Example pressing the SELECT key for output 3: In the upper images you can see:  2 level indicators or VU meters (vertical bars): the one on the left of the screen shows the level of the sound sources selected for the selected zone (pre-fader), and the one on the right shows the level of the output signal for the zone (post-fader)
  • Page 22 Note on the muted outputs (MUTE function enabled):  A muted output, not selected for adjustment, will have its SELECT/MUTE key lit continuously (no flashing)  A muted output which is at the same time selected for adjustment, will have its SELECT/MUTE key flashing with a fixed rhythm, but opposite to the rhythm of an unmuted output selected for adjustment Pressing the CTRL key quickly changes the focus to the other available function, in...
  • Page 23 Another long press of the CTRL key, or a period of inactivity of 10 seconds, returns the screen to its previous status, showing main data for the zone under control: All the previously described controls for the specific zone (VOL, SRC, BASS, MID and TREBLE) will be shown and available for adjustment only if the admin user has enabled the front panel for this, and a zone may be partially or fully blocked for control via the front panel.

  • Page 24: Function List

    7. FUNCTION LIST 1. Headphones volume control 2. Headphones output: stereo Jack 6,3mm 3. LED vumeter (CH1 – CH16) 4. SELECT button / MUTE (CH1 – CH16) 5. Control button, CTRL 6. Digital rotary control (encoder) 7. Data traffic LED indicator, DATA 8.

  • Page 25: Function Diagram

    8. FUNCTION DIAGRAM...

  • Page 26: Block Diagram

    9. BLOCK DIAGRAM...

  • Page 27: Technical Characteristics

    10. TECHNICAL CHARACTERISTICS Floating point 32/64bit Sampling Rate 48kHz Latency IN to OUT <1.5ms AD/DA Converters Resolution 24bit AKM Dynamic Range AD:111dB, DA: 115dB Analogue Sensitivity: +5 / -15dBV External potentiometer adjust Input impedance: >13k Input 1-4- (LINE) Input connector: RCA female. Input 1 and 2 with EUROBLOCK stack Input type: Unbalanced Sensitivity: +0 / -50dBV External potentiometer adjust Input impedance: >24k electronically balanced...
  • Page 28 Input: IN7 and 8, selectable from PAGER to DUCKER Outputs: Selectable by Duckers/Pagers panel Priority: Four levels (1 – 4). 1 max, 4 min Functions: Two function buttons (F1, F2) Pager (x2) Depth: 0dB to 80 dB Attack time: 5ms to 2000ms Release time: 50ms to 3000ms Chime volume: -12dBV to +0dBV Chime melody: None, Melody 1, Melody 2...
  • Page 29 product characteristics subject variation production tolerances. NEEC AUDIO BARCELONA S.L. reserves the right to make changes or improvements in the design or manufacturing that may affect these product specifications. Motors, 166‐168 08038 Barcelona ‐ Spain ‐ (+34) 932238403 information@ecler.es www.ecler.com...
