Thank you very much for purchasing a Fostex product.
This manual provides instructions for basic use of the unit.
Read this before using the unit for the fi rst time.
8588134000
Owner's Manual

Table of contents

Introduction ............................................................................ 2
WARNINGS and PRECAUTIONS .......................... 2
Features of the RM-3 ................................................ 2
Accessories ..................................................................... 2
Part names and functions .............................................. 3
Front ................................................................................... 3
Back .................................................................................... 3
DIP switch settings ............................................................. 4
Meter ........................................................................................... 5
Dimensions ............................................................................. 6
Specifi cations ......................................................................... 7
© FOSTEX COMPANY All Right Reserved
(594018)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RM-3 and is the answer not in the manual?

Questions and answers

Related Manuals for Fostex RM-3

Summary of Contents for Fostex RM-3

  • Page 1: Table Of Contents

    Accessories ..............2 Part names and functions ..........3 Front ................... 3 Back ..................3 Thank you very much for purchasing a Fostex product. DIP switch settings ............. 4 This manual provides instructions for basic use of the unit. Meter ................... 5 Read this before using the unit for the fi rst time.

  • Page 2: Introduction

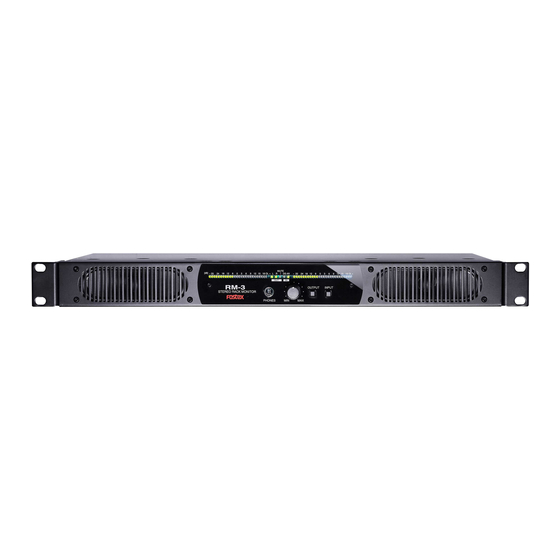

    Introduction RM-3 is a rack mount powered monitor that monitors digital and analog audio signals. WARNINGS and PRECAUTIONS „ „ • WARNING: Do not install this equipment in a confined space such as a book case or • CAUTION: The symbol To prevent electric shock hazard, do not connect to mains similar unit.

  • Page 3: Part Names And Functions

    Part names and functions Front „ „ ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ① Speakers ⑥ Mute button The speakers do not emit any sound while headphones are Press the button for approximately one second to mute connected to the [PHONES] jack. ...

  • Page 4: Dip Switch Settings

    DIP switch settings Switch position guide DIP switch (default settings) Display brightness (DIMMER) Source sound type (SOUND) There are two sound types. Choose the appropriate sound type. Setting Setting Bright MUSIC VOICE Dark MUSIC: Ideal for sound sources that have a wide frequency range, such as music.

  • Page 5: Meter

    Meter Meter scale [dB] –33 Meter Input presence level indicator Peak over level indicator Analog BAL: +4 dBu or 0 dBu UNBAL: –10 dBV or –14 dBV Digital –20 dBFS The meter scale has 26 dot LED consisting of a 24 dot level meter, an input presence level indicator and a peak over level indicator. You can choose from four combinations of PEAK and VU to be displayed on the meter (“DIP switch settings”...

  • Page 6: Switches And Buttons On The Front Of The Unit

    Switches and buttons on the front of the unit 1 [INPUT] switch 2 [OUTPUT] switch Select the input (analog or digital) to monitor. Select the output channel. The unit will automatically store the switch status within approximately three The unit will automatically store the switch status within approximately seconds.

  • Page 7: Specifications

    Specifications Speakers Built-in unit 110 × 40 mm antimagnetic cone speakers Impedance 8 Ω Output sound 84 dB/W (1 m) pressure level Frequency 200 Hz to 20 kHz characteristic Power amplifier Maximum output 10 W × 2 Residual noise –50 dB or less (DIN AUDIO) Distortion rate 0.1% or less Digital input...

  • Page 8: Declaration Of Ec Directive

    In the electrical fast transient/burst requirements, surge, conducted disturbances by radio-frequency fields, power frequency magnetic field, radiate electromagnetic field requirements and static electricity discharging environment, this could be affected by generation of noise in some cases. FOSTEX DISTRIBUTORS LIST IN EUROPE * Including non-EU countries (as of Jan. 2014)
