Summary of Contents for DeDietrich DTI 1678 DG
-
Page 1: Cooking Hob
USER INSTRUCTIONS Cooking Hob... - Page 2 Dear valued customer, To discover a De Dietrich product is to experience the range of unique emotions which only high-value items can produce. The attraction is immediate, from the moment you set eyes on the product. The sheer quality of the design shines through thanks to the timeless style and outstanding finishes which make each appliance an elegant and refined little masterpiece in its own right, each in perfect harmony with the others.
-
Page 3: Table Of Contents
CONTENTS SAFETY INSTRUCTIONS • Caring for the environment 1 / INSTALLING YOUR APPLIANCE • Building in • Connection 2 / USING YOUR APPLIANCE • The induction principle • Description of the top • Description of the display • Description of the functions Switching on for the first time Powering on /Stop Adjusting the power... -
Page 4: Safety Instructions
S FETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS TO BE READ CAREFULLY AND KEPT FOR FUTURE USE. This guide can be downloaded from the brand web site. Child safety This appliance can be used by children over 8 years Children under 8 years old old and persons with reduced must be kept away from the physical, sensory or mental... - Page 5 S FETY INSTRUCTIONS Your appliance complies with Avoid placing cookware on the applicable European Directives frame or cover (depending on and regulations. the model). Avoid using cookware with Cooking with fat or oil on a rough or bumpy bottoms: they cooking plate without...
-
Page 6: Caring For The Environment
S FETY INSTRUCTIONS Electrical Danger ENVIRONMENT Ensure that the power cables electrical - This appliance’s packing materials are appliances plugged in close to recyclable. Please recycle them and help the hob are not in contact with protect the environment by depositing them in municipal containers provided for this the cooking zones. -
Page 7: Building In
1/ INST LLING YOUR PPLI NCE DTI1568DG L x l x h : 650 x 520 x 7 L2 x l2 : 560 x 490 DTI1678DG L x l x h : 650 x 515 x 4 L2 x l2 : 560 x 490 L1 x l1 x h1 : 653 x 518 x 5 CHOICE OF LOC TION The distance between the edge of your... -
Page 8: Connection
1/ INST LLING YOUR PPLI NCE CONNECTION These hobs must be connected to the power grid via an electrical outlet that complies with EIC publication 60083 or an all-pole cut- off device that complies with installation regulations in effect. When power is first supplied to your hob, or after an extended power outage, an indicator light will appear on the control panel. -
Page 9: Using Your Appliance
USING YOUR PPLI NCE We have designed this cooking hob for use by private persons in their homes. This hob is designed exclusively for the cooking of drinks and foodstuffs and does not contain any asbestos-based component parts. This appliance is not intended for use by individuals (including children) with impaired physical, sensorial or mental abilities, or persons lacking in knowledge or experience, unless they receive prior supervision or instructions on using the appliance from a person responsible for their safety. -

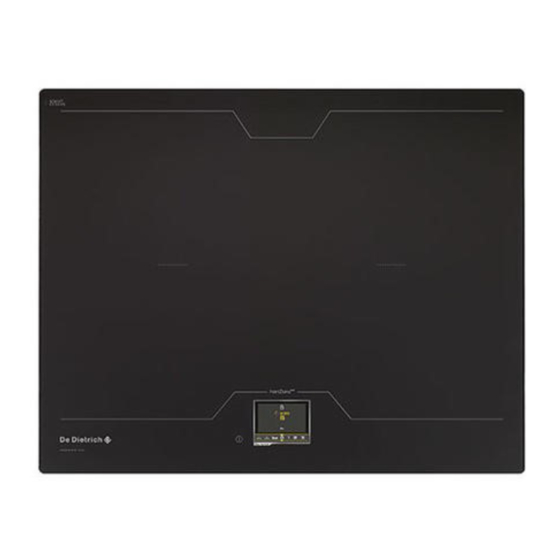

Page 10: Description Of The Top
USING YOUR PPLI NCE DESCRIPTION OF THE TOP 50 W to 3600 W 50 W to 3600 W DTI1568DG / DTI1678DG... -
Page 11: Description Of The Display
USING YOUR PPLI NCE DESCRIPTION OF THE DISPL Y Your keypad is fully touch-sensitive. Simply press the screen to access the commands once the hob is switched on. Slide your finger along the sliding strip in the bottom of the display to select the value (power) or various functions available. -
Page 12: Description Of The Functions
USING YOUR PPLI NCE DESCRIPTION OF THE FUNCTIONS Cooking time (timer) Independent timer function Elapsed time function Select cooking zone function Boil function Keep warm function Settings function... -
Page 13: Switching On For The First Time
USING YOUR PPLI NCE SWITCHING ON FOR THE FIRST TIME 4 cooking times appear in the display. 4 Zones: for cookware with bases of 12 to 24 cm in diameter. tech 1 Horizone area (to the left): for a fish cooker, a grill or cookware with bases of 20 to 24 cm in diameter. -
Page 14: Adjusting The Power
USING YOUR PPLI NCE POWER SETTING Scrolling strip providing access to the power levels. Select a power value by pressing the number or symbol you want directly. You may also slide your finger across the scrolling strip. The cooking zone starts immediately without you needing to validate. -
Page 15: Independent Timer
USING YOUR PPLI NCE N.B. : You can always alter your settings when the display information is gold in colour. When the display is white, your settings have been confirmed. If you have 2 or more pans on your hob, the settings are always made when the display is golden in colour. -
Page 16: Choosing The Cooking Zone
USING YOUR PPLI NCE CHOOSING THE COOKING ZONE With this function, you can select one of four configurations (see chapter: When powering on). Add another pan: Put your pan on the required zone and press the screen to detect the new cookware’s location. A gold-coloured number appears in the chosen zone. -
Page 17: Boil
USING YOUR PPLI NCE “Boil” function With this function you can boil and simmer water to cook pasta, for example. Select your ring (for example: rear left). Go to the functions menu and select the “Boil” function By default, the quantity of water proposed is 2 litres, but you may modify it using the + or - keys Set the quantity of water required (from 0.5 to 6 litres). -
Page 18: Settings (Brightness - Power Pre-Setting - Demo)
USING YOUR PPLI NCE S E TTINGS This function provides access to the various parameters you can modify: - Brightness - Power presets (reserved for the After Sales - Demo mode department) Your cooking zone must be turned off. Go to the functions menu and select the “Settings”... -
Page 19: Locking The Controls
USING YOUR PPLI NCE (reserved for the after-sales department) Demo mode If you enter the demo mode reserved for the After Sales department , press the “back” key to return to the previous screen. If you accidentally enter a code and validate it by pressing , a beep will sound and you will return to the “1st switch-on”... -
Page 20: Safety And Recommendations
USING YOUR PPLI NCE Clean lock temporary locking This function permits the of your hob while it is being cleaned. To activate Clean lock: Make a short press on the “open” padlock in the display; a beep sounds and a “closed” padlock flashes while the hob is locked. -
Page 21: Protection Against Overflows
USING YOUR PPLI NCE Protection against overflows The hob may shut down with a special display and a beep in any of these three situations: Overflow which covers the “On/Off” key or the display Damp cloth placed on the “On/Off” key. Metal object placed on the “On/Off”... -
Page 22: Maintaining Your Appliance
M INT INING YOUR PPLI NCE M INTEN NCE ND CLE NING For light dirt, use a disinfectant sponge . Thoroughly moisten the zone to be cleaned with hot water, then wipe off For a build-up of baked on dirt, sweet overflows or melted plastic, use a disinfectant sponge and/or a special glass scraper. -
Page 23: Special Messages, Difficulties
SPECI L MESS GES, DIFFICULTIES You observe: Possible causes: What you must do: The appliance is not The hob does not receiving electricity. Inspect the electrical function and the screen The electrical supply is circuit breaker and fuses. stays off. defective or the connection is incorrect. -
Page 24: 5/ After-Sales Service
5/ FTER-S LES SERVICE SERVICE C LLS Any repairs made to your appliance must be carried out by a qualified professional authorised to work on the brand. When making contact, mention the complete reference of your appliance (model, type, serial number). This information appears on the manufacturer’s nameplate attached to your equipment. -
Page 25: Detachable Sheet To Start The Hob Quickly
ON/OFF Cooking time (Timer) Boil Independent timer Keep warm Elapsed time Settings Cooking zone selection... - Page 26 CZ5702947_00 03/16...
