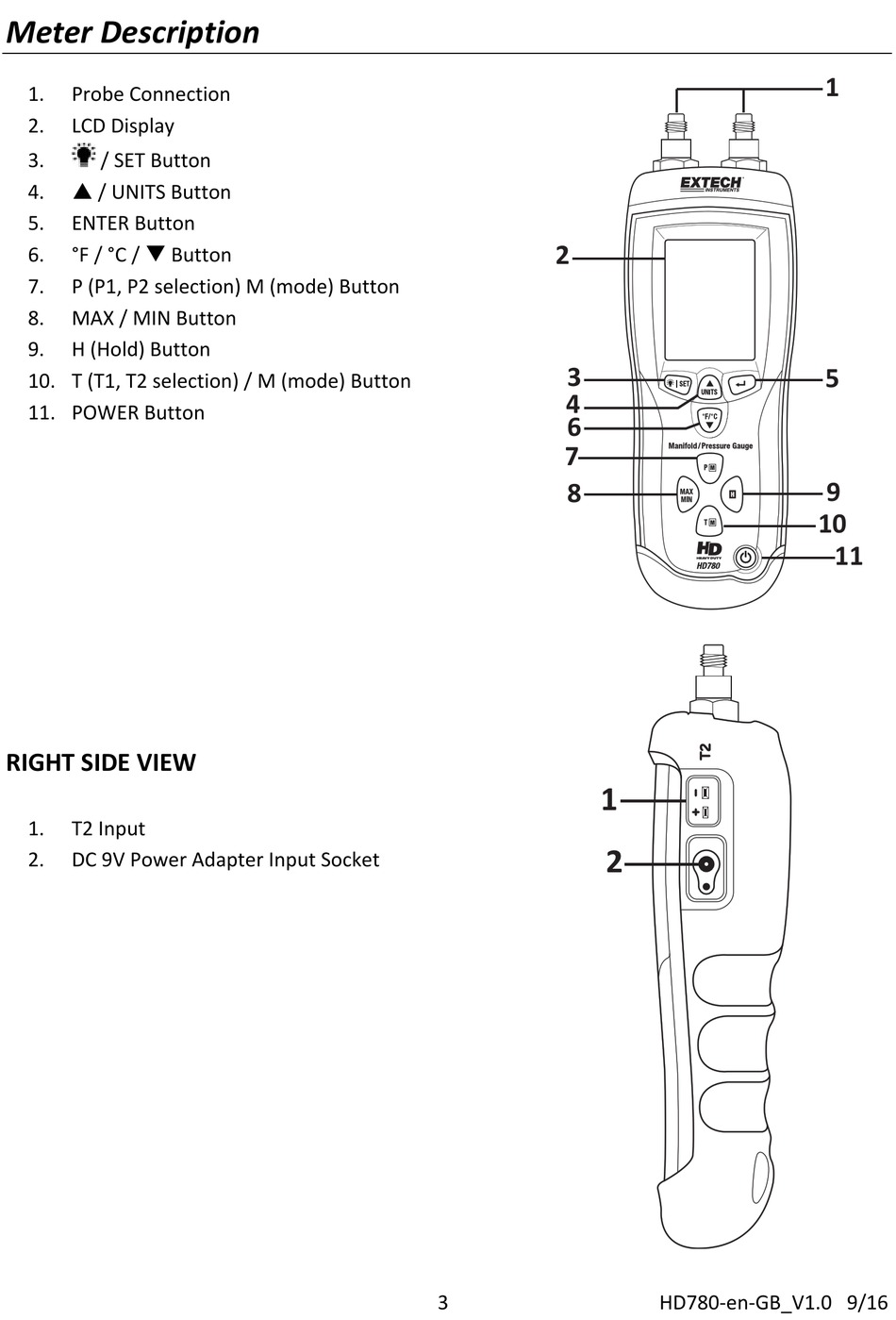

Meter Description
1.
Probe Connection
2.
LCD Display
3.
/ SET Button
/ UNITS Button
4.
5.
ENTER Button
6.
°F / °C / Button
7.
P (P1, P2 selection) M (mode) Button
8.
MAX / MIN Button
9.
H (Hold) Button
10. T (T1, T2 selection) / M (mode) Button
11. POWER Button
RIGHT SIDE VIEW
1.
T2 Input
2.
DC 9V Power Adapter Input Socket
2
3
4
6
7
8
1
2
3
1
5
9
10
HD780‐en‐GB_V1.0 9/16
11
