General Specifications - Extech Instruments HD780 User Manual

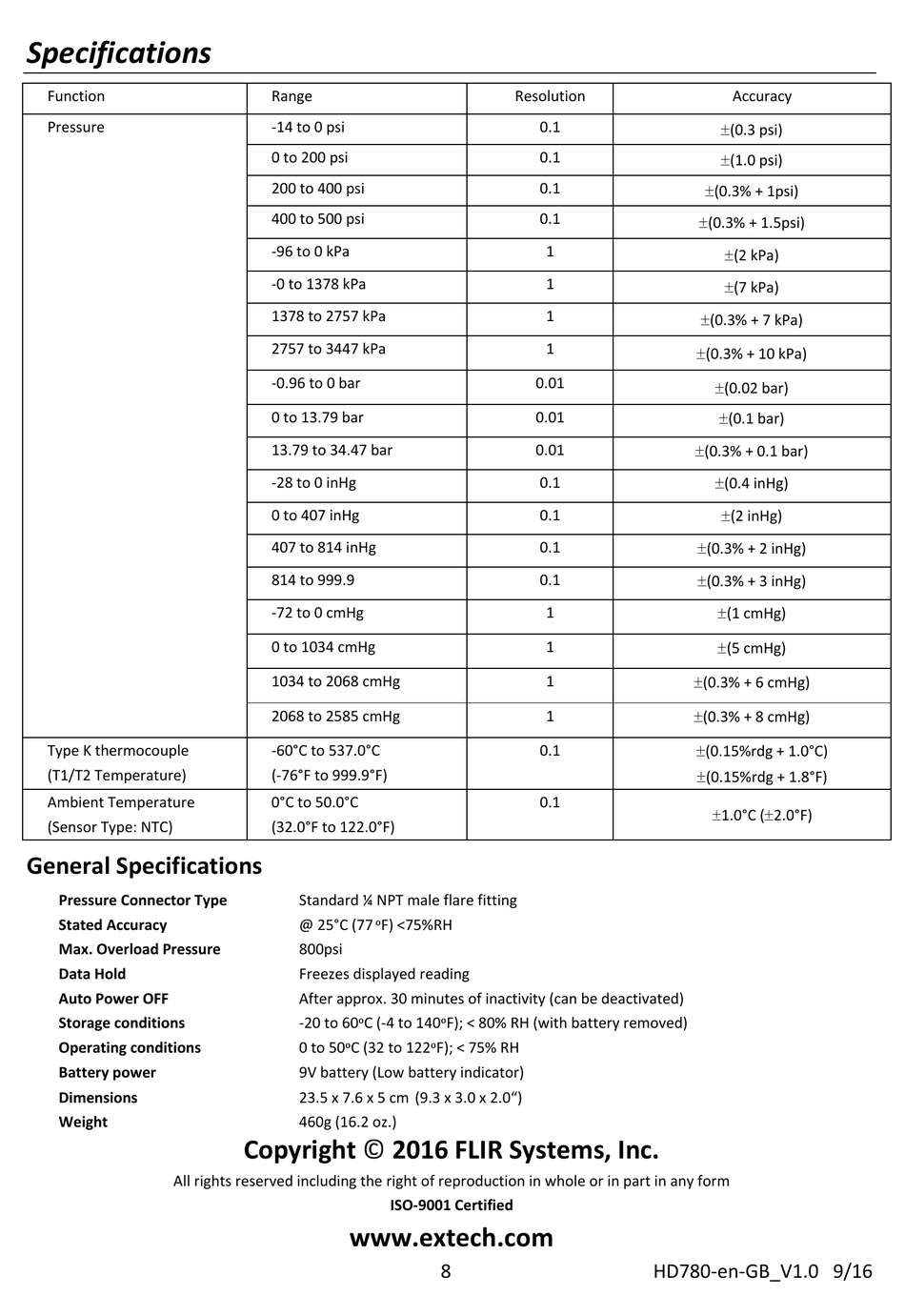

Specifications
Function
Pressure
Type K thermocouple
(T1/T2 Temperature)
Ambient Temperature
(Sensor Type: NTC)
General Specifications
Pressure Connector Type
Stated Accuracy
Max. Overload Pressure
Data Hold
Auto Power OFF
Storage conditions
Operating conditions
Battery power
Dimensions
Weight
All rights reserved including the right of reproduction in whole or in part in any form
Range
‐14 to 0 psi
0 to 200 psi
200 to 400 psi
400 to 500 psi
‐96 to 0 kPa
‐0 to 1378 kPa
1378 to 2757 kPa
2757 to 3447 kPa
‐0.96 to 0 bar
0 to 13.79 bar
13.79 to 34.47 bar
‐28 to 0 inHg
0 to 407 inHg
407 to 814 inHg
814 to 999.9
‐72 to 0 cmHg
0 to 1034 cmHg
1034 to 2068 cmHg
2068 to 2585 cmHg
‐60°C to 537.0°C
(‐76°F to 999.9°F)
0°C to 50.0°C
(32.0°F to 122.0°F)
Standard ¼ NPT male flare fitting
@ 25°C (77 o F) <75%RH
800psi
Freezes displayed reading
After approx. 30 minutes of inactivity (can be deactivated)
o
‐20 to 60 C (‐4 to 140
0 to 50 o C (32 to 122
9V battery (Low battery indicator)
23.5 x 7.6 x 5 cm (9.3 x 3.0 x 2.0")
460g (16.2 oz.)
Copyright © 2016 FLIR Systems, Inc.
ISO‐9001 Certified
www.extech.com
Resolution
0.1
0.1
0.1
0.1
1
1
1
1
0.01
0.01
0.01
0.1
0.1
0.1
0.1
1
1
1
1
0.1
0.1
o
F); < 80% RH (with battery removed)
o F); < 75% RH
8
Accuracy
(0.3 psi)
(1.0 psi)
(0.3% + 1psi)
(0.3% + 1.5psi)
(2 kPa)
(7 kPa)
(0.3% + 7 kPa)
(0.3% + 10 kPa)
(0.02 bar)
(0.1 bar)
(0.3% + 0.1 bar)
(0.4 inHg)
(2 inHg)
(0.3% + 2 inHg)
(0.3% + 3 inHg)
(1 cmHg)
(5 cmHg)
(0.3% + 6 cmHg)
(0.3% + 8 cmHg)
(0.15%rdg + 1.0°C)
(0.15%rdg + 1.8°F)
1.0°C (2.0°F)
HD780‐en‐GB_V1.0 9/16
