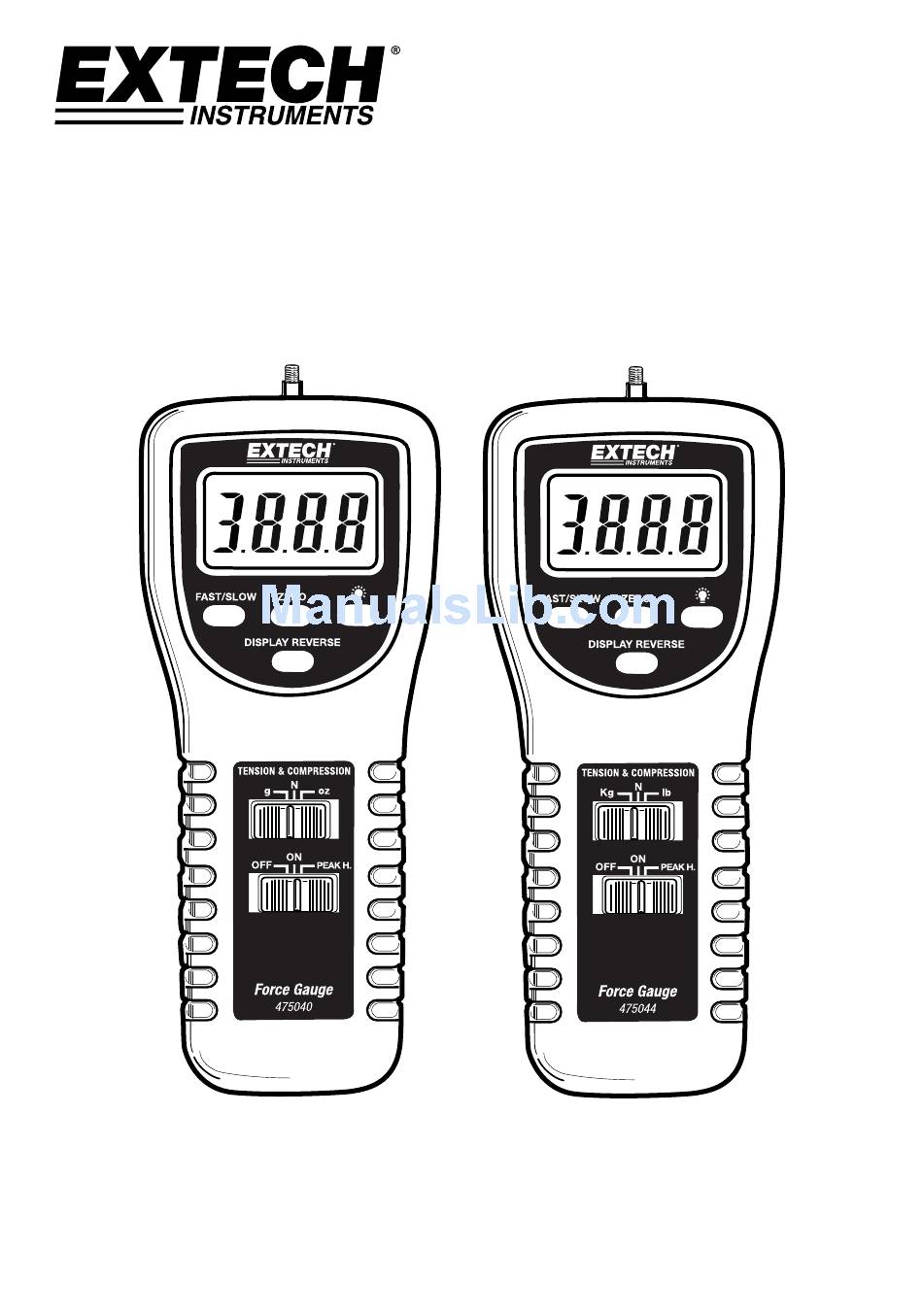

- Page 1 USER GUIDE Digital Force Gauge Models 475040 and 475044 contact: www.ponpe.com sale@ponpe.com...
-
Page 2: Meter Description
This device measures Tension or Compression (Push or Pull) to 5kg (475040) or 20kg (475044). The reversible display indicates readings in grams, ounces, or Newtons. This meter offers Peak Hold and a Zero function. Please visit the Extech Instruments website (www.extech.com) to check for the latest version of this User Guide. -
Page 3: Operation
Note: The sensing head with adapter must be in line with the object being measured. Avoid rotating the sensing head. Refer to the figure below. Figure 1 ─ Correct and Incorrect Angles of Measurement Acceptable Not Acceptable 475040-475044-EU-EN v2.6 4/14 contact: www.ponpe.com sale@ponpe.com... -
Page 4: Normal Measurement Mode
Note: Be sure to press "ZERO" before taking any new measurements. Mounting For best results, mount the Digital Force Gauge to a test stand. Mounting holes are provided on the rear of the meter. 475040-475044-EU-EN v2.6 4/14 contact: www.ponpe.com sale@ponpe.com... -
Page 5: Maintenance
/ accumulators are sold! Disposal in household trash or refuse is prohibited! Disposal: Follow the valid legal stipulations in respect of the disposal of the device at the end of its lifecycle 475040-475044-EU-EN v2.6 4/14 contact: www.ponpe.com sale@ponpe.com... -
Page 6: Specifications
215 x 90 x 45 mm (8.5 x 3.5 x 1.8”) Mounting Holes Located on rear of gauge Accessories Tension adapter (hook), compression adapters (flat, cone, and chisel), 5" extension rod, 6 x 1.5V AA batteries, case Copyright © 2014 FLIR Systems, Inc. All rights reserved including the right of reproduction in whole or in part in any form www.extech.com 475040-475044-EU-EN v2.6 4/14 contact: www.ponpe.com sale@ponpe.com...
