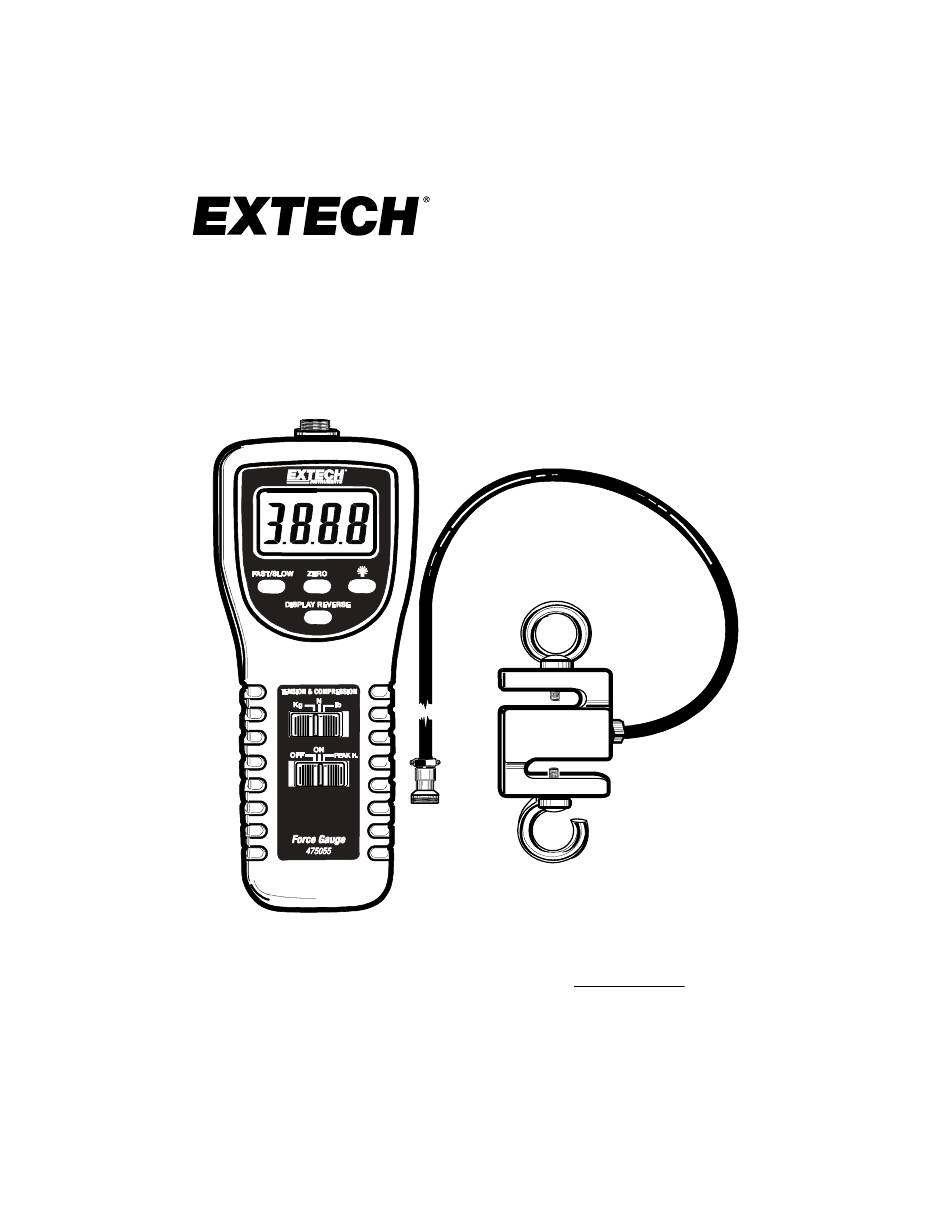

- Page 1 User Manual Models 475055 Digital Force Gauge GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
-
Page 2: Meter Description

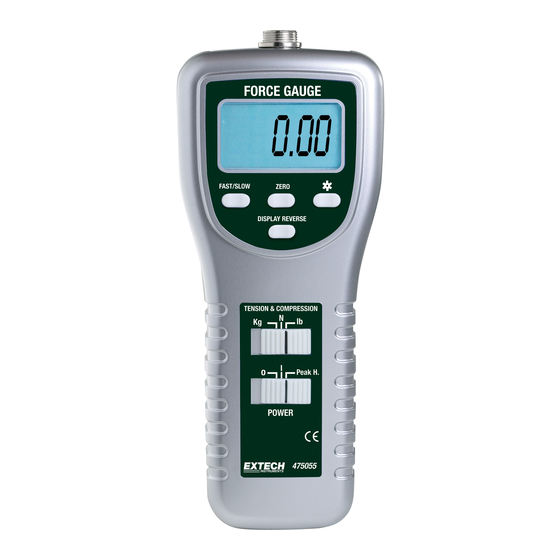

Introduction Model 475055 Digital Force Gauge that measures Tension or Compression (pull/push) to 220 lbs. It features: Peak hold, fast/slow response time, positive or reverse display direction, and a separate sensor. An RS-232 PC interface provides data acquisition functionality. This meter is shipped fully tested and calibrated and with proper use will provide years of reliable service. -
Page 3: Operation
Over Range Indication The Model 475055 uses a strain gauge sensor to measure force. Avoid subjecting the instrument to forces outside the specified measurement range. The sensitive strain gauge can be damaged or otherwise compromised by misuse. When an over-range condition is sensed by the meter the LCD displays all dashes. -
Page 4: Maintenance
The low battery indication appears as a "LO" on the display when battery voltage is less than 6.8V. To replace the battery: Remove the two screws from the battery compartment cover. Lift off the battery cover. Replace with six (6) batteries. Replace compartment cover and screws. 475055-en-GB_v2.8 9/19 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com... -
Page 5: Specifications
Sensor with 2 hooks: 162 x 51 x 22 mm (6.4 x 2.0 x 0.9 ) Cable length: 2m (6.5 ft.) Copyright © 2014-2019 FLIR Systems, Inc. All rights reserved including the right of reproduction in whole or in part in any form 475055-en-GB_v2.8 9/19 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
