USER MANUAL FOR RX-2620

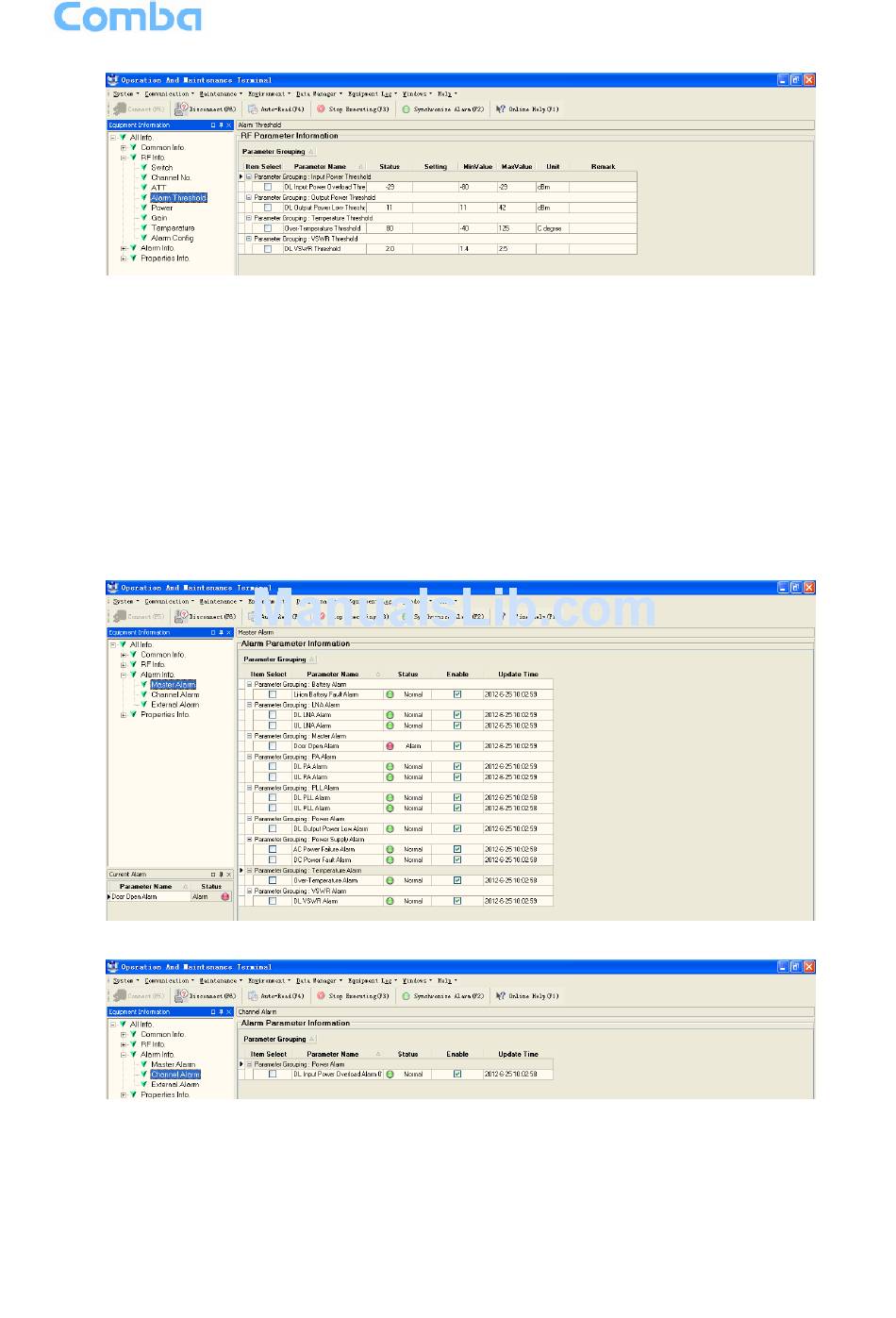

Figure 18: Alarm Threshold
Config:
Enter the required value in setting columns of RF information window for Alarm threshold, and press
[Enter] or [Config] button to finish the configuration operation.
5.3.4 ALARM INFORMATION
Alarm information operation is to select alarm parameters for monitoring. Alarm parameters include
Master Alarm, Channel Alarm, and External Alarm.
Click any tree node in [Alarm Info] group, [Alarm Parameter Information] window will appear in the right
side. The picture below shows the master alarm information.
Figure 19: Master Alarm
Figure 20: Channel Alarm
ENU STATUS : 1-0-0
Copyright - refer to title page
Page 28
