2-146 Speed Control Speed Mode Speed Regulation
Internally, the drive converts the rated slip in RPM to rated slip in
frequency. To more accurately determine the rated slip frequency in hertz,
an estimate of flux current is necessary. This parameter is either a default
value based on motor nameplate data or the auto tune value. The drive
scales the amount of slip compensation to the motor rated current. The
amount of slip frequency added to the frequency command is then scaled by
the sensed torque current (indirect measurement of the load) and displayed.
Slip compensation also affects the dynamic speed accuracy (ability to
maintain speed during "shock" loading). The effect of slip compensation
during transient operation is illustrated in
operating at some speed and no load. At some time later, an impact load is
applied to the motor and the rotor speed decreases as a function of load and
inertia. And finally, the impact load is removed and the rotor speed
increases momentarily until the slip compensation is reduced based on the
applied load.
When slip compensation is enabled the dynamic speed accuracy is
dependent on the filtering applied to the torque current. The filtering delays
the speed response of the motor/drive to the impact load and reduces the
dynamic speed accuracy. Reducing the amount of filtering applied to the
torque current can increase the dynamic speed accuracy of the system.
However, minimizing the amount of filtering can result in an unstable
motor/drive. The user can adjust the Slip Comp Gain parameter to decrease
or increase the filtering applied to the torque current and improve the
system performance.

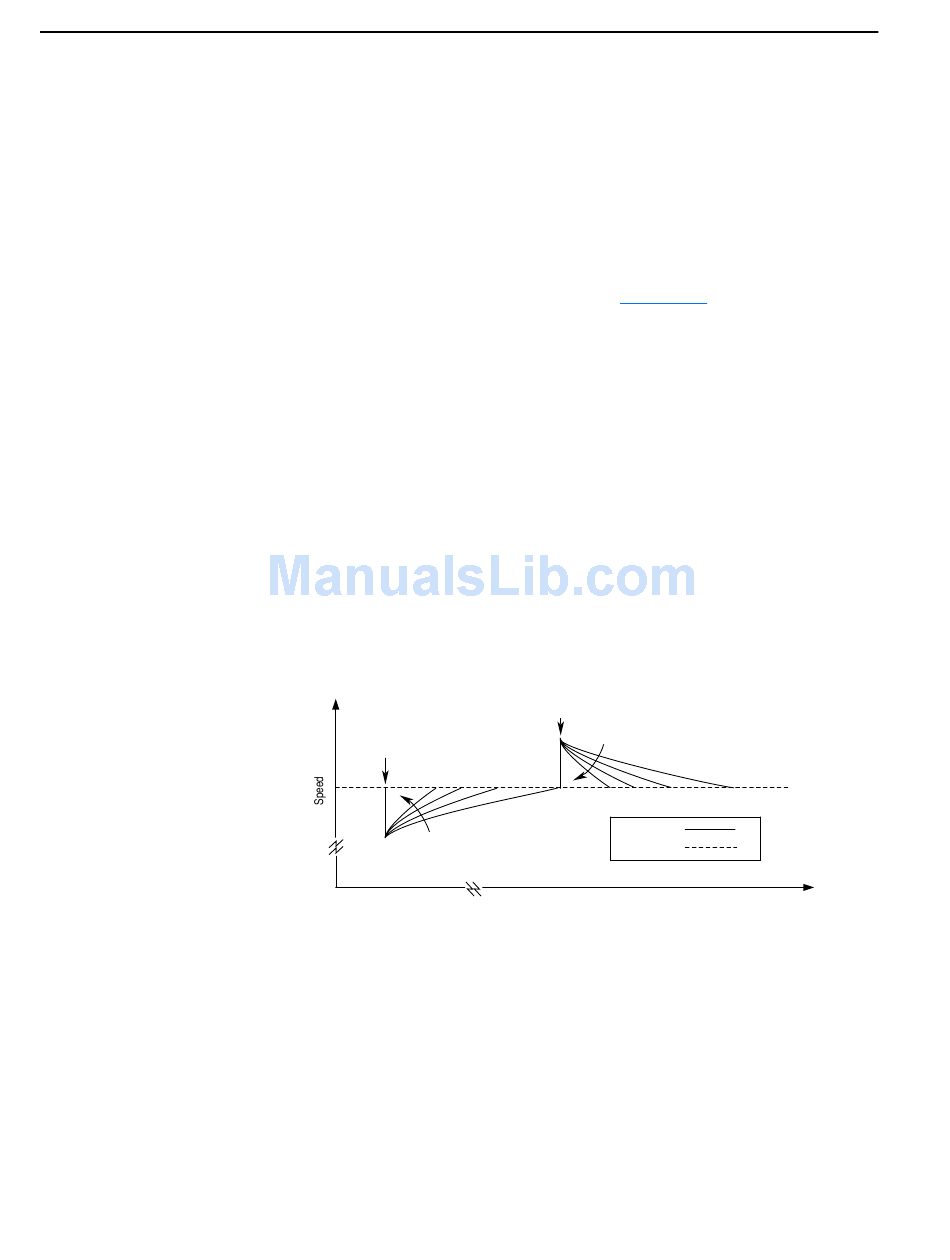

Figure 2.18 Rotor Speed Response Due to Impact Load and Slip Com Gain
Impact Load
Applied
Increasing Slip
Comp Gain
0
0
Application Example - Baking Line
The diagram below shows a typical application for the Slip Compensation
feature. The PLC controls the frequency reference for all four of the drives.
Drive #1 and Drive #3 control the speed of the belt conveyor. Slip
compensation will be used to maintain the RPM independent of load
changes caused by the cutter or dough feed. By maintaining the required
RPM, the baking time remains constant and therefore the end product is
consistent.
With the Slip Compensation feature, the process will only require a new
speed reference when the product is changed. The user will not have to tune
the drive due to a different load characteristic.
Figure 2.18. Initially, the motor is
Impact Load
Removed
Increasing Slip
Comp Gain
Rotor Speed
Reference
Time
