O. Temperature sensor
 Power supply: 100÷240 Vac 50/60 Hz 30 watt
 Switch: on side of box
 Inlet measurements: pH, through BNC
o pH scale: 0÷14.0 pH
o pH precision: +/-0.1 pH
 Temperature Scale: 0÷100 °C (PT100 sensor)
 Pump flow rate with transaxle technology:
o pH: 1.5 l/h (hose 6X10) 1.5 bar
o H
O : 0.4 l/h (hose 3X7), 1.5 l/h (hose 6X10) 1.5 bar
2 2
 Pump relay pH: 10 A 250 V (dry contact)
 Relay for alarm: 10 A 250 V (dry contact)
 Relay for H
O
2
 Dedicated power for pumps: 240 Vac 10 watt
 Input signal: 100÷240 Vac
 Level probe: pH, H
Install the Pool Basic Pro EVO control device on a hard support (vertical wall) where it
can be easily accessed by the operator. Attach the Pool Basic Pro EVO control device
using the provided fixing bracket (distance between centre of holes: 95mm. Hole Ø 6).
Before carrying out any operation inside the equipment, make sure that the switches are
on 0. Unscrew the two screws on the upper part of the equipment by a quarter of a turn
and the front side will fold down on the hinges.
0000137188

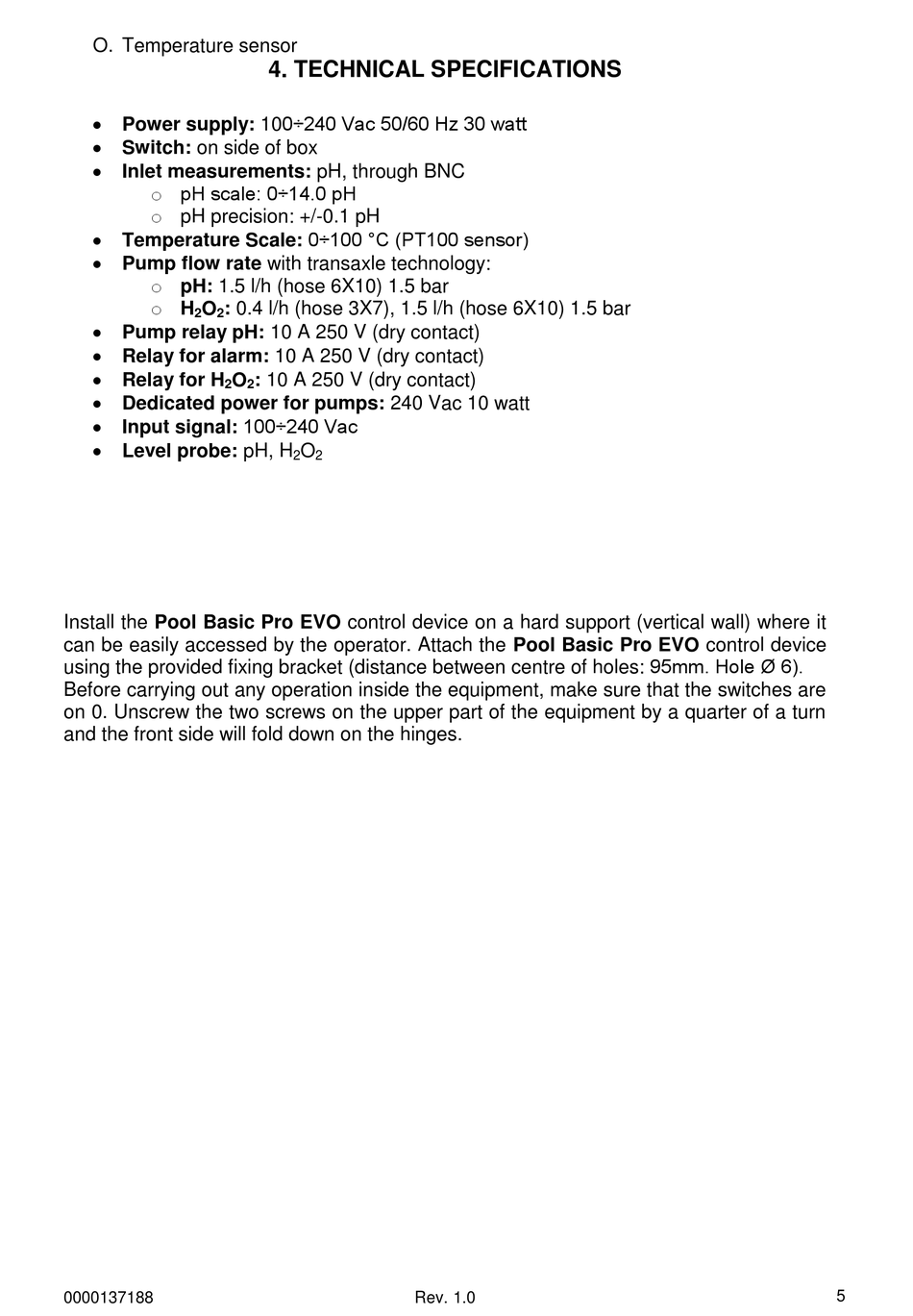

4. TECHNICAL SPECIFICATIONS

: 10 A 250 V (dry contact)
2
O
2 2
