- Page 1 User Manual 0000137188 Rev. 1.0...
-
Page 2: Table Of Contents
CONTENTS 1. GENERAL INTRODUCTION ..........................3 2. INSTALLATION PRECAUTIONS ........................3 3. IDENTIFICATION OF COMPONENTS ........................4 4. TECHNICAL SPECIFICATIONS ..........................5 5. ASSEMBLY INSTRUCTIONS ..........................6 5.1 APPLICATION EXAMPLE ..........................7 6. DESCRIPTION OF THE CIRCUIT ........................8 7. CALIBRATION MENU ............................8 7.1 C ................................8 ALIBRATION 8. -
Page 3: General Introduction

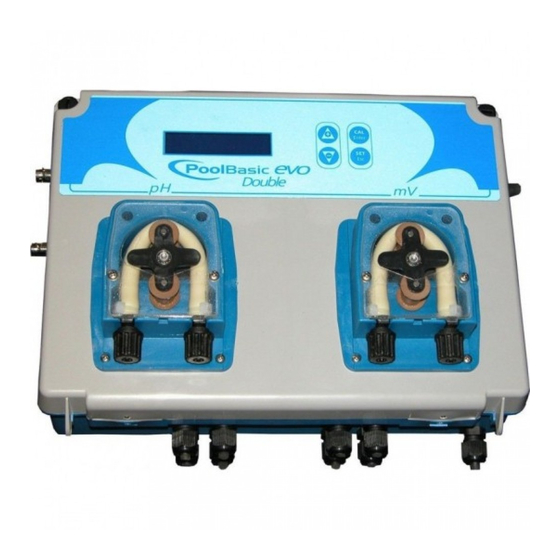

1. GENERAL INTRODUCTION The Pool Basic Pro EVO control method belongs to a new line of instruments carefully developed by the supplier for the innovative management of pools. This device is easy to use and permits continuous control of the pH. -
Page 4: Identification Of Components

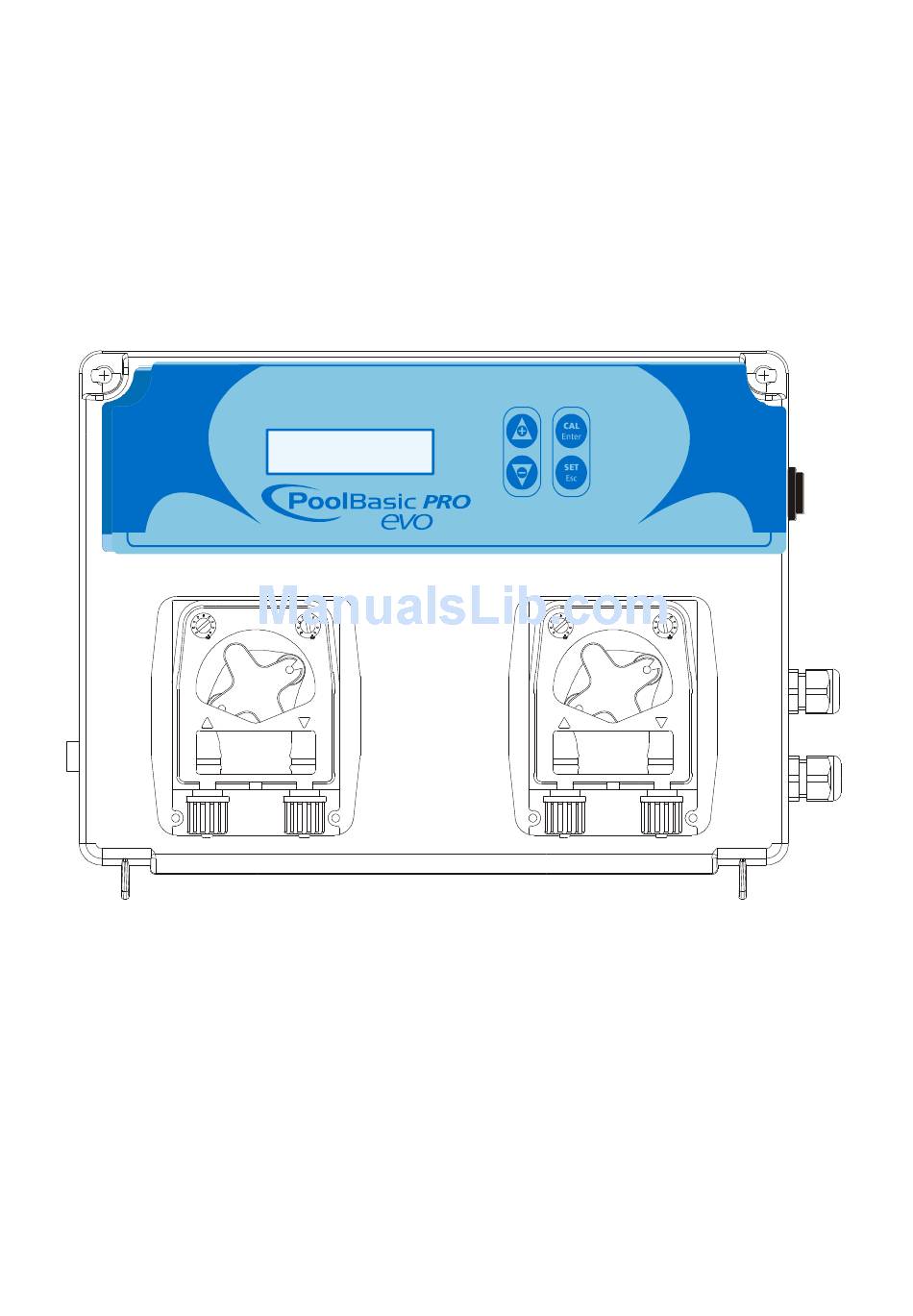

3. IDENTIFICATION OF COMPONENTS Instructions manual PH 7 PH 4 A. Pool Basic Pro EVO regulator B. Suction hose in PVC Crystal 4x6 (4 m) x 2 C. Delivery hose in PE 4X6 (5 m) x 2 D. pH Electrode model SPH-1 E. -
Page 5: Technical Specifications
Input signal: 100÷240 Vac Level probe: pH, H Install the Pool Basic Pro EVO control device on a hard support (vertical wall) where it can be easily accessed by the operator. Attach the Pool Basic Pro EVO control device using the provided fixing bracket (distance between centre of holes: 95mm. -
Page 6: Assembly Instructions
5. ASSEMBLY INSTRUCTIONS Max. length of cable: 6m Lunghezza massima de cavo: 6 mt * NOTA 1 *NOTE 1 Maximum pressure Pressione Massima: 1,5 bar *NOTE 1 * NOTA 2 *NOTE 1: FOR LARGE PUMPS, THE CABLE MUST PASS THROUGH AN AREA OTHER THAN THE POWER * NOTA 1: IL CAVO DEVE PASSARE IN UNA ZONA DIVERSA DA QUELLA DI ALIMENTAZIONE SUPPLY ZONE IN ORDER TO PREVENT CURRENT DISTURBANCES. -
Page 7: Application Example
5.1 APPLICATION EXAMPLE COMPENSATION FILTER HEAT TANK INTERCHANGER RECIRCULATION PUMP Note: The linear distance of the hose between the probe and the point of injection must not be less than 60cm. 0000137188 Rev. 1.0... -
Page 8: Description Of The Circuit
6. DESCRIPTION OF THE CIRCUIT 1) Inlet pH measurement 2) Inlet temperature probe 3) Inlet probe level for product pH 4) Inlet probe level for product H 5) Keyboard input 6) Flow (recirculation pump) 7) Relay for pH product, external pump. 8) Alarm relay 9) Relay for H product, external pump. - Page 9 7.1.1 Calibrating the pH probe Wash the probe Remove the probe from the probe Get some water holder Press CAL 25°C 14pH B.Solution Press and hold down the Cal button Press Cal to start calibration with a for 3 seconds Keep the probe in the buffer solution buffer solution pH 7 pH 7...
-
Page 10: Programming
8. PROGRAMMING The programming menu can be accessed by simultaneously pressing the Cal and Set keys for at least 3 seconds. Upon release of the keys the display will show: Language Display Settings Press Enter and the + and – keys to change Progrma Menu the language: Language... - Page 11 measurement display Settings Use Enter to access the sub-menus: Hose Progrma Menu Conc. Pump Use Enter to modify the dimensions of the hose (3x7 or 6x10mm) and the system automatically calculates the flow Tube 6x10 rate with the other hose without changing any parameters (the factory-set hose is 6x10).
- Page 12 Press Esc to exit any menu and confirm the settings by pressing Enter. Display Settings Press the + and – keys to choose Save or Progrma Menu NoSave, i.e. to save the settings or not and Exit Save press Enter to confirm. DISPLAY VIEW WITH THE SYSTEM ON STAND-BY Stand-by display Operation...
-
Page 13: Dosing Method
9. DOSING METHOD The control of the pumps in the pH scale is carried out through the PWM function. The proportional band is set to values pH= 0.8 pH proportional dosing The instrument allows the chemical measurement to be controlled and modified through the pH Set Point automatically;... -
Page 14: On/Off P Hdosing
ON/OFF pH dosing The instrument allows the chemical measurement to be controlled and modified through the pH Set Point automatically; adjusting the dosing though the pH motor controlled in ON/OFF. The dosing below is obtained by setting the following parameters: ... -
Page 15: Activations
10. ACTIVATIONS Flow Function Through the recirculation pump. High voltage input 100 ÷ 240 Vac, the dosing system is switched on. High voltage input is off (the recirculation pump is switched off), the dosing system shows FLOW flashing. 11. ALARMS Lev pH= pH product level probe alarm. -
Page 16: List Of Possible Anomalies And Relative Solutions
13. LIST OF POSSIBLE ANOMALIES AND RELATIVE SOLUTIONS ANOMALY CAUSE SOLUTION 1) Check for possible short circuits on the electrode instrument connection cable (between the cable’s core and the external instrument Problem with the cable and/or shielding). always indicates pH connector. -
Page 17: Handling
14. HANDLING Hose replacement: Position the roller at 20 past 10, Completely release left Release the cover by pulling the turning it in the direction of the connector, holding it taut towards the left connector upward. circular arrow. outside, and turn the roller in the direction of the circular arrow so that the hose is freed up to the right connector. -
Page 18: Storing The Pump After Use
15. STORING THE PUMP AFTER USE When the regulation device must be stored, clean water should be pumped through the hose in order to rinse it. Then position the probe holder at 7h05, turning in the direction indicated by the circular arrow. -
Page 19: Warnings
WARNINGS PRODUCTS TO BE USED: pH Reduction: product with a sulphuric acid base, easily found on the market. pH Increase: product with an alkaline acid base PRODUCTS NOT RECOMMENDED Do not use hydrochloric acid. Ask the installer about all other products. PROBE WARNINGS ...
