WMZ
2.

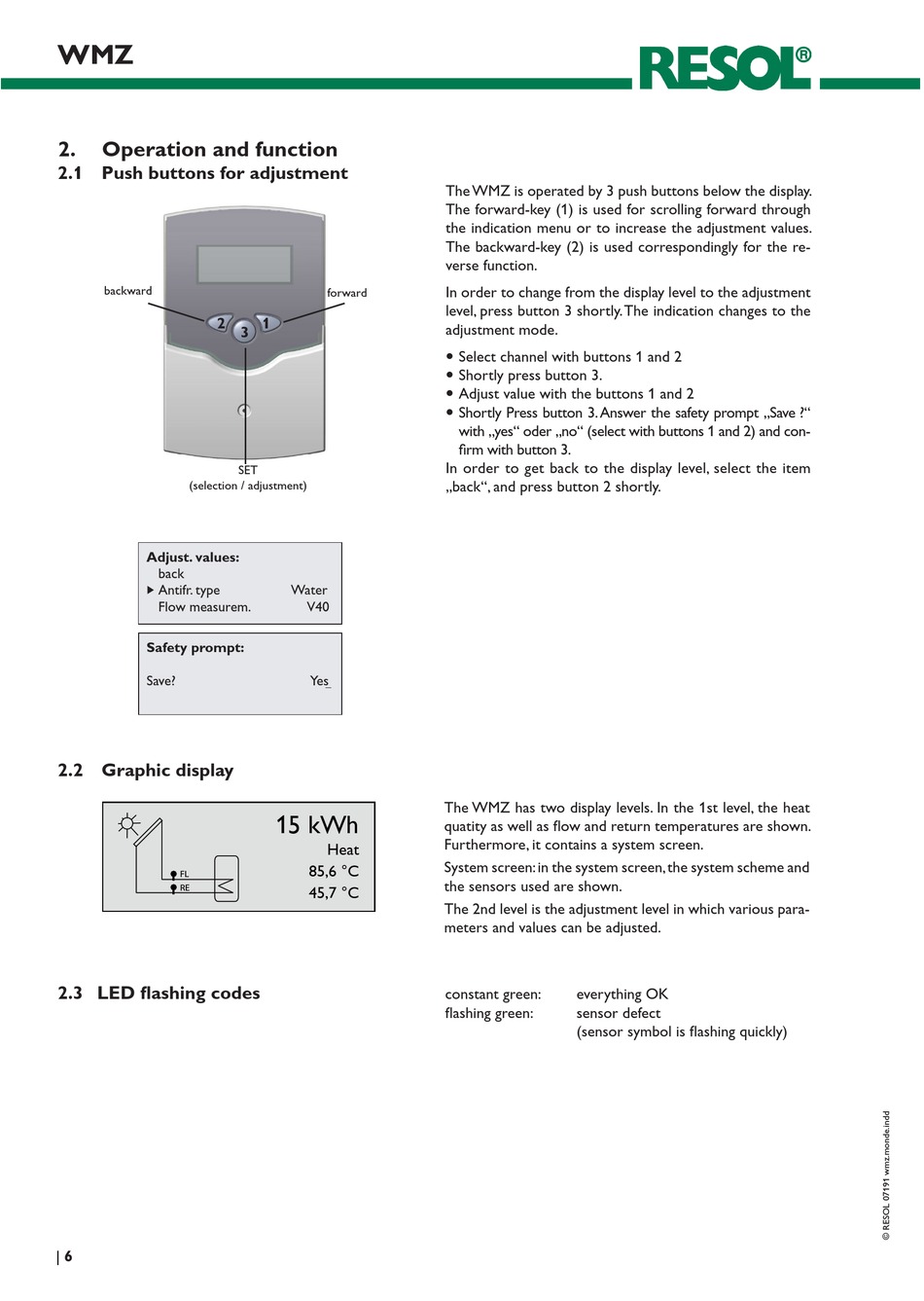

Operation and function

2.1 Push buttons for adjustment
backward
2
(selection / adjustment)
Adjust. values:
back
Antifr. type
Flow measurem.
Safety prompt:
Save?

2.2 Graphic display

FL
RE

2.3 LED flashing codes

6
|
forward
1
3
SET
Water
V40
Yes
15 kWh
Heat
85,6 °C
45,7 °C
The WMZ is operated by 3 push buttons below the display.
The forward-key (1) is used for scrolling forward through
the indication menu or to increase the adjustment values.
The backward-key (2) is used correspondingly for the re-
verse function.
In order to change from the display level to the adjustment
level, press button 3 shortly. The indication changes to the
adjustment mode.
 Select channel with buttons 1 and 2
 Shortly press button 3.
 Adjust value with the buttons 1 and 2
 Shortly Press button 3. Answer the safety prompt „Save ?"
with „yes" oder „no" (select with buttons 1 and 2) and con-
firm with button 3.
In order to get back to the display level, select the item
„back", and press button 2 shortly.
The WMZ has two display levels. In the 1st level, the heat
quatity as well as flow and return temperatures are shown.
Furthermore, it contains a system screen.
System screen: in the system screen, the system scheme and
the sensors used are shown.
The 2nd level is the adjustment level in which various para-
meters and values can be adjusted.
constant green: everything OK
flashing green: sensor defect
(sensor symbol is flashing quickly)
