GUILD

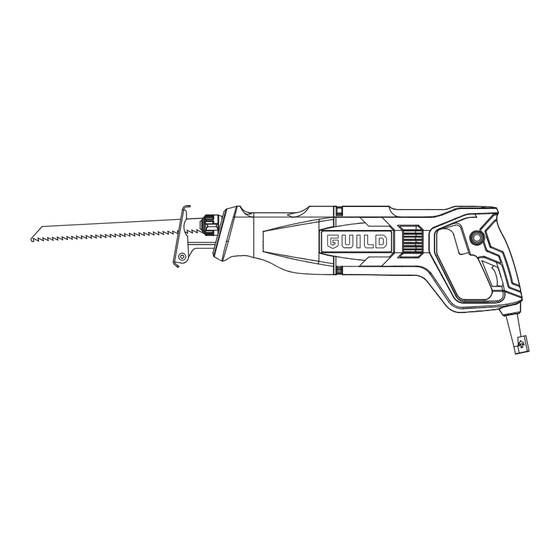

800W Reciprocating Saw
Instruction Manual
Important
- Please read these instructions fully before operating or maintaining your Guild reciprocating saw
These instructions contain important information that will help you get the best from your Guild
reciprocating saw, ensuring it remains safe to operate.
If you need help or have damaged or missing parts, call the Customer Helpline on 0333 3201989
After Sales Support
UK/Ireland 0333 3201989
Help@guildpowertools.co.uk
PSR800G

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PSR800G and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Guild PSR800G

  • Page 1 Important - Please read these instructions fully before operating or maintaining your Guild reciprocating saw These instructions contain important information that will help you get the best from your Guild reciprocating saw, ensuring it remains safe to operate. If you need help or have damaged or missing parts, call the Customer Helpline on 0333 3201989...
  • Page 2: Table Of Contents

    Contents Safety Information ����������������������������������������������������������������������������������������������������3 In The Box �����������������������������������������������������������������������������������������������������������������7 Accessories ��������������������������������������������������������������������������������������������������������������8 Operating Instructions ����������������������������������������������������������������������������������������������8 Working Hints For Your Reciprocating Saw�������������������������������������������������������������12 Maintenance ����������������������������������������������������������������������������������������������������������� 12 Technical Data �������������������������������������������������������������������������������������������������������� 13 Environmental Protection ��������������������������������������������������������������������������������������� 14 Guarantee ��������������������������������������������������������������������������������������������������������������� 15 Declaration of Conformity����������������������������������������������������������������������������������������15 Plug Replacement (Uk & Ireland Only) ������������������������������������������������������������������� 16 Customer Helpline 0333 3201989...
  • Page 3: Safety Information

    Safety Information Important - Please read these instructions fully before starting assembly Warning Symbols The following warning symbols appear throughout this assembly manual and indicate the appropriate safety measures you should take when assembling and operating the reciprocating saw. To reduce the risk of injury, Please read the instruction manual Wear eye protection Wear ear protection Wear dust mask...
  • Page 4 Safety Information Important - Please read these instructions fully before starting assembly General Power Tool Safety Warnings WARNING! Read all safety warnings and all instructions� Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference�...
  • Page 5 Safety Information Important - Please read these instructions fully before starting assembly General Power Tool Safety Warnings d) Remove any adjusting key or wrench before turning the power tool on� A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach�...
  • Page 6 Safety Information Important - Please read these instructions fully before starting assembly Reciprocating Saw Safety Warnings 1� Hold reciprocating saw by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring or its own cord� Cutting accessory contacting a “live”...
  • Page 7: In The Box

    In The Box Parts Lock on button Blade for wood Main handle Pivoting foot plate Guide plate adjustment Blade holder Allen key On/Off switch Accessories Blade for wood Allen key Customer Helpline0333 3201989...
  • Page 8: Operating Instructions

    Operating Instructions NOTE: Before using the tool, read the instruction book carefully. Intended Use This tool is intended for sawing wood, plastic, metal and building materials while resting firmly on the workpiece. It is suitable for straight and curved cuts. ASSEMBLY REPLACING / INSERTING THE SAW BLADE (SEE FIG A) WARNING: Remove the plug from the socket before carrying out any adjustment,...
  • Page 9 Operating Instructions OPERATION 1� PIVOTING FOOT PLATE ADJUSTMENT (SEE FIG C) The adjustable pivoting foot plate (2) adapts to the required angular position of the surface. It must be held firmly against the material being cut to reduce saw vibration, blade jumping and blade breakage.
  • Page 10 Operating Instructions 4� CUTTING INSTRUCTION PLUNGE CUTTING (SEE FIG F1, F2) WARNING: The plunge cutting procedure is only suitable for cutting soft materials such as wood, plaster board or similar! Do not work metal materials with the plunge cutting procedure! Use only short saw blades for plunge cutting.
  • Page 11 Operating Instructions FLUSH CUTTING (SEE FIG G1, G2) Pay attention that the saw blade always extends beyond the diameter of the material being worked� There is danger of kickback. It is possible to make cuts extremely close to floors, walls and other difficult areas. Insert the blade shank into the blade clamp with the blade teeth facing up (opposite to normal working position).
  • Page 12: Working Hints For Your Reciprocating Saw

    Work Hints For Your Reciprocating Saw If your power tool becomes too hot, set the speed to maximum and run a no load for 2-3 minutes to cool the motor. Always ensure the work-piece is firmly held or clamped to prevent movement. The blade guard must be held firmly against the material being cut to reduce saw vibration, blade jumping and blade breakage.
  • Page 13: Technical Data

    Technical Data Technical Data Table Rated Voltage 230V-240V ~ 50Hz Rated Power 800W Rated No-load speed 0-2700/min Stroke length 20mm Cutting capacity max. Wood 115mm Steel 10mm Plastic 15mm Protection class Machine weight 2.48kg Noise Information A weighted sound pressure : 89.0dB(A) A weighted sound power : 100.0dB(A)
  • Page 14: Environmental Protection

    Technical Data Vibration Information WARNING: To be accurate, an estimation of exposure level in the actual conditions of use should also take account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle but not actually doing the job. This may significantly reduce the exposure level over the total working period.
  • Page 15: Guarantee

    Your statutory rights remain unaffected. Issue1 08/2015 Declaration of Conformity This Guild 800W Reciprocating Saw model number PSR800G fully complies with the Machinery Directive 2006/42/EC, Electromagnetic Compatibility Directive 2004/108/ EC(before 2016/04/20) and 2014/30/EC(since 2016/04/20), RoHS Directive 2011/65/EU and...
  • Page 16: Plug Replacement (Uk & Ireland Only)

    Plug Replacement (Uk & Ireland Only) If you need to replace the fitted plug then follow the instructions below. IMPORTANT The wires in the mains lead are colored in accordance with the following code: Blue – Neutral Brown – Live As the colors of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows.
