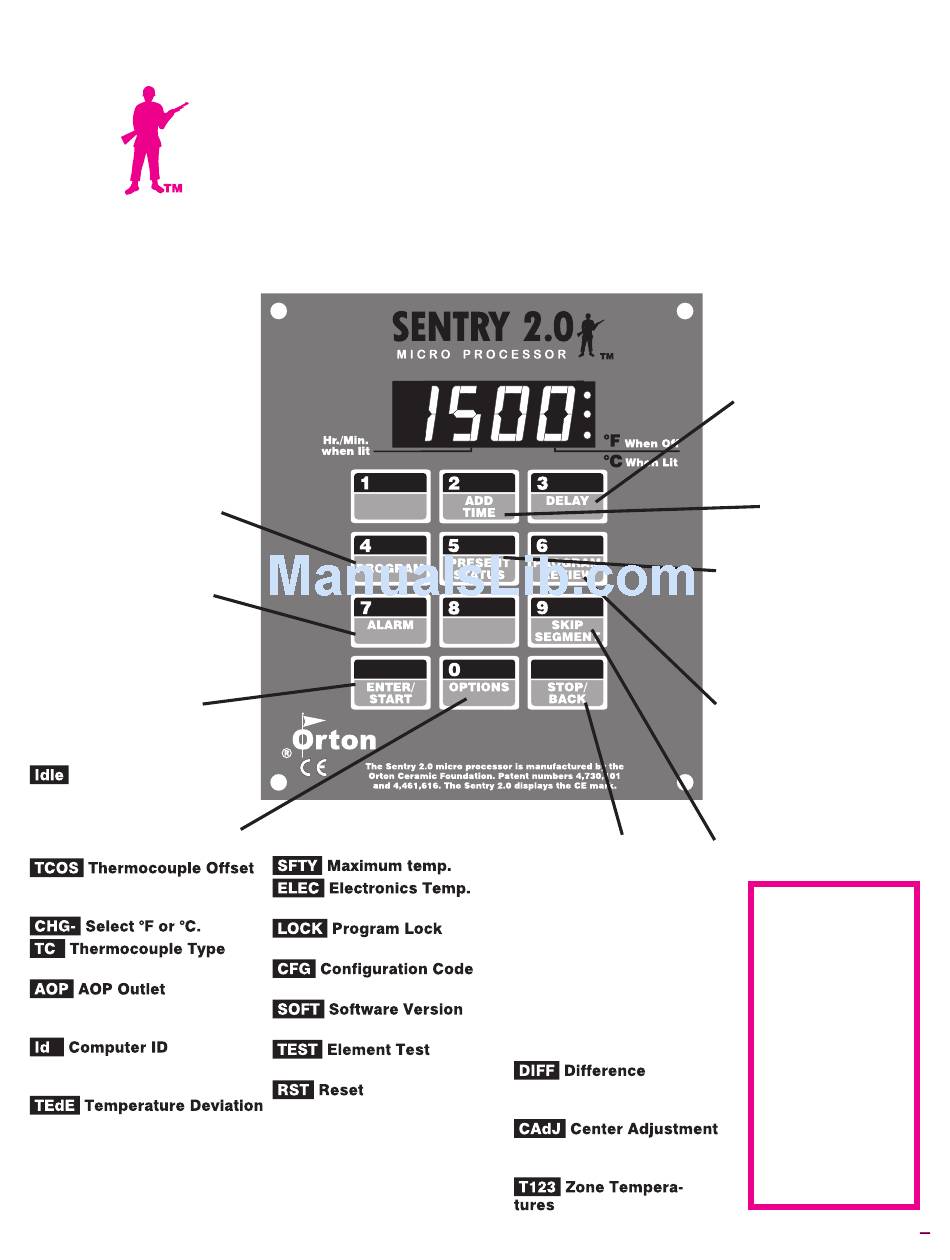

Complete Ramp-Hold Operating Instructions
Digital Temperature Controller
Program (pg 7, 11)
From IdLE, press 4.
Select stored program (1 - 4).
Enter rate, temperature, and
hold for each segment.
During firing, press 4.
Change the current segment
temperature. Press Enter.
Change the hold. Press En-
ter. The kiln will continue fir-
ing.
Alarm (pg 11)
From IdLE or during
firing, press 7.
Enter a temperature. When
alarm sounds during firing,
press Enter.
Enter/Start (pg 7)
Press Enter/Start after each
step in programming a firing.
Press Enter/Start once from
to begin the firing.
Standard Options
(pg 13-16)
Calibrate the thermocouple
temperature.
lect Type K, S or R.
Select vent
fan or alarm. This is a special op-
tion not on all kilns.
Select identi-
fication number for output to a
computer.
Set temperature sensitivity of
error codes.
Sentry
Check board for overheating.
program tamper-proof.
Se-
technicians.
For technicians.
tics tool for checking elements.
Removes thermo-
couple offset and returns the
board to factory defaults.
2.0
Stop/Back (pg 6)
Press during firing or
programming.
Stops a firing. In Options,
takes you back to IdLE.
Make a
During programming,
takes you back one step
For
each time key is pressed.
Multiple Zone
Options (pg 13)
Diagnos-
temperature difference be-
tween any two zones.
Change center heat of some
two-zone kilns.
Shows temperature of
each zone.
Delay (pg 10)
From IdLE, press 3.
Enter time in hours:minutes.
Delays the start of firing.
Add Time (pg 10)
During firing, press 2.
Each additional key press
adds five minutes to a hold.
Present Status (pg 11)
During firing, press 5.
Shows the segment that is cur-
rently firing.
Program Review (pg 8)
From IdLE or during
firing, press 6.
Shows the program that is
loaded in memory and ready to
fire, or the one that is firing.
Skip Segment (pg 11)
During firing, press 9, then
Enter.
Skips to the next ramp.
Common
Display
Messages
For a detailed list,
see pages 20-21.
IdLE = Ready
RA 1 = Rate
Largest
F 1 = Target
temperature
Hd 1 = Hold
CPLT = Fired to
completion
1
