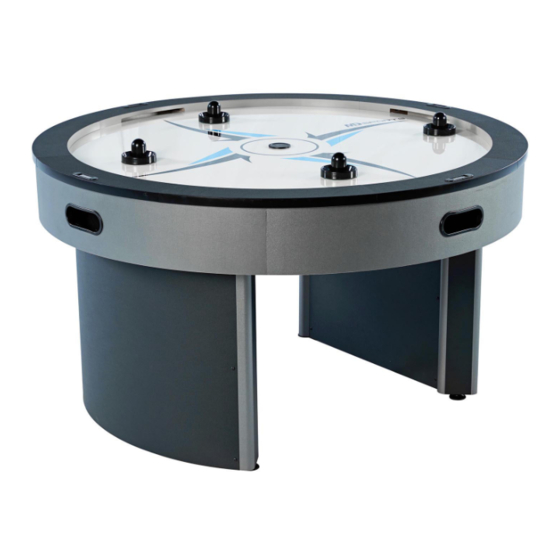

Round Hockey Table
Electronic Scorer
-----------------------------------------------------------------------
,3
page 6
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for MD SPORTS SAM'S.com_AWH055_017M
Summary of Contents for MD SPORTS SAM'S.com_AWH055_017M
- Page 1 SAM'S.com_AWH055_017M Round Hockey Table Electronic Scorer Table of Contents Maintain airflow on playfield ---------------- - --------------------------------------------------- page No flash on Scorer Displays-----------------------------------------------------------------------page 2 No lighting on Scorer Displays ----------------------------------------------------------------- page 4 No sound on Electronic Scorer --------------------------------------------------------------- page 5 Unworkable button on the Control Box -------------------------------------------------- page 5...
- Page 2 Maintain airflow on playfield Step 1: How to keep the playfield clean and maintain smooth airflow. a. Use a pin to clean up holes when you see any signs of dust on playfield. b. Use furniture polish; such as "Pledge" to clean up any scuff marks and to maintain smooth airflow.
- Page 3 No flash on Scorer Displays Step 1: Please check the Control Box if it is plugged into the power source and connected well. Plug or Re-plug the Control Box into the power source. Control Box “AC 120V” To Wall Outlet Step 2: Please check the Adapter Wire if it is plugged into the Electronic Scorer and connected well.
- Page 4 Step 4: Please check the Electronic Scorer if it is connected with the Control Box well. Plug or Re-plug the Control Box into the Electronic Scorer. Electronic Scorer / Marcador Electrónico Control Box / Caja de Control Step 5: Please check the "FAN ON / OFF" switch and the "SCORE BOARD" button if they are turned on. Re-press the "FAN ON / OFF"...
- Page 5 No lighting on Scorer Displays Step 1: Please check the “SCORE BOARD” button on the Control Box if it is turned on. Re-press the “SCORE BOARD” button on the Control Box. "SCORE BOARD" Control Box / Caja de Control Step 2: Please check the “Puck Catcher Wires” if they are connected with the Electronic Scorer well. Plug or Re-plug the Puck Catcher Wires into the Electronic Scorer.
- Page 6 No sound on Electronic Scorer Replace the Electronic Scorer with a new one. Unworkable button on the Control Box Step 1: Please check the “Electronic Scorer Operation Guides” on the Assembly Instruction. Refer to the Electronic Scorer Operation Guides and re-operate. If still, inoperable, please replace the Control Box with a new one.
- Page 7 Replacement Parts# Adapter _________________________________ #P5 Scorer Display ____________________________#P6 Control Box ______________________________#P7 Electronic Scorer _________________________#P8 Puck Catcher Wire ________________________#P9 If you use the websie to order parts, please do not call our 800 number as well or CHARGES for duplicate shipments will be accessed. Please contact with us if you have any questions.
