716400816

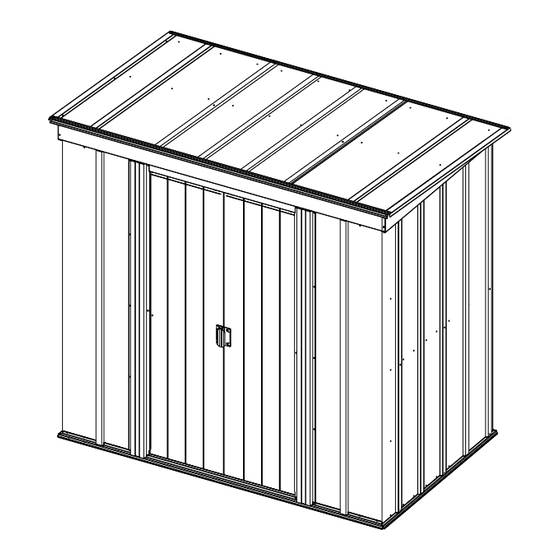

Owner's Manual
& Assembly Guide
Gloves must be worn
at all times to reduce
risk of injury!
1-800-851-1085
assist@arrowsheds.com
BUILDING DIMENSIONS
†
Approx.
Storage
Size
6' x 4'
21 Sq. Ft. 113 Cu. Ft.
2
1,8 m x 1,1 m
2,0 m
* See Inside for Detailed Safety Information.
or
†
Size rounded off to the nearest foot
Exterior Dimensions
(Roof Edge to Roof Edge)
Area
Width
76 1/2"
3,2 m 3
194,3 cm
119,4 cm
Depth
Height
Width
47"
67 3/4"
71 1/4"
172,1 cm
181,0 cm
www.arrowsheds.com
Model No. EPA64
Base
74" x 45 1/4"
Size
188,0 cm x 114,9 cm
For proper base construction see page 12
Interior Dimensions
(Wall to Wall)
Depth
Height
42 1/2"
66 9/16"
108,0 cm
169,1 cm
01BL
6' x 4'
Nominal Size
Door
Opening
Width
Height
32"
60"
81,3 cm
152,4 cm
Advertisement
Table of Contents
Related Manuals for Arrow Storage Products EPA64
Summary of Contents for Arrow Storage Products EPA64
- Page 1 01BL 716400816 Owner’s Manual & Assembly Guide www.arrowsheds.com Model No. EPA64 6’ x 4’ Gloves must be worn at all times to reduce risk of injury! Nominal Size Customer Service: 1-800-851-1085 Base 74” x 45 1/4” assist@arrowsheds.com Size 188,0 cm x 114,9 cm...
- Page 2 SAFETY PRECAUTIONS... Safety precautions MUST be followed at all times throughout the construction of your building! Practice caution with the tools being used in the Care must be taken when handling various pieces assembly of this building. Be especially familiar with of your building since many contain sharp edges.
- Page 3 ASSEMBLY TIPS & TOOLS Watch the Weather Closely: Be sure the day you choose to install your building is dry and calm. Do NOT attempt to assemble your building on a windy day. Be careful on wet or muddy ground. Use Teamwork: Two or more people are required to assemble your building.
- Page 4 FREQUENTLY ASKED QUESTIONS How long will it take to assemble the building? Assembly time depends on a variety of factors, including roof design, tools available, DIY skill and the pace at which you work. Guidelines for each shed assembly are approximate AFTER completion of the base, and assume two or more people working on the assembly.
- Page 5 What kind of base do I use? You can: •Use an Arrow Base Kit •Pour a concrete slab •Build a wood deck/fl oor (use exterior-grade plywood) •Use patio blocks •Build on crushed gravel, dirt or grass Arrow provides a base kit accessory that is an option for most building sizes. If you are building a wood deck/fl oor, an Arrow fl...
- Page 6 What if the rear wall angle and channels are too large to fi t inside of the rear wall panels? Check the dimensions of wall assemblies. They should be slightly smaller than the fl oor frames. Lay the assemblies on top of the rear fl oor frame and pull them up to the top of the wall panels causing the corner panels to stand erect and not lean inward.
- Page 7 HARDWARE LIST... 07BL Part Part Qty. Description List Hardware Views by Key No. 65103 Hex Nut (#8-32) 6900A Black Screw (#10B x 1/2) (13 mm) 65923 Small Bolt (#8-32 x 3/8) (10 mm) 65004 #2 Phillips #2 Phillips Small Screw (#8AB x 5/16) (8 mm) 11/32 Hex.
- Page 8 PARTS LIST... 08BL Part Part Qty. Selected End Views by Key No. Description List 10569 Roof Beam 10564 Side Wall Angle 10562 Right Gable 80015 Left Gable 80002 Roof Trim 10558 Right Roof Panel 80011 Left Roof Panel 10499 Horizontal Door Brace 6657 Door Handle Brace 6515...
- Page 9 ASSEMBLY BY KEY NO. 09BL...
- Page 10 ASSEMBLY BY KEY NO. 10BL Roof Doors...
- Page 11 ASSEMBLY OVERVIEW 11BL Install Corner Panels, Side Angles, Build the Floor Frame and Rear Angles Attach Header, Gables, and Roof Beam Install Wall Panels, Wall Channels, and Door Jambs Install Roof Panel, Roof Trim, and Install Doors Corner Cap Shed is now complete.
- Page 12 CONSTRUCTING A BASE... 12AH No matter which of the options below you choose for a base, an ARROW ANCHORING KIT is recommended as an effective method of properly securing your building after assembly is complete. OPTION 1: Directly on ground (earth) Assemble your building directly on level ground (grass, dirt, rock, sand, etc.).
- Page 13 13BL Step 1: Door Track/Header Assembly END VIEW You will need for this page: CORRECT INCORRECT 10572 9396 Long Leg on top. Door Track Front Header (QTY:8) Door Slide Using the door track, with small holes on top, Door Slide join the header, short legs on top, as shown using screws.
- Page 14 Step 2: Floor Assembly 14BL You will need for this page: 9399 10544 9403 Rear Floor Side Floor Front Floor (QTY:8) (QTY: 2) Frame Frame Frame If using a wood platform or concrete slab do NOT fasten your Floor Frames to your Base at this time.
- Page 15 Step 3: Corners/Wall Panels 15BL You will need for this page: 10563 9389 10561 Front Corner Rear Corner Wall Panel (QTY: 28) (QTY: 4) Panel Panel Be cautious when maneuvering and placing Panels. Once Panels begin to go up it is important to be able to fi...
- Page 16 Step 4: Frames 16BL You will need for this page: 10565 9925 10545 10564 Rear Wall Side Wall Side Wall Rear Wall (QTY: 2) (QTY: 38) Door Track Angle Angle Channel Channel Fasten the rear wall angle across the inside top of the rear wall using screws. Fasten the rear wall channel across the middle of the rear wall using screws.
- Page 17 Step 5: Wall Panels 17BL You will need for this page: 6515 (QTY: 30) (QTY: 3) Wall Panel Fasten the wall panels at the top and bottom with screws. Fasten the center of each panel to the wall channel with screws. Fasten overlapping ribs as before.
- Page 18 Step 6: Door Jamb 18BL You will need for this page: 9369 Plug (QTY: 2) (QTY: 8) Door Jamb (QTY: 6) The door jambs reinforce the door opening and provide an attractive trim. Follow these steps for both door jambs. Fasten a door jamb to the front panel with three bolts, nuts and acorn nuts as shown.
- Page 19 Step 7: Roof Beam Step 7: Left Door Assembly 19BL You will need for this page: 10569 Roof Beam 10569 (QTY:2) The dimension stated below measures from the end of the angle towards the front of the building. Fasten the roof beam, small holes on top, to the side wall angle with screws.
- Page 20 Roof Install Prep Page 20BL Use the information on this page to complete steps 8 and 9. If Roof Beam holes do not line up with Roof Panel holes, shift the building from left to right. If this does not help, your building may not be level. Shim the corners until holes line up.
- Page 21 Step 7: Continued Step 8: Right/Left Roof Panels 21BL You will need for this page: 10558 80011 Right Roof Left Roof (QTY: 18) Panel Panel Measure the building diagonally again and make adjustments to make sure the building is square and level. This will make the roof panels fi t better, and holes will align. Installing the roof panels is best done with a step ladder.
- Page 22 Step 9: Roof Panel Step 8: Floor Assembly 22BL You will need for this page: 10557 (QTY: 12) (QTY: 2) Roof Panel Narrow roof panel crimped rib is overlapped by wide rib of adjacent panel where possible. Install a roof panel 10557, in the position shown. Fasten middle of rib overlap with a bolt and nut. 10557 FASTEN TO HEADER WITH SCREWS Front...
- Page 23 Step 10: Step 9: Corner Panels Gables 23BL You will need for this page: 80015 10562 (QTY: 10) Right Gable (QTY: 6) Left Gable Position the right gable at the right end of the completed roof by tucking top edge inside the rib of the right roof panel and sliding the lower leg inbetween the leg of the side wall angle and top edge of the wall panels.
- Page 24 Step 11: Roof Trim 24BL You will need for this page: 66183L 80002 66183R Left Roof Right Roof (QTY: 4) (QTY: 4) Trim Cap Trim Cap Roof Trim Attach the roof trim to the ends of the roof panels on the A single screw fastens both trim pieces at the overlap.
- Page 25 Step 12: Door Assembly 25BL You will need for this page: 10499 10476 6657 Door Handle Brace Horiz. Brace Handle (QTY: 10) (QTY: 4) Door Guide Attach the door handle brace and handle to the right door with 1 bolt as shown. Don’t tighten bolt yet.
- Page 26 26BL Step 13: Door Installation & Adjustment You will need for this page: Assemblies from Step 12: • Right Door Assembly (1) • Left Door Assembly (1) (QTY: 8) From inside the building, put the Gable bottom of the right door assembly Door Slide (on your left when you are inside) behind door jamb into the front...
- Page 27 ANCHORING OPTIONS... IMPORTANT: • If you have swing doors, they must hang and swing level before anchoring building. • Anchor your building at this time. See below for details on anchoring. • If you have purchased a Floor Frame Kit, you should install it at this time. •...
- Page 28 CARE & MAINTENANCE... Exterior Care: For a long lasting fi nish, clean and wax the exterior surface. We recommend washing with a mild soap solution. DO NOT use power washing to clean your shed. Using a spray automotive type wax periodically on the exterior is highly recommended if you are in a high humidity or coastal climate region.
- Page 29 ARROW ACCESSORIES... ROOF STRENGTHENING FLOOR FRAME KITS (heavy snow load) KITS Extra roof beams and gable braces MODELS FB47410, FB5465, designed for added protection against FB106-A, FB109-A and FB1014-A heavy snow accumulation. Increases the strength of your roof. A simple fl oor frame system made of heavy-duty, hot-dipped AFTER BEFORE galvanized steel.
- Page 30 ASSEMBLY NOTES...
- Page 31 ASSEMBLY NOTES...
- Page 32 ASSEMBLY NOTES...
