ADVANCED SETTINGS

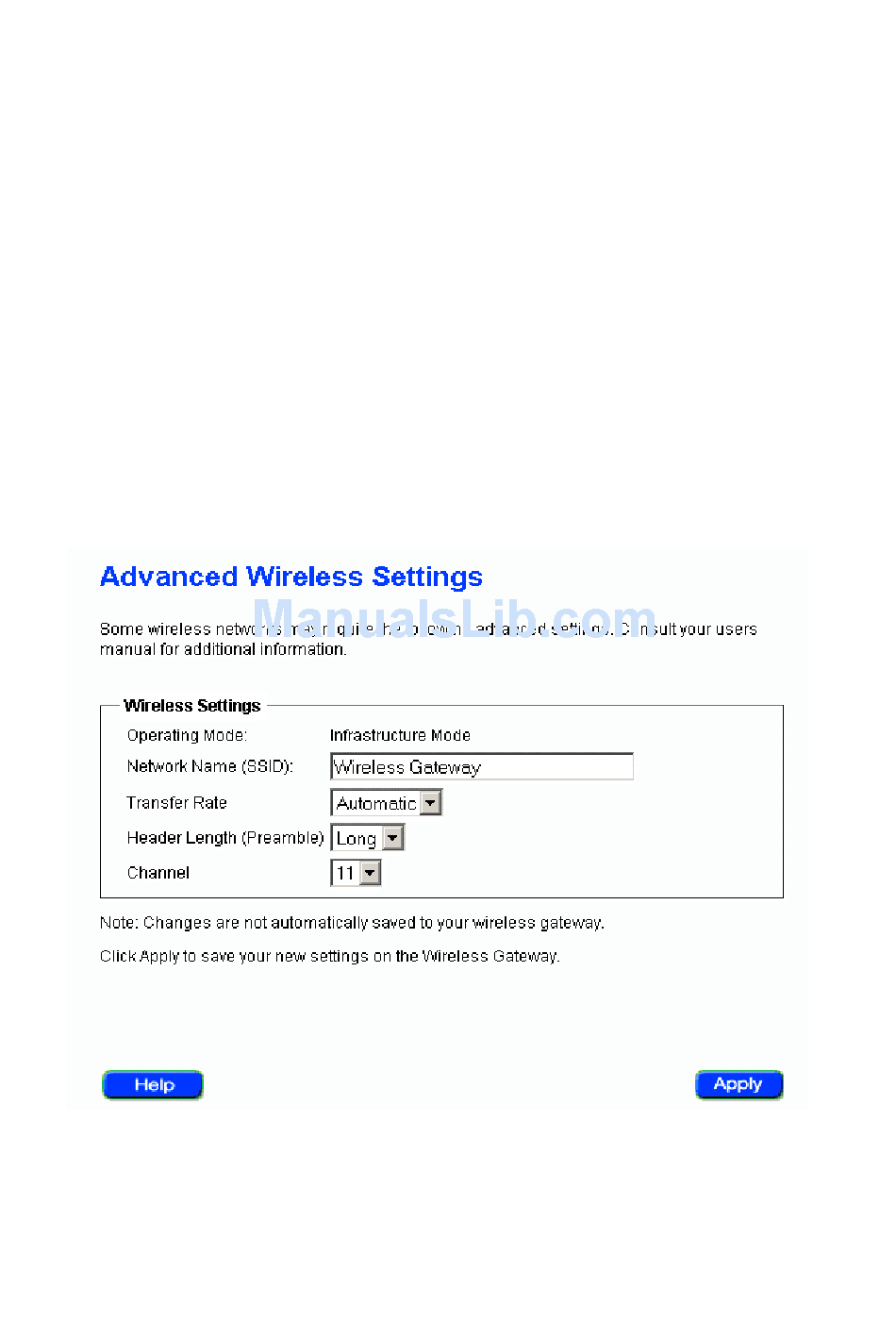

Here allow user to set SOHO AP wireless IP and operation channel. The default
value for RF are as followed:
1. ESSID: Wireless Gateway, Channel: 11
2. The encryption panel allows the entry of four keys for 64-bit encryption and one
set of 128-bit key according to WEP function select. To be written to the driver
and registry, each key must consists of hex digits, which means that only digit 0-
9 and letters A-F are valid entries. If entered incorrectly program will not write
keys to a driver.
2.After changing the setting, click
Click on the Apply button to save your settings.
Apply to save and restart the system.
13
