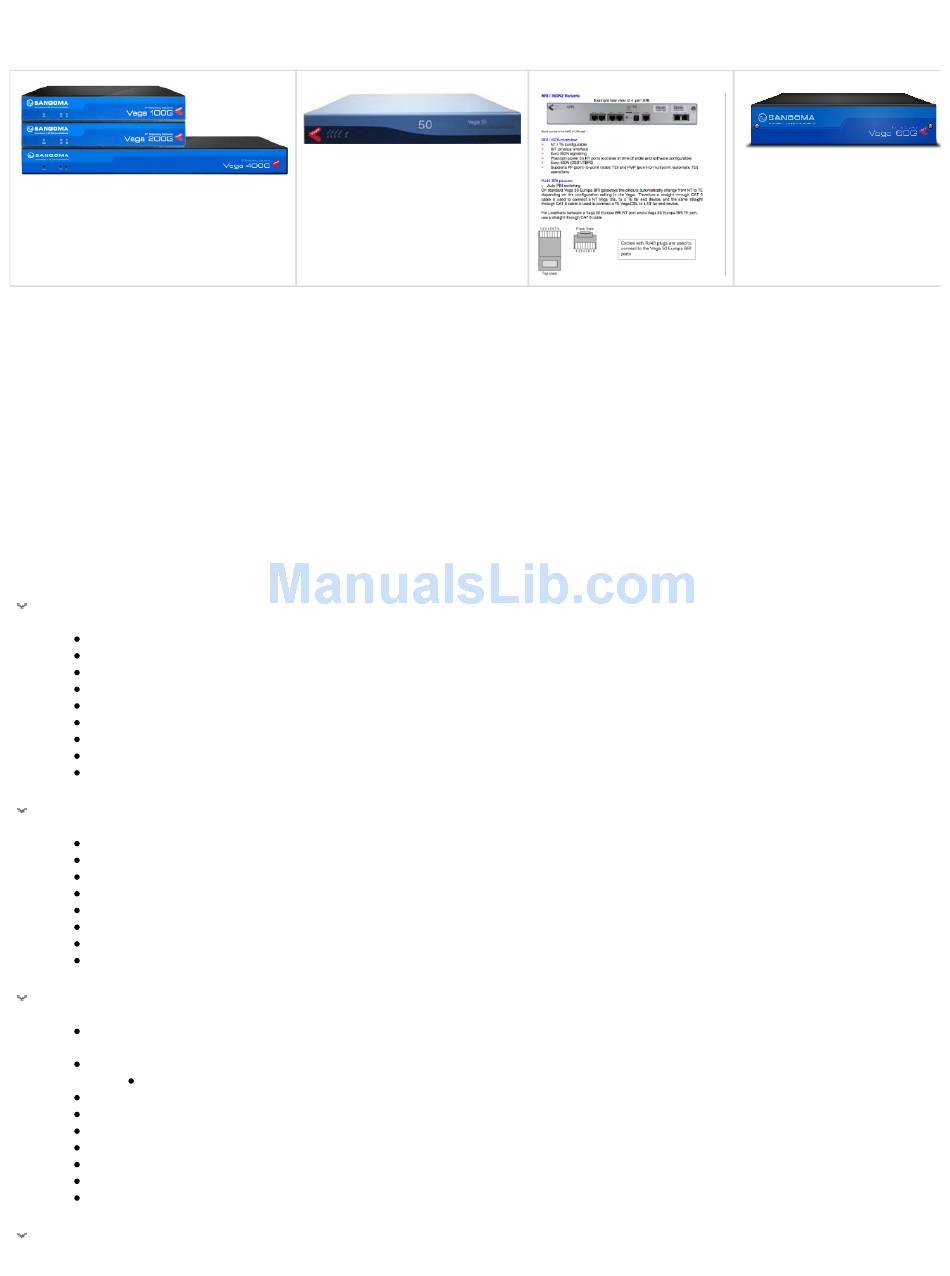

Hardware Installation
Unboxing
When opening up your Vega Gateway packaging, carefully inspect the components for any signs of damage due to shipping.
If you notice any damaged components please contact your point of purchase and indicate the issue.
Do not continue to install your Vega Gateway if any of your components are damaged.
What's In the Box
Your Package should contain the following items:

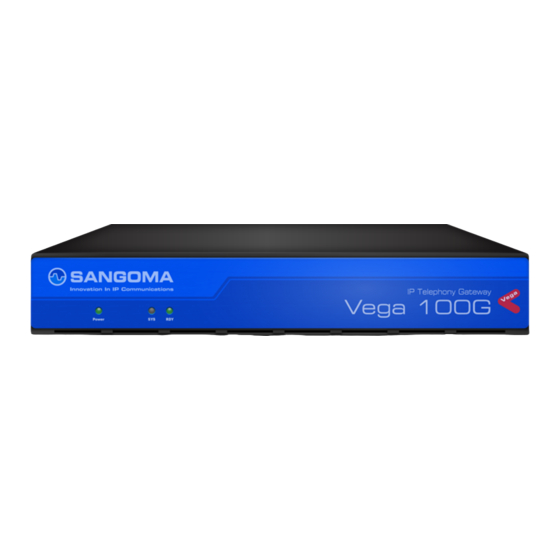

Vega 100G/200G
1 Vega VoIP Gateway Appliance
2 E1/T1 RJ45 CAT5 cables (Red colour)
2 LAN Cables (Yellow colour)
1 RJ45-USB Console Cable (light blue colour)
mounting feet
External Power brick
AC power Cord (Country specific)
Quick Start Guide
Warranty and License Information
Vega 400G
1 Vega 400G VoIP Gateway Appliance
4 E1/T1 RJ45 CAT5 cables (Red colour)
2 LAN Cables (Yellow colour)
1 RJ45-USB Console Cable (light blue colour)
2 Mounting brackets
Power Cord (Country specific)
Quick Start Guide
Warranty and License Information
Vega 50 Analog
1 Vega 50 VoIP Gateway Appliance
Vega 50 Analog
4-8 Yellow Analog cables (amount dependent on number of analog ports)
2 LAN Cables (Yellow colour)
1 RJ45-to-serial Console Cable
2 Mounting brackets
External Power brick
AC power Cord (Country specific)
Quick Start Guide
Warranty and License Information
Vega 50 BRI
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Sangoma Vega 100G
Summary of Contents for Sangoma Vega 100G
- Page 1 Do not continue to install your Vega Gateway if any of your components are damaged. What's In the Box Your Package should contain the following items: Vega 100G/200G 1 Vega VoIP Gateway Appliance 2 E1/T1 RJ45 CAT5 cables (Red colour)
- Page 2 1 Vega 50 VoIP Gateway Appliance Vega 50 BRI 4 BRI Cables 2 LAN Cables (Yellow colour) 1 RJ45-to-serial Console Cable 2 Mounting brackets External Power brick AC power Cord (Country specific) Quick Start Guide Warranty and License Information Vega 5000 1 Vega 5000 VoIP Gateway Appliance 2 LAN Cables (Yellow colour) 1 RJ45-to-serial Console Cable...
-
Page 3: Component Overview
Component Overview Vega 100G Front Panel of Vega 100G Back Panel of Vega 100G Power - DC Power connector. E1/T1 Port 1-2 - RJ45 port used to connect your E1/T1 Cable... - Page 4 LAN Port 1/LAN Port 2 - RJ45 ports used to connect your LAN cables. These are Gigabit compatible ports. Console - Used for diagnostics. Console cable plugs into this port Port 1 is configured for CPE/TE. This port is typically connected to Telco as it is set to receive the clock from the remote side Port 2 is configured for NET/NT.
- Page 5 Power - DC Power connector. E1/T1 Port 1-2 - RJ45 port used to connect your E1/T1 Cable LAN Port 1/LAN Port 2 - RJ45 ports used to connect your LAN cables. These are Gigabit compatible ports. Console - Used for diagnostics. Console cable plugs into this port Port 1 is configured for CPE/TE.
- Page 6 AC Power - Power socket to be used with the AC Power cord provided with your Vega Power Switch - Switch used to turn the Vega Gateway ON/OFF when power cord is plugged in Port 1-4 - E1/T1 RJ45 ports used to connect E1/T1 cables. The 4 ports directly above these ports are only used for bypass mode LAN 1/LAN 2 - RJ45 ports used to connect your LAN cables.
- Page 7 Analogue FXS / FXO Variants Vega 50 BRI Front Panel of Vega 50...
- Page 8 Power - DC Power connector. Analog/BRI Ports - porst used to connect analog/bri cables LAN 1/LAN 2 - RJ45 ports used to connect your LAN cables. Console - Used for diagnostics. Console cable plugs into this port...
- Page 9 Vega 5000 Front Panel of Vega 5000 Back Panel of Vega 5000 (25 port)
- Page 10 Power - AC Power socket.. Analog Ports - Am phenol RJ21 style connector with 25 analog ports. LAN 1/LAN 2 - RJ45 ports used to connect your LAN cables. Console - Used for diagnostics. Console cable plugs into this port Analogue FXS / FXO Variants Vega 3000G Front Panel of Vega 3000...
- Page 11 Back Panel of Vega 3000 (24 port) Power - AC Power socket.. Analog Ports - Am phenol RJ21 style connector with 24 analog ports. LAN 1 - RJ45 ports used to connect your LAN cables. This is a Gigabit speed Lan port Console - Used for diagnostics.
- Page 12 LAN Port - RJ45 ports used to connect your LAN cables. This is a Gigabit speed LAN port Power LED- When lit unit is active FXO Plug-In Module (for Vega 3050G) -> Installation Guide Vega 60G Front Panel of Vega 60G Back Panel of Vega 100G...
- Page 13 PSTN Interfaces: Protocol and density varies based on model LAN Port- RJ45 port for LAN USB Port- For Storage Console - Used for diagnostics. Console cable plugs into this port Power - DC Power connector. Ground Vega 4 x 4 Front Panel of Vega 4 x 4 Back Panel of Vega 4 x 4 Ground...
-
Page 14: Wiring Connection
Vega 400G / Vega 5000, Vega 3050G: Plug in the power cable into the power socket located on the Vega gateway There is no power switch on the Vega60G/Vega 100G/200G/Vega50/Vega3000G/Vega3050G. As soon as you connect power to the unit it will power up. To switch off the Vega simply unplug the power cord. - Page 15 The power LED on the front panel will illuminate. LAN LEDs will also illuminate indicating 10/100 or 10/100/1000 (Gigabit) connection (depending on your Vega). The LAN LEDs are duplicated on the front and rear of the Vega. The LEDs blink off to indicate LAN activity. Accessories FXO- Plug-In Module For Vega 3050G ->...
