Sangoma Europa Vega 50 BRI and Elastix Setup Manual
  1. Manuals
  2. Brands
  3. Sangoma Manuals
  4. Server
  5. Europa Vega 50 BRI and Elastix
  6. Setup manual

Sangoma Europa Vega 50 BRI and Elastix Setup Manual

Hide thumbs Also See for Europa Vega 50 BRI and Elastix:

Advertisement

Quick Links

Download this manual

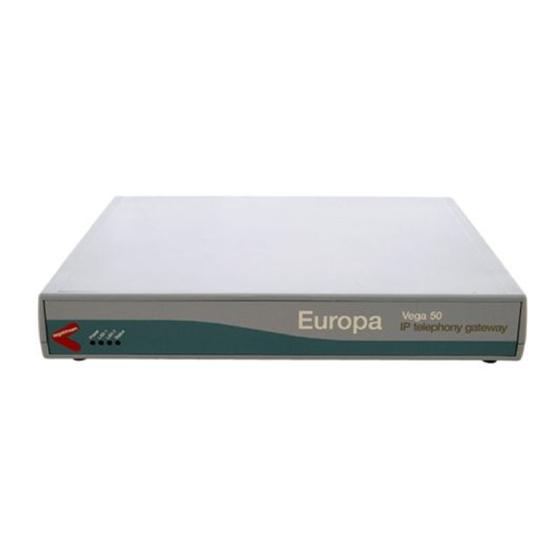

Sangoma Europa Vega 50 BRI
Sangoma Europa Vega 50 BRI
Sangoma Europa Vega 50 BRI
http://www.elastix.org
http://www.elastix.org
http://www.elastix.org
and Elastix Server
and Elastix Server
and Elastix Server
Setup Guide
Setup Guide
Setup Guide

Advertisement

loading
Need help?

Need help?

Do you have a question about the Europa Vega 50 BRI and Elastix and is the answer not in the manual?

Questions and answers

Related Manuals for Sangoma Europa Vega 50 BRI and Elastix

Summary of Contents for Sangoma Europa Vega 50 BRI and Elastix

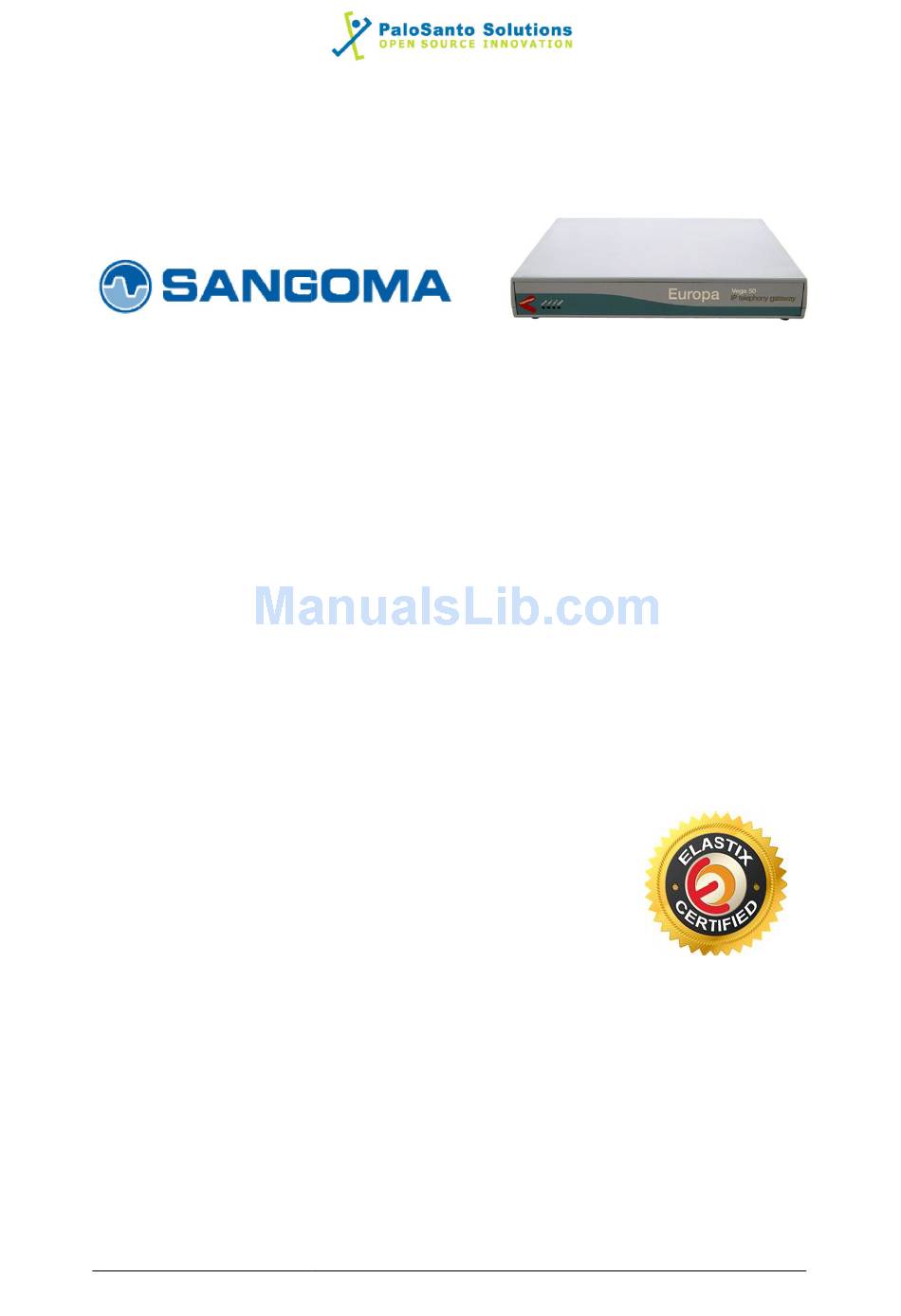

  • Page 1 Sangoma Europa Vega 50 BRI Sangoma Europa Vega 50 BRI Sangoma Europa Vega 50 BRI and Elastix Server and Elastix Server and Elastix Server Setup Guide Setup Guide Setup Guide http://www.elastix.org http://www.elastix.org http://www.elastix.org...
  • Page 2 PaloSanto Solutions anto Solutions Sangoma Europa Vega 50 BRI Server Setup Guide Sangoma Europa Vega 50 BRI Server Setup Guide 1.0 Setup Diagram Setup Diagram Figure 1-1 is a setup diagram for a single is a setup diagram for a single Vega 50 BRI gateway configuration.

  • Page 3: Setup Procedure

    PaloSanto Solutions Sangoma Europa Vega 50 BRI Server Setup Guide 4.0 Setup Procedure To set up the Elastix Server for the Vega 50 1. Go to the web address of the Elastix Server Login page. The web address is determined by the customer, for this guide we have used the IP address 192.168.1.65 2.
  • Page 4 PaloSanto Solutions Sangoma Europa Vega 50 BRI Server Setup Guide 5. Go to “PBX Configuration => Trunks => Add SIP Trunk”, see Figure 4-3. This will take you to configure a SIP Trunk. Figure 4-3. Add a SIP Trunk 6. On the “Add SIP Trunk” page (Figure 4-4), fill in the following information: General Settings •...
  • Page 5 PaloSanto Solutions anto Solutions Sangoma Europa Vega 50 BRI Server Setup Guide Sangoma Europa Vega 50 BRI Server Setup Guide Figure 4-4. Add SIP Trunk 7. Click on the ‘Submit’ button at the end of the page Click on the ‘Submit’ button at the end of the page. The SIP Trunk...
  • Page 6 PaloSanto Solutions anto Solutions Sangoma Europa Vega 50 BRI Server Setup Guide Sangoma Europa Vega 50 BRI Server Setup Guide • Route Name: Route Name: (“8_Vega” in this example) Dial patterns • Prefix: (“8” in this example) | ” in this example) | Match pattern: (“.” in this example) (“.”...
  • Page 7 PaloSanto Solutions anto Solutions Sangoma Europa Vega 50 BRI Server Setup Guide Sangoma Europa Vega 50 BRI Server Setup Guide • User Extension User Extension (302 in this example) • Display Name Display Name (‘IPPhone’ in this example) • secret (‘h7Dka3Rf9si0t h7Dka3Rf9si0t’...
  • Page 8 PaloSanto Solutions anto Solutions Sangoma Europa Vega 50 BRI Server Setup Guide Sangoma Europa Vega 50 BRI Server Setup Guide Figure 4-9. IVR 13. Click on “Save” and Apply changes by clicking on the pink ribbon that appears at . Click on “Save” and Apply changes by clicking on the pink ribbon that appears at .
  • Page 9 PaloSanto Solutions Sangoma Europa Vega 50 BRI Server Setup Guide Figure 4-10. Incoming Route 14. Click on “Submit” and apply changes. Now when we receive calls the “WelcomeIVR” IVR will play to the caller giving him choices to interact with Elastix Server.
  • Page 10 PaloSanto Solutions Sangoma Europa Vega 50 BRI Server Setup Guide Factory default settings LAN1 IP Address DHCP LAN1 IP Address (If DHCP no available) 169.254.xxx.yyy admin Web Access Administrator User Web Access Administrator Password admin 16. When the WebUI is loaded, go to “Quick Configuration” located on the left side of the page and click on “Continue”...
  • Page 11 PaloSanto Solutions Sangoma Europa Vega 50 BRI Server Setup Guide Figure 4-13. Quick Config – Basic Config 18. Go to “VOIP” tab and set the following (Figure 4-14): VoIP Routing Mode • Send calls via a VoIP Service Provider/Proxy (Selected) VoIP Device Configuration •...
  • Page 12 PaloSanto Solutions Sangoma Europa Vega 50 BRI Server Setup Guide 20. To apply the changes click on “Submit” button next to the tabs menu. (Figure 4- 16): Figure 4-16.Applying changes 21. Click on “Accept”. Now, go to “Status” located on the left side of the page to check whether the registration was successful (Figure 4-17).
  • Page 13 PaloSanto Solutions Sangoma Europa Vega 50 BRI Server Setup Guide Figure 4-18. Expert Config - SIP 23. In the “SIP Profiles” section click on “Modify”, and set From header user info parameter to Calling party option (Figure 4-19). Figure 4-19. SIP 24.
  • Page 14 PaloSanto Solutions Sangoma Europa Vega 50 BRI Server Setup Guide 25. Once you have save the changes, go to “Dial Plan” located on the “Expert Config” section (Figure 4.21) Figure 4-21. Dial Plan 26. Click on “Modify” for “To_SIP” profile. Make the following changes (Figure 4-22): Source: IF:0301,TEL:<.*>,TELC:<.*>...
  • Page 15 PaloSanto Solutions Sangoma Europa Vega 50 BRI Server Setup Guide click on “Modify” button for “To_BRI” profile. Once there, delete the last 3 entries, keep the first one and make the following changes (Figure 4-23): Source: IF:9901,TEL:<.*> Destination: IF:0301,TEL:<1> This means everything coming from the interface with ID 9901 (SIP Interface, see figure 4-19) will be redirected to interface with ID 0301 (see figure 4-15).
  • Page 16 PaloSanto Solutions Sangoma Europa Vega 50 BRI Server Setup Guide 30. Configure the other IP (SIP) Phone with the correct parameters. 31. At this point, Sangoma Vega 50 BRI Gateway is ready for using. This step completes the procedure.
