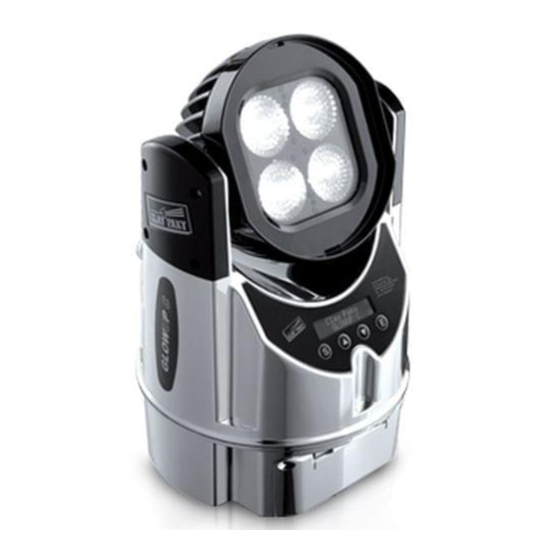

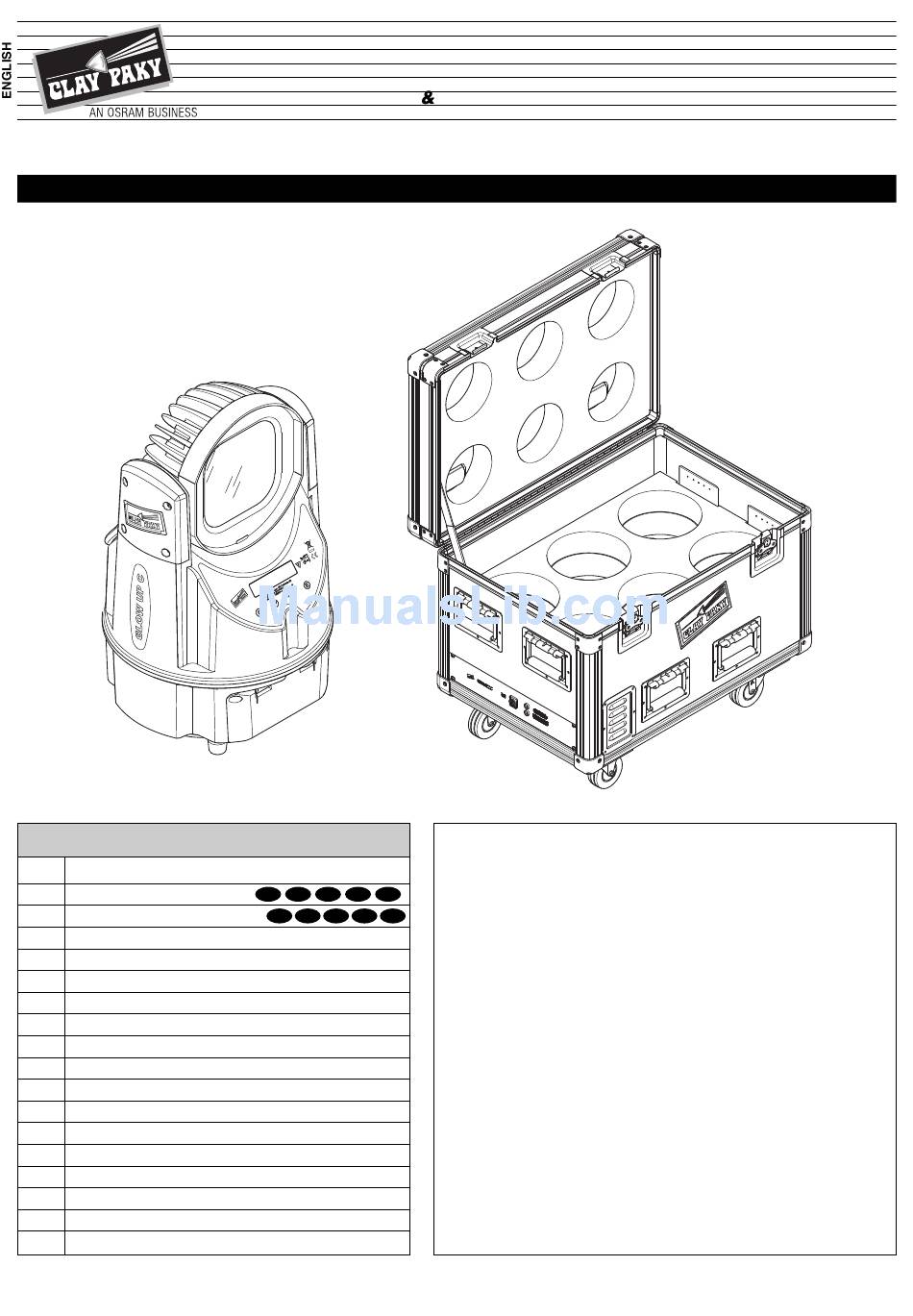

INSTRUCTIONS MANUAL
EN
IT
FR
DE
ES
EN
IT
FR
DE
ES
FLIGHT CASE
Congratulations on choosing a Clay Paky product!
We thank you for your choice. Please note that this product, as
all the others in the rich Clay Paky range, has been designed
and manufactured with total quality to ensure excellent
performance and best meet your expectations and
requirements.
Carefully read this instruction manual in its entirety and keep it
safe for future reference.
It is essential to know the information and comply with the
instructions given in this manual in order to ensure the fitting is
installed, used and serviced correctly and safely.
CLAY PAKY S.p.A. disclaims all liability for damage to the
fitting or to the other property or persons deriving from
installation, use and maintenance that have not been carried
out in conformity with this instructions manual, which must
always accompany the fitting.
CLAY PAKY S.p.A. reserves the right to modify the
characteristics stated in this instructions manual at any time and
without prior notice.
1
C
C71050
TW
C71055
W
C71060
F21230

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Glow Up C71050 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Clay Paky Glow Up C71050

Summary of Contents for Clay Paky Glow Up C71050

  • Page 1: Table Of Contents

    Page Contents We thank you for your choice. Please note that this product, as all the others in the rich Clay Paky range, has been designed and manufactured with total quality to ensure excellent Safety information GLOW UP performance and best meet your expectations and Safety information FLIGHT CASE requirements.

  • Page 2: Safety Information Glow Up

    SAFETY INFORMATION GLOW UP • Installation Make sure all parts for fixing the projector are in a good state of repair. Make sure the point of anchorage is stable before positioning the projector. The safety chain must be properly hooked onto the fitting and secured to the framework, so that, if the primary support system fails, the fitting falls as little as possible.

  • Page 3: Safety Information Flight Case

    • Battery This product contains a lithium iron tetraphosphate rechargeable battery. To protect the environment, please discard the battery at the end of its life cycle according to current law. LiFePO4 Disposing This product is supplied in compliance with European Directive 2012/19/EU - Waste Electrical and Electronic Equipment (WEEE).
  • Page 4 INFORMAZIONI DI SICUREZZA GLOW UP • Installazione Assicurarsi che tutte le parti per il fissaggio del proiettore siano in buona condizione. Assicurarsi della stabilità del punto di ancoraggio prima di posizionare il proiettore. La fune di sicurezza, debitamente agganciata all’apparecchio e fissata alla struttura di sostegno, deve essere installata in modo che, in caso di cedimento del sistema di supporto primario, si abbia la minor caduta possibile dell’apparecchio.
  • Page 5 • Batteria Questo prodotto contiene una batteria ricaricabile Litio Ferro Tetrafosfato. A tutela dell'ambiente si prega di smalti- re la batteria a fine vita in conformità alla normativa vigente. LiFePO4 Smaltimento Questo dispositivo è conforme alla Direttiva Europea 2012/19/UE - Rifiuti di apparecchiature elettriche ed elettroniche (RAEE).
  • Page 6 CONSIGNES DE SÉCURITÉ GLOW UP • Installation S’assurer que toutes les pièces pour la fixation du projecteur sont en bon état. S’assurer de la stabilité du point d’ancrage avant de positionner le projecteur. Le câble de sécurité, à fixer correctement à l’appareil et à la structure de support, doit être installé de façon à ce que, en cas de rupture du système de support principal, la chute de l’appareil soit la plus limitée possible.
  • Page 7 • Batterie Ce produit contient une batterie rechargeable au tétraphosphate de fer au lithium. Une fois la batterie parvenue à la fin de sa durée de vie, procéder à son élimination conformément à la norme en vigueur de manière à éviter LiFePO4 toute pollution.
  • Page 8 INFORMATIONEN ZUR SICHERHEIT GLOW UP • Installation Sicherstellen, dass alle Teile für die Befestigung des Projektors in einwandfreiem Zustand sind. Vor der Installation des Projektors die Stabilität der Verankerungsstelle überprüfen. Das korrekt am Gerät eingehakte und an der Haltestruktur befestigte Sicherheitsseil muss so installiert werden, dass bei einem Nachgeben der Haupthalterung die Fallhöhe des Gerätes so gering wie möglich ist.
  • Page 9 • Batterie Dieses Produkt enthält eine wiederaufladbare Lithium-Eisenphosphat-Batterie. Zum Schutz der Umwelt bitten wir Sie, diese Batterie, nachdem sie verbraucht ist, gemäß den geltenden Vorschriften zu entsorgen. LiFePO4 Entsorgung Diese Vorrichtung entspricht der Europäischen Richtlinie 2012/19/UE - Abfall von elektrischen und elektronischen Gerätschaften (RAEE).
  • Page 10 INFORMACIONES DE SEGURIDAD GLOW UP • Instalación Asegúrese de que todos los elementos de fijación del proyector estén en buenas condiciones. Controle la estabilidad del punto de anclaje antes de instalar el proyector. La cuerda de seguridad, correctamente enganchada al aparato y fijada a la estructura de soporte, debe colocarse de modo que, si el soporte principal cede, el aparato sufra la menor caída posible.
  • Page 11 • Batería Este producto contiene una batería recargable plomo-ácido o de Litio Tetrafosfato Hierro. Para proteger el ambiente se ruega eliminar la batería conforme a la normativa vigente. LiFePO4 Eliminación Este dispositivo es conforme a la Directiva Europea 2012/19/UE - Residuos de equipos eléctricos y electrónicos (RAEE).

  • Page 12: Unpacking And Preparation

    UNPACKING AND PREPARATION IST002/001 OPTIONAL ACCESSORY C71110 Packing content - Fig. 1 REMOVAL OF THE PROTECTIVE FILM GLOW UP...

  • Page 13: Installation And Start-Up

    INSTALLATION AND START-UP Projector installation - Fig. 3 WARNING: the safety chain must be installed except when the projector rests on the floor. (Code 105015/801 available upon request). This The projector can be installed on the floor resting on specific rubber feet, on a truss, on the ceiling or wall. must be secured to the projector support structure and then hooked to the fastening point at the centre of the base.

  • Page 14: Control Panel

    Switching on the projector - Fig. 7 The projector immediately turns on when the power cord is plugged in or, if used in battery mode, by pressing and holding down keys several seconds. Clay Paky GLOW UP Address xxx BAT xx% GLOW UP Software release x.x x...
  • Page 15 When GlowUp is in idle status the information page will appear on the display: DMX Address Time or percent remaining of the battery charge ADDR 001 BAT 40% STND FRES/W Yy Operating mode Factory reset? Y/N Link status (see page 23) Warning Radio (Wireless or Wired) W42 (radio board not found)

  • Page 16: Button Function

    BUTTON FUNCTION By pressing any button when Glow Up is in idle status, the BUTTON FUNCTION menu is accessed. Symbol  or II Function Setting Play/Pause Stop Mode BAT 40% Program Press SET SELECT to access the menus: DMX Address Advanced (Menu use is recommended for qualified technical personnel.) Press ENTER MOD to select the Glow UP operating mode...

  • Page 17: Preset Colors For Stand Alone "Glowup C

    PRESET COLORS FOR STAND ALONE “GLOWUP C” Bit value Colour Reference 01 RGBW 02 RED 03 GREEN 04 BLUE 05 YELLOW 06 CYAN 07 MAGENTA 08 WHITE 09 ORANGE 10 PINK 11 VIOLET 12 AQUA 13 SKY BLUE 14 FULL WHITE 15 COOL WHITE 16 WARM WHITE 17 WHITE 3200...

  • Page 18: Menu Setting

    MENU SETTING Choices / Main Menu Level 1 Level 2 Level 3 Level 4 Values Preset Colors 0 - 255 0 - 255 Green 0 - 255 Blue 0 - 255 Edit Scene Scene 1-10 White 0 - 255 Dimmer 0 - 255 Program Stop-Strobe...
  • Page 19 Choices / Main Menu Level 1 Level 2 Level 3 Level 4 Values Color Tunable White White Set Model Color LR Tunable White LR White LR Appl. Upload FW Uploader Boot upload Transfer Set Charge Battery hour hh:mm Discharge Battery hh:mm hour Advanced...
  • Page 20 Select Enter DOWN SHORT CUT KEYS MENU Short-Cut Key ------------------------------------------- - Press ENTER and DOWN to switch off Glow UP (Switch off ? Yes/No). - Press ENTER and UP to quickly open DMX address settings. - Press ENTER and hold down for several seconds with GlowUP in idle conditions to restore ‘’Factory’’ settings.
  • Page 21 SET MENU Press Select twice with GlowUP in idle conditions to open the SET menu SET – PROGRAM ………. EDIT SCENE To create/overwrite/modify a SCENE customised by the user: 1 to 10 scenes can be customised using each single GlowUP channel. Press ENTER to display Scene 1.
  • Page 22 SET ………. ADVANCED To enable the "Menu Advanced" enter the code (1234) using the UP, DOWN and ENTER keys. SET - ADVANCED – SETUP ………. RADIO It assigns the desired command to the GLOW UP 'Radio' module choosing from one of the following: Unlink Transmitter: Disconnected from the transmitter •...
  • Page 23 SET - ADVANCED – SETUP ………. LOCK OPTION It lets you assign a lock password, requested at each projector start up (Lock). The same password can be used to access the ''Menu Advanced''. Press ENTER and open the ‘’Lock’’ menu to enable ON or disable OFF the password request at start up. Select ON to enable.
  • Page 24 SET - ADVANCED – SETUP ………. BATTERY DISPLAY Allows you to select how to display the battery charge in idle status. • Press ENTER - current settings are displayed. Use the UP and DOWN keys to select from the 3 available options: •...
  • Page 25 SET - ADVANCED – INFORMATION ………. DISCHARGE BATTERY HOURS Displays total projector battery powered operating hours from construction to date. SET - ADVANCED – INFORMATION ………. BATTERY MONITOR Allows you to display the battery voltage and current status. SET - ADVANCED – INFORMATION ………. LED TEMPERATURE Displays the LED working temperature: Temperature (real-time LED temperature)
  • Page 26 SET - ADVANCED – RESET ………. RESET TO DMX WIRELESS Resets GlowUP and automatically sets DMX WIRELESS settings. Default settings after Reset are the following: · “Master Output”-> "Cable + Wireless" · "Repeater"-> "Disable" · "Repeater"-> "Function"->"Repeat & Play" · "Repeater"->...

  • Page 27: Operating Modes

    OPERATING MODES Operating Mode Descrizione Display Does not receive DMX and executes only Stand Alone STND the Play Receives DMX Slave Glow UP receives (on address 1) if the GlowUp Master is set in Play sequences. Slave Slave Glow UP receives on its DMX address if GlowUp Master transmits a recording DMX Master...

  • Page 28: Rdm Controls Implemented For Glowup Series

    RDM CONTROLS IMPLEMENTED FOR GLOWUP SERIES Control Description controller side Gathers information from the device DEVICE_INFO 0x0060 Makes the red leds on the addressed device pulse IDENTIFY_DEVICE 0x1000 Reads or sets the DMX address DMX_START_ADDRESS 0x00F0 Reads the firmware version SOFTWARE_VERSION_LABEL 0x00C0 Gathers the PIDS on the non-basic controls...

  • Page 29: Maintenance

    MAINTENANCE Charging glow up - Fig. 9 From 1 to 6 Glow Ups can be simultaneously charged by appropriately connecting and powering the flight-case. Fuse 6,3x32mm 3AT 250Vac (030471) Fuse 6,3x32mm 10AT 250Vac (030470) Replacing flight case fuses - Fig. 10 Each flight-case has 2 fuses associated with the main power cord connection and one fuse for each Glow UP charge station.
  • Page 30 Battery removal - Fig. 11 This product contains lithium iron tetraphosphate rechargeable battery. To protect the environment, please discard the battery at the end of its working life according to current law. Notes on how to achieve correct battery operations LiFePO4 1) Do not tamper with the control electronic circuit, do not tamper with the battery, do not short-circuit the battery.

  • Page 31: Optional Accessories

    • General cleaning of internal parts. • General visual check of internal parts, cabling, mechanical parts, etc. • Electrical, photometric and functional checks; eventual repairs. OPTIONAL ACCESSORIES MAGNETIC HOLDER C7111---2- black C7111---7- white PADLOCK Not commercialized from Clay Paky GLOW UP...

  • Page 32: Technical Data

    TECHNICAL DATA Source Input Power 4 10 W MC-E Cree leds 170 VA Led pilot power Body • Injection pressed ABS case (UV protected) Optics • Finish: Polished metallic – Painted White or Black Optic zoom, manually adjustable, magnetic support •...

  • Page 33: Channel Functions

    CHANNEL FUNCTIONS GLOW UP C CHANNEL CHANNEL MODE GREEN BLUE WHITE DIMMER STOP / STROBE MACRO COLOR GLOW UP TW CHANNEL MODE (Colour temperature) CHANNEL INDEPENDENT CONSTANT INTENSITY MAX INTENSITY COOL WHITE 6200K TUNABLE WHITE TUNABLE WHITE WARM WHITE 2700K DIMMER DIMMER STOP / STROBE...
  • Page 34 GLOW UP C • MACRO COLOR - channel 7 EFFECT COLD TONE • COLOUR MIXING - channel 1 - 2 - 3 WARM TONE PASTEL TONE SEQ1 SKELTON EXOTIC SANGRIA FLESH PINK EFFECT CHERRY ROSE CHANNEL 1 CHANNEL 2 CHANNEL 3 MAYAN SUN MAX BRIGHTNESS LIGHT SALMON...
  • Page 35 GLOW UP TW INDEPENDENT MODE CONSTANT INTENSITY & MAX INTENSITY MODE INDEPENDENT CONSTANT INTENSITY MAX INTENSITY COOL WHITE 6200K TUNABLE WHITE TUNABLE WHITE WARM WHITE 2700K DIMMER DIMMER STOP / STROBE STOP / STROBE STOP / STROBE CONSTANT INTENSITY MAX INTENSITY COOL WARM COOL...
  • Page 36 GLOW UP W • DIMMER - channel 1 EFFECT MAX BRIGHTNESS LED OFF • STOP / STROBE - channel 2 CLAY PAKY - Via Pastrengo, 3/b - 24068 Seriate (BG) Italy - Tel. +39-035-654311 - Fax +39-035-301876 - www.claypaky.it S.p.A.
