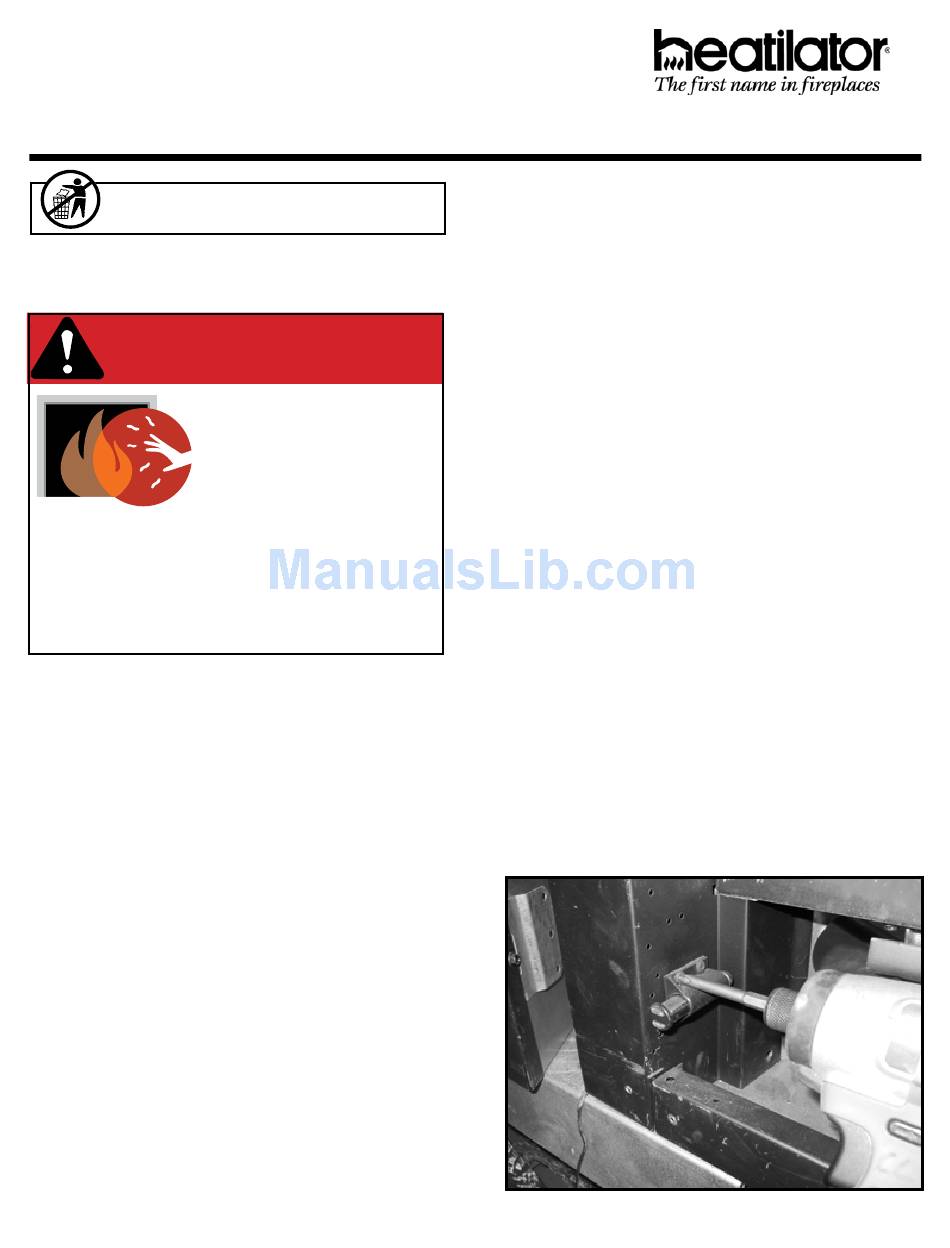

Heatilator SIM-3630 Installation Instructions

Leave this manual with party responsible for use
and operation.
CAUTION! Risk of Cuts, Abrasions or Flying Debris.
Wear protective gloves and safety glasses during instal-
lation. Sheet metal edges are sharp.
DANGER
DO NOT TOUCH GLASS
NEVER ALLOW CHILDREN
A barrier designed to reduce the risk of
burns from the hot viewing glass is provided
with this appliance and shall be installed for
the protection of children and other at-risk
individuals.
WARNING! Risk of Fire! Combustible materials MUST
NOT overlap or be placed under a surround.
CAUTION! Do not install damaged components.
WARNING! Risk of Fire! DO NOT apply combustible ma-
terials beyond the minimum clearances. Comply with all
minimum clearances to combustibles as specified. Over-
lapping materials could ignite and will interfere with proper
operation of doors and louvers.
For Models:
NDV3630I-B, NDV3630IL-B, NDV3933I-B,
NDV3933IL-B, NDV4236I-B, NDV4236IL-B,
NDV4236I-NVR, NDV4842I-B, NDV4842IL-B
NBV3630I-B, NBV3933I-B, NBV4236I-B, NBV4842I-B
NNXT3933IF-B, NNXT3933ILF-B, NNXT4236IF-B,
NNXT4236ILF-B
CONTENTS:
• Decorative Front Assembly
• Shoulder Screws (2)

• Installation Instructions

PREPARATION:
• Verify and remove contents from packaging before be-
ginning installation.
• Refer to cleaning instructions on page 3.
Heatilator • SIM-3630, SIM-3933, SIM-4236, SIM-4842 Decorative Front Instructions • 2382-930 Rev. B • 9/17
SIM-3630, SIM-3933, SIM-4236, SIM-4842
Installation Instructions
HOT GLASS WILL
CAUSE BURNS.
UNTIL COOLED.
TO TOUCH GLASS.
TOOLS REQUIRED:
• 1/4 inch drill driver with 1/4 hex bit
Proceed to "Install Hood."
For the models listed below, it will be necessary to
remove the lower magnet latches and replace with a
shoulder screw:
NDV3630I,NDV3630IL,NDV3933I,NDV3933IL,
NDV4236I, NDV4236IL, NDV4842I, NDV4842IL
NBV3630I, NBV3933I, NBV4236I, NBV4842I
NNXT3933IF, NNXT3933ILF, NNXT4236IF,
NNXT4236ILF
TOOLS REQUIRED:
• 1/4 inch drill driver with #2 Phillips bit and 1/4 hex bit
CONTENTS:
• Decorative Front Assembly
• Hood
PREPARATION:
• Verify and remove contents from packaging before be-
ginning installation.
• Refer to cleaning instructions on page 3.
1. Locate the magnetic latches in the bottom corners of
the appliance. Using a #2 Phillips bit, remove the two
screws retaining both latches. See Figure 1.
Figure 1. Remove Screws from Magnetic Latches
1
