Fieldpiece
Quick Start
1. Power on your SVG3 by holding the
Easy View
2. Connect to system directly to an
unused service port, a Schrader core
Vacuum Gauge
removal tool (SCRT), or via hoses.
OPERATOR'S MANUAL
3. View your vacuum measurement
on the top line and rate of change
Model SVG3
(±microns per minute) on the bot-
tom line.
Certifications
MIN
SVG3
VACUUM
GAUGE
ALARM
ENTER
UNITS
Fieldpiece
01
02
How to Use
Normal Mode
Recommended
Measure deep vacuums to moni-
tor your system evacuations. Deep
vacuums remove moisture and
non-condensable gases that can
cause problems in a system.
There are many ways to connect to
the system, Fieldpiece recommends
using a SCRT and the shortest vacuum
rated hoses possible. Fewer connec-
tions reduce the potential for leaks.
ALARM
1. Connect to system. Techs typically prefer connect-
ENTER
ing to the Schrader Core Removal Tool (SCRT) or an
unused service port.
2. Hold
for 1 second to power ON the SVG3.
3. The top display shows the vacuum in microns of
mercury.
4. The bottom display shows how fast the measure-
ment is increasing or decreasing (± microns of
mercury per minute).
Hose
Schrader Core
To
Removal Tool
Pump
(tool not included)
07
08

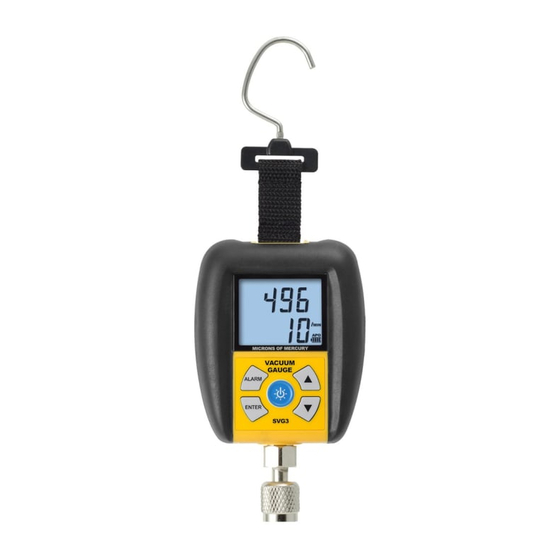

Description
Proper evacuation of any system
button for 1 second.
exposed to atmosphere is critical to
ensure the system is dry and tight.
SVG3 is the right tool to help HVACR
professionals verify they reach proper
vacuum levels. See your vacuum
measurement clearly and easily with
the newly designed easy-view hook
and backlight. SVG3 is built for field
use with its ruggedized rubber case.
S V G 3 h a s a
f l a r e f i t t i n g w i t h s c h r a d e r
v a l v e d e p r e s s o r s o y o u c a n
connect it directly to a service port
or your Schrader core removal tool
(SCRT ) reducing connections and
minimizes leaks
C-Tick (N22675)
Be alerted when you've reached
your desired vacuum levels with built
CE
in Hi and Lo Alarm functions. Check for
leaks with rate indication in microns
WEEE
per minute. The HVACR professional
can do more with confidence that he
RoHS Compliant
is doing the job right the first time.
03
Setup
MIN
MIN
SVG3
SVG3
VACUUM
GAUGE
VACUUM
GAUGE
ALARM
ENTER
UNITS
Fieldpiece
UNITS
Fieldpiece
Other Common
To
Service
Pump
Directly to
Service Port
09
Display
f e m a l e
1 / 4 "
SVG3
Top Line: Live Vacuum Measurement
in Units selected
VACUUM
Bottom Line: Rate of Change or Alarm
GAUGE
Stopwatch
MIN
ALARM
MIN
Auto Power Off
Battery Life
SVG3
Alarm Set Mode
SVG3
Low Alarm Mode
ENTER
VACUUM
High Alarm Mode
VACUUM
UNITS
GAUGE
GAUGE
Rate of Change
MIN
Fieldpiece
ALARM
(±Units Selected Per Minute)
MIN
MIN
ALARM
MIN
MIN
MIN
SVG3
SVG3
SVG3
SVG3
VACUUM
VACUUM
SVG3
04
VACUUM
ENTER
GAUGE
GAUGE
SVG3
SVG3
ENTER
VACUUM
GAUGE
UNITS
ALARM
ALARM
VACUUM
GAUGE
UNITS
VACUUM
VACUUM
Fieldpiece
GAUGE
Fieldpiece
ALARM
GAUGE
GAUGE
Low and High Alarms
ALARM
ALARM
ALARM
ALARM
ENTER
ENTER
Be alerted when you've reached your
UNITS
UNITS
ENTER
Fieldpiece
Fieldpiece
desired vacuum levels. Work on other
UNITS
ENTER
ENTER
Fieldpiece
tasks at the jobsite and let SVG3 alert
ENTER
UNITS
UNITS
ENTER
Fieldpiece
Fieldpiece
you when the system is ready.
UNITS
UNITS
MIN
Fieldpiece
Fieldpiece
Activate the low alarm (default 500
SVG3
VACUUM
microns) to alert when the vacuum has
GAUGE
ALARM
dropped to your desired micron level.
ENTER
UNITS
Activate the high alarm (default 1000
Fieldpiece
microns) to see how long it takes the
system to stabilize after the vacuum
pump has been isolated. If the system
does not stabilize over time, you may
have a leak in the system or your con-
nections.
The stopwatch will start when an
alarm is activated. It will restart when
Setups
the low alarm has been reached to show
Hose to
how long you've pulled a vacuum after
Removal
Tool
reaching your desired micron level. The
To
stopwatch will stop when the high alarm
Port
has been reached to show how long it
took to rise to your high alarm value.
When an alarm is activated the UP or
DOWN ARROW toggles the stopwatch
and rate of change (± microns per min-
ute) display.
10
SVG3
Controls
VACUUM
GAUGE
ALARM
MIN
Hold 1 second to power SVG3 on/ off. Press
<1 second to toggle backlight.
MIN
SVG3
ENTER
UNITS
VACUUM
Fieldpiece
Press to activate Alarm Lo, Alarm Hi, and
GAUGE
SVG3
return to real time mode. Hold 1 second to
ALARM
VACUUM
enter or exit Alarm Set mode.
GAUGE
ALARM
MIN
ENTER
MIN
Press to lock in selected digit and move
UNITS
Fieldpiece
to next digit in Alarm Set Mode. Press and
ENTER
SVG3
hold >1 second to Change Units.
UNITS
Fieldpiece
F i e l d p i e c e
VACUUM
GAUGE
U N I T S
E N T E R
Increase or decrease blinking digit in
ALARM
Alarm Set Mode. Toggle to display
stopwatch or rate of change when an
alarm is activated in real time mode.
A L A R M
ENTER
UNITS
G A U G E
Fieldpiece
V A C U U M
S V G 3
BACKLIGHT NOTE: The backlight timer is automatically
M I N
extended for 1 min when any button is pressed. A short
press of
toggles backlight on and off.
MIN
05
How to Activate the Alarms
1. Press ALARM to activate low alarm.
2. Press ALARM again to deactivate low alarm and
activate high alarm.
3. Press ALARM again to deactivate high alarm and
return to real time mode.
How to Set the Alarms
The default low (500 microns) and
high (1000 microns) alarm values can
easily be set to whatever you want.
1. Hold ALARM for 1 second to enter Alarm Set Mode.
The first digit of LO alarm will blink.
2. Use ARROWS to change the blinking number. Press
ENTER to lock in a digit and move to the next digit.
Repeat for all LO alarm digits.
3. When LO alarm is complete, the first digit of HI alarm
will blink. Use ARROWS to change the blinking
number. Press ENTER to lock in a digit and move to
the next digit. Repeat for all HI alarm digits.
4. When all digits of HI alarm are locked in you will
automatically exit Alarm Set Mode and your
customized alarm values will be saved.
Note: Anytime while in Alarm Set Mode, you can press
ALARM to toggle between alarm HI set and alarm
LO set. Hold ALARM to exit Alarm Set Mode and
save at any time.
Note: "Err" will show if you try to set the HI alarm
lower than the LO alarm, or the LO alarm higher
than the HI alarm.
11
Specifications
Operating temperature: 32°F (0°C) to 122°F (50°C) at
<75%RH
Storage temperature: -4°F to 140°F (-20°C to 60°C), 0
to 80% RH (with battery removed)
Temperature coefficient: 0.1 x (specified accuracy)/°C
(<18°C or >28°C)
Over range: "OL" is displayed
Power: 4 x AAA batteries, NEDA 24A, JIS UM4, IEC R03
Auto power off: after 15 minutes of readings more
than 10,000 microns if APO is active.
Battery life: 40 hours standard use (alkaline) without
backlight use.
Low battery indication:
is displayed when the
battery voltage drops below the operating level.
Vacuum Pressure
Units of measure: microns (µm) of mercury, mmHg,
mbar, mTorr, Torr, and Pascals
Connector type: Standard 1/4" female flare fitting. "T"
fitting included ( 3 male flare ports)
Range: 0 to 9999 microns of mercury (9.999 mmHg,
13.33 mbar, 9999 mTorr, 9.999 Torr, 1333 Pa)
Accuracy: ±(5% of reading + 5 microns), 50 to 1000
Resolution: 1 micron (50 to 2000 microns), 250
microns (2001 to 5000 microns), 500 microns (5001
to 8000 microns), 1000 microns (8001 to 9999
microns)
Rate: Units selected per minute
Refresh rate: 0.5 seconds
Atmospheric pressure: "OL" will be displayed
Maximum overload pressure: 500 psig
06
How to Change Units
1. Press and hold ENTER (>1 sec) to enter Change
Units mode. Current units selected will be
displayed.
2. Press UP or DOWN arrow to toggle the list of
available units. Microns-mmHg-mbar-mTorr-Torr-
Pascals. Stop on the units you want to select.
3. Press ENTER to save units selection and return to
real time mode.
Microns
mm of Mercury (Hg)
millibar
milliTorr
Torr
Pascals
12
