Alliance Laundry Systems LTZ87A*H0902 Series Installation Instructions Manual
Alliance Laundry Systems LTZ87A*H0902 Series Installation Instructions Manual

Alliance Laundry Systems LTZ87A*H0902 Series Installation Instructions Manual

Electric and gas dryers
Table of Contents

Advertisement

Available languages

Available languages

Quick Links

Stacked Washers
and Dryers
Electric and Gas Dryers
REMARQUE : Le guide
est rédigé en anglais et
en français. La version
francaise figure à la
suite de la version
anglaise.
SWD439C
Keep These Instructions for Future Reference.
(If this machine changes ownership, this manual must accompany machine.)
Part No. 800941R1
www.comlaundry.com
August 2005

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LTZ87A*H0902 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Alliance Laundry Systems LTZ87A*H0902 Series

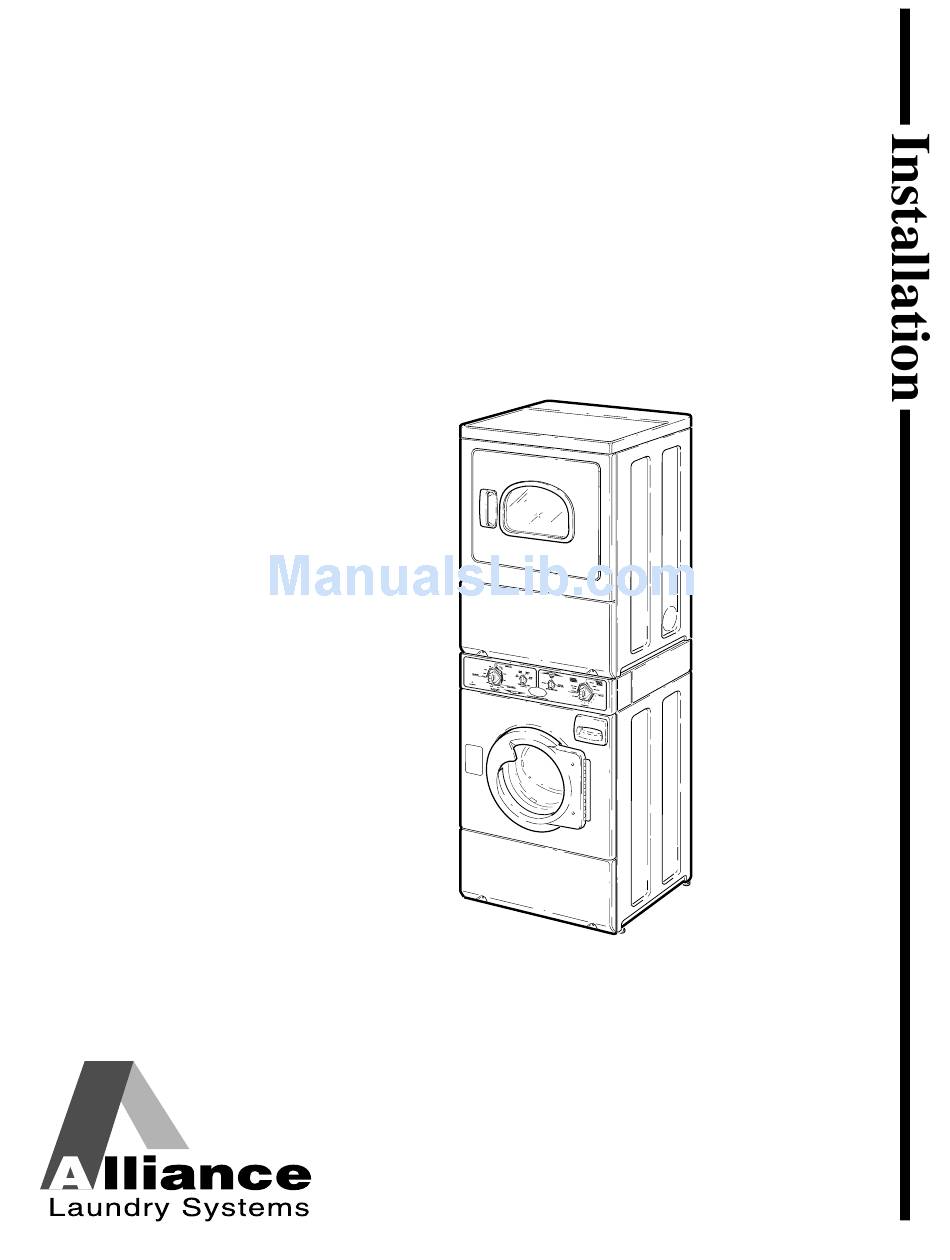

  • Page 1 Stacked Washers and Dryers Electric and Gas Dryers REMARQUE : Le guide est rédigé en anglais et en français. La version francaise figure à la suite de la version anglaise. SWD439C Keep These Instructions for Future Reference. (If this machine changes ownership, this manual must accompany machine.) Part No.
  • Page 3 FOR YOUR SAFETY Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. W053 800941 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 4 Notes © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 800941...
  • Page 5: Table Of Contents

    All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any means without the expressed written consent of the publisher. 800941 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 6 Notes © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 800941...
  • Page 7: Model Identification

    Model Identification LTZ87A*H2802 LTZ89A*H0902 800941 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 8 Notes 800941 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 9: Replacement Parts

    Shepard Street P.O. Box 990 Ripon, WI 54971-0990 U.S.A. Phone: (920) 748-3950 for the name and address of the nearest authorized parts distributor. 800941 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 10 Notes 800941 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 11: Installation

    71.1 cm (28 in.) 5.1 cm 68.3 cm (26.9 in.) (2.0 in.) SWD456N GAS MODELS SWD456N *With leveling legs turned into base. 3/8 in. N.P.T. Gas Connection 800941 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 12: Before You Start

    Place the unit on a solid floor with an adequate air supply. For more detailed information, refer to section on Location Requirements. 800941 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 13: Installing The Unit

    Turn on the water supply faucets and flush the lines for Water Inlet Hoses approximately two minutes to remove any foreign materials that could clog the screens in the water Figure 5 mixing valve. 800941 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 14: Step 3: Connect Drain Hose To Drain Receptacle

    HEIGHT SWD446N SWD446N Drain Hose Beaded Tie-Down Strap SWD445N SWD445N Standpipe – 5.08 cm (2 in.) or 4 cm (1-1/2 in.) Retainer Clamp Figure 7 Figure 6 800941 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 15 NOTE: End of drain hose must not be below 60.96 cm (24 in.). H023I Drain Hose Tie-Down Strap (Tape if necessary) Inlet Hoses Figure 9 800941 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 16: Step 4: (Gas Dryer Only) Connect Gas Supply Pipe

    1/8 in. N.P.T. Pipe Plug 3/8 in. N.P.T. Gas Connection (For checking inlet gas pressure) Equipment Shut-Off Valve – Installed within 1.8 m (6') of dryer Figure 11 800941 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 17: Step 5: Connect Dryer Exhaust System

    Ductwork that runs through unheated areas must ● be insulated to help reduce condensation and lint build-up on pipe walls. Failure to exhaust dryer properly will void ● warranty. 800941 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 18: Step 6: Position And Level The Unit

    SWD450N as legs and base could become damaged. SWD450N Leveling Leg Unit Base Level Locknut Rubber Cup Figure 13 800941 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 19: Step 7: (Washer Only) Remove The Shock Sleeves And Shipping Brace

    New Location section for proper instructions on reinstalling the shipping materials. Reinstall front access panel. H336I SWD452N Shock Sleeves Figure 16 Motor Mount Bolts and Lockwashers Hooked End of Shipping Brace Figure 14 800941 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 20: Step 9: Plug In The Unit

    Refer to Installer Checklist on the back cover and Figure 19 make sure that unit is installed correctly. Refer to step 7 for proper procedures whenever the washer is moved. 800941 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 21: Heat Source Check

    Adjust the air shutter to obtain a soft, uniform D700I Shut-Off Valve Handle Open Position Closed Position Air Shutter Lockscrew Air Shutter 3.1 mm (1/8 in.) Pipe Plug (For checking manifold pressure) Figure 20 800941 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 22: Electrical Requirements

    W330 D373I Power Cord (Four-Wire) Figure 21 800941 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 23: Stacked Washers And Gas Dryers

    (grounding) plug for your protection against shock hazard and should be plugged directly into a properly grounded three- prong receptacle. Do not cut or remove the grounding prong from this plug. W213 800941 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 24 Figure 23 ground, have a qualified electrician or your local electrical utility company check it and correct any problems. 800941 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 25: Gas Requirements

    1.8 m (6 ft.) 3,200 10,500 2.06 0.0810 503780 of the dryer. A 1/8 in. N.P.T. pipe plug must be Table 1 installed as shown. Refer to Figure 24. 800941 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 26 1/8 in. N.P.T. Pipe Plug 3/8 in. N.P.T. Gas Connection (For checking inlet gas pressure) Equipment Shut-Off Valve – Installed within 1.8 m (6') of dryer Figure 24 800941 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 27: Water Supply Requirements

    Mixture of hot and cold water. (Warm water temperature is dependent upon the water temperature and the pressure of both the hot and cold water supply lines.) 800941 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 28: Water Pressure

    W005I W005I Water Supply Faucets Risers (Air cushions) Figure 26 800941 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 29: Location Requirements

    15.24 cm (6 in.) Dryer Rear 5.1 cm (2 in.) Exhaust Duct Clearance to Combustible Material 5.1 cm (2 in.) SWD453N NOTE: Shaded areas indicate adjacent structure. Figure 27 800941 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 30: Dryer Exhaust Requirements

    Never install flexible duct in concealed spaces, such as a wall or ceiling. 800941 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 31: Make-Up Air Requirements

    Draw make-up air from a room containing a dry ● cleaner or a hair salon. H297I 528P3 DIRECTIONAL EXHAUST KIT H297I Weather Hood with Hinged Dampers Rigid or Flexible Metal Duct Figure 29 800941 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 32: Exhaust System

    7.6 m (25 feet) 5.2 m (17 feet) 6.1 m (20 feet) 4.5 m (15 feet) NOTE: Deduct 1.8 m (6 feet) for each additional elbow. Table 2 800941 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 33: Exhaust System Maintenance

    DR012A-IN MEASURING STATIC PRESSURE D012I Manometer Exhaust Duct Figure 31 SWD454N 521P3 FLEXIBLE METAL VENT KIT SWD454N Figure 30 800941 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 34: Information For Handy Reference

    Phone Number Service Agency Service Agency Address Phone Number NOTE: Record the above information and keep your sales slip. Model and serial numbers are located on the nameplate. 800941 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 35 Combinés lave-linge/ sèche-linge sèche-linge électriques et au gaz SWD439C Conserver ces instructions à titre de référence. (Si la machine est vendue, le guide doit etre remis au noveaue propiêtaire). Réf. 800941R1 www.comlaundry.com Août 2005...
  • Page 37 POUR VOTRE SÉCURITÉ Ne pas entreposer ou utiliser d’essence ou toutes autres vapeurs et liquides inflammables à proximité de cette unité ou de tout autre appareil. W053Q2 800941 (QU) © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 38 Remarques © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 800941 (QU)
  • Page 39 Tout droits réservés. Toute reproduction, même partielle, de cet ouvrage est interdite. Une copie ou diffusion par quelque procédé que ce soit sans le consentement ecrit de l’éditor constitue une contrefacon. 800941 (QU) © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 40 Remarques © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 800941 (QU)
  • Page 41: Identification Du Modèle

    Identification du modèle LTZ87A*H2802 LTZ89A*H0902 800941 (QU) © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 42 Remarques 800941 (QU) © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 43: Pièces De Rechange

    Ripon, WI 54971-0990 U.S.A. Téléphone : (920) 748-3950 afin d’obtenir le nom et l’adresse du distributeur de pièces de rechange qui soit le plus proche de chez vous. 800941 (QU) © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 44 Remarques 800941 (QU) © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 45: Installation

    68,3 cm (26,9 po) 5,1 cm (2,0 po) SWD456N MODÈLES AU GAZ SWD456N *Avec les pieds de nivellement totalement vissés dans la base. Raccord gaz N.P.T. 3/8 po 800941 (QU) © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 46: Avant De Commencer

    Pour de plus amples REMARQUE : Un élément chauffant de 208 volts informations, se reporter à la section sur Dimensions est en vente (équipement facultatif). de l’emplacement. 800941 (QU) © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 47: Installation De L'unité

    2 minutes environ afin Figure 5 d’éliminer tous corps étrangers qui risqueraient de bloquer le filtre de la soupape de mélange d’eau. 800941 (QU) © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 48: Étape 3 : Raccorder Le Tuyau De Vidange À La Vidange

    SWD446N Tuyau de vidange Sangle SWD445N Colonne montante – entre 5,08 et 4 cm SWD445N (2 et 1-1/2 po) Bride de retenue Figure 7 Figure 6 800941 (QU) © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 49 REMARQUE : L’extrémité du tuyau de vidange ne doit pas être en dessous de 60,96 cm (24 po). H023I Tuyau de vidange Sangle (Utiliser un ruban adhésif si besoin) Tuyaux d’entrée Figure 9 800941 (QU) © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 50: Étape 4 : (Uniquement Pour Les Sécheuses À Gaz) Raccorder Le Tuyau D'alimentation En Gaz

    1/2 po Robinet d’arrêt de circuit – installer à 1,8 m Raccord de gaz 3/8 po N.P.T. (6 pieds) de la sécheuse Figure 11 800941 (QU) © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 51: Étape 5 : Raccorder Le Système D'évacuation De La Sécheuse

    être isolée afin de réduire la condensation et l’accumulation de charpie sur les parois de la conduite. Ne pas installer de système d’évacuation ● approprié sur la sécheuse annule la garantie. 800941 (QU) © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 52: Étape 6 : Placer Et Mettre L'unité À Niveau

    SWD450N déplacer après avoir tendu les pieds de niveau sous Pied de nivellement risque de les endommager. Base de l’unité Niveau Contre-écrou Support caoutchouté Figure 13 800941 (QU) © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 53: Étape 7 : (Machine À Laver Uniquement) Enlever Les Manchons Anti-Chocs Et L'attache D'expédition

    éléments d’expédition. Réinstaller le panneau d’accès avant. SWD452N Figure 16 H336I Manchons anti-chocs Support de moteur Boulons et contre-écrous Extrémité crochue de l’attache d’expédition Figure 14 800941 (QU) © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 54: Étape 9 : Brancher La Machine À Laver Et La Sécheuse

    à ce que l’unité soit Figure 19 installée correctement. Se reporter à l’étape 7 concernant les procédures correctes à respecter lorsque la machine à laver est déplacée. 800941 (QU) © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 55: Vérification De La Source De Chaleur

    Vis de blocage du volet d’air Position fermée Volet d’air Bouchon de tuyau de 3,1 mm (1/8 po) (permettant de vérifier la pression du collecteur) Figure 20 800941 (QU) © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 56: Installation Électrique

    électricien qualifié afin de s’assurer que la buanderie est équipée d’une alimentation électrique adéquate pour faire fonctionner la machine. W330Q D373I Cordon électrique (quatre fils) Figure 21 800941 (QU) © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 57: Machines À Laver Et Sécheuses Au Gaz Superposée

    (mise à la terre) pour votre protection contre tout risque d’électrocution et doit être branchée directement dans la prise à trois fentes correctement mises à la terre. W213Q 800941 (QU) © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 58 à terre, demander à un électricien qualifié ou à la compagnie d’électricité locale de la vérifier et de rectifier le problème. 800941 (QU) © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 59: Installation Au Gaz

    N.P.T. de 1/8 po doit être installé tel qu’indiqué. Se reporter à la Figure 24. 2,745 9,000 2,08 0,0820 503779 3,200 10,500 2,06 0,0810 503780 Tableau 1 800941 (QU) © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 60 1/2 po Robinet d’arrêt de circuit – installer á 1,8 m Raccord de gaz N.P.T. de 3/8 po (6 pieds) de la sécheuse Figure 24 800941 (QU) © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 61: Approvisionnement En Eau

    Un mélange d’eau chaude et froide. (La température de l’eau tiède dépend de la température d’eau et de la pression des deux conduites d’approvisionnement en eau, chaude et froide). 800941 (QU) © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 62: Pression D'eau

    Figure 26. distributeur de détergents. W005I W005I Robinets d’approvisionnement en eau Tuyaux d’élévation (coussins d’air) Figure 26 800941 (QU) © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 63: Dimensions De L'emplacement

    5,1 cm (2 po) Espacement du conduit d’évacuation aux matériaux combustibles 5,1 cm (2 po) SWD453N REMARQUE : Les parties grisées indiquent les structures adjacentes. Figure 27 800941 (QU) © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 64: Critères D'évacuation De La Sécheuse

    Ne jamais installé de conduit flexible dans des espaces cachés tels que les murs ou les plafonds. 800941 (QU) © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 65: Conditions Pour L'air D'appoint

    établissement nettoyeur ou Hotte contre les intempéries avec registres à de salon de coiffure. charnière Conduit métallique flexible ou rigide Figure 29 800941 (QU) © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 66: Système D'évacuation

    7,6 m (25 pieds) 5,2 m (17 pieds) 6,1 m (20 pieds) 4,5 m (15 pieds) REMARQUE : Soustraire 1,8 m (6 pieds) pour chaque coude supplémentaire. Tableau 2 800941 (QU) © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 67: Entretien Du Système D'évacuation

    être remise en place en la glissant. DR012A-IN MESURE DE LA PRESSION STATIQUE D012I Manomètre Conduit d’évacuation Figure 31 SWD454N KIT D’ÉVENT MÉTALLIQUE FLEXIBLE 521P3 SWD454N Figure 30 800941 (QU) © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 68: Informations Servant De Référence Rapide

    Numéro de téléphone REMARQUE : Conserver ces informations avec le bon d’achat. Le numéro du modèle et la série se trouvent sur la plaque du constructeur. 800941 (QU) © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 70: Vérification De L'installation

    Installer Checklist Fast Track for Installing the Stacked Washer and Dryer (Refer to the manual for more detailed information) Vérification de l’installation Guide rapide d’installation du combiné lave-linge/sèche-linge (Se reporter au guide d’installation pour de plus amples details) ➊ ➏ •...

This manual is also suitable for:

Ltz87a*h2802 series

Table of Contents
