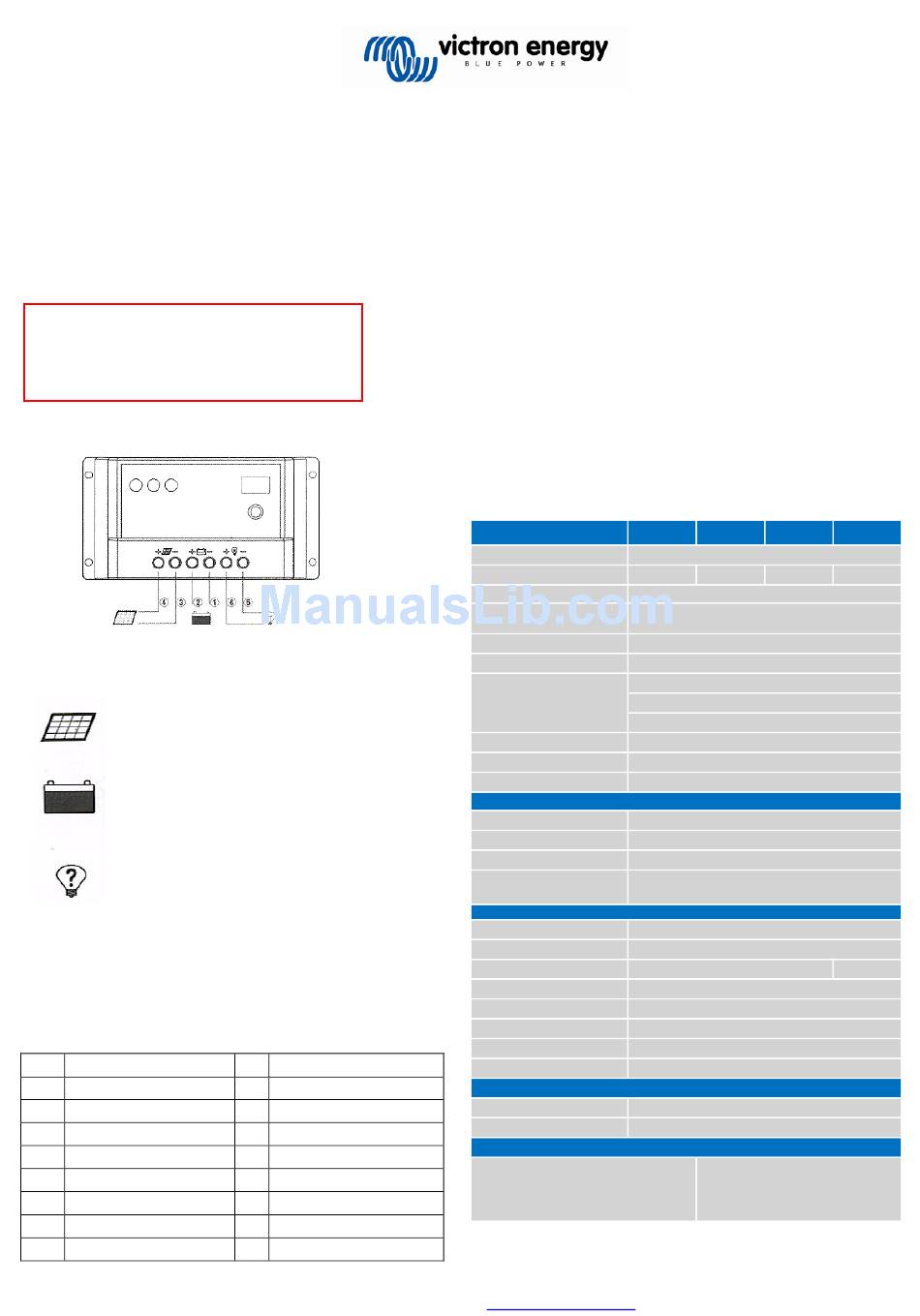

Victron energy BlueSolar PWM-Light 12/24-5 Manual

BlueSolar PWM Light Charge Controller 12/24V
(with light turn-off timer)
1. DESCRIPTION
• Programmable load output with lighting control mode.
• Three stage battery charging (bulk – absorption – float).
• Protected against over current.
• Protected against short circuit.
• Protected against reverse polarity connection of the battery or solar array.
• Low voltage load disconnect.
• Easy to set up thanks to two digit seven segment display.
2. INSTALLATION
IMPORTANT
•
Always connect the batteries first, in order to allow the
Controller to recognize system voltage
•
Use a 12V (36 cells) solar array for a 12V battery system.
•
Use a 24V (72 cells) solar array for a 24V battery system.
The display will show a ''12'' if the Controller detects a 12V battery, and a "24" if
it detects a 24V battery
Do not exceed Solar and Load ratings
3. LED INDICATORS
Green LED:
Off: No sunlight or not enough sunlight. Charger off.
Fast flashing: Bulk charge.
On: Absorption charge.
Slow flashing: Float charge.
LED=Green: battery fully charged (> 12,7V)
LED=Orange: battery ok (12,4V - 12,7V)
LED=Red: battery low (11,2V - 12,4V)
LED=Flashing Red: battery fully discharged (< 11,2V)
LED=ON: load output is on.
LED=OFF: load output is off.
LED=Slow flashing: Overload.
LED=Fast flashing: Short Circuit
Please note:
1. The load output will cut off in case of over load or short circuit. The load output
will attempt to restart after 30 seconds.
2. After over discharge, the load will reconnect automatically when the battery is
recharged to 13,1V / 26,2V.
3.
After over discharge, the load can be reconnected manually by pressing the
on/off push button, if the battery voltage exceeds 12,6V / 25,2V.
4. SETTING THE LOAD OUTPUT
4.1 Settings
0 Load output permanently off
Load output turned on during 1
1
hour after sunset
Load output turned on during 2
2
hours after sunset
Load output turned on during 3
3
hours after sunset
Load output turned on during 4
4
hours after sunset
Load output turned on during 5
5
hour after sunset
Load output turned on during 6
6
hours after sunset
Load output turned on during 7
7
hours after sunset
Load output turned on during 8
8
hours after sunset
Phone: (+31) (0)36 535 97 00 / Fax: (+31) (0)36 535 97 40 /
(load output cut off level: 11,2V)
Load output turned on during 9
9
hours after sunset
Load output turned on during 10
10
hours after sunset
Load output turned on during 11
11
hours after sunset
Load output turned on during 12
12
hours after sunset
Load output turned on during 13
13
hours after sunset
H Manual load control
Load output controlled by battery
C
voltage only
L Dusk to dawn mode
d Debug mode
Victron Energy bv / De Paal 35 / 1351 JG ALMERE / The Netherlands
4.2 Settings description
0 Charger only
The load output is switched off permanently.
1-13 Light control + delay
The load output automatically turns on after sunset (array voltage < 4V) and the
built-in timer starts counting.
When the timer reaches the set time, or when the low voltage limit is reached,
the load output will turn off.
H Manual
The load output can be turned on and off manually with the push button.
(low voltage shutdown remains active)
C Load output controlled by battery voltage only
Load disconnect and load reconnect will be based only on battery voltage, see
section 3
L Dusk to dawn mode
Turn on delay (array voltage < 4V): 10 seconds.
Turn off delay (array voltage > 4V): 1 minute.
No timer function.
d Debug mode
Same as L mode but without delay of 10s/1min
5. SPECIFICATIONS
12/24-5
BlueSolar PWM-Light
Battery Voltage
Rated charge current
Recommended solar array
Automatic low voltage load
disconnect
Maximum solar voltage 28 V for a 12 V system and 55 V for a 24 V system (1)
Self-consumption
Overload protection
Grounding
Operating temp. range
Humidity (non condensing)
Charge voltage 'absorption'
Charge voltage 'float'
Load disconnect
Load reconnect
Protection class
Terminal size
Weight
Dimension (h x w x d)
Mounting
Humidity (non condensing)
Operating temperature
Cooling
Safety
EMC
1) For 12V use 36 cell solar panels
For 24V use 72 cell solar panels
or 2x 36 cell in series
www.victronenergy.com / e-mail: sales@victronenergy.com
Revision : Rev 07
Date : 02-05-2017
12/24-10 12/24-20
12/24V with automatic system voltage detection*
5 A 10 A 20 A
36 cell for 12 V / 72 cell for 24 V
Yes
< 10 mA
Shut down after 60 s in case of 130% load
Shut down after 5 s in case of 160% load
Short circuit: immediate shut down
Common positive
-20 to +50°C (full load)
Max 95 %
Settings
14.2 V / 28,4 V
13.8 V / 27,6 V
11,2V / 22,4V
12,6V / 25,2V (manual)
13,1V / 26,2V (automatic)
Enclosure
IP20
5 mm² / AWG10
0,13 kg
70 x 133 x 33,5 mm (2.8 x 5.3 x 1.3 inch)
Vertical wall mount Indoor only
Max. 95%
-20°C to +50°C (full load)
Natural convection
Standards
IEC 62109-1
EN 61000-6-1, EN 61000-6-3, ISO 7637-2
2) The controller switches to the lower float
voltage level 2 hours after the absorption voltage
has been reached.
Whenever the battery voltage becomes lower
than 13 V, a new charge cycle is triggered.
12/24-30
30 A
0,15 kg
