Klein Tools 93LDM100C Instructions

ENGLISH

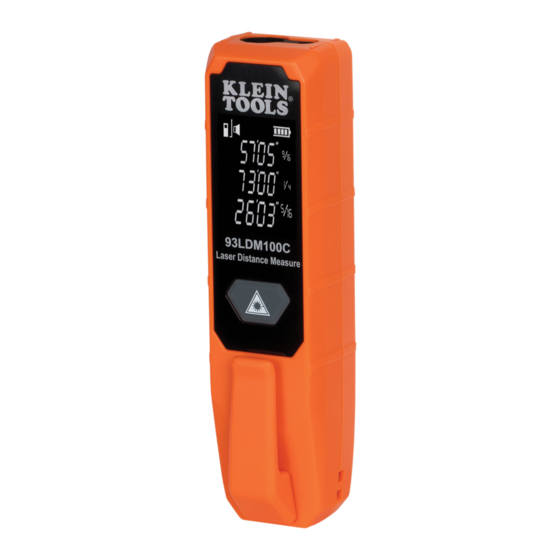

Klein Tools 93LDM100C Laser Distance Measure is able to take single or
continuous measurements at distances up to 100' (30.5 m).
• Units: Inches / Feet & Inches / Meters
• Laser Class: Class 2
• Laser Type: 630 to 670nm, <1mW
• Measurement Range*: 0.17 to 100' (0.05 to 30.5 m)
• Accuracy*: +/- 1/16" (+/-1.6 mm) for ≤ 32.8' (10 m),
• Beeper Sound: 60 +/-10 dB
• Memory / Storage: 2 stored readings on LCD screen
• Auto-Off: Laser: 30 sec, Device: 3 min
• Operating Temperature: 32° to 104°F (0° to 40°C)
• Storage Temperature: -4° to 140°F (-20° to 60°C)
• Battery Type: 2× AAA 1.5V Alkaline
• Dimensions: 4.7" × 1.26" × 1.13" (119 × 32 × 29 mm)
• Weight: 2.29 oz. (65g)
• Ingress Protection: IP54
• Drop Protection: 6.6 ft (2 m)
*NOTE: Measurement range and accuracy are based on typical
conditions and may deteriorate under unfavorable conditions such
as bright sunlight or poor reflectivity.
Specifications subject to change.
Read, understand, and follow these instructions to ensure safe operation,
Failure to observe these warnings can result in injury.
WARNING: LASER RADIATION. DO NOT STARE INTO BEAM. Class 2 laser.
• Exposing eyes to laser radiation can result in severe and permanent eye injuries.
NEVER look directly into the laser beam emitted by this instrument.
• DO NOT use the instrument if it appears to be damaged.
• DO NOT modify the instrument in any way, as to do so could result in emission of
hazardous laser radiation than could result in severe eye injuries.
• DO NOT use optical equipment such as lenses, prisms, optical scopes, etc. to transmit,
retransmit, or view the laser beam as this could result in severe eye injuries.
• This product should not be used by untrained operators or operators who have not
read and fully understood the instructions.
• DO NOT remove warning labels from this instrument as this could result in serious
personal injury and increases the risk of exposure to hazardous laser irradiation.
• This instrument is IP54 dust & water resistant. Following any contact with water,
thoroughly dry the instrument with a dry, lint-free cloth.
• There are no user serviceable parts in this instrument.
1.Multi-Function Button
2.Backlit LCD Screen
A. Laser ON Indicator
B. Reference Point Indicator:
C. Battery Status Indicator G. Value #1
1.888.610.7664

GENERAL SPECIFICATIONS

+/- 1/8" (+/- 3.2 mm) for >32.8' (10 m)

WARNINGS

SYMBOLS ON INSTRUMENT
Warning or
Read
instructions
Caution
Laser Do not stare
Class 2 into beam
UKCA: United Kingdom Conformity
Assessment
WEEE –
Battery type
Electronics
& orientation
disposal

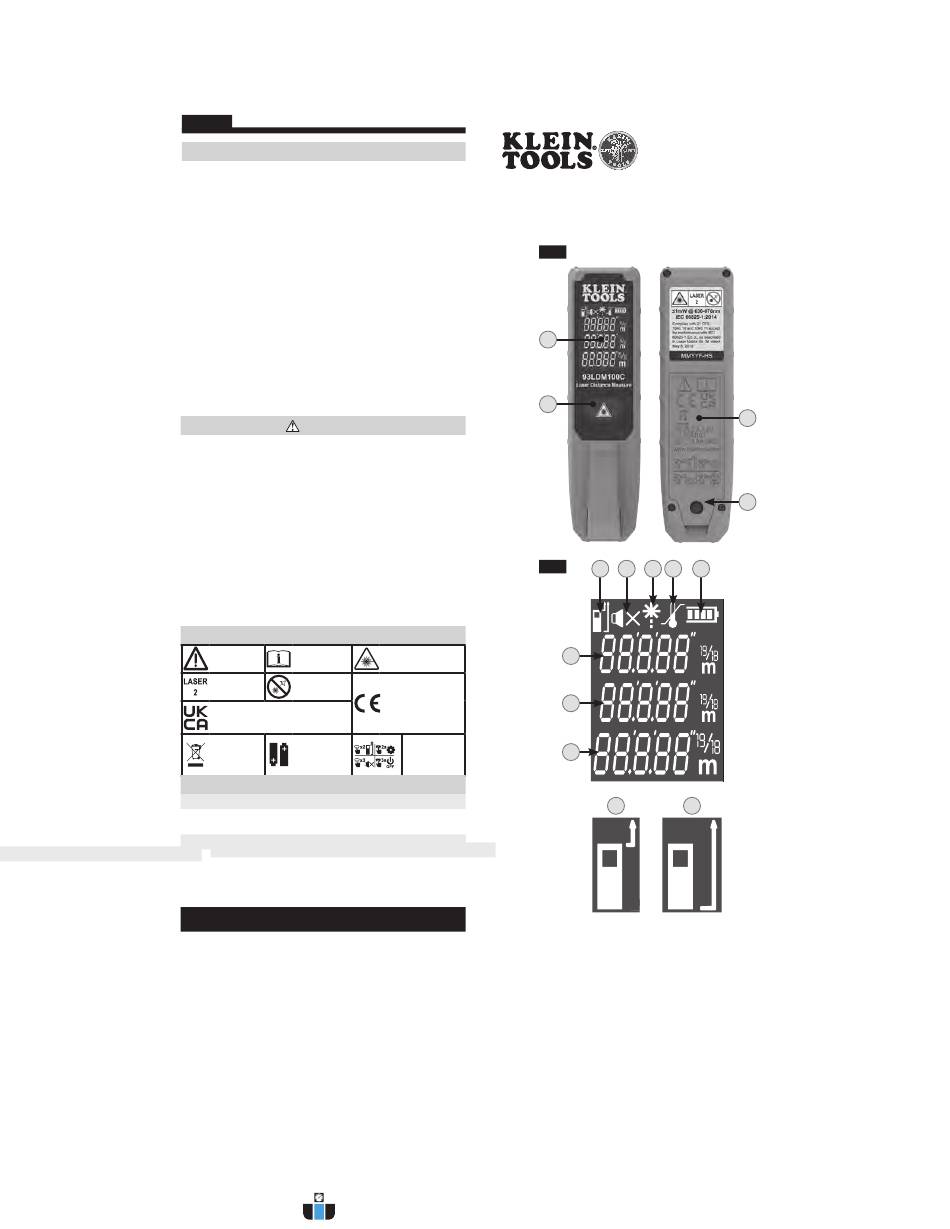

FEATURE DETAILS
Device (FIG. 1)
3.Battery Cover
4.Battery Cover Screw
LCD Display (FIG. 2)
D. Sound ON/OFF Indicator
E. Temperature Out Of Range Indicator
B1: Top B2: Bottom
F. Latest Value / Continuous Reading
CONTINUED ON OTHER SIDE
