Combiner loss can be automatically recovered from MTK952Ns connected to the smart
combiner CSI16T: MTK952Ns raise power accordingly to the loss, while keeping the limit on
output port (country based).

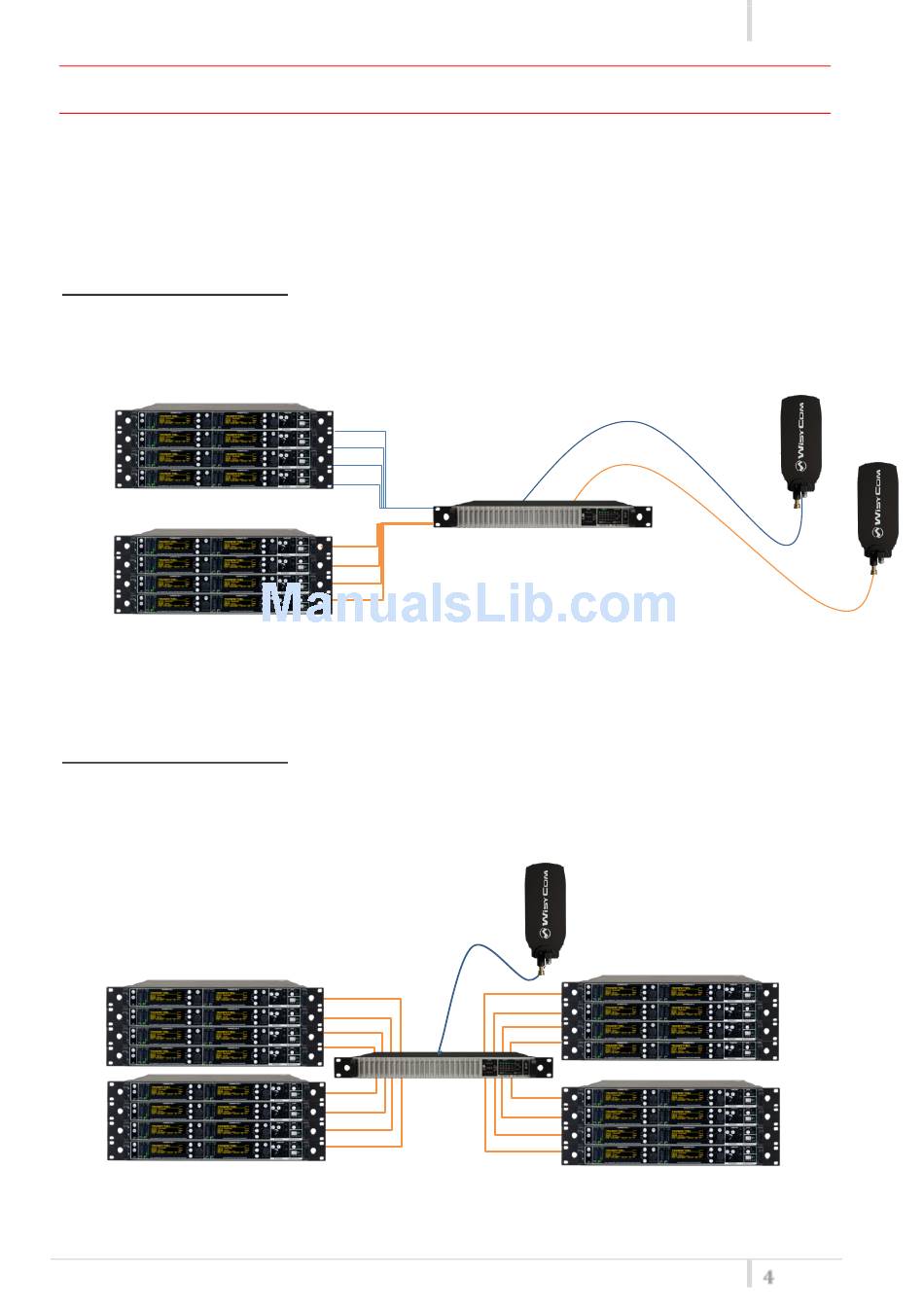

Example1: Combiner 2x [8:1] configuration with high power transmitters:
Country power limit:50mW
Enabling external compensation on MTK952Ns, the transmitters raise power of 9dB in order to
limit to 50mW the maximum power at the output of CSI16T.
400mW
50mW
Example2: Combiner [16:1] configuration with high power transmitters:
Country power limit:10mW
Enabling external compensation on MTK952Ns, the transmitters raise power of 12dB in order to
limit to 10mW the maximum power at the output of CSI16T.
10mW
160mW
