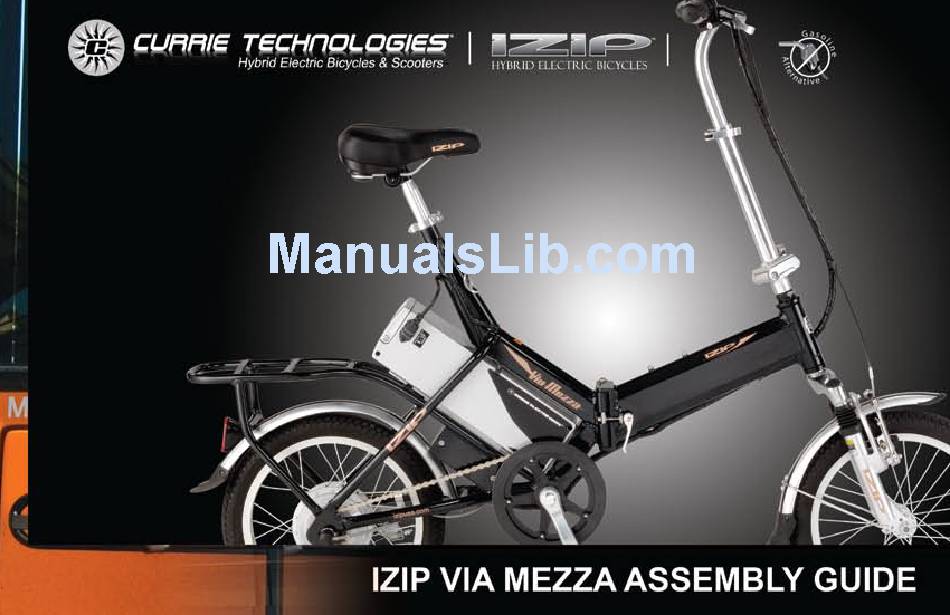

- Page 1 Please Refer to your Owner’s Manual for Detailed Setup Instructions 1-800-377-4532 Technical & Customer Service:...
-
Page 2: Assembly Tools
Front brake faces Assembly Tools Unpacking and Preparation forward, cables properly routed to right-side of frame Carefully remove the bicycle from the box. without twisting or tangles Included in your parts box: Helpful Tools: • • You should have a friend help you with this, as it is heavy. If you are Pedals Scissors Stand... - Page 3 Remove black plastic the protective caps from the stem and Handlebars Steering column head tube. top half Slide the end of the steering column (the stem) fully into the bicycles head tube (Photo G), align the handlebars so they will be perpendicular Locate the bottom half of the steering column (usually zip-tied to the Steering column to the front wheel when they are raised, then tighten the wedge bolt...
- Page 4 Seatpost Fenders Unpack the saddle and seatpost. Open the quick-release lever on Install the front fender using the three bolts already attached to the fork; see diagram the bicycle’s seat tube, then insert the seatpost into the seat tube. M & photo N. Make sure the fender does not rub against the wheel or interfere with the Set the saddle to a comfortable height, then close the seat tube quick front brake.
- Page 5 Your Izip Via Mezza folds at two hinges ; one on the frame and one on the steering column. Slide the top handlebar section down completely and lock in place...
-
Page 6: Operation
To turn your bicycle on, simply toggle the battery’s ON/OFF switch to the ON position. The lights on the throttle (Photo X) will illuminate, indicating the charge level of the battery. The Via Mezza uses the Currie “Twist and Go” (TAG) system. Simply twist the handlebar-mounted throttle towards you to power up the motor. - Page 7 Before your first ride... This page intentionally left blank • Remove all remaining packaging on the bike. • Check the operation of your front and rear brakes by pushing the bike forward and operating the brake levers. • Check the tightness of all nuts and bolts , especially the stem bolts and the bolts securing the brake levers and shifters to the handlebars.
- Page 8 Appendix: Quick Release Levers Adjusting a quick release seatpost clamp Many Izip and Ezip bicycle models use quick release (QR) levers to facilitate common tasks such as front wheel removal and seat height adjustment. Tension adjusting In a seatpost quick release system, the seatpost is clamped in place by the force of the quick...
- Page 9 BICYCLE TORQUE VALUES BICYCLE TORQUE VALUES, CTD. Component Recommended Torque Value (in-lb) Component Recommended Torque Value (in-lb) Wheel area Headset, Handlebar, Seat area Wheel axle nuts to frame/fork 260 - 390 29.4 - 44.1 Seat fixing bolt (seat rail binder) 174 - 347 19.7 - 39.2 Brakes...
- Page 10 Notes: Notes:...
- Page 11 9453 Owensmouth Ave, Chatsworth, CA 91311 Phone: +1 800.377.4532 Fax: +1 818.734.8199 www.currietech.com...
