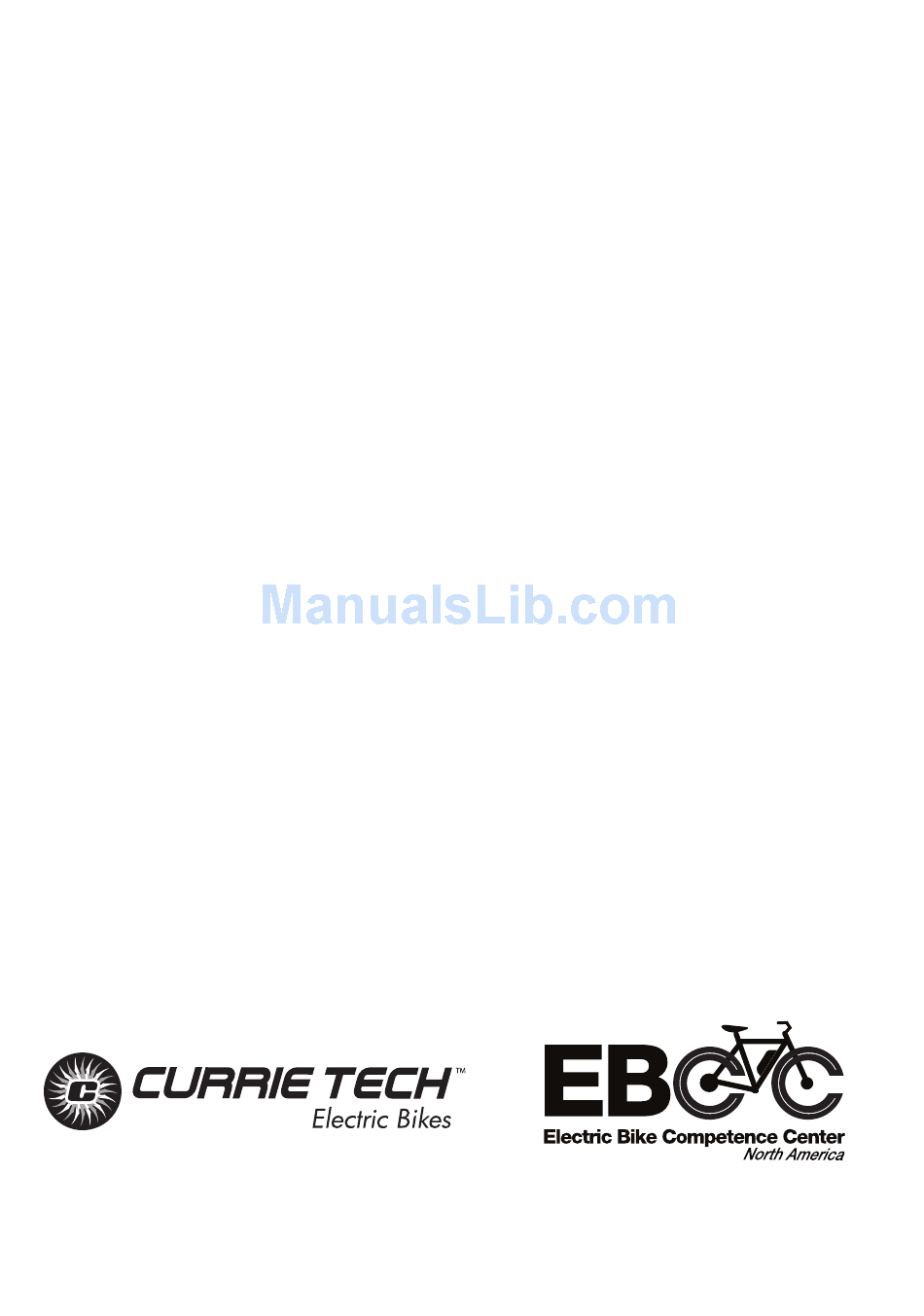

System Operation Manual
E3 Dash
This manual is meant to be read together with the owner's manual, also included with
your bicycle. The owner's manual contains important safety and use information about your
bicycle. Be sure to read both manuals before riding for the first time, or performing any
assembly. If you did not receive an owner's manual, the most recent version can always
be found online at www.CurrieTech.com.
EBCC Technical and Customer Service: +1 800-377-4532
10/29/14

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E3 Dash and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Izip E3 Dash

Summary of Contents for Izip E3 Dash

  • Page 1 System Operation Manual E3 Dash This manual is meant to be read together with the owner’s manual, also included with your bicycle. The owner’s manual contains important safety and use information about your bicycle. Be sure to read both manuals before riding for the first time, or performing any assembly.

  • Page 2: Table Of Contents

    System Operation Manual - E3 Dash Co n te n t s Section 1 Electrical System Components ....4 Section 2 General information ......8 Section 3 Basics .
  • Page 3 System Operation Manual - E3 Dash No t ic e! INSTALL BATTERY FUSE! Fuse cover Your bike ships without the battery fuse installed. This helps keep the battery in top condition during shipping and storage. Before using your bike for the first time, you’ll need to install the fuse, as shown in the diagram above.

  • Page 4: Electrical System Components

    System Operation Manual - E3 Dash Electrical System Components Overview Battery, detail Upper battery holder Battery lock Battery BATTERY PANEL charging port Lower Battery power button battery holder Battery level indicator Control pad CONTROL PAD BUTTONS Assist level Light Power...
  • Page 5 System Operation Manual - E3 Dash Display DISPLAY FUNCTIONS Ambient light sensor Main display area Speed Odometer Distance Range Maintenance indicator Distance unit Assist level indicator Cruise control indicator Low battery warning indicator Battery level indicator Throttle 10/29/14...

  • Page 6: Battery Charger

    System Operation Manual - E3 Dash Battery charger LED indicator Charging plug Wall plug Power cord Charging cord Power socket Power plug Rear wheel Hub motor Motor connector 10/29/14...
  • Page 7 System Operation Manual - E3 Dash 10/29/14...

  • Page 8: General Information

    System Operation Manual - E3 Dash General information USE RESTRICTIONS Intended Condition 2 (General purpose riding) Minimum 16 years rider age Maximum 110 Kg (242 lbs) permissible weight 1. This bicycle is intended to be used under the guidelines of the stated condition, found in the intended use section of your owner’s manual.
  • Page 9 System Operation Manual - E3 Dash TECHNICAL SPECIFICATIONS Motor Type Rear hub drive Rated power 500W Peak torque 42 Nm Battery Voltage 48V nominal Capacity 8.7Ah Energy 417Wh Cycle life ~700 (expected) Charger Input voltage 110-240V AC (auto-sensing) Frequency 50/60Hz Input current 2.2A maximum...

  • Page 10: Basics

    System Operation Manual - E3 Dash Basics IMPORTANT: The owner’s manual included with your bike contains most of the important safety and usage information about this bike, which is not included in this system operation manual. Be sure to read the owner’s manual before you begin riding or working on your bike.

  • Page 11: Using The Battery

    System Operation Manual - E3 Dash that it engages the holder and locks into place. The key does not need to be used when installing the battery. Removing the battery To remove the battery, unlock the battery lock with the key, pull the battery out of the upper battery holder, then lift it out of the lower battery holder.

  • Page 12: Riding And Use

    System Operation Manual - E3 Dash Riding and use Be sure to read the “Electric Bikes” section of your owner’s manual, and specifically pay attention to the sections on “Riding an electric bike” and “Riding a high-speed electric bicycle” before you ride for the first time.

  • Page 13: Using The Brakes

    System Operation Manual - E3 Dash The display’s cyclecomputer in a position that maintains this speed, and press the button. You can then release functions the throttle, and the bike will hold its current The display has four cyclecomputer speed, plus or minus about 3 km/h (2 mph).

  • Page 14: The Display's Electrical System Functions

    System Operation Manual - E3 Dash The display’s electrical system functions The display shows information about the bike’s electric assist, and gives the rider access to several important functions: Assist level The current assist level is shown on the display (assist level indicator).

  • Page 15: Troubleshooting

    System Operation Manual - E3 Dash Troubleshooting Error codes SYSTEM ERROR CODES In the event of a system error, these codes will appear on the display. Motor internal error BB sensor error BB sensor short circuit Cadence sensor error Motor speed sensor malfunction...

  • Page 16: Misc Issues

    System Operation Manual - E3 Dash  The battery or charger may be damaged. Stop using the battery and Solution charger immediately, and bring them to your dealer for inspection.  The output of the charger is short-circuited.  Stop using the battery and charger immediately. Check for obvious external shorts on the charging plug and battery charging port.
