20 Weather Display
__________________________________________________________________________

Angle Adjustment

To adjust the angle of the desktop chassis:
1. Loosen only one knob while holding the chassis with the other hand
(otherwise the chassis might drop).
2. Loosen the second knob while holding the chassis with the other hand.
3. Change the angle of the chassis.
4. Tighten both knobs.

Power Connection

The Weather Display is shipped with a wall mount switching power supply.
Input: 100V to 240V AC, 50/60 Hz, 0.6 Amp
Output: 12V DC, 1.25 Amp

Ethernet Connection

The Weather Display is shipped with a standard 7-foot Ethernet cable for
network connection.

RS-232 Connection

The Weather Display is shipped with a standard 7-foot RS-232 cable. This
cable can be factory configured with additional length and has two RJ-11
connectors.
The RS-232 range also can be extended by using RS-485 converters. To
eliminate the cable between the Weather Display and the weather station
wireless transceivers can be added to the system.

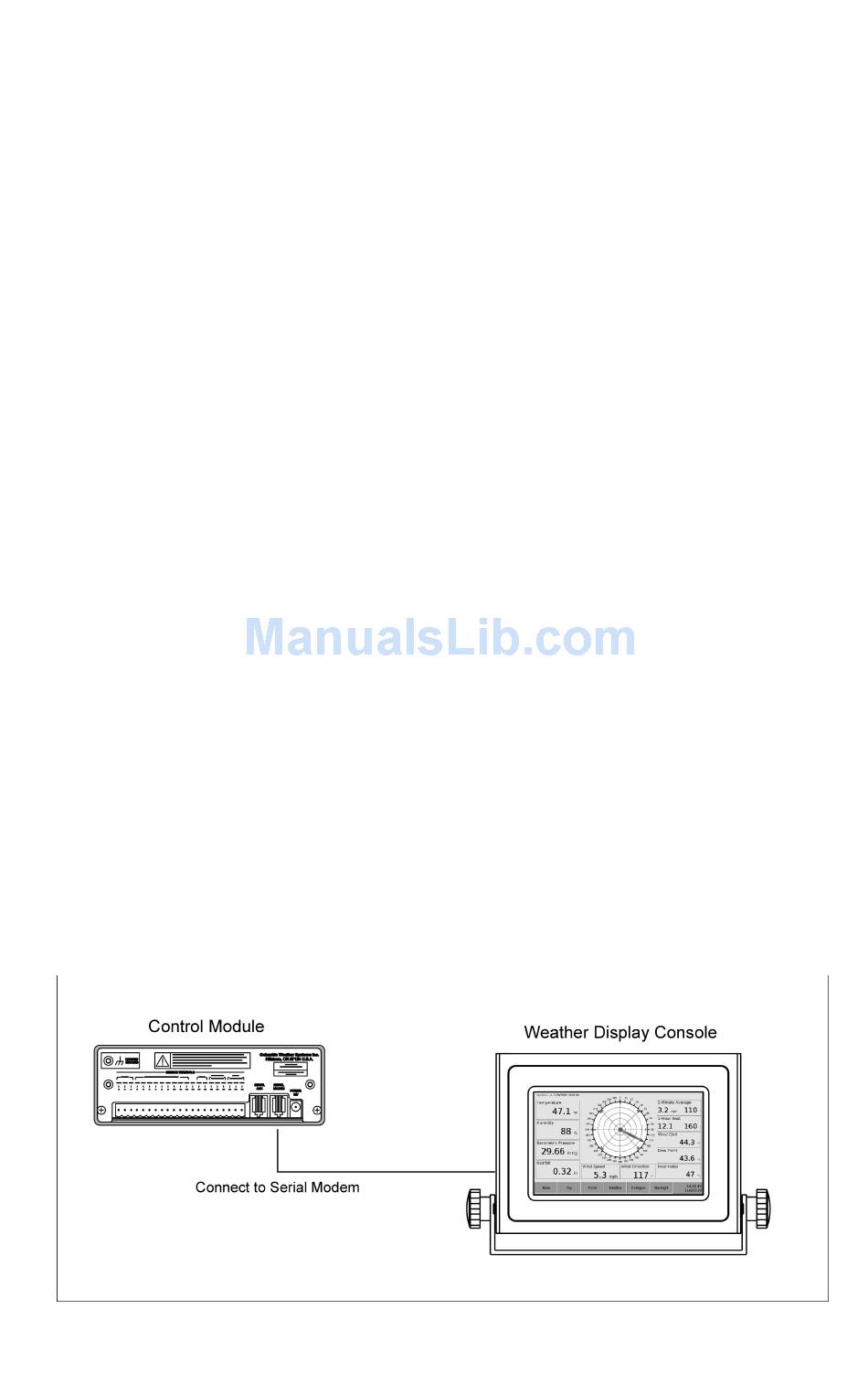

Capricorn 2000/2000EX, Direct RS-232 Connection
