10200-DECK2-B Weather Station
1
______________________________________________________________________________________________________________
Columbia Weather Systems
Weather Station
10200-DECK2-B
with Hukseflux Solar Radiation Sensors
For Sunlight General Installations
User Manual
Version 1.02
Serial Number: _________________
Date Purchased: ________________
All specifications subject to change without notice.
Printed in U. S. A.
© Copyright 2012 Columbia Weather Systems, Inc. All Rights Reserved.
Columbia Weather Systems, Inc.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 10200-DECK2-B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Columbia Weather Systems 10200-DECK2-B

Summary of Contents for Columbia Weather Systems 10200-DECK2-B

  • Page 1 For Sunlight General Installations User Manual Version 1.02 Serial Number: _________________ Date Purchased: ________________ All specifications subject to change without notice. Printed in U. S. A. © Copyright 2012 Columbia Weather Systems, Inc. All Rights Reserved. Columbia Weather Systems, Inc.
  • Page 2 10200-DECK2-B Weather Station ________________________________________________________________________________________________________________ Columbia Weather Systems, Inc.

  • Page 3: Important Notice: Shipping Damage

    The title transfers automatically to you, the customer, once the material is entrusted to the transport company. NOTE: DO NOT RETURN THE INSTRUMENT TO COLUMBIA WEATHER SYSTEMS until the following steps are completed. Failure to follow this request will jeopardize your claim.

  • Page 4: Esd Protection

    10200-DECK2-B Weather Station ________________________________________________________________________________________________________________ ESD Protection Electrostatic Discharge (ESD) can cause immediate or latent damage to electronic circuits. The Weather Station is adequately protected against ESD for its intended use. However, it is possible to damage the product by delivering electrostatic discharges when touching, removing, or inserting any objects inside the equipment housing.

  • Page 5: System Enclosure

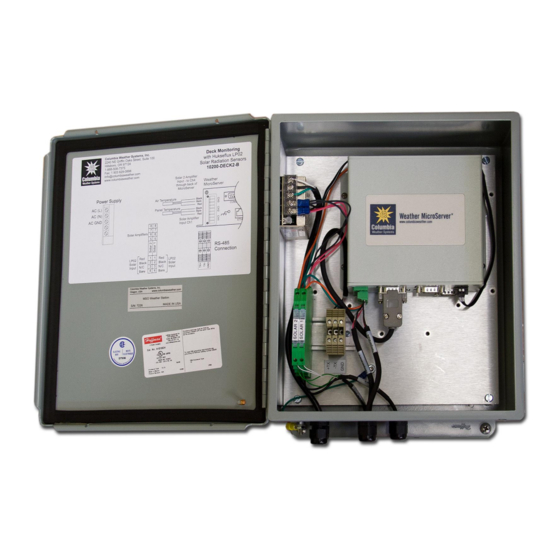

    10200-DECK2-B Weather Station ______________________________________________________________________________________________________________ System Enclosure: The system enclosure includes the following:  AC power supply with 24VDC output  Weather MicroServer  RS-485 Terminal Strip  Two solar amplifiers The system enclosure is weatherproof and includes hardware to mount the unit on a mast.
