Weather Display
__________________________________________________________________________

SECTION 3: INSTALLATION

Location Considerations

Because the Weather Display employs an LCD screen, the viewing angle
and glare caused by light reflections must be considered when choosing a
location. Install the Weather Display at a height and angle most convenient
for the user to see and operate the screen.

Desktop Chassis Base Installation

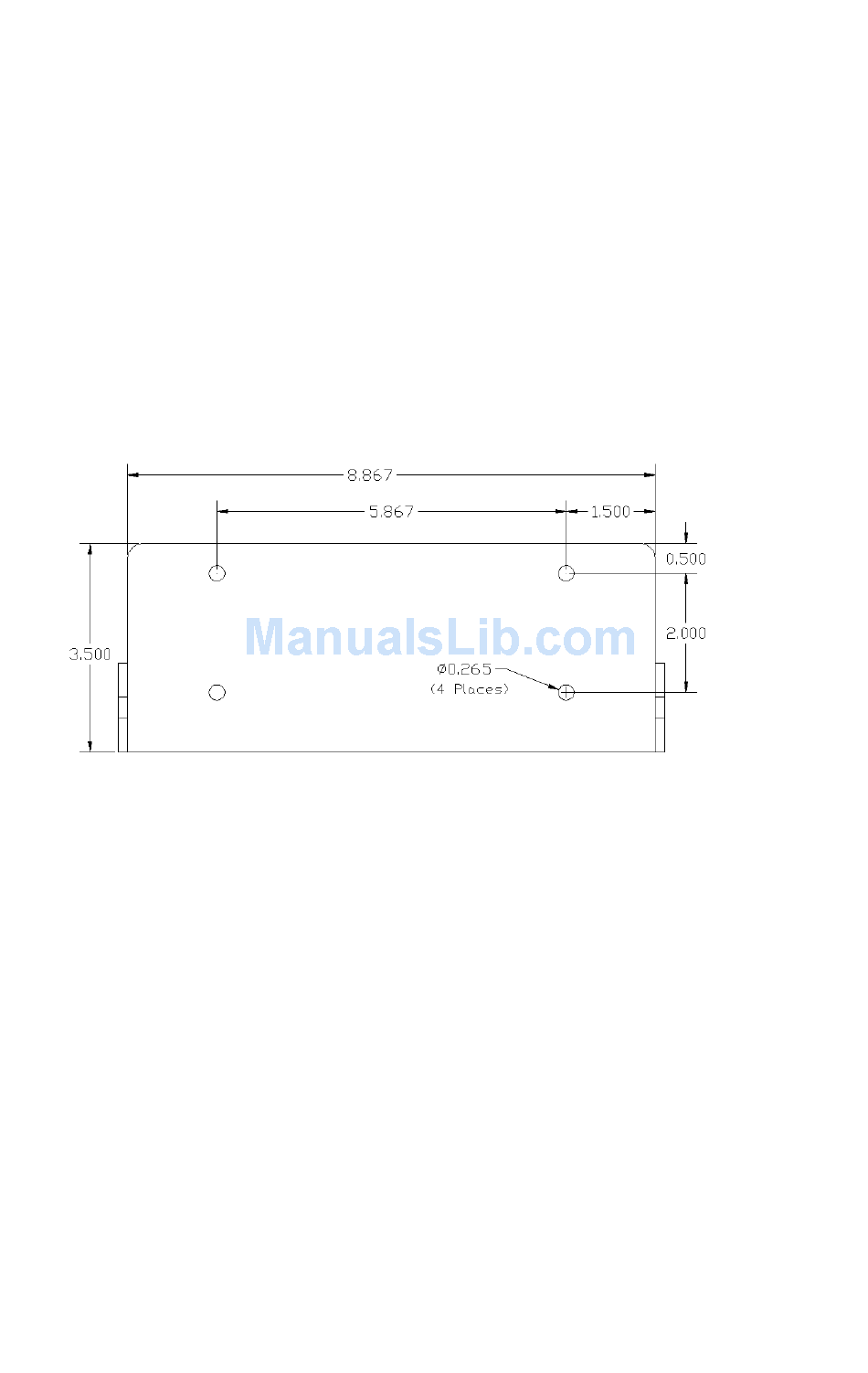

The Weather Display base has four holes for permanent installation on a
desktop or any other flat surface at various tilt angles.
The base also has four mounting holes to secure it to other surfaces,
including a wall.
To secure the base:
1. Remove the chassis from the base by removing both side knobs. Do
not discard the white shoulder washers.
2. Mark the location of the screw holes on the mounting surface.
3. Drill four holes using the appropriate size drill bit based on the size of
screws being used.
4. Secure the mounting base using four screws.
5. Reattach the chassis using the two side knobs. Make sure the
shoulder washers are in place.
Columbia Weather Systems, Inc.
19
