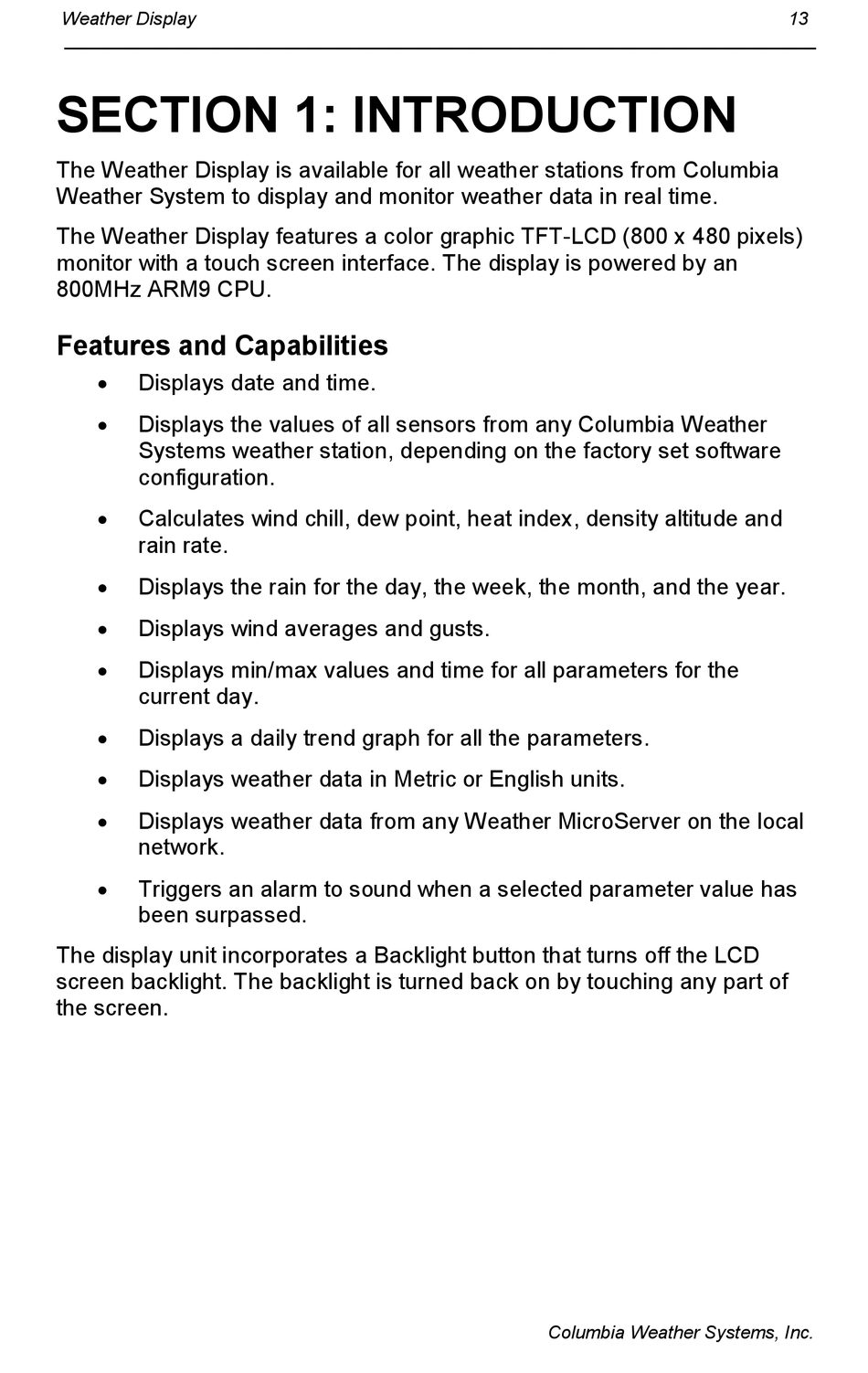

SECTION 1: INTRODUCTION

The Weather Display is available for all weather stations from Columbia
Weather System to display and monitor weather data in real time.
The Weather Display features a color graphic TFT-LCD (800 x 480 pixels)
monitor with a touch screen interface. The display is powered by an
800MHz ARM9 CPU.

Features and Capabilities


Displays date and time.

Displays the values of all sensors from any Columbia Weather
Systems weather station, depending on the factory set software
configuration.

Calculates wind chill, dew point, heat index, density altitude and
rain rate.

Displays the rain for the day, the week, the month, and the year.

Displays wind averages and gusts.

Displays min/max values and time for all parameters for the
current day.

Displays a daily trend graph for all the parameters.

Displays weather data in Metric or English units.

Displays weather data from any Weather MicroServer on the local
network.

Triggers an alarm to sound when a selected parameter value has
been surpassed.
The display unit incorporates a Backlight button that turns off the LCD
screen backlight. The backlight is turned back on by touching any part of
the screen.
