This owner's manual should be considered a permanent part of the
vehicle and should remain with the vehicle when it is sold.
This owner's manual covers all models of your vehicle. You may find
descriptions of equipment and features that are not on your
particular model.
Images throughout this owner's manual (including the front cover)
represent features and equipment that are available on some, but
not all, models. Your particular model may not have some of these
features.
This owner's manual is for vehicles sold in the United States and
Canada.
The information and specifications included in this publication were
in effect at the time of approval for printing. Honda Motor Co., Ltd.
reserves the right, however, to discontinue or change specifications
or design at any time without notice and without incurring any
obligation.

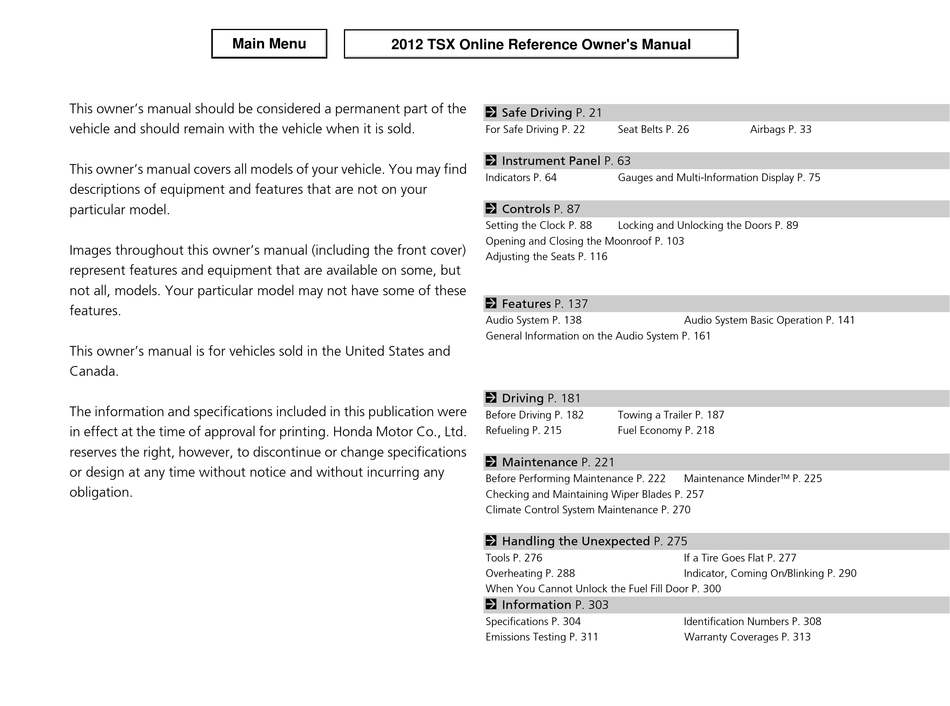

2012 TSX Online Reference Owner's Manual
2 Safe Driving P. 21
For Safe Driving P. 22
2 Instrument Panel P. 63
Indicators P. 64
2 Controls P. 87
Setting the Clock P. 88
Opening and Closing the Moonroof P. 103
Adjusting the Seats P. 116
2 Features P. 137
Audio System P. 138
General Information on the Audio System P. 161
2 Driving P. 181
Before Driving P. 182
Refueling P. 215
2 Maintenance P. 221
Before Performing Maintenance P. 222
Checking and Maintaining Wiper Blades P. 257
Climate Control System Maintenance P. 270
2 Handling the Unexpected P. 275
Tools P. 276
Overheating P. 288
When You Cannot Unlock the Fuel Fill Door P. 300
2 Information P. 303
Specifications P. 304
Emissions Testing P. 311
Seat Belts P. 26
Airbags P. 33
Gauges and Multi-Information Display P. 75
Locking and Unlocking the Doors P. 89
Audio System Basic Operation P. 141
Towing a Trailer P. 187
Fuel Economy P. 218
Maintenance Minder
TM
P. 225
If a Tire Goes Flat P. 277
Indicator, Coming On/Blinking P. 290
Identification Numbers P. 308
Warranty Coverages P. 313
