TL and TSX: TQI of the DVD Navigation System With Voice Recognition
(Supersedes 03-013, dated December 21, 2004, to update the information indicated by the black bars)
BACKGROUND
This bulletin provides information for Total Quality
Inspection (TQI), including testing, of the navigation
system. These topics are covered:
• Navigation System Controls
• Voice Control System Operation
• Navigation System Operation
• Navigation System Setup at TQI
• Map Coverage Areas
For more detailed information on system operation,
refer to the Navigation System Manual.
WARRANTY CLAIM INFORMATION
None; these procedures are considered part of normal
TQI.
NAVIGATION SYSTEM CONTROLS

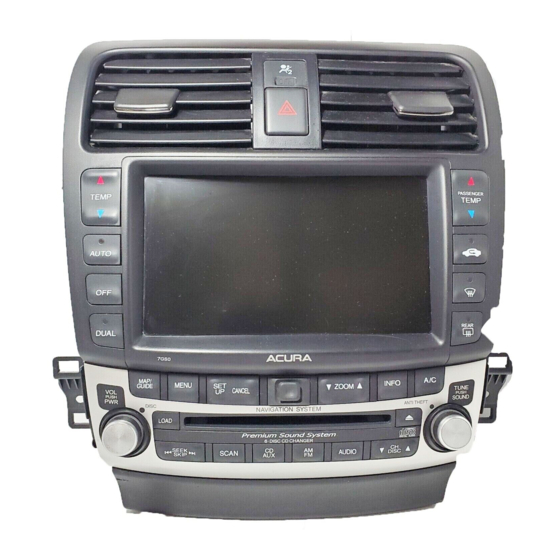

Screen – All selections and instructions are displayed
on the screen. This touch-screen uses a pressure
sensitive/resistance technology to sense where you
touch. If the system doesn't accept your selection
(nothing happens), try pushing gently against the
screen. You can also use the joystick or, in most cases,
the voice control system, to make a selection.
NOTE: Do not use anything other than your fingers on
the screen. Sharp objects can damage the touch-
sensitive membrane.
Upper display – This display provides the time and
basic audio and climate control settings, even when the
navigation system is not being used. The time is set
from received GPS signals and is accurate to within a
second. This time can be adjusted in Setup. See the
owner's manual for information on the audio and
climate control portions of the display.
