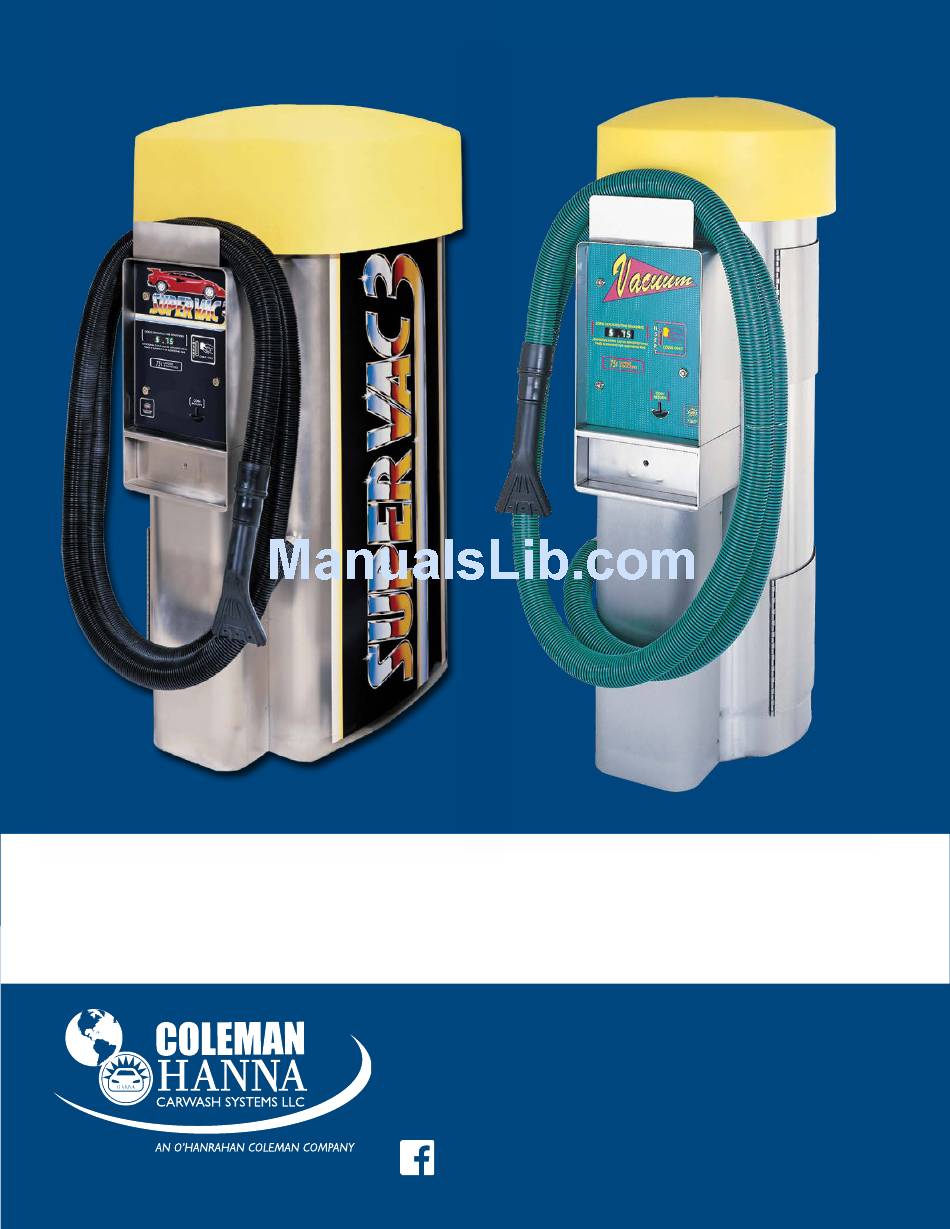

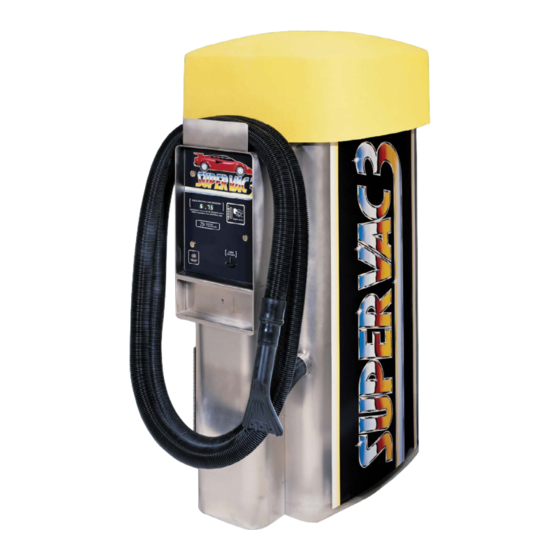

93000 & 94000 Super Vac
Installation/Operations Manual
5842 W 34th St • Houston, TX 77092
1.800.999.9878 1.713.683.9878
www.colemanhanna.com
Find us on Facebook:
/ColemanHannaCarwash

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 93000 and is the answer not in the manual?

Questions and answers

Summary of Contents for Coleman Hanna 93000

  • Page 1 93000 & 94000 Super Vac Installation/Operations Manual 5842 W 34th St • Houston, TX 77092 1.800.999.9878 1.713.683.9878 www.colemanhanna.com Find us on Facebook: /ColemanHannaCarwash...
  • Page 2 SUPER VAC 3 Installation/Operation Manual COPYRIGHTS AND DISCLAIMERS The 93000 and 94000 Vacuums are completely developed and designed by the Coleman Hanna Carwash Systems. Any un-authorized use of it is strictly forbidden without written permission from the Coleman Hanna Carwash Systems.

  • Page 3: Table Of Contents

    6.5 Programming Via the hand-held Remote Controller ............11 Example of Typical Set-up ....................11 7. TROUBLESHOOTING ......................17 8. DIAGRAMS/TECHNICAL INFORMATION ................19 9. PARTS LIST ........................24 Coleman Hanna Carwash Systems 93000/94000 Super Vac Page 3 of 38 Rev. 2 7/12/10...

  • Page 4: Equipment Planning And Arrangement

    1.1 Unpacking The Equipment Before any operation can be carried out there must be a time of planning. This is no different for the installation of the 93000/94000. Carefully plan the 93000/94000 layout and setup before starting the installation process.

  • Page 5: Safety Instructions

    Failure to do so could result in fatal electrical shock.  A qualified electrician should install all wiring according to local, state, and federal electrical codes. Coleman Hanna Carwash Systems 93000/94000 Super Vac Page 5 of 38 Rev. 2 7/12/10...

  • Page 6: Installation Guidelines

     Blow out all concrete dust from holes.  Set vacuum cleaner over holes and hammer in Anchor Bolts. Use ½” x 5½” for 93000 Oval Vacuum and ½” x 3¾” for 94000 Round Vacuum.  Make sure you install rubber washer between metal washer and vacuum canister to provide air-tight seal on 93000 unit.

  • Page 7: Maintenance

    Clean fluorescent lamps with damp towel.  Check brushes in vacuum motor for wear, and replace as needed.  Wash filter bags.  Wash out bottom dirt canister and dirt funnel. Coleman Hanna Carwash Systems 93000/94000 Super Vac Page 7 of 38 Rev. 2 7/12/10...

  • Page 8: Equipment Programming

    This is the amount of time that the customer will receive for each additional the Start-Up Price is Satisfied. coin deposited after the initial turn-on price is deposited. Coleman Hanna Carwash Systems 93000/94000 Super Vac Page 8 of 38 Rev. 2 7/12/10...

  • Page 9: Programming The Timer

    Press the mode switch and the “D” menu appears. Using the set switch, enter the number of seconds that you want the warning horn to sound at the one-minute mark when a customer is using the vacuum. Coleman Hanna Carwash Systems 93000/94000 Super Vac Page 9 of 38...

  • Page 10: Accessing Timer Functions

    By repeatedly pressing the mode switch, you are able to step through the menus until you reach the item you wish to modify. Coleman Hanna Carwash Systems 93000/94000 Super Vac Page 10 of 38...

  • Page 11: Programming Via The Hand-Held Remote Controller

    I have a vacuum/fragrance machine that requires $1.00 to start the vacuum and $1.00 to start the fragrance machine.  The vacuum cycle lasts for a period of four minutes, while the fragrance cycle lasts for forty- five seconds. Coleman Hanna Carwash Systems 93000/94000 Super Vac Page 11 of 38 Rev. 2 7/12/10...
  • Page 12 If you are using a separate coin acceptor for tokens only use set to program token value. o If you are not using a separate coin acceptor for tokens disregard this setting. Coleman Hanna Carwash Systems 93000/94000 Super Vac Page 12 of 38 Rev.
  • Page 13 Depress mode “W” will appear allowing you to program “VAC Run Time” when using remote. Use mode to advance 1 digit at a time. If not using Commander Remote C-1000 disregard this setting. Coleman Hanna Carwash Systems 93000/94000 Super Vac Page 13 of 38...
  • Page 14 Press mode again “H’ will appear allowing you to program horn setting. Use set button to advance one # at a time. Ten is a good number for this. Coleman Hanna Carwash Systems 93000/94000 Super Vac Page 14 of 38...
  • Page 15 Press mode again “H’ will appear allowing you to program horn setting. Use set button to advance one # at a time. Ten is a good number for this. Coleman Hanna Carwash Systems 93000/94000 Super Vac Page 15 of 38...
  • Page 16 Length of Blow Out Time Between Blow Out Wash Down Time (Bay) or Vac Run Time (Vacuum) User Password 4 Digit Password Supervisor 4 Digit Password Password Coleman Hanna Carwash Systems 93000/94000 Super Vac Page 16 of 38 Rev. 2 7/12/10...

  • Page 17: Troubleshooting

    24V Common Green 24V Hot Orange 7. TROUBLESHOOTING  NOTE: In order to troubleshoot Coleman Hanna Carwash Systems equipment it helps to have knowledge on how the equipment is supposed to operate properly. Please read the following carefully. PROBLEM POSSIBLE SOLUTIONS ...
  • Page 18 If relay has 110V, check for 24V to energize relay.  If 24V is not present check switch - if switch is good - call a service technician. Coleman Hanna Carwash Systems 93000/94000 Super Vac Page 18 of 38 Rev. 2 7/12/10...

  • Page 19: Diagrams/Technical Information

    World Class Manufacturing in Car Wash Equipment SUPER VAC 3 Installation/Operation Manual 8. DIAGRAMS/TECHNICAL INFORMATION Coleman Hanna Carwash Systems 93000/94000 Super Vac Page 19 of 38 Rev. 2 7/12/10...
  • Page 20 World Class Manufacturing in Car Wash Equipment SUPER VAC 3 Installation/Operation Manual Coleman Hanna Carwash Systems 93000/94000 Super Vac Page 20 of 38 Rev. 2 7/12/10...
  • Page 21 World Class Manufacturing in Car Wash Equipment SUPER VAC 3 Installation/Operation Manual Coleman Hanna Carwash Systems 93000/94000 Super Vac Page 21 of 38 Rev. 2 7/12/10...
  • Page 22 World Class Manufacturing in Car Wash Equipment SUPER VAC 3 Installation/Operation Manual Coleman Hanna Carwash Systems 93000/94000 Super Vac Page 22 of 38 Rev. 2 7/12/10...
  • Page 23 World Class Manufacturing in Car Wash Equipment SUPER VAC 3 Installation/Operation Manual Coleman Hanna Carwash Systems 93000/94000 Super Vac Page 23 of 38 Rev. 2 7/12/10...

  • Page 24: Parts List

    R26001 Single Pos Lock (w/o bill acceptor) 24074 Medico Cam Lock, Dbbl Key Pull (w/bill acceptor) 82017 Timer 1034S (with Swipe-N-Clean) 82017-N Timer 1034R (without Swipe-N-Clean) Coleman Hanna Carwash Systems 93000/94000 Super Vac Page 24 of 38 Rev. 2 7/12/10...
  • Page 25 Motor Bracket 92168 Motor Bracket and Bolts 93225 Motor Bracket Screws 55114 Vacuum Motor 1.6hp 110v 42000 Vacuum Dome Light Fixture 42004 Vacuum Dome Light Fixture Bulb Coleman Hanna Carwash Systems 93000/94000 Super Vac Page 25 of 38 Rev. 2 7/12/10...
  • Page 26 Vacuum Body (plain) 92229 Upholstery Tool 92214 Draco Swivel Cuff 92202 Vacuum Hose 93155 Dirt Receptacle 93245-1 Filter Brush 24385 Lock C004 Door Handle VAC019 Door XCOL-38 Hinge Coleman Hanna Carwash Systems 93000/94000 Super Vac Page 26 of 38 Rev. 2 7/12/10...
  • Page 27 SUPER VAC 3 Installation/Operation Manual Parts list cont. 1. Decal 2. Keypad 3. Timer 4. Coin Acceptor 8. Locks 5. Key Test Switch 6. Coin Return 7. Bill Acceptor Coleman Hanna Carwash Systems 93000/94000 Super Vac Page 27 of 38 Rev. 2 7/12/10...
  • Page 28 Medico Cam Lock, Dbbl Key Pull (as shown above) (w/bill acceptor) 16098 Bill Acceptor (optional) 69-26242 Coin Acceptor 26022 Coin Return Cup 24450 Key Test Switch Coleman Hanna Carwash Systems 93000/94000 Super Vac Page 28 of 38 Rev. 2 7/12/10...
  • Page 29 Circuit Breaker, 25amp white 40340-2 Fuseholder 40500 End Plate for Fuse Block 60012 Mercury Relay 24volt 82062 Transformer, 120p/24s/40va 24093 Heat Strip-S, Vac3 120/240v-25w 68120 Thermostat-Frag/Sham small Coleman Hanna Carwash Systems 93000/94000 Super Vac Page 29 of 38 Rev. 2 7/12/10...
  • Page 30 World Class Manufacturing in Car Wash Equipment SUPER VAC 3 Installation/Operation Manual Coleman Hanna Carwash Systems 93000/94000 Super Vac Page 30 of 38 Rev. 2 7/12/10...
  • Page 31 World Class Manufacturing in Car Wash Equipment SUPER VAC 3 Installation/Operation Manual Coleman Hanna Carwash Systems 93000/94000 Super Vac Page 31 of 38 Rev. 2 7/12/10...
  • Page 32 World Class Manufacturing in Car Wash Equipment SUPER VAC 3 Installation/Operation Manual Coleman Hanna Carwash Systems 93000/94000 Super Vac Page 32 of 38 Rev. 2 7/12/10...
  • Page 33 World Class Manufacturing in Car Wash Equipment SUPER VAC 3 Installation/Operation Manual Coleman Hanna Carwash Systems 93000/94000 Super Vac Page 33 of 38 Rev. 2 7/12/10...
  • Page 34 World Class Manufacturing in Car Wash Equipment SUPER VAC 3 Installation/Operation Manual Coleman Hanna Carwash Systems 93000/94000 Super Vac Page 34 of 38 Rev. 2 7/12/10...
  • Page 35 World Class Manufacturing in Car Wash Equipment SUPER VAC 3 Installation/Operation Manual Coleman Hanna Carwash Systems 93000/94000 Super Vac Page 35 of 38 Rev. 2 7/12/10...
  • Page 36 World Class Manufacturing in Car Wash Equipment SUPER VAC 3 Installation/Operation Manual Coleman Hanna Carwash Systems 93000/94000 Super Vac Page 36 of 38 Rev. 2 7/12/10...
  • Page 37 World Class Manufacturing in Car Wash Equipment SUPER VAC 3 Installation/Operation Manual Coleman Hanna Carwash Systems 93000/94000 Super Vac Page 37 of 38 Rev. 2 7/12/10...
  • Page 38 World Class Manufacturing in Car Wash Equipment SUPER VAC 3 Installation/Operation Manual Coleman Hanna Carwash Systems 93000/94000 Super Vac Page 38 of 38 Rev. 2 7/12/10...
