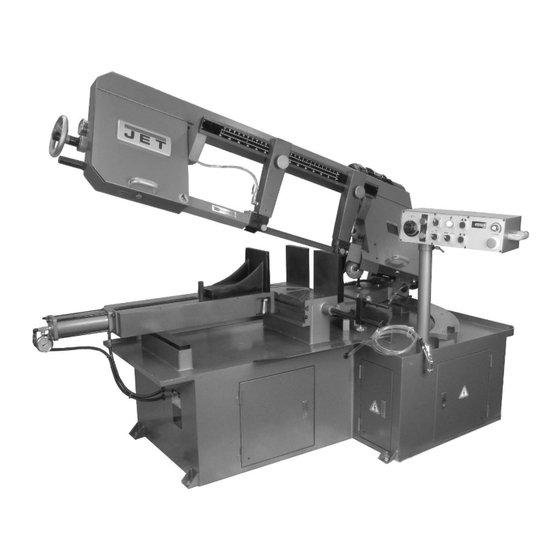

Dual mitering evs band saw

Advertisement

Quick Links

This .pdf document is bookmarked
Operating Instructions and Parts Manual
Dual Mitering EVS Band Saw
Models MBS-1323EVS-H, MBS-1323EVS-H-4
JET
427 New Sanford Road
LaVergne, Tennessee 37086
Part No. M-413412
Ph.: 800-274-6848
Edition 5 04/2018
www.jettools.com
Copyright © 2018 JET
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MBS-1323EVS-H and is the answer not in the manual?

Questions and answers

Summary of Contents for Jet MBS-1323EVS-H

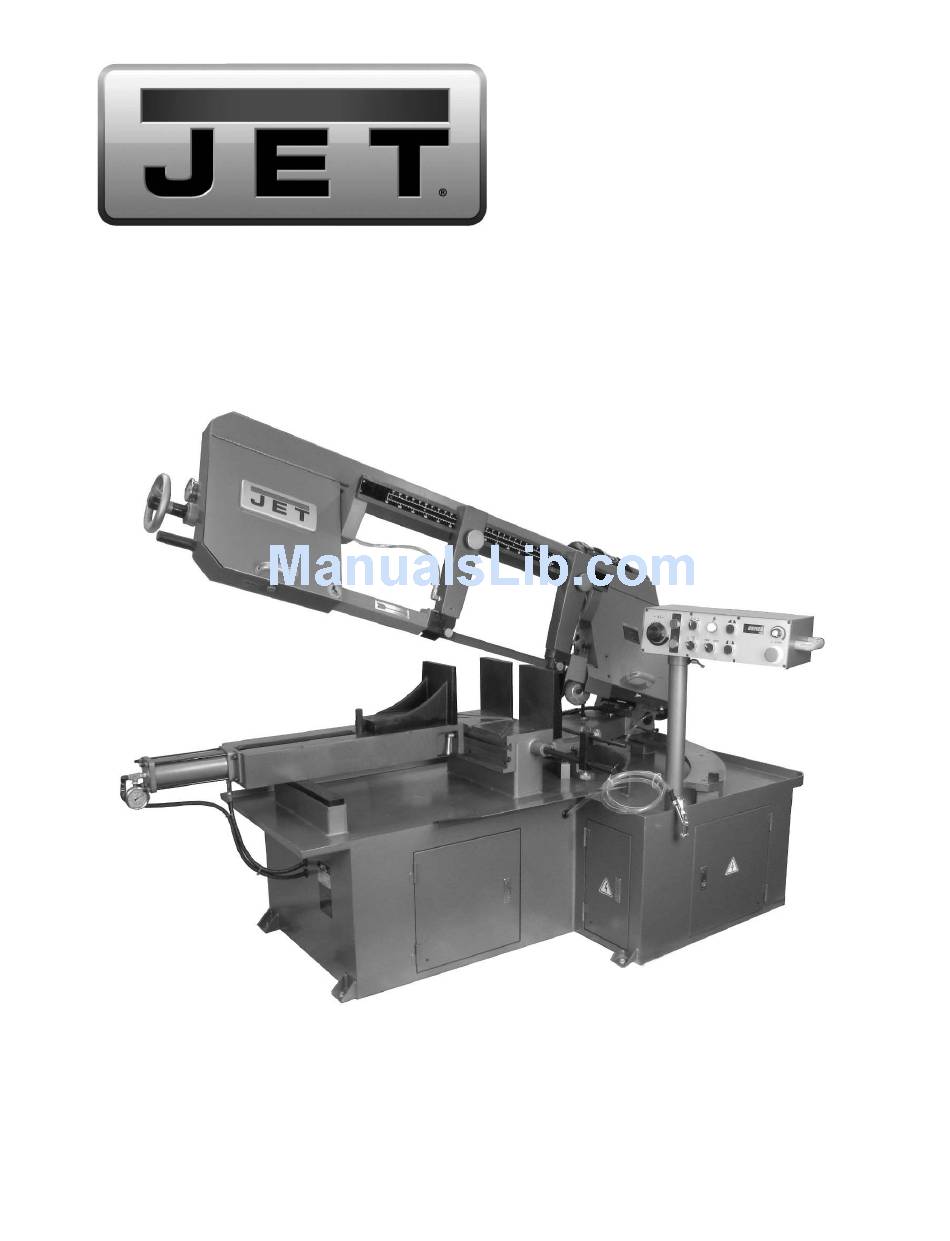

  • Page 1 This .pdf document is bookmarked Operating Instructions and Parts Manual Dual Mitering EVS Band Saw Models MBS-1323EVS-H, MBS-1323EVS-H-4 427 New Sanford Road LaVergne, Tennessee 37086 Part No. M-413412 Ph.: 800-274-6848 Edition 5 04/2018 www.jettools.com Copyright © 2018 JET...
  • Page 2: Important Safety Instructions

    Do not use this band saw for other than its 18. Keep the floor around the machine clean and intended use. If used for other purposes, JET free of scrap material, oil and grease. disclaims any real or implied warranty and holds itself harmless from any injury that may result 19.
  • Page 3 28. Do not stand on the machine. Serious injury 35. Do not remove jammed pieces until blade has could occur if the machine tips over. stopped. 29. Never leave the machine running unattended. 36. Don’t use in dangerous environment. Don’t use Turn the power off and do not leave the power tools in damp or wet location, or expose machine until it comes to a complete stop.
  • Page 4: Table Of Contents

    13.2.1 MBS-1323EVS-H Base Assembly – Exploded View ................22 13.2.2 MBS-1323EVS-H Base Assembly – Parts List ..................23 13.3.1 MBS-1323EVS-H Electrical Box Assembly – Exploded View ............. 25 13.3.2 MBS-1323EVS-H Electrical Box Assembly – Parts List ..............25 14.0 Electrical Connections for MBS-1323EVS-H ..................... 26 14.1 230V Only ...............................
  • Page 5: About This Manual

    If there are questions or comments, please contact your local supplier or JET. JET can also be reached at our web site: www.jettools.com.
  • Page 6: Specifications

    4.0 Specifications Table 1 Model number MBS-1323EVS-H MBS-1323EVS-H-4 413412 413415 Stock number – saw only Motor and Electricals Motor type Totally enclosed, fan cooled, induction Horsepower 3 HP (2.25 kW) Motor phase Motor voltage 230 V 460 V Cycle 60Hz...
  • Page 7 = not applicable The specifications in this manual were current at time of publication, but because of our policy of continuous improvement, JET reserves the right to change specifications at any time and without prior notice, without incurring obligations.
  • Page 8: Setup And Assembly

    Adjustable wrench, 12 in. shock and possible fatal injury. Hex cap bolts, 1/2-20 x 2in. The MBS-1323EVS-H Horizontal Band Saw is wired Hex nuts, 1/2in. for 3-phase, 230V; the MBS-1323EVS-H-4 is wired for 3-phase 460V. The machine is not provided with 5.2 Unpacking and cleanup...
  • Page 9: Extension Cords

    If hardwired: Open both wheel covers (A, Figure 7-1) and clean out any swarf from wheel areas. Permanently connected tools: This tool should be connected to a grounded metal permanent wiring Remove red blade guards (B). system; or to a system having an equipment- Back off the blade guides by loosening knob (H, grounding conductor.
  • Page 10: Blade Tension And Tracking

    Refer to Figures 7-2 and 7-3. If tension mechanism will not move blade, loosen and then re-tighten socket head cap screws on gibs Disconnect machine from power source. (X, Figure 7-3). To adjust eccentric bearings, loosen hex socket 7.4.2 Tracking cap screw (K Figure 7-2) about one full turn.
  • Page 11: Belt Tension

    Turn single hex adjustment screw (P ) so blade starts to move away from wheel shoulder. Then immediately turn single hex adjustment screw in opposite direction so that blade stops, then moves slowly toward shoulder. Keep fingers clear of blade and wheel to avoid injury.
  • Page 12: Bow Swivel Adjustment

    7.6.2 Vise pressure adjustment If closer reach is needed over table, insert small rod and upper knob (J). Open rear door and adjust hydraulic clamping pressure of vise with knob (D, Figure 7-7); clockwise to increase. Recommended pressure is between 10 to 12 kg/cm (142 to 170 PSI).
  • Page 13: Operation

    Bow movement (D) – Raises or lowers bow. Coolant switch (E) – Turn arrow to “I” to turn on coolant flow. Turn arrow to “O” to stop coolant flow. Power indicator light (F) – illuminates whenever machine is operating. If bulb is out, light will not be on but machine may still have power.
  • Page 14: Evaluating Cutting Efficiency

    Figure 9-3 blade manufacturer’s literature for break-in of specific blades on specific materials. However, the 9.5 Evaluating cutting efficiency following procedure will be adequate for break-in of JET-supplied blades lower alloy ferrous Is the blade cutting efficiently? The best way to materials.
  • Page 15: User-Maintenance

    10.2.2 Gearbox Keep the same settings and begin a second cut on the same or similar workpiece. gearbox been pre-filled When blade has completed about 1/3 of cut, manufacturer. After first 50 hours of use the gearbox increase feed rate. Watch chip formation until should be drained and refilled.
  • Page 16: Troubleshooting Mbs-1323Evs-H Band Saw

    12.0 Troubleshooting MBS-1323EVS-H Band Saw Symptom Possible Cause Correction* Excessive blade Material loose in vise. Clamp work securely. breakage Incorrect speed or feed. Check machinery handbook for speed/ feed appropriate for material being cut. Teeth too coarse for material. Check...
  • Page 17: Replacement Parts

    Non-proprietary parts, such as fasteners, can be found at local hardware stores, or may be ordered from JET. Some parts are shown for reference only, and may not be available individually.
  • Page 18: Mbs-1323Evs-H Bow Assembly - Exploded View

    13.1.1 MBS-1323EVS-H Bow Assembly – Exploded View...
  • Page 19: Mbs-1323Evs-H Bow Assembly - Parts List

    13.1.2 MBS-1323EVS-H Bow Assembly – Parts List Index No Part No Description Size 1001 ..MBS1323EVS-1001 ..Front Blade Wheel ..................1 1002 ..MBS-1018-1-5 ....Slide ......................1 1003 ..EHB916V-02 ....Shroud ......................1 1004 ..EHB916V-03 ....Tension Screw ................... 1 1005 ..
  • Page 20 Index No Part No Description Size 1049 ..MBS1323EVS-1049 ..Guide Adjusting Boss ................. 2 1049-1 ..MBS1323EVS-1049-1 ... Guide Cover ....................1 1049-2 ..MBS1323EVS-1049-2 ... Socket Head Cap Screw ........3/16” x 3/8” ....2 1049-3 ..MBS1323EVS-1049-3 ... Washer ....................... 2 1049A ..
  • Page 21 M ....MBS1323EVS-M ... Motor ..............3HP, 230/460V, 3PH ..1 ....414403 ......Blade (not shown)………………….…………1-1/4”×0.043”×172” (4/6T) ..1 ....JET-254 ......JET Logo (not shown) .......... 254 x 105mm ....1 ....LM000250 ..... Warning Label (not shown) ........4” x 3” ......1...
  • Page 22: Mbs-1323Evs-H Base Assembly - Exploded View

    13.2.1 MBS-1323EVS-H Base Assembly – Exploded View...
  • Page 23: Mbs-1323Evs-H Base Assembly - Parts List

    13.2.2 MBS-1323EVS-H Base Assembly – Parts List Index No Part No Description Size 1101 ..MBS1323EVS-1101 ..Coolant Pan W/Coupling ................1 1101-1 ..MBS1323EVS-1101-1 ... Coolant Pump ............1/8HP,220/440V,3PH ... 1 1101-2 ..MBS1323EVS-1101-2 ... Coolant Tank ....................1 1101-3 ..
  • Page 24 1193 ..EHB1018VMH-324 ..Manifold Block .................... 1 1194 ..EHB1018VM-325 ..Hydraulic Pump ..................1 1195 ..MBS1323EVS-1195 ..Oil Box ......................1 1196 ..EHB1018VM-327 ..Solenoid Valve ................... 1 ....LM000264 ..... ID/Warning Label, MBS-1323EVS-H (not shown) ........1...
  • Page 25: Mbs-1323Evs-H Electrical Box Assembly - Exploded View

    13.3.1 MBS-1323EVS-H Electrical Box Assembly – Exploded View 13.3.2 MBS-1323EVS-H Electrical Box Assembly – Parts List Index No Part No Description Size 308-1 ..EHB1018VM-308-1 ..Transformer ............230/460/12/24/110V ..1 308-2 ..EHB916V-308-2 .... Fuse Block ............32A ....... 1 308-2-1 ..
  • Page 26: Electrical Connections For Mbs-1323Evs-H

    14.0 Electrical Connections for MBS-1323EVS-H 14.1 230V Only...
  • Page 27: 460V Only

    14.2 460V Only...
  • Page 28: Warranty And Service

    JET sells through distributors only. The specifications listed in JET printed materials and on official JET website are given as general information and are not binding. JET reserves the right to effect at any time, without prior notice, those alterations to parts, fittings, and accessory equipment which they may deem necessary for any reason ®...
