Simplicity 2691127-0 Operator's Manual

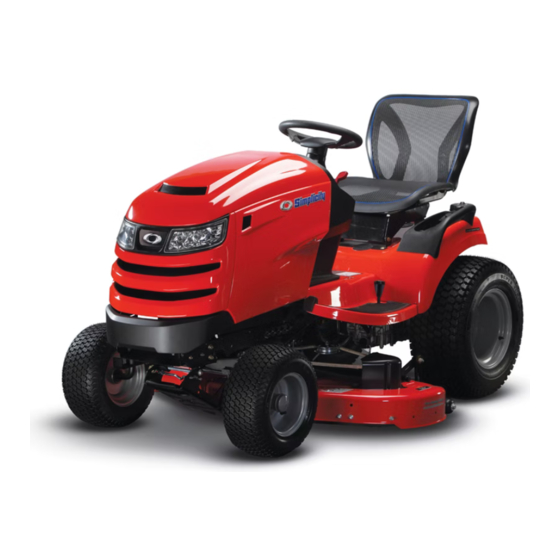

Conquest series lawn tractor 2wd w/ps rmo and mower deck 52 in. (132 cm)
Hide thumbs
Table of Contents

Advertisement

Quick Links

Copyright © 2013 Briggs & Stratton Power Products Group, LLC.
Milwaukee, WI, USA. All rights reserved.
SIMPLICITY is a registered trademark of Briggs & Stratton Corporation.
Operator's Manual
Conquest Series
Hydro Tractors
Mfg. No.
Description
2691127-00
Conquest, Lawn Tractor 2WD w/PS RMO and Mower Deck 52 in. (132 cm)
2691128-00
Conquest, Lawn Tractor 2WD w/PS RMO and Mower Deck 52 in. (132 cm)
1756088
Revision B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2691127-0 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Simplicity 2691127-0

Summary of Contents for Simplicity 2691127-0

  • Page 1 Conquest, Lawn Tractor 2WD w/PS RMO and Mower Deck 52 in. (132 cm) Copyright © 2013 Briggs & Stratton Power Products Group, LLC. Milwaukee, WI, USA. All rights reserved. 1756088 SIMPLICITY is a registered trademark of Briggs & Stratton Corporation. Revision B...

  • Page 3: Table Of Contents

    Thank you for purchasing this quality-built SIMPLICITY riding mower. We’re pleased that you’ve placed your confidence in the SIMPLICITY brand. When operated and maintained according to the instructions in this manual, your SIMPLICITY product will provide many years of dependable service.

  • Page 4: Operator Safety

    Operator Safety Important Safety Instructions DANGER indicates a hazard which, if not avoided, will result in death or serious injury. SAVE THESE INSTRUCTIONS - This manual contains important instructions that should be followed during the initial set-up, the operation, and the maintenance of the WARNING indicates a hazard which, if not avoided, equipment.

  • Page 5: Safe Operation Practices

    Safe Operation Practices Operating Safety Power equipment is only as safe as the operator. If it is misused, or not properly maintained, it can be dangerous! Remember, you are responsible for your safety and that of those around you. Use common sense, and think through what you are doing.
  • Page 6 Slope Operation You could be seriously injured or even killed if you use this unit on too steep an incline. Using the unit on a slope that is too steep or where you don’t have adequate traction can cause you to lose control or roll over. A good rule of thumb is to not operate on any slope you cannot back up (in 2-wheel drive mode).
  • Page 7 Read these safety rules and follow them closely. Failure to obey these rules could result in loss of control of unit, severe personal injury or death to you, or bystanders, or damage to property or equipment. This mowing deck is capable of amputating hands and feet and throwing objects.

  • Page 8: Slope Operation

    SLOPE OPERATION WARNING Slopes are a major factor related to loss-of-control and tip- over accidents, which can result in severe injury or death. Never operate on slopes greater than 17.6 percent Operation on all slopes requires extra caution. If you cannot (10°) which is a rise of 3-1/2 feet (106 cm) vertically in back up the slope or if you feel uneasy on it, do not operate 20 feet (607 cm) horizontally.
  • Page 9 SERVICE AND MAINTENANCE 12. Do not use gasoline containing METHANOL, gasohol Safe Handling of Gasoline containing more than 10% ETHANOL, gasoline 1. Extinguish all cigarettes, cigars, pipes, and other additives, or white gas because engine/fuel system sources of ignition. damage could result. 2.
  • Page 10 Decal Locations (Safety and Operation) Starter Insert 1723143 Part No. 1756186 DANGER - Main Panel, Part No. 1755389 DANGER - Amputation Hazard Part No. 7101665 DANGER - Amputation Hazard Part No. 7101665 1723160 Decal: Transmission Release Part No. 1723160 Figure 1...
  • Page 11 This page intentionally left blank.

  • Page 12: Features And Controls

    Features and Controls STOP STOP Figure 2...
  • Page 13 Parking Brake Headlight Switch This locks the parking brake when the tractor is This turns the tractor headlights on and off. stopped. See Parking Brake section. Throttle Control This controls the engine speed. Move the throttle Power Take-Off (PTO) Switch control to the FAST position to increase engine The PTO (Power Take-Off ) switch engages and speed and SLOW position to decrease engine...
  • Page 14 Electronic Panel Features RPM x 1000 1888.8 9:18 am AIR FILTER CHANGE Figure 3 The electronic panel (Figure 3) displays the operating status of a variety of equipment and engine parameters, and provides clock and timer functions for oil and air filter maintenance and for tracking work hours. Data is retained if the battery is disconnected or power is otherwise interrupted.
  • Page 15 Timer and Clock Settings Maintenance Messages The Hour Meter (H) displays total accumulated run hours LOW BATTERY – This message will appear any time by default. It will automatically reset to zero when the a battery voltage problem occurs. The display will meter reaches 1999.9 hours.

  • Page 16: Automatic Controlled Traction

    Automatic Controlled Traction 12-Volt Power Outlet The 12-volt accessory plug is located in the left side pod. What is Automatic Controlled Traction? It can be used to power small electronic devices. The Automatic Controlled Traction (ACT) is an exclusive feature accessory must be rated at 9 amps or less.

  • Page 17: Operation

    Operation General Operating Safety Check Tire Pressure Be sure to read all information in the Operator Safety Tires should be checked periodically to provide the optimum section before attempting to operate this unit. Become traction and to guarantee the best cut (see Figure 4). familiar with all of the controls and how to stop the unit.

  • Page 18: Check And Add Engine Oil

    Check and Add Engine Oil 1. Place the tractor on a level surface (see Figure 5). Figure 5 2. Stop the engine and remove starter insert. 3. Clean the oil fill area of any debris and remove. 4. Remove the dipstick and wipe with a clean cloth (see Figure 6).

  • Page 19: Starting The Engine

    Starting the Engine High Altitude At altitudes over 5,000 feet (1,524 meters), a minimum 85 WARNING octane/85 AKI (89 RON) gasoline is acceptable. To remain emissions compliant, high altitude adjustment is required. Fuel and its vapors are extremely flammable and Operation without this adjustment will cause decreased explosive.

  • Page 20: Driving The Tractor

    Driving the Tractor Reverse Mowing Option (RMO 1. Sit in the seat and adjust the seat so that you can WARNING comfortably reach all the controls and see the dashboard Mowing in reverse can be hazardous to bystanders. display (see Features and Controls). Tragic accidents can occur if the operator is not alert to the 2.

  • Page 21: Stopping The Tractor And Engine

    Stopping the Tractor and Engine WARNING Fuel and its vapors are extremely flammable and explosive. Fire or explosion can cause severe burns or death. • Do not choke the carburetor to stop the engine. 1. Release the ground speed pedals to return to the NEUTRAL position (see Features and Controls).

  • Page 22: Maintenance

    Maintenance Maintenance Chart TRACTOR AND MOWER ENGINE Every 8 Hours or Daily First 5 Hours Check safety interlock system Change engine oil Clean debris off tractor and mower deck Every 8 Hours or Daily Clean debris from engine compartment Check engine oil level Every 25 Hours or Annually * Every 25 Hours or Annually * Check tire pressure...

  • Page 23: Check Mower Blade Stopping Time

    Battery Charging Cleaning the Battery and Cables WARNING WARNING Keep open flames and sparks away from the battery; When removing or installing battery cables, disconnect the gasses coming from it are highly explosive. Ventilate the the negative cable FIRST and reconnect it LAST. If not done in battery well during charging.

  • Page 24: Changing The Engine Oil

    Changing the Engine Oil WARNING Fuel and its vapors are extremely flammable and explosive. Fire or explosion can cause severe burns or death. 1. Run engine until warm. 2. Place the tractor on a level surface (see Figure 5). 3. Stop the engine and remove starter insert. 4.

  • Page 25: Servicing The Air Filter

    Servicing the Air Filter Servicing the Spark Plugs WARNING WARNING Fuel and its vapors are extremely flammable and Unintentional sparking can result in fire or electric explosive. shock. Fire or explosion can cause severe burns or Unintentional start-up can result in entanglement, death.

  • Page 26: Mower Deck Washout Port

    Mower Deck Washout Port NOTICE: The washout port allows you to connect a typical garden hose to the trim side (L.H.) of the mower deck to remove grass and debris from the underside. This ensures proper and safe operation of the mower. 1.
  • Page 27 Mower Deck (52 Inch) 3. Place wooden 2x4’s under the rear of mower deck on both sides. Removing the Mower Deck 4. Place attachment lift in the DOWN position, then adjust height-of-cut (as needed) and remove chains from lift hooks (see Figure 15). WARNING 5.
  • Page 28 Figure 17 Figure 16 8. Place mower in the lowest cutting position, then disconnect the mower wire harness (A, Figure 17) from the tractor wire harness (B). 9. Turn wheels straight. 10. Pull back on spring-loaded lever (A, Figure 18) and lift mower hitch off of the tractor hitch brackets.

  • Page 29: Pto Belt Replacement

    Installing the Mower Deck PTO Belt Replacement WARNING WARNING Engage parking brake, disengage PTO, and stop To avoid damaging belts, do not pry belts over pulleys. engine before attempting to install the mower deck. 1. Park the tractor on a smooth, level surface such as a 1.

  • Page 30: Leveling The Mower Deck

    Leveling the Mower Deck 5. To adjust, loosen the outside nut (A, Figure 20). Turn the eccentric nut (B) to raise or lower left-hand side of Side-To-Side Leveling mower. When mower is level, hold the eccentric nut 1. With the mower installed, place the tractor on a smooth, while tightening the outside nut.
  • Page 31 Front-to-Back Leveling 1. Arrange the blades so they face front-to-back (A, Figure 21). 2. Measure the distance from the ground to the front tip of 15/16 the center blade, and from the ground to rear tips of left- hand and right-hand blades. Front tip of the center blade should be 1/4”...

  • Page 32: Servicing The Mower Blades

    Servicing the Mower Blades WARNING For your personal safety, do not handle the sharp mower blades with bare hands. Careless or improper handling of blades may result in serious injury. WARNING For your personal safety, blade mounting capscrews must each be installed with a hex/spline washer and spring washer, then securely tightened.
  • Page 33 Fuel System Storage Fuel can become stale when stored over 30 days. Stale fuel causes acid and gum deposits to form in the fuel WARNING system or on essential carburetor parts. To keep fuel fresh, Never store the unit (with fuel) in an use Briggs &...

  • Page 34: Troubleshooting

    Troubleshooting Troubleshooting the Tractor PROBLEM LOOK FOR REMEDY Brake pedal not Fully depress brake pedal. depressed. Out of fuel. If engine is hot, allow it to cool, then refill the fuel tank. Fuse is blown. See authorized dealer. Battery terminals require See Cleaning the Battery and Cables section.
  • Page 35 Troubleshooting the Tractor (Continued) PROBLEM LOOK FOR REMEDY Steering linkage is loose. See authorized dealer. Improper tire inflation. See Check Tire Pressure section. Tractor steers hard or handles poorly. Front wheel spindle See authorized dealer. bearings dry. Troubleshooting the Mower PROBLEM LOOK FOR REMEDY...

  • Page 36: Specifications

    Specifications ENGINE TRANSMISSION K66AP Type Hydrostatic Tuff Torq Briggs & Stratton 10w30 Standard Hydraulic Fluid Speeds Forward: 0-7.2 MPH (0-11,6 km/h) Model Professional Series™ w/EFM Reverse: 0-5.0 MPH (0-8,0 km/h) @ 3400 rpm Horsepower 27 Gross HP @ 3400 +/- 100 rpm Continuous Torque 216 ft-lbs (292,8 Nm) Displacement...

  • Page 37: Warranties

    ABOUT YOUR WARRANTY We welcome warranty repair and apologize to you for being inconvenienced. Warranty service is available only through Simplicity Authorized Service Dealers. Most warranty repairs are handled routinely, but sometimes requests for warranty service may not be appropriate. This warranty only covers defects in materials or workmanship.
  • Page 40 Briggs & Stratton Power Products Group, LLC P.O. Box 702 1-800-837-6836 www.simplicitymfg.com...

This manual is also suitable for:

2691128-00
