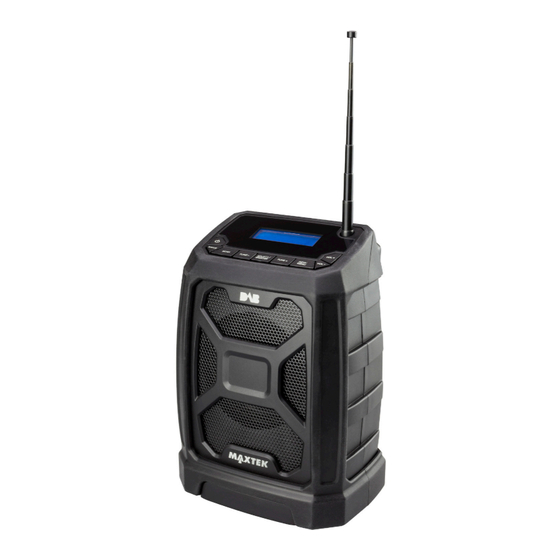

- Page 1 DAB & FM Radio With AUX Port MODEL NUMBER: 74772 USER GUIDE After Sales Support UK/N.IRELAND HELPLINE N 01270 508538 REP.IRELAND HELPLINE N 1800 995 036 WEBSITE: www.quesh.co.uk EMAIL: enquiries@quesh.co.uk...
-
Page 2: Table Of Contents
Contents Welcome Section • AUX Mode Information & Safety Instructions • AUX Info • AUX Menu Contents & Features 17-25. System Controls & Layout • System Menu • Sleep Setup • Setting The Alarm • Out Of The Box • Turning The Alarm On/Off •... -
Page 3: Welcome Section
Welcome Section Congratulations! You have made an excellent choice with the purchase of this quality MAXTEK product. ® By doing so you now have the assurance and peace of mind which comes from purchasing a product that has been manufactured to the highest standards of performance and safety, supported by the high quality standards of Quesh Ltd. -
Page 4: Information & Safety Instructions
Information & Safety Instructions This radio is powered by 4 x ‘AA’ size alkaline batteries (not included). Do not dispose of batteries in your household waste. Please contact your local authority for details on safe disposal. • Never throw batteries into a fire or expose to excessive heat sources. •... -
Page 5: Contents & Features
Contents & Features Contents 1 x DAB / FM & AUX Radio 1 x 5V Mains Adaptor Features • DAB receiver (174MHz - 240MHz) • FM receiver (87.5MHz - 108.00MHz) • Stores 10 FM presets • Stores 10 DAB presets •... -
Page 6: Controls & Layout
Controls & Layout LCD Display Telescopic Aerial On/Off/Standby Vol + Mode Vol - Scan Info/Menu Tune - Tune + Select/Snooze Speaker Telescopic Aerial Handle Battery Bay AUX In DC 5V In After Sales Support UK/N.IRELAND HELPLINE N 01270 508538 REP.IRELAND HELPLINE N 1800 995 036 WEBSITE: www.quesh.co.uk... -
Page 7: Setup
Setup Out Of The Box Once you have removed the radio from the packaging, connect the 5V/1A mains adaptor (supplied) to a suitable mains outlet. To use the radio with batteries, install 4 x ‘AA’ batteries into the battery bay at the back of the radio. Fully extend the telescopic aerial and press the button for 2 seconds to turn the radio on. -
Page 8: Control Method
Control Method Using The Buttons All the buttons that are used with processes are a quick press only unless stated to press and hold a button. A prolonged press may interfere with the desired operation of the radio when not required. On/Off/Standby Turning On If the display is blank and not lit, press and hold the... -
Page 9: Dab
DAB Mode The radio, when turned on, is usually in DAB mode. If is not, repeatedly press the ‘Mode’ button until DAB shows on the display. Tuning In A Station All the available stations are saved by the radio in alphabetical order. To select a station press the ‘Tune+’... -
Page 10: Dab Info
DAB Info Pressing the ‘Info/Menu’ button repeatedly will cycle through and display the following radio information: • Now Playing • Signal Strength • Music genre • National/Local designation • MHz Frequency • Signal Errors • Kbps data transfer rate • Power Type •... -
Page 11: Preset Recall
Preset Recall Press the ‘Info/Menu’ button for 2 seconds to enter the DAB menu. The first option will be ‘Preset Recall’, press the ‘Select/Snooze’ button to access the saved presets. Use the ‘Tune+’ or ‘Tune-’ buttons to cycle through the saved presets and then the ‘Select/Snooze’... -
Page 12: Full Scan
Full Scan To manually tune the DAB frequency of the radio, Press the ‘Info/Menu’ button for 2 seconds to enter the DAB menu. The first option will be ‘Preset Recall’, press the ‘Tune+’ to cycle through the menu to ‘Full Scan’, then press the ‘Select/Snooze’ button to start the scan. -
Page 13: Drc
DRC or Dynamic Range Compression is a feature that some DAB stations use to even out the audio levels between quiet and loud segments of a broadcast. Press the ‘Info/Menu’ button for 2 seconds to enter the DAB menu. The first option will be ‘Preset Recall’, press the ‘Tune+’ to cycle through the menu to ‘DRC’, then press the ‘Select/Snooze’... -
Page 14: Fm Mode
FM Mode The radio, when turned on, is usually in DAB mode. To enter the FM mode, repeatedly press the ‘Mode’ button until FM shows on the display. Auto Scan Press the ‘Tune+’ or ‘Tune-’ button for 2 seconds to start the FM auto scan in either direction along the frequency range. -
Page 15: Fm Info
FM Info Pressing the ‘Info/Menu’ button repeatedly will cycle through and display the following radio information: • Radio Text • PTY (Program Type) • Name • Mono/Stereo • Power Type • Time • Date FM Menu Press and hold the ‘Info/Menu’ button for 2 seconds to enter the DAB menu. -
Page 16: Preset Recall
Preset Recall Press the ‘Info/Menu’ button for 2 seconds to enter the FM menu. The first option will be ‘Preset Recall’, press the ‘Select/Snooze’ button to access the saved presets. Use the ‘Tune+’ or ‘Tune-’ buttons to cycle through the saved presets and then the ‘Select/Snooze’... -
Page 17: Scan Settings
Scan Settings Scan settings will allow you to change how the radio auto scans. As default the scan setting is set to strong stations. Press the ‘Info/Menu’ button for 2 seconds to enter the FM menu. The first option will be ‘Preset Recall’, press the ‘Tune+’ to cycle through the menu to ‘Scan Setting’, then press the ‘Select/Snooze’... -
Page 18: Aux
Aux Mode The radio, when turned on, is usually in DAB mode. To enter AUX mode, repeatedly press the ‘Mode’ button until ‘Auxiliary Input’ shows on the display. The radio will act like an amp in this mode. Any device with an audio output connected to the 3.5mm AUX port on the back of the radio will play though the speaker. -
Page 19: System
System System Menu It is possible to access the system menu through all three modes. Press and hold the ‘Info/menu’ button for 2 seconds, then press the ‘Tune-’ to cycle the menu to ‘System’ and press ‘Select/Snooze’ button to access it. Using the ‘Tune+’... -
Page 20: Setting The Alarm
System Setting The Alarm There are 2 alarms that can be set on this radio. Once in the system menu list, press the ‘Tune+’ button repeatedly until you get to ‘Alarm’ and then press the ‘Select/Snooze’ to set this feature. When you are in the alarm feature, press the ‘Tune+’... -
Page 21: Turning The Alarm On/Off
System Turning The Alarm On/Off The alarm can only be set or disabled with the last option when setting the alarm (See page 18, Setting The Alarm). To check which alarm(s) have been set press the button to put the radio into standby mode and check the display. -
Page 22: Time
System Time From here you can set the date and time manually, update it from different sources, change the time format and the date format. Once in the system menu list, press the ‘Tune+’ button repeatedly until you get to ‘Time’ and then press the ‘Select/Snooze’ to set this feature. -
Page 23: Time - Auto Update
System Time - Auto Update With this option you can auto update the time and date information from a DAB or FM signal. Once in the Time sub menu list, press the ‘Tune+’ button repeatedly until you get to ‘Auto Update’ and then press the ‘Select/Snooze’ to set this feature. -
Page 24: Time - Set Date Format
System Time - Set Date Format With this option you can change the displayed format of the date. Once in the Time sub menu list, press the ‘Tune+’ button repeatedly until you get to ‘Set Date Format’ and then press the ‘Select/Snooze’ to set this feature. -
Page 25: Backlight - Timeout
System Backlight - Timeout This option will allow you to set the length of time in seconds before the screen dims. Once in the Backlight sub menu list, press the ‘Tune+’ button repeatedly until you get to ‘Timeout’ and then press the ‘Select/Snooze’... -
Page 26: Backlight - Dim Level
System Backlight - Dim Level Dim level is the brightness of the display when the radio has timed out i.e. no buttons pressed (unless ‘On’ has been selected in the timeout options). Once in the Backlight sub menu list, press the ‘Tune+’ button repeatedly until you get to ‘Dim Level’... -
Page 27: Factory Reset
System Factory Reset From here you can restore the radio with a soft factory reset. This function will delete all presets and the station list for DAB as well as restore all default setting to the radio. Once in the system menu list, press the ‘Tune+’ button repeatedly until you get to ‘Factory Reset’... -
Page 28: Specifications
Specifications General L x W x D: 128mm x 85mm x 180mm (approx) Weight: 750g Adaptor: 5V/1A Battery Size: 4 x AA (Not included) Usage Time: Approx. 7 hours (at maximum volume) Language: English, French, German, Italian Radio Solution: Frontier DAB Preset Slots: FM Preset Slots: FM Frequency Range: 87.5MHz - 109MHz... - Page 29 INTENTIONALLY LEFT BLANK After Sales Support UK/N.IRELAND HELPLINE N 01270 508538 REP.IRELAND HELPLINE N 1800 995 036 WEBSITE: www.quesh.co.uk EMAIL: enquiries@quesh.co.uk...
- Page 30 Warranty Certificate Warranty This product is warranted to be free from defects in workmanship and parts for a period of 36 months from the date of purchase. Defects that occur within this warranty period, under normal use and care, will be repaired, replaced or refunded at our discretion, solely at our option with no charge for parts and labour.
- Page 31 Warranty Card Mini DAB & FM Radio with AUX Port Model Number: 74772 Please keep your purchase receipt together with your warranty card Name: Address: Date of purchase: Location of purchase: Fault Description: We recommend that you attach a photocopy of your receipt, showing the date of purchase, to this warranty card and keep it for your reference.
