imagePROGRAF iPF8400S Service Guide
The Calibration Link function is accomplished by performing color
calibration utilizing an imagePROGRAF iPF6400S printer in the linked
chain.
The printer prints a page of calibration targets that are measured with the
Spectrophotometer Unit SU-21 mounted on the imagePROGRAF
iPF6400S printer. The Calibration data is stored and sent to other printers
in the Calibration Link.

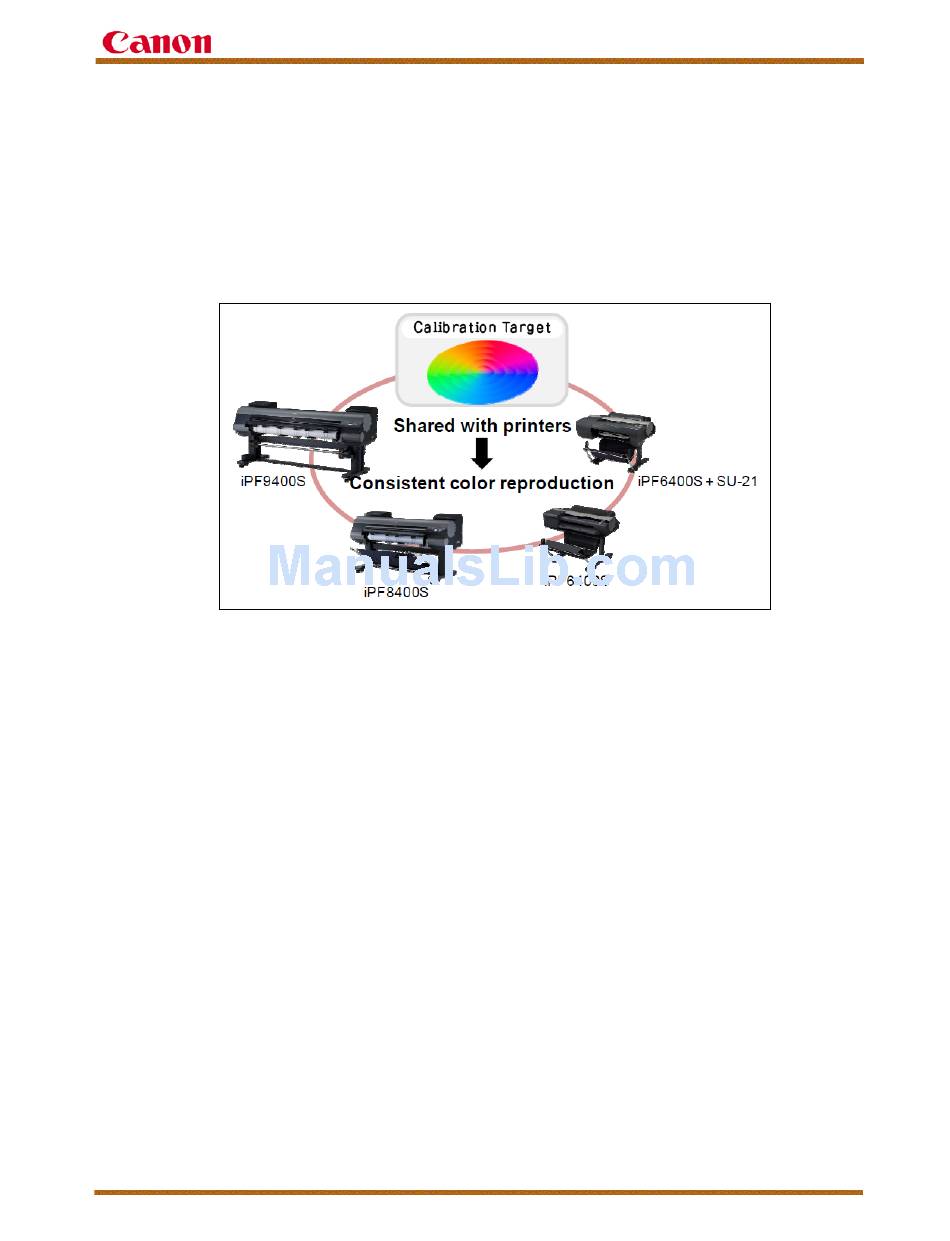

Figure 2 – Calibration Target
C.

Multisensor

The Multisensor is capable of sensing and calibrating third-party
imagePROGRAF print media. The specialized lens with its small focal
diameter improves image detection, and image variation tolerance.
Separate edge detection, gap detection, and density detection functions
also work to optimize custom media support. The sensor's design offers
increased tolerance to external light thereby allowing some of its
operations to be visible from the transparent observation windows on the
printers cover.
