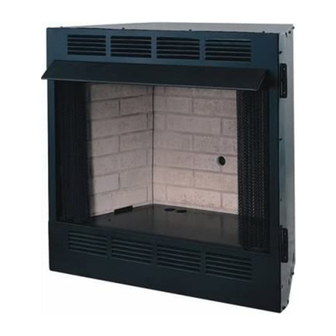

CGFB32CA
Circulating
Louvered
Model
WARNING: If the information in this manual is not
followed exactly, a fire or explosion may result caus-
ing property damage, personal injury or loss of life.
Carefully review the instructions supplied with the
decorative type unvented room heater for the mini-
mum fireplace size requirement.
Do not install an appliance in this firebox unless this
firebox meets the minimum dimensions required for
the installation.
This firebox has been tested and approved by CSA
under ANSI Z21.91 for use with any ANSI Z21.11.2
approved gas logs.
This appliance may be installed in an aftermarket*, permanently located, manufactured
(mobile) home, where not prohibited by local codes.
This appliance is only for use with the type of gas indicated on the rating plate. This appliance
is not convertible for use with other gases.
*Aftermarket: Completion of sale, not for purpose of resale, from the manufacturer
Save this manual for future reference.
Save this manual for future reference.
UNVENTED (VENT-FREE)
UNIVERSAL FIREBOX
SAFETY INFORMATION AND
INSTALLATION MANUAL
WARNING: Improper installation,
adjustment, alteration, service, or
maintenance can cause injury or
property damage. Refer to this
manual for correct installation and
operational procedures. For assis-
tance or additional information con-
sult a qualified installer, service
agency, or the gas supplier.
WARNING: For use only with a listed
gas-fired unvented decorative room
heater. Not to exceed 40,000 Btu/H.
Do not build a wood fire.
Shown with optional cabinet
mantel, hearth base.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CGFB32CA Circulating Louvered and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Comfort Glow CGFB32CA Circulating Louvered

Summary of Contents for Comfort Glow CGFB32CA Circulating Louvered

  • Page 1 UNVENTED (VENT-FREE) UNIVERSAL FIREBOX SAFETY INFORMATION AND INSTALLATION MANUAL For more information, visit www.desatech.com For more information, visit www.desatech.com CGFB32CA Circulating Louvered Model Shown with optional cabinet mantel, hearth base. WARNING: If the information in this manual is not WARNING: Improper installation, followed exactly, a fire or explosion may result caus- adjustment, alteration, service, or ing property damage, personal injury or loss of life.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS SAFETY INFORMATION TABLE OF CONTENTS SAFETY INFORMATION ............2 TECHNICAL SERVICE .............. 11 LOCAL CODES ................3 REPLACEMENT PARTS ............11 UNPACKING ................3 ILLUSTRATED PARTS BREAKDOWN AND PARTS LIST ..12 PRODUCT SPECIFICATIONS ............ 3 ACCESSORIES ................ 14 PRODUCT FEATURES ..............

  • Page 3: Local Codes

    SAFETY INFORMATION LOCAL CODES UNPACKING PRODUCT IDENTIFICATION SAFETY INFORMATION PRODUCT SPECIFICATIONS Continued " 9. Operating vent-free log sets in a firebox above elevations of " 4,500 feet could cause pilot outage. " 10. Do not use the firebox if it has been under water due to the shock hazard that could result with the blower accessary (if installed) in place.

  • Page 4: Product Features

    PRODUCT FEATURES Operation Blower Accessory LOCATING FIREBOX AIR FOR COMBUSTION AND VENTILATION Providing Adequate Ventilation PRODUCT FEATURES PROVIDING ADEQUATE VENTILATION The following are excerpts from National Fuel Gas Code ANSI OPERATION Z223.1/NFPA 54, Section 5.3, Air for Combustion and Ventilation. This firebox is designed to accept unvented decorative gas logs.
  • Page 5 AIR FOR COMBUSTION AND VENTILATION Determining Fresh-Air Flow For Heater Location Ventilation Air AIR FOR COMBUSTION AND VENTILATION Continued DETERMINING FRESH-AIR FLOW FOR A. Rework worksheet, adding the space of an adjoining room. If the extra space provides an unconfined space, remove door to adjoining HEATER LOCATION room or add ventilation grills between rooms.

  • Page 6: Installation

    IMPORTANT: Make sure the firebox is level. If firebox is not level, log set will not work properly. Note : Your Comfort Glow firebox is designed to be used in zero Crawl clearance installations. Wall or framing material can be placed...

  • Page 7: For More Information, Visit Www.desatech.com For More Information, Visit Www.desatech.com

    INSTALLATION Installation Clearances (Cont.) Installing Blower Accessory INSTALLATION Continued INSTALLING BLOWER ACCESSORY You may install blower accessory GA3750 with conventional Example installation (below) or with built-in installation (see Built-In Instal- lation of Blower Accessory, page 8). To install blower accessory, see instruction sheet included with the kit.
  • Page 8 INSTALLATION Installing Blower Accessory (Cont.) Installing Log Heater In Firebox INSTALLATION Continued Built-In Installation of Blower Accessory INSTALLING LOG HEATER IN FIREBOX Install blower assembly per instruction sheet included. CAUTION: Do not pick up log base assembly by 2. Before replacing bottom of firebox, remove screw holding burners.

  • Page 9: For More Information, Visit Www.desatech.com For More Information, Visit Www.desatech.com

    INSTALLATION Installing Fireplace Hood Installing Fireplace Screen Firebox Installation Using Optional Accessory Mantels INSTALLATION Continued INSTALLING FIREPLACE HOOD FIREBOX INSTALLATION USING OPTIONAL ACCESSORY MANTELS NOTICE: The firebox canopy (hood) must not be This firebox may be installed using the cabinet mantel and hearth modified or replaced with a canopy (hood) that may base accessories against a wall in your home.

  • Page 10: For More Information, Visit Www.desatech.com For More Information, Visit Www.desatech.com

    INSTALLATION Firebox Installation Using Optional Accessory Mantels (Cont.) Built-In Firebox Installation INSTALLATION Continued Center cabinet mantel on hearth base (see Figure 14). Make BUILT-IN FIREBOX INSTALLATION sure mantel is flush against wall. Built-in installation of this firebox involves installing firebox into a Break off nailing flanges (see Figure 15) with hammer or pliers.

  • Page 11: Technical Service

    INSTALLATION Built-In Firebox Installation (Cont.) TECHNICAL SERVICE REPLACEMENT PARTS TECHNICAL SERVICE You may have further questions about installation, operation, or troubleshooting. If so, contact DESA International’s Technical Ser- Carefully insert firebox into rough opening. vice Department at 1-866-672-6040. When calling please have your Attach firebox to wall studs using nails or wood screws through model and serial numbers of your heater ready.

  • Page 12: Illustrated Parts Breakdown And Parts List

    ILLUSTRATED PARTS BREAKDOWN CGFB32CA ILLUSTRATED PARTS BREAKDOWN CGFB32CA For more information, visit www.desatech.com For more information, visit www.desatech.com 107331-01E...
  • Page 13 PARTS LIST CGFB32CA PARTS LIST This list contains replaceable parts used in your firebox. When ordering parts, follow the instruc- tions listed under Replacement Parts on page 11 of this manual. PART NUMBER CGFB32CA DESCRIPTION QTY. 101872-03 Firebox Top 101889-01 Firebrick Retainer 101929-04 Rear Firebrick...

  • Page 14: Accessories

    ACCESSORIES ACCESSORIES Notice: All accessories may not be available for all fireplace models. Purchase these fireplace accessories from your local dealer. If they can not supply these accessories, call DESA International’s Sales Department at 1-866-672-6040 for information. You can also write to the address listed on the back page of this manual.

  • Page 15: Owner's Registration Form

    You can register online at www.desatech.com. If access to our website is not available to you, please complete this Owner’s Registration Form and mail to the address on the back of this owner’s manual. Please provide the following product information: Brand: (Comfort Glow, Vanguard, etc.) Model: (EFP33PR, VTGH33NR, etc.) Date Purchased: Note: Keep receipt for warranty verification.
  • Page 16 Postage Required 2701 Industrial Drive P.O. Box 90004 Bowling Green, KY 42102-9004 For more information, visit www.desatech.com For more information, visit www.desatech.com TAPE 107331-01E...

  • Page 17: Parts Centrals

    PARTS CENTRALS PARTS CENTRALS These Parts Centrals are privately-owned businesses. They have agreed to support our customer’s needs by providing original replacement parts and accessories. Baltimore Electric East Coast Energy Products 1348 Dixwell Avenue 707 Broadway Hamden, CT 06514-0322 W. Long Branch, NJ 07764-1542 1-800-397-7553 732-870-8809 203-248-7553...

  • Page 18: Warranty Information

    LIMITED WARRANTY COMFORT GLOW VENT-FREE RESIDENTIAL GAS HEATERS DESA International warrants this product to be free from defects in materials and components for two (2) years from the date of first purchase, provided that the product has been properly installed, operated and maintained in accordance with all applicable instructions. To make a claim under this warranty the Bill of Sale or cancelled check must be presented.
