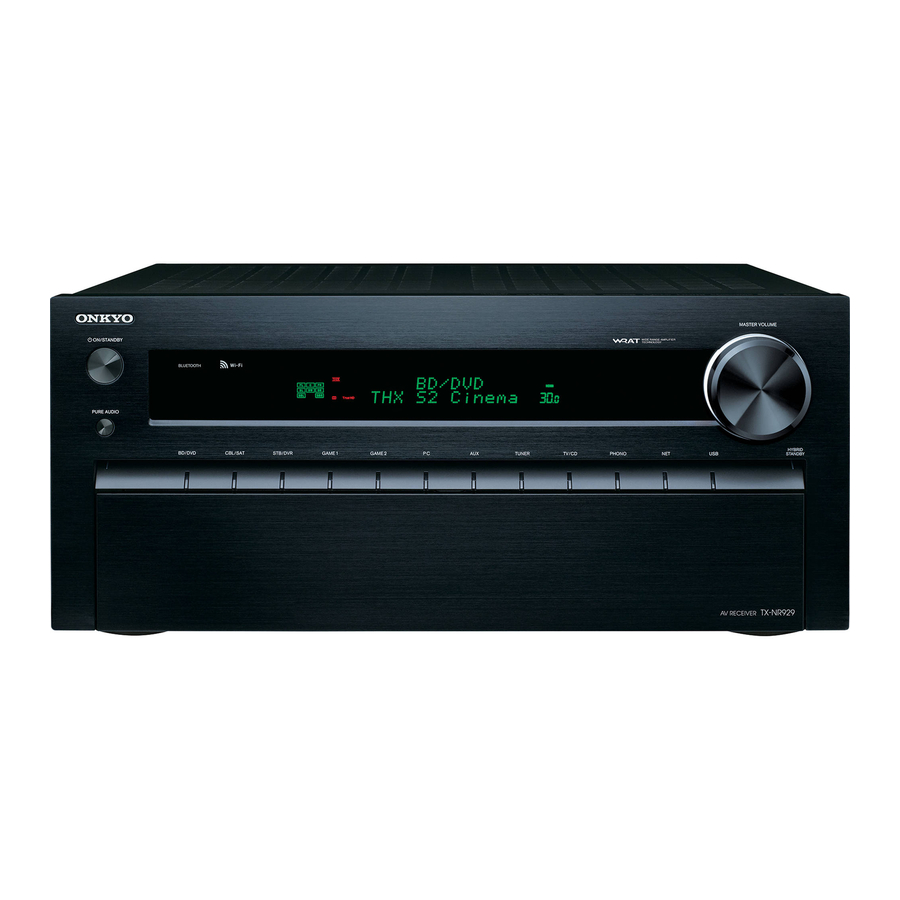

AV RECEIVER
TX-NR929(B)/(S)
MODEL
Black and Silver models
B MDC
B MMP, B MMB, B MMA, S MMP
B MMR
North American models ---> "DIMMER"
European and Australian models ---> "RT/PTY/TP"
120V AC, 60Hz
220-240V AC, 50/60Hz
220-240V AC, 50/60Hz
Features
Features
Amplifier
• 135 Watts/Channel @ 8 ohms (FTC)
• 185 Watts/Channel @ 6 ohms (IEC)
• 230 Watts/Channel @ 6 ohms (JEITA)
• WRAT–Wide Range Amplifier Technology
(5 Hz to 100 kHz bandwidth)
• Optimum Gain Volume Circuitry
• H.C.P.S. (High Current Power Supply) Massive
High Power Transformer
• 3 Stage Inverted Darlington Amplifier Design
Processing
• THX Select2 Plus Certified
• Incorporates Qdeo™ technology for HDMI Video
Upscaling (to 4K Compatible)
• HDMI (Audio Return Channel, 3D, DeepColor,
x.v.Color, Lip Sync, 4K (up-scaling and
Passthrough), DTS-HD Master Audio, DTS-HD High
Resolution Audio, Dolby TrueHD, Dolby Digital Plus,
DSD and Multi-CH PCM)
• Dolby TrueHD and DTS-HD Master Audio
• Dolby Pro Logic IIz and Audyssey DSX®
• DTS Neo:X
• Non-Scaling Configuration
• A-Form Listening Mode Memory
• Direct Mode
• Pure Audio Mode
• Music Optimizer for Compressed Digital Music files
• Phase Matching Bass System
• 192 kHz/24-bit D/A Converters
• Powerful and Highly Accurate 32-bit Processing
DSP
• Jitter Cleaning Circuit Technology
• Digital Processing Crossover Network
TX-NR929
Ref. No. 4443
062013
RC-840M
Connections
• 9 HDMI Inputs (1 on front panel) and 2 Outputs
• 4K (up-scaling and Passthrough)-compatible HDMI
Inputs
• Zone 2 HDMI Output
• Onkyo p for System Control
• 6 Digital Inputs (3 Optical/3 Coaxial)
• Component Video Switching (2 Inputs/1 Output)
• Banana Plug-Compatible Speaker Posts
* In Europe, using banana plugs to connect speakers to an
audio amplifier is prohibited.
• Powered Zone 2/3
• Bi-Amping Capability for FL/FR with FHL/FHR
• Analog RGB Video Input (D-sub 15) for PC
• Internet Radio Connectivity
• Network Capability for Streaming Audio Files
• Wi-Fi (Wireless LAN) Connectivity
• Wireless Music Playback via Bluetooth
• Front-Panel USB Input for Memory Devices
• MHL-Enabled AUX Front Input
Miscellaneous
• 40 FM/AM Presets
• Audyssey MultEQ® XT32 to correct room acoustic
problems
• Audyssey Dynamic EQ® for loudness correction
• Audyssey Dynamic Volume® to maintain optimal
listening level and dynamic range
• Crossover Adjustment
(40/50/60/70/80/90/100/120/150/200 Hz)
• A/V Sync Control Function (up to 800 ms)
• Auto Standby Function
• On-Screen Display via HDMI
• Preprogrammed (with onscreen display setup)
RI-Compatible Learning Remote with 4 Activities
and Mode-Key LEDs
• ISF (Imaging Science Foundation) Video Calibration
