DM1101 / DM1103 / DM1104
DM1103-L / DM1103-S
Manual release button and
Emergency Stop button
collective/SynoLINE600
l
Manual call point to all fire detection system control units with collec-
tive/SynoLINE600 detector evaluation
l
Manual call point DM1101 with direct operation
l
Manual call point DM1103 with indirect operation and DM1104 with direct
operation
l
Manual release button DM1103-L and emergency stop button DM1103-S for
gas extinguishing system
l
Two-wire installation
Building Technologies
Control Products and Systems
AlgoRex
Synova™
Advertisement
Table of Contents
Related Manuals for Siemens DM1101
Summary of Contents for Siemens DM1101

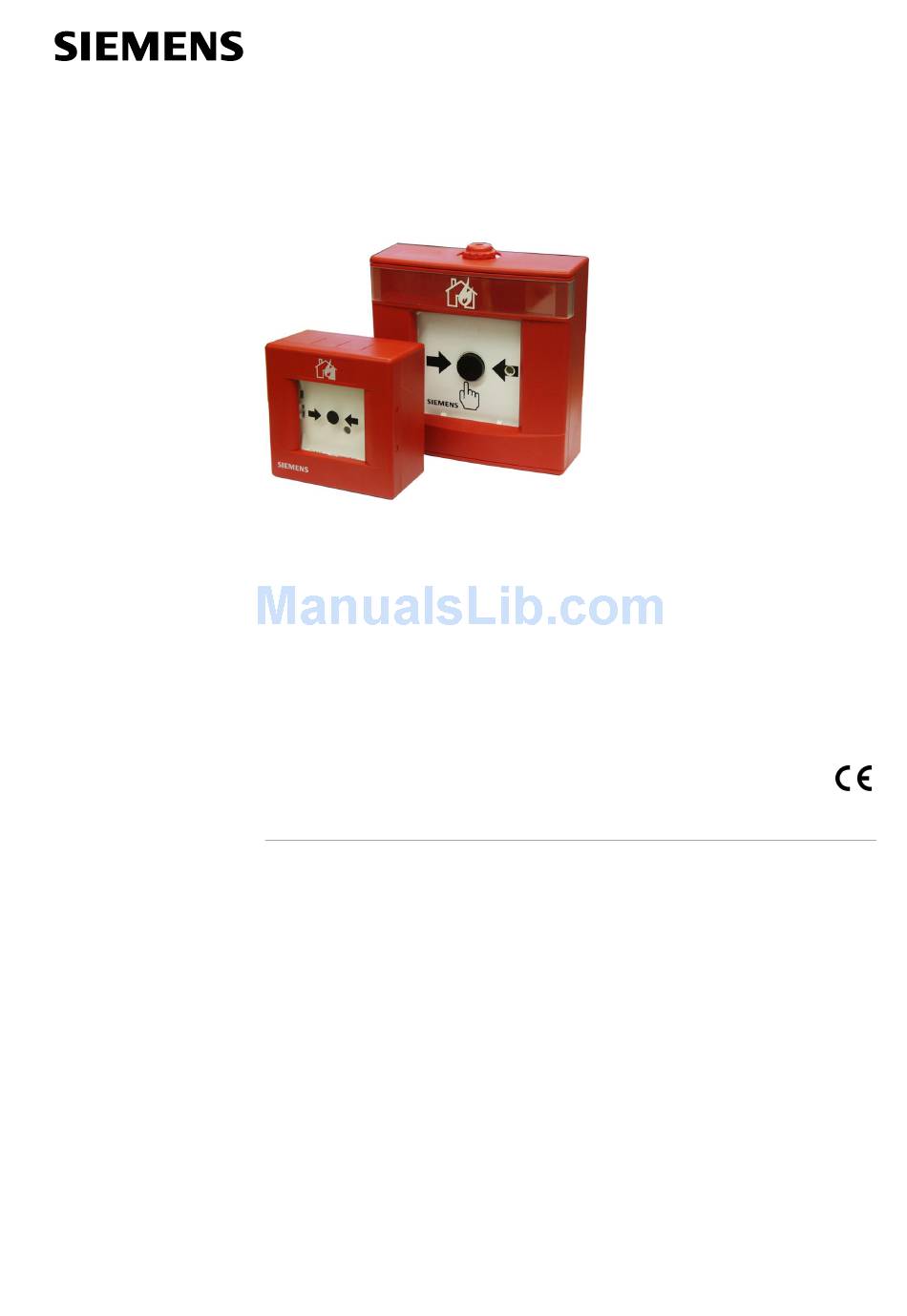

- Page 1 Manual call point to all fire detection system control units with collec- tive/SynoLINE600 detector evaluation Manual call point DM1101 with direct operation Manual call point DM1103 with indirect operation and DM1104 with direct operation Manual release button DM1103-L and emergency stop button DM1103-S for...
- Page 2 – Recyclable materials – Electronic and synthetic material simple separable Characteristics – Protected electronic – Alarm indicator (LED) built-in Manual call point DM1101 A protective cover FDMC291 (accessory) protects the manual call point from uninten- tional glass break. Protective cover Function –...
- Page 3 Function DM1103 – Indirect alarm actuation by pushing in the glass plate and pressing the push button – To replace the glass plate, open the housing door with the key. The push button must be set back before closing the door again. Function DM1104 –...
- Page 4 – For recess mounted feed lines, break out the break-out point in the housing bottom – For surface-mounted feed lines to the DM1101, a hole must be drilled into the top or bottom of the detector housing (marking), use at max. cable gland M20 –...
- Page 5 DM1101 Technical data: see doc. 007980 DM1101 - Manual callpoint for use in fire detection and fire alarm systems installed in buildings. 305/2011/EU (CPR): EN 54-11 ; 2014/30/EU (EMC): EN 50130-4 / EN 61000-6-3 The declared performance and conformity can be seen in the Declaration of Performance (DoP) and the EU Declaration of Conformity (DoC), which is obtainable via the Customer Support Center: Tel.
- Page 6 Details for ordering DM1101 / DM1103 / DM1104 Type Part no Designation Weight DM1101 FDMH291-R A5Q00002217 Housing red, with key 0.089 kg FDMH291-Y A5Q00004979 Housing yellow, with key 0.089 kg FDMH291-B A5Q00004980 Housing blue, with key 0.089 kg FDMH291-G A5Q00004981 Housing green, with key 0.089 kg...
- Page 7 The declared performance and conformity can be seen in the Declaration of Performance (DoP) and the EU Declaration of Conformity (DoC), which is obtainable via the Customer Support Center: Tel. +49 89 9221-8000 or http://siemens.com/bt/download DoP No.: 0786-CPR-20217; DoC No.: CED-DM1103-L Siemens Schweiz AG;...
- Page 8 Dispose of the device through channels provided for this purpose. Comply with all local and currently applicable laws and regulations. Issued by © Siemens Switzerland Ltd, 2015 Siemens Switzerland Ltd Technical specifcations and availability subject to change without notice. Building Technologies Division...
