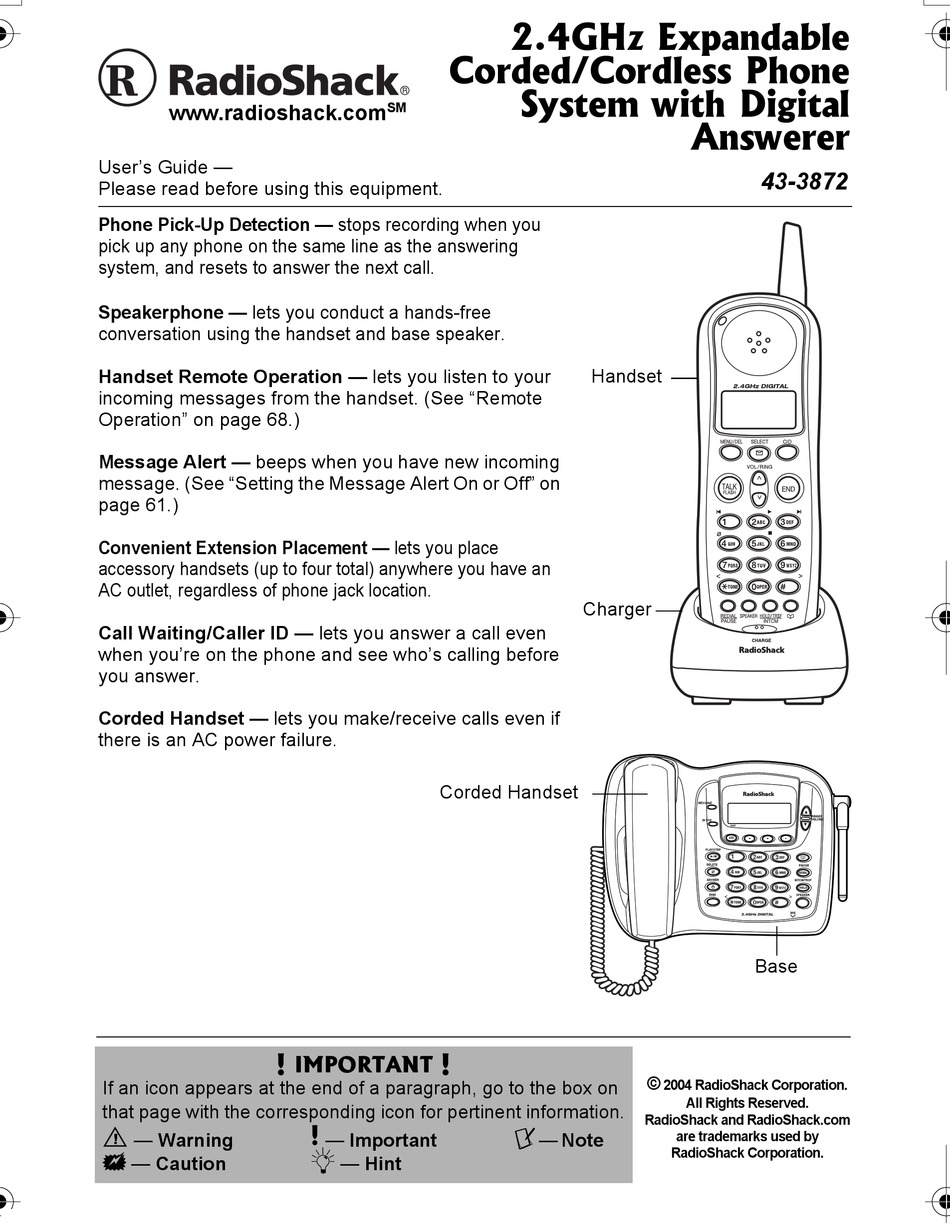

User's Guide —
Please read before using this equipment.
Phone Pick-Up Detection — stops recording when you
pick up any phone on the same line as the answering
system, and resets to answer the next call.
Speakerphone — lets you conduct a hands-free
conversation using the handset and base speaker.
Handset Remote Operation — lets you listen to your
incoming messages from the handset. (See "Remote
Operation" on page 68.)
Message Alert — beeps when you have new incoming
message. (See "Setting the Message Alert On or Off" on
page 61.)
Convenient Extension Placement — lets you place
accessory handsets (up to four total) anywhere you have an
AC outlet, regardless of phone jack location.
Call Waiting/Caller ID — lets you answer a call even
when you're on the phone and see who's calling before
you answer.
Corded Handset — lets you make/receive calls even if
there is an AC power failure.
If an icon appears at the end of a paragraph, go to the box on
that page with the corresponding icon for pertinent information.
o
— Warning
— Caution
SM
!
IMPORTANT
!
— Important
Ó
— Hint
2.4GHz Expandable
Corded/Cordless Phone
System with Digital
Handset
Charger
Corded Handset
!
Ô
— Note
Answerer
43-3872
Base
©
2004 RadioShack Corporation.
All Rights Reserved.
RadioShack and RadioShack.com
are trademarks used by
RadioShack Corporation.
