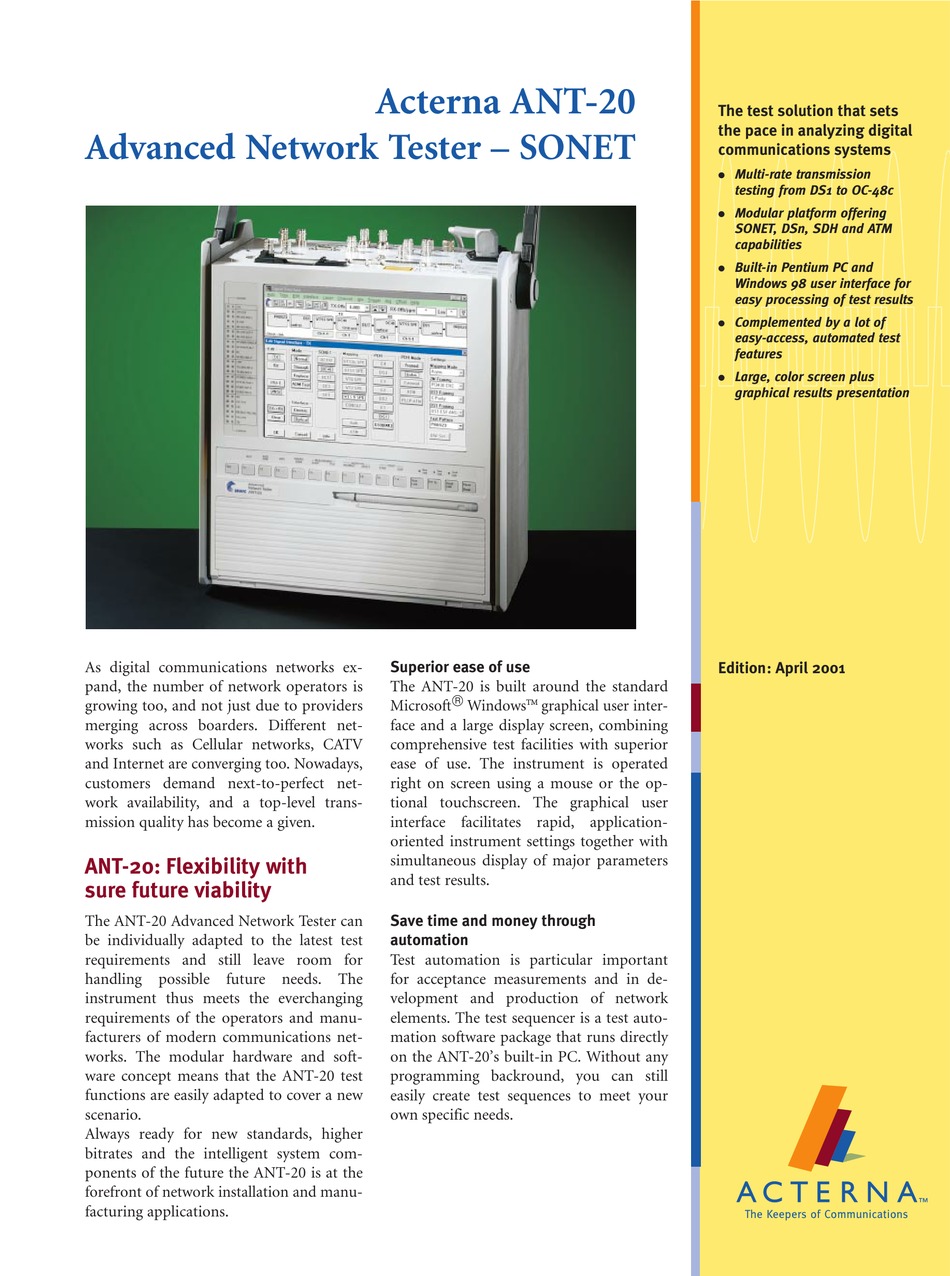

Advanced Network Tester ± SONET
ANT-20: Flexibility with
sure future viability
Acterna ANT-20
Superior ease of use
â
Save time and money through
automation
The test solution that sets
the pace in analyzing digital
communications systems
. Multi-rate transmission
testing from DS1 to OC-48c
. Modular platform offering
SONET, DSn, SDH and ATM
capabilities
. Built-in Pentium PC and
Windows 98 user interface for
easy processing of test results
. Complemented by a lot of
easy-access, automated test
features
. Large, color screen plus
graphical results presentation
Edition: April 2001
