PCI-DAS1200/JR User's Guide

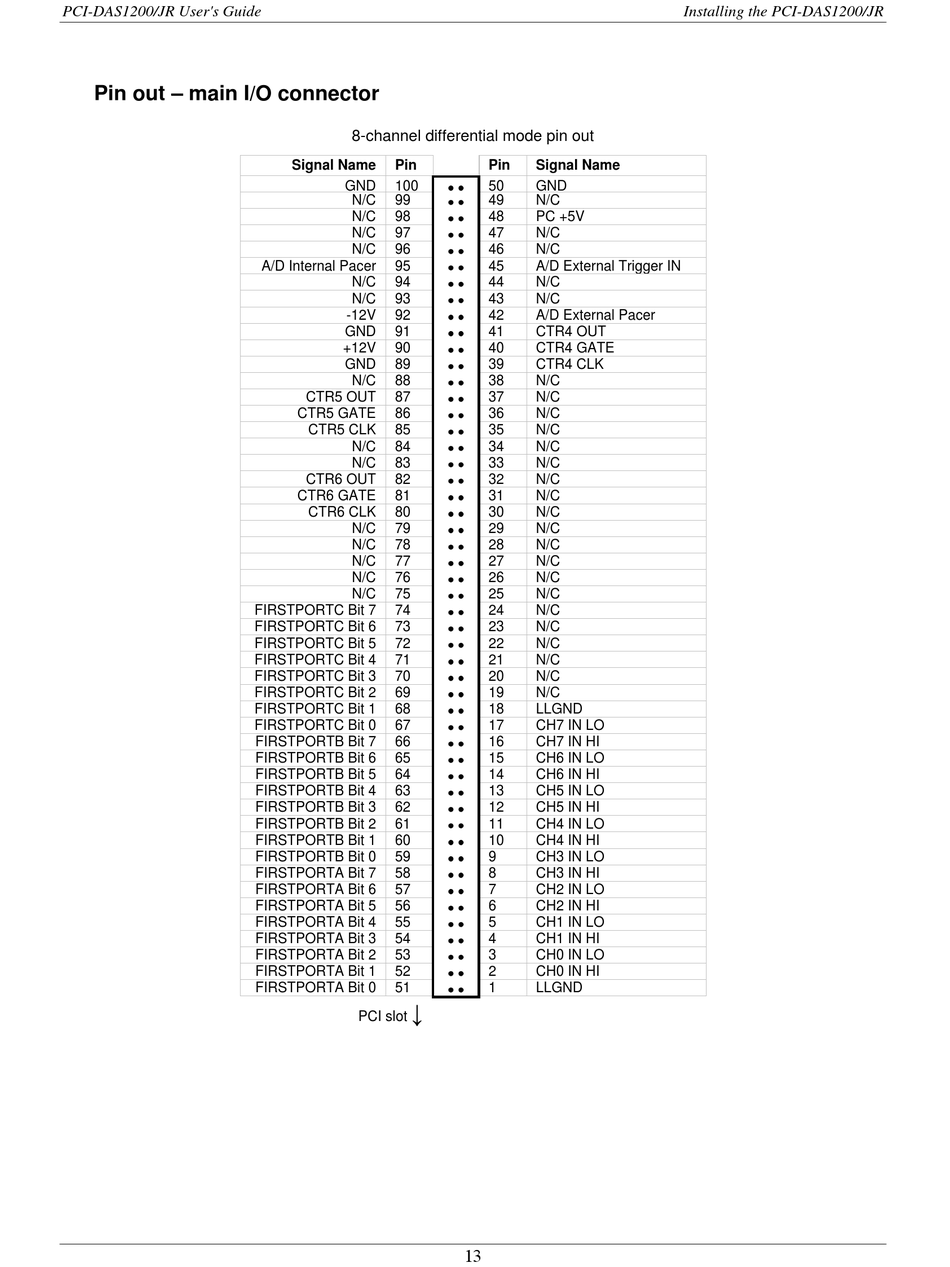

Pin out – main I/O connector
8-channel differential mode pin out
Signal Name Pin
GND 100
N/C 99
N/C 98
N/C 97
N/C 96
A/D Internal Pacer 95
Output N/C 94
N/C 93
-12V 92
GND 91
+12V 90
GND 89
N/C 88
CTR5 OUT 87
CTR5 GATE 86
CTR5 CLK 85
N/C 84
N/C 83
CTR6 OUT 82
CTR6 GATE 81
CTR6 CLK 80
N/C 79
N/C 78
N/C 77
N/C 76
N/C 75
FIRSTPORTC Bit 7 74
FIRSTPORTC Bit 6 73
FIRSTPORTC Bit 5 72
FIRSTPORTC Bit 4 71
FIRSTPORTC Bit 3 70
FIRSTPORTC Bit 2 69
FIRSTPORTC Bit 1 68
FIRSTPORTC Bit 0 67
FIRSTPORTB Bit 7 66
FIRSTPORTB Bit 6 65
FIRSTPORTB Bit 5 64
FIRSTPORTB Bit 4 63
FIRSTPORTB Bit 3 62
FIRSTPORTB Bit 2 61
FIRSTPORTB Bit 1 60
FIRSTPORTB Bit 0 59
FIRSTPORTA Bit 7 58
FIRSTPORTA Bit 6 57
FIRSTPORTA Bit 5 56
FIRSTPORTA Bit 4 55
FIRSTPORTA Bit 3 54
FIRSTPORTA Bit 2 53
FIRSTPORTA Bit 1 52
FIRSTPORTA Bit 0 51
↓
PCI slot
Pin Signal Name
50 GND
49 N/C
48 PC +5V
47 N/C
46 N/C
45 A/D External Trigger IN
44 N/C
43 N/C
42 A/D External Pacer
41 CTR4 OUT
40 CTR4 GATE
39 CTR4 CLK
38 N/C
37 N/C
36 N/C
35 N/C
34 N/C
33 N/C
32 N/C
31 N/C
30 N/C
29 N/C
28 N/C
27 N/C
26 N/C
25 N/C
24 N/C
23 N/C
22 N/C
21 N/C
20 N/C
19 N/C
18 LLGND
17 CH7 IN LO
16 CH7 IN HI
15 CH6 IN LO
14 CH6 IN HI
13 CH5 IN LO
12 CH5 IN HI
11 CH4 IN LO
10 CH4 IN HI
9 CH3 IN LO
8 CH3 IN HI
7 CH2 IN LO
6 CH2 IN HI
5 CH1 IN LO
4 CH1 IN HI
3 CH0 IN LO
2 CH0 IN HI
1 LLGND
13
Installing the PCI-DAS1200/JR
