Cashmaster Omega 230 User Manual
Hide thumbs
Also See for Omega 230:
- User manual (36 pages) ,
- Quick start manual (2 pages) ,
- Frequently asked questions manual (9 pages)
Related Manuals for Cashmaster Omega 230
Summary of Contents for Cashmaster Omega 230

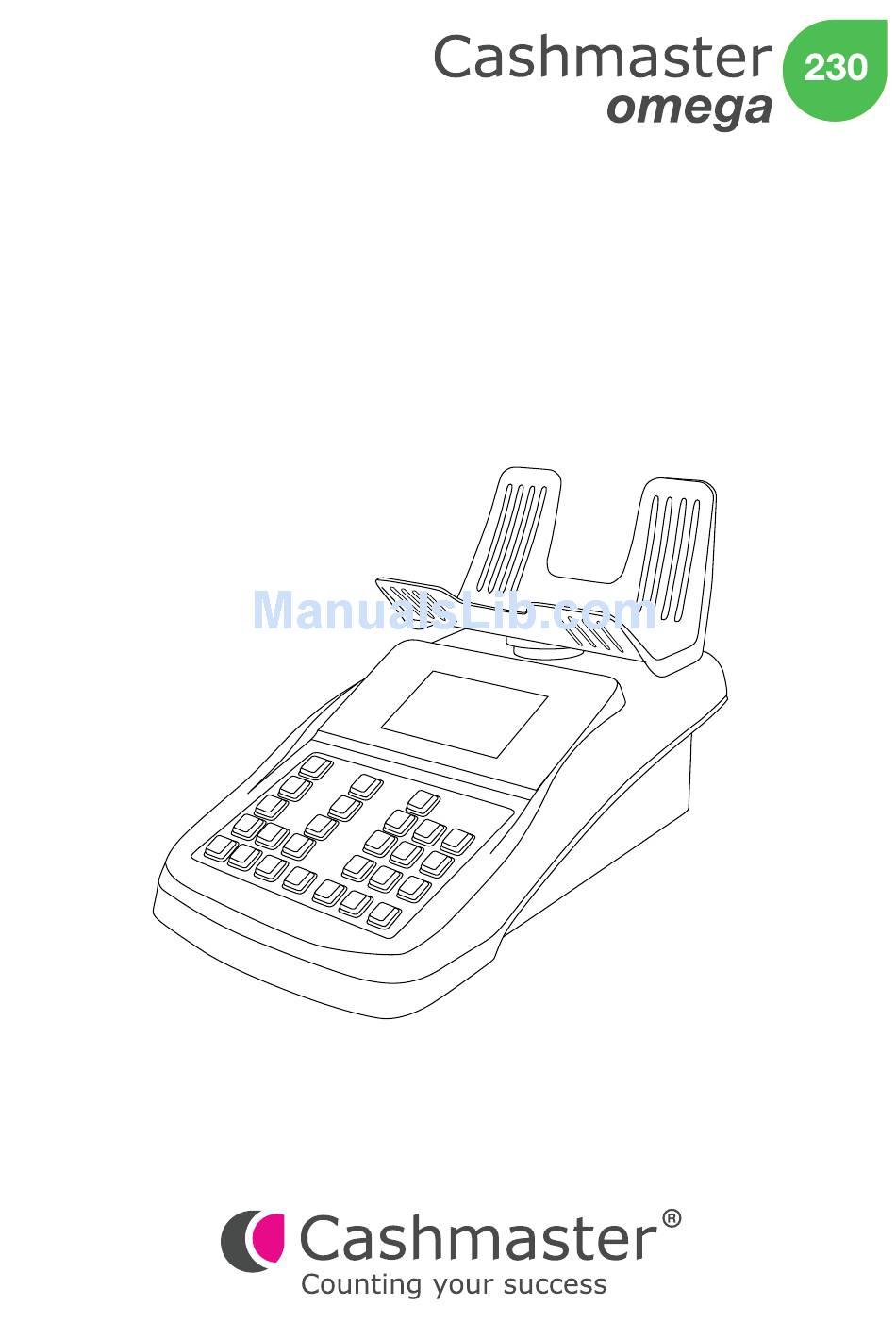

- Page 1 User Manual...
-
Page 2: Table Of Contents
CONTENTS Introduction…………………………………....………… Box items and guidelines............Maintenance…………………………………………. Charging.…………………………………………….. Warning……………….……………………………… Guidelines................Unpacking…………………………………………..Keys and display.......….……………………... The keypad..………………………….………... The screen..…………………..………………. The tray..……………………….………………….. Key identification....………...……..……..………. Fast key setting functions...…...…….………………....Getting started..............What you can count………………………………… Switching on…………………………………………. Defining cups and bank………………………...…... Setting bank mode...…………………...……... Setting the time and date........ -
Page 3: Introduction
The Cashmaster Omega 230 supports your domestic currency: bills and coins. The intuitive user friendly interface guides you through the cash counting process. The Cashmaster Omega 230 is programmed to count the contents of a typical cash register: ·... -
Page 4: Box Items And Guidelines
Do not spill any liquids on device. If liquid is spilled on device, disconnect the power cable and contact your supplier. Do not leave any objects on the Cashmaster or tray when not in use. Charging Charging takes approximately 3 hours. -
Page 5: Guidelines

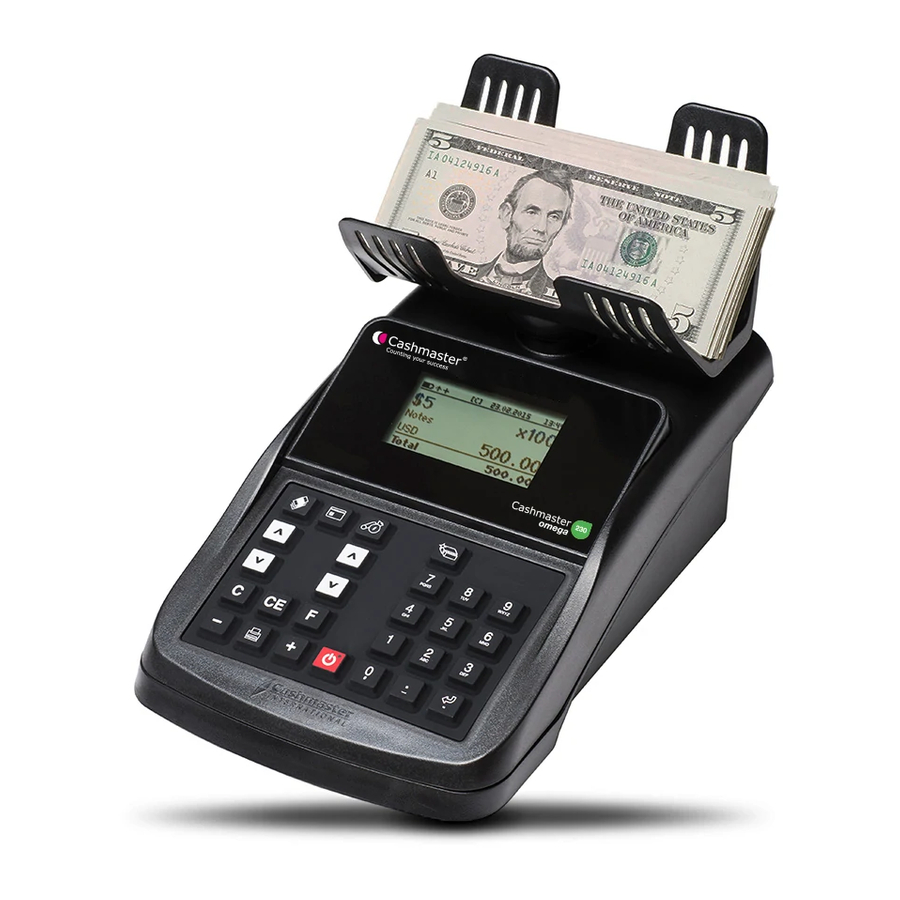

Cashmaster scale, a tray, a scoop and a power adapter. Place the Cashmaster scale on a firm even surface. Fit the tray into the top of the Cashmaster scale. Push down very firmly until it clicks into place. (To remove the tray, hold your device firmly and twist the tray until it clicks, then lift the tray from the base). - Page 6 KEYS AND DISPLAY Tray Scoop Screen Keypad The Cashmaster machine shown above is the equipment you are going to use. You only need to know about four component parts: · the keypad · the screen · the tray · the scoop The machine is robust, and will stand up to all normal cash office activities.
-
Page 7: Keys And Display
- messages related to Cashmaster functions 01.08.2016 11.53 Scoop Coins The tray Total The tray is designed to hold scoops, cups, rolled coins, loose bills and strapped bills. Place the tray on the Cashmaster and push down very firmly, until it is clicked in. -
Page 8: Key Identification
KEY IDENTIFICATION The ON/OFF key. Press once to switch machine on. Press and hold down to switch machine off. The STRAPPED BILL key. Push to select strapped bills and to toggle between loose/bundled/clipped bills. The ROLLED COIN key. Push to toggle between rolled/loose coins. UP and DOWN arrow keys. -
Page 9: Fast Key Setting Functions
FAST KEY SETTING FUNCTIONS Fast key setting functions are controls that allow you to quickly access settings within the Cashmaster. To perform the fast key functions press both keys simultaneously. Bank selection Press the “F” and the “Bill Up” keys together. -
Page 10: Getting Started
GETTING STARTED What you can count Bills Loose bills are counted by placing up to 30 bills at any one time. Continue to add bills of the same denomination until all bills from the selected denomination have been counted. Bundle - for counting straped bills that have been packed in a bundle. -
Page 11: Switching On
Switching on Press When the Cashmaster is initially switched on, it will ask for a store number. This number can be entered by using the numeric keys (max. 5 digits). Thereafter, the number will be stored in the memory of the machine, and will appear on any printouts from the machine. -
Page 12: Setting Bank Mode
The next screen will show: Place Empty Scoop on Scale Place the scoop/cup onto the tray. The scoop/cup is now ready to use with the Cashmaster. To re-calibrate the scoop or cup press , then follow the on-screen prompts. -
Page 13: Setting The Time And Date
GETTING STARTED Setting the time and date The clock facility on the Cashmaster must be set as follows when you receive the machine. From count screen: Press and hold the key and press the coin key. Use the arrow keys to highlight the required option. -
Page 14: Bank Selection
GETTING STARTED Bank selection This function allows you to set the bank value on the Cashmaster. (This can be changed at any time). Press and bill key. The screen will then show: Bank selections: 0.00 100.00 Then press any arrow key to highlight a bank. Use the key to switch bank on or off. -
Page 15: Switching Auto-Add On/Off
GETTING STARTED Switching auto-add on/off Auto-add is a feature that allows the Cashmaster to automatically add the value of any bill/coin counted to the total amount. If auto-add is off, the value displayed will not be automatically added to the... -
Page 16: Switching Scroll On/Off
GETTING STARTED Switching scroll on/off Auto-scroll feature allows the Cashmaster to automatically advance to the next denomination when coins/bills are removed from the scale. If auto-scroll is off, the denomination displayed will not automatically advance to the next denomination, you must manually select the next denomination required using the keys. -
Page 17: Counting
Use the keys to select the correct denomination for counting. Place the scoop/cup of the selected coins on the tray; the Cashmaster will beep and the display will show the value and the quantity of coins in the scoop/cup: 01.08.2016 11.53... -
Page 18: Counting Rolled Coins
Bags Total Place a roll of coins on the tray. If the roll is full the Cashmaster recognises the denomination, together with the value, which will be shown on the display. For certain denominations of rolls the display will show:... -
Page 19: Learning - Bills Only
All Cashmaster machines are calibrated at the factory to the average bill weights of all US currency. As bill weights vary slightly depending on age and usage, the following should be completed on receipt of your new machine. -
Page 20: Counting Loose Bills
COUNTING Counting loose bills Press the bill key until the following is displayed. 01.08.2016 11.53 £5 Bills Notes Total Use the bill keys to select the correct denomination for counting. Place bills of the selected denomination on the tray. 01.08.2016 11.53 £5 Bills... -
Page 21: Counting Strapped Bills
COUNTING Counting straped bills The Cashmaster will count strapped bills including bundles and clips. Press the bill key until the following is displayed. 01.08.2016 11.53 £5 Bundles Total Use the bill keys to select the correct denomination for counting. Place the straped bills on the tray. -
Page 22: Counting Non-Cash Items
COUNTING Counting non-cash items The Cashmaster allows manual entries for four types of non-cash items. Press the key until the following is displayed. 01.08.2016 11.53 - - - - - - - - - - - - Checks Cheques 0.00 Total 0.00... -
Page 23: Storing/Viewing Tills
STORING/VIEWING REGISTERS To start/save/new register, press the key (while in count mode). Your current register has now been saved, enter cashier number to begin a new register. To view a stored register press the key (while in count mode). Then press again at “cashier no.”... -
Page 24: Troubleshooting
Coins This means there is too much weight on scale, simply Loose/ Too much weight remove some. The Cashmaster will weigh up to a rolled on scale maximum of 1.5kg. Roll applied is suspect. Leave roll on tray and select... -
Page 25: Faq
How do I clear sub totals? Select the desired denomination and press key once. How do I clear grand totals for one register? From the count screen hold down the key until the confirmation is displayed. Press the key again to confirm and clear. How do I clear grand totals for all registers? From the main screen hold down the key until the confirmation is displayed. -
Page 26: Calculator Mode
CALCULATOR MODE To enter calculator mode: Press . Enter figures using the numberpad. - Use to multiply. - Use to divide. - Use as the equals key. To exit calculator mode and return to normal operation: Press again. TECHNICAL SPECIFICATIONS Weight 1.2kg Dimension 162mm (W) x 188mm (H) x 282mm (D) Load capacity 1.5kg... -
Page 27: Global Support
GLOBAL SUPPORT North America t: +1 877 227 4627 e: enquiriesusa@cashmaster.com Germany t: +49 (0) 2463 999 339 e: germany@cashmaster.com Hong Kong and Asia t: +852 2157 9363 e: enquiriesasia@cashmaster.com UK and all other customers t: +44 (0) 1383 410 121 e: support@cashmaster.com... - Page 28 cashmaster.com...
