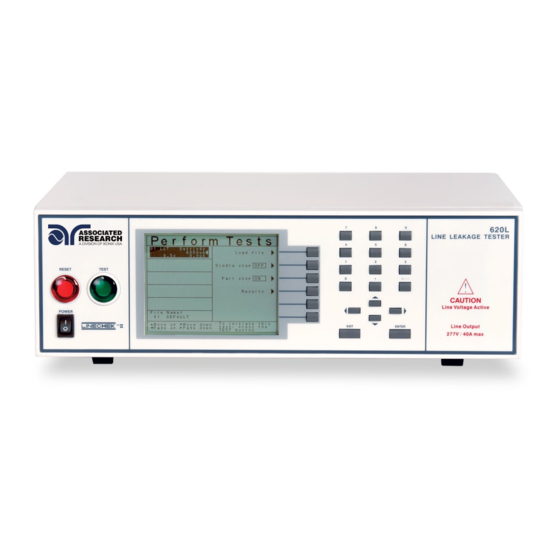

Page 1 OPERATION AND SERVICE MANUAL MODEL 620L Line Leakage Tester Fully Automated Line Leakage Tester SERIAL NUMBER Model 620L Item 38837, Ver. 1.24 Printed July 20, 2017 Associated Research 28105 North Keith Dr. - Lake Forest, IL 60045 USA T. 1-847-367-4077 F. 1-847-367-4080 info@arisafety.com...
Page 2: Declaration Of Conformity
(Cr (VI)), Polybrominated biphenyls (PBB), Polybrominated diphenyl ethers (PBDE), Deca-BDE included. Last two digits of the year in which the CE marking was affixed: 08 The technical file and other documentation are on file with Associated Research, Inc. ______________________________ Joseph Guerriero,President Associated Research, Inc.
Page 3: Table Of Contents
1.4. Safety .......................5 1.4.1. Service and Maintenance ..............5 1.4.2. Test Station ....................6 1.4.3. Test Operator ..................7 1.5. Key Features of the 620L ................8 2. GETTING STARTED ....................10 2.1. Unpacking and Inspection ................10 2.1.1. Packaging .....................10 2.1.2. Contents of Carton ................10 2.2.
Page 4 4.3.6. Fail Stop ....................42 4.4. Test Parameters ...................43 4.4.1. Description of Test Parameters ............43 4.4.2. Default Parameters ................45 4.5. Setting Up a Test ..................47 4.5.1. General Test Procedures ..............47 4.5.2. Line Leakage Test ................49 5. OPERATING INSTRUCTIONS ................56 5.1. Instrument Connections ................56 5.1.1.
Page 5 7.4.5. System Parameter Editing Commands and Companion Queries84 7.4.6. Query Commands ................85 7.4.7. IEEE 488.2 Common Commands ............87 7.4.8. Status Reporting .................89 7.4.9. GPIB Service Request ...............90 7.5. Non-Volatile Memory ...................92 8. OPTIONS ........................95 8.1.1. GPIB Interface ..................95 8.1.2. Functional Run Test Function ............95 8.1.3.
Page 6 9.2.32. Calibration of LLT MD: IEC 60990 FIG5 measuring device ..178 10. REPLACEMENT PARTS LIST ................179 11. INDEX ........................215...
Page 7: Introduction
5-Year Program All Associated Research instruments include the opportunity to extend the standard warranty for up to a period of 5 years. Returning instruments to Associated Research for their annual calibration and inspection will extend the instrument's warranty for an additional year.
Page 8 Elimination of any connections in the earth grounding system or bypassing any safety systems will void this warranty. This warranty does not cover accessories not of Associated Research, Inc. manufacture. Parts used must be parts that are recommended by Associated Research, Inc. as an acceptable specified part. Use of non-authorized parts in the repair of this instrument will void the warranty.
Page 9: Safety Symbols
1.2. Safety Symbols 1.2.1. Product Marking Symbols Product will be marked with this symbol when it is necessary to refer to the operation and service manual in order to prevent injury or equipment damage. Product will be marked with this symbol when hazardous voltages may be present.
Page 10 Direct Current, DC: Current that flows in one direction only. The source of direct current is said to be polarized and has one terminal that is always at a higher potential than the other. Frequency: The number of cycles an AC waveform repeats over time. Usually given in Hertz (Hz). Ground: Refers to the point of low potential in a circuit to which all other voltages are referenced.
Page 11: Safety
FAX: 1 (847) 367-4080 LAKE FOREST, IL 60045-4546 U.S.A. info@asresearch.com E-MAIL: Service Interval Associated Research, Inc. will not be held liable for injuries suffered if the instrument is not properly maintained and safety checked annually. See section 1.1. Warranty Policies for more information.
Page 12: Test Station
1.4.2. Test Station Location Select an area away from the mainstream of activity where employees do not walk while performing their normal duties. If this is not practical because of production line flow, then the area should be roped off and marked for HIGH VOLTAGE TESTING. No employees other than test operators should be allowed inside.
Page 13: Test Operator
1.4.3. Test Operator This instrument generates voltages and currents that can cause harmful or fatal electric shock and must only be operated by a skilled worker trained in its use. The operator should understand the electrical fundamentals of voltage, current, and resistance. Do not touch the device under test, high voltage test lead, alligator clip, or clip insulator once the test has been started.
Page 14: Key Features Of The 620L
In addition, operators may connect a custom measuring device of their own to the external measuring device inputs. INTERCONNECTION The 620L may be connected to a Hypot III, Hyamp CAPABILITY WITH HIPOT III, HypotULTRA III, or HypotMAX safety tester to AND GROUND BOND...
Page 15 Select to monitor leakage current using RMS or CURRENT READINGS Peak readings during Line Leakage testing. 40 AMP CONTINUOUS The 620L can handle loads that require up to 40 CURRENT CAPABILITY Amps of continuous current during Line Leakage and Run testing.
Page 16: Getting Started
2. GETTING STARTED Introduction This section contains information for the unpacking, inspection, preparation and storage of your Associated Research, Inc., product. 2.1. Unpacking and Inspection 2.1.1. Packaging Your instrument was shipped in a custom foam insulated container. If the shipping carton is damaged, inspect the contents for visible damage such as dents, scratches or a broken display.
Page 17: Installation
Note: The Adapter Box (universal US polarity) and line cord listed are American. Other combinations of line cord and Adapter Box are available upon request. 2.2. Installation 2.2.1. Work Area Locate a suitable testing area and be sure you have read all safety instructions for the operation of the instrument and suggestions on the test area setup in section 1.4.
Page 18: Basic Connections
The 620L must be connected to a good ground. Be certain that the power wiring is properly polarized and that the proper low resistance bonding to ground is in place.
Page 19: Environmental Conditions
The output power supplies of this instrument are referenced directly to earth ground. Any conductor that completes a path between the high voltage and earth ground will form a completed circuit. 2.2.4. Environmental Conditions This equipment is intended for indoor use only. The equipment has been evaluated according to Installation Category II and Pollution Degree 2 as specified in IEC 664.
Page 20: Specifications And Controls
3. SPECIFICATIONS AND CONTROLS 3.1. 620L Functional Specifications INPUT Voltage 115/230 VAC ± 10%, User selection Frequency 50/60 Hz ± 5% Fuse 2A Slow-Blo 250V AC LINE CONDITION Reverse polarity switch setting select ON/OFF/AUTO ON: Reverse power OFF: Normal AUTO: Automatic Reverse Polarity. With AUTO mode,...
Page 21 DISPLAY 0.0uA ~ 32.0uA, frequency Touch Current Display (RMS) Range 1 DC, 15Hz - 1MHz Resolution 0.1uA DC , 15Hz < f <100KHz: ±(2% of reading + 3counts) Accuracy 100KHz < f < 1MHZ : ±5% of reading (10.0uA - 999.9uA) 28.0uA ~ 130.0uA, frequency Range 2 DC, 15Hz - 1MHz...
Page 22 DISPLAY (CONT.) Resolution 0.01mA DC, 15Hz < f < 100KHz : ±5% Accuracy of reading (0.01mA -20.00mA ) 0.0uA ~ 32.0uA, frequency DC - Touch Current Display (Peak) Range 1 1MHz Resolution 0.1uA DC : ±(2% of reading + 2uA) Accuracy 15Hz <...
Page 23 MD CIRCUIT MODULE UL544NP, UL484 , UL923, UL471, UL867, UL697 UL544P IEC 60601-1 UL1563 IEC60990 Fig4 U2, IEC 60950-1, IEC60335-1, IEC60598-1, IEC60065, IEC61010 IEC60990 Fig5 U3, IEC60598-1 IEC60950, IEC61010-1 FigA.2 (2K ohm) for Run function. External MD Basic measuring element 1k ohm Scope Output Interface BNC type connector on rear panel for Oscilloscope connection...
Page 24 GENERAL Safety Agency Listing CE, cTUVus, RoHS2 Input - Test, Reset, Interlock, and Recall PLC Remote Control Memory 1 through 10 (4Bits) Output – Pass, Fail, Test-in-Process, Start-Out, Reset-Out 50 files, 30step/file. Memory File locations can be linked. 900 connected steps maximum. 320 X 240 graphic LCD Display Adjustable...
Page 25 Why use the term “Counts”? Associated Research publishes some specifications using COUNTS which allows us to provide a better indication of the tester’s capabilities across measurement ranges. A COUNT refers to the lowest resolution of the display for a given measurement range. For example, if the...
Page 26: Instrument Controls
3.2. Instrument Controls 3.2.1. Front Panel Controls 1. RESET BUTTON: Resets the instrument. If a failure condition occurs during a test, pressing this button will reset the system, shut off the alarm and clear the failure condition. The Reset button must be pressed before performing another test or changing any of the setup parameters.
Page 27 9. ENTER KEY: Key used to finalize parameter entries. The ENTER key may also be used to scroll the highlighted area to different parameters in the parameter setting screens. 10. LINE VOLTAGE INDICATOR: This indicator flashes to warn the operator that line voltage is present at the voltage output terminal.
Page 28: Rear Panel Controls
REMOTE OUTPUT: For connection of optional AC1000 power source. When used to deliver DUT power, the AC1000 may be configured to work in a master/slave mode with the 620L. For more information refer to section 8. Options. CALIBRATION BUTTON: To put the instrument into the calibration mode push this button and turn on the power switch simultaneously.
Page 29 REMOTE SIGNAL INPUT: 9-Pin D-type subminiature male connector for remote control of TEST, RESET, and REMOTE INTERLOCK DISABLE functions, as well as MEMORY SELECTION (See section 6. Connection of Remote I/O for more detailed information). DUT POWER INPUT LINE: Provides DUT input power (line connection). Only a single phase unbalanced power source may be used.
Page 30 Run test, this terminal is isolated from the test circuits. See section 8. Options for more information. Safety Tester Connections (Optional): Connector used to interface the 620L to an Associated Research electrical safety tester. See section 8. Options for more information. CHASSIS GROUND (EARTH) CONNECTION: This terminal should be connected to a good earth ground before operation.
Page 31 BUS INTERFACE: Standard connector for interconnection to the USB/RS-232 Bus interface. Optional IEEE-488 interface may be substituted for the USB/RS- 232.
Page 32 INPUT POWER RECEPTACLE: Standard IEC 320 connector for connection to a standard NEMA style line power (mains) cord. INPUT POWER SWITCH: Sets the line voltage configuration of the instrument. In the left position it is set for 115 volt operation, in the right position it is set for 230 volt operation.
Page 33: Programming Instructions
4. PROGRAMMING INSTRUCTIONS 4.1. Power Up The 620L automatically defaults to the Main Menu screen upon power up. The Main Menu screen will appear as follows: From the Main Menu screen three menus may be accessed: Setup System, Setup Tests, and Perform Tests.
Page 34: Setup System Keys
4.2.1. Setup System Keys Soft Keys In the Setup System screen, the soft keys correspond to several setup screens. Use the soft keys to enter the corresponding system screen. Once a system screen has been entered, the soft keys can be used to edit parameters. Press the soft key to edit the corresponding parameter.
Page 35: Calibration Alert
the date that you want to edit. Using the numeric keypad enter the new number. Once a parameter is edited, it is necessary to complete the edit either by pressing the ENTER key to accept the new number or the EXIT key to escape from the edit and return to the original number.
Page 36 Calibration Date The Calibration Date shows when the unit was last calibrated at the factory. It is recommended that calibration be performed at least once a year. Calibration Due Date It is recommended that the Calibration Due Date not be set greater than one year from the Cal.
Page 37 Within the Alert Date parameter are three separate fields: month, day, and year. Using the left and right arrow keys select the field you want to edit. Using the numeric keypad enter the new number. Once you begin typing a new number the parameter will blank and the cursor will begin blinking.
Page 38: Hardware
4.2.4. Hardware From the Setup System screen press the “Hardware” soft key. The Hardware Setting screen will now be displayed. From the Hardware Setting screen, four different parameters may be accessed: Alarm Volume, LCD Contrast, GPIB Address (this parameter will only appear if a Option 01 GPIB has been installed), and PLC Remote. The Hardware Setting screen will appear as follows: Alarm Volume From the Hardware Setting screen highlight the Alarm Volume parameter by using the...
Page 39 PLC Remote ON and OFF by You can control your pressing the “PLC Remote” soft key. When Associated Research, Inc. the PLC Remote is turned ON the front panel instrument using basic PLC TEST button is disabled and a test may only inputs and outputs.
Page 40: Security
4.2.5. Security From the Setup System screen press the “Security” soft key. One of two possible Security screens will be displayed. When the instrument is shipped from the factory there is no set password. Initially, the instrument will not have a password enabled and the Security Setting screen will appear.
Page 41 that will appear after a password has been created and entered correctly will appear as follows: Create Password From the initial Security Setting screen you may create a password by pressing the “Create Password” soft key. The Password Setting screen will now be displayed. The Password Setting screen will appear as follows: You may now type in the new password using the numeric keypad.
Page 42: Power-On Screen
From the Security Setting screen you may change the security password by pressing the “Change Password” soft key. Once you press the “Change Password” soft key the Password Setting screen will appear. Security From the Security Setting screen you may turn the security function ON and OFF by pressing the “Security”...
Page 43 Main Menu. 620L Info The 620L Information screen is the very first screen to appear when the instrument is powered up. You have the option to PAUSE the instrument at this screen after power up or CONTINUE through to the next screen...
Page 44: Default System Parameters
The Setup Tests screen is the central starting point for programming tests into the instrument. From this screen test parameters are entered and edited, and the order of the test steps is arranged. The 620L is capable of performing a 30-step sequential test from a single test file.
Page 45: Add
4.3.1. Add From the Setup Tests screen press the “Add” soft key. From this screen you may select what type of test you wish to add to a test sequence: Line Leakage test or Functional Run test (requires Option 02 Run Test Function, see section 8.Options for more information).
Page 46 To enter a Prompt use the arrow keys to scroll the highlighted area to the character (or enter a number from the numeric keypad) you wish to use and then press the “Select” soft key. If you make a mistake or want to change the character press the backspace key “”...
Page 47: File
4.3.5. File From the Setup Tests screen press the “File” soft key. The File Setup screen will now be displayed. From the File Setup screen, five different file-handling controls may be accessed: New File, Save, Save As, Delete, and Load. The File Setup screen will appear as follows: New File From the File Setup screen press the “New File”...
Page 48: Fail Stop
Save As To save an edited file without overwriting the original or to give a file a new name, press the “Save As” soft key in the File Setup screen. Delete To delete a file use the up and down arrow keys and scroll the highlighted area to the file you wish to delete.
Page 49: Test Parameters
4.4. Test Parameters Test Parameter Notes Once you begin typing a new number the parameter will go blank and the cursor will begin blinking. This indicates that the parameter is being edited. Once a parameter is edited it is necessary to complete the edit either by pressing the ENTER key to accept the new number or the EXIT key to escape from the edit and return to the original number.
Page 50 PF-HI: The minimum allowable Power Factor that triggers a failure when not exceeded. Dwell Time: The length of time that is allowed for the programmed test voltage to be applied. Delay Time: The length of time that the programmed test voltage is applied but no judgment of the set parameters is made.
Page 51 The following table is a listing of the default parameters for each of the different types of tests that are available in the 620L. The default parameters are:...
Page 52: Default Parameters
Default Parameters TEST TYPE PARAMETER VALUE Leakage-HI 6000A Leakage-LO 0.0A Voltage-HI 125.0V Voltage-LO 0.0V Delay Time 0.5s Dwell Time 0.5s Reverse Neutral CLOSED Ground CLOSED Meas. Device UL544NP Probe Ground to Line Leakage Extended Meters AC/DC AC+DC Ranging Mode AUTO Continuous Run Test Voltage-HI...
Page 53: Setting Up A Test
4.5. Setting Up a Test 4.5.1. General Test Procedures Upon power up the 620L will initialize with the test file that was last used before power down. If the instrument is new it will come loaded with one default file until it is changed.
Page 54 10. At this point you may add more tests to the sequence, insert tests, insert prompts, perform the test sequence, or store the sequence to the file name you created. Adding More tests to the Sequence To add more tests to the sequence simply repeat steps 5-10 of this section. Performing a Test from the Setup Test screen To perform the test you have just created press the ENTER key.
Page 55: Line Leakage Test
Inserting Tests From the Setup Tests screen scroll the highlighted area to the step in the sequence where you would like to insert a test. Press the “Add” soft key. The highlighted area will blank and the test that was originally at this step in the sequence, as well as all of following steps, will increment.
Page 56 Pressing the “More” soft key will bring two additional choices for Defaults and More: Pressing the “Defaults” soft key will return all parameters to their default values. Pressing the “More” soft key will return the user to the first page of test parameters. For detailed descriptions of these parameters see below or refer to section 4.4.1.
Page 57 represented as GROUND and is controlled by the Ground soft key. Pressing the relay’s corresponding soft key will toggle it between its two available states. Line Configuration Setting When the Neutral or Ground relays are set to the CLOSED position they are in a normal operating condition.
Page 58 Probe Configuration The Probe configuration is controlled by the relays SH and SL shown in the preceding image and are set by the “Probe” soft key. These two relays configure the current measuring device into three possible positions. Repeatedly pressing the Probe soft key allows the selection of the three different states.
Page 59 UL1563 Electric Spas, Equipment Assemblies and Associated Equipment IEC60990 Fig4-U2, IEC 60950 Laboratory Equipment. Information Technology. IEC60990 Fig5-U3 Weighted Touch Current, Let-Go. External User configurable User configurable Frequency The Line Leakage test can be The selection is intended to be configured to verify the bandwidth used for meter verification only Check...
Page 60 Circuit Diagrams The following diagrams show the equivalent circuit of the measuring devices. Leakage current readings are generated by measuring the voltage drop across these networks and dividing by the equivalent DC resistance. The voltmeter is placed across the entire network of the measuring devices MD1, MD2, and MD4. The voltmeter is placed across the points indicated by the solid black dots on measuring device MD3, MD5 and MD6.
Page 61 External Measuring Device The 620L has an access panel on the back of the instrument that can be removed to access the MD external PCB. The MD external PCB may be configured for a simple resistive measuring device or a two pole measuring device similar to MD “E”. No components are supplied for the population of the PCB.
Page 62: Operating Instructions
In order to access the DUT Power Input Connections, you must remove the cover plate on the rear panel of the 620L. Once removed, you may use the black 10 AWG cables (included) to connect to a power source for applications up to and including 40 amps.
Page 63: Connecting The Test Leads
4.5.2. Line Leakage Test for more information). Connect the red test lead (also terminated in an alligator clip) to the GND terminal on the rear panel of the 620L. This will provide the return connection for all leakage current measurements. The alligator clips may be used to provide a connection to the necessary points on your DUT.
Page 64: Adapter Box Connections
If an application in which more than 20 amps of input current is required, please use the stand-alone input and output cables provided with the instrument. The following diagram shows how to connect the 620L to a DUT using the adapter box:...
Page 65: Interlock Connector
5.1.5. Interlock Connector The 620L is equipped with a Remote Interlock feature. Remote Interlock utilizes a set of closed contacts to enable the instrument’s output. If the Remote Interlock contacts are open the output of the instrument will be disabled. Remote Interlock can also be referred to as a remote system lockout, utilizing “fail when open”...
Page 66: Load File
5.2.1. Load File From the Perform Tests screen press the “Load File” soft key. The Load File screen will now be displayed. The Load File screen will appear as follows: Using the up and down arrow keys, highlight the file you would like to load and press the “Load”...
Page 67: Fail Stop
You may single step through an entire sequence in this way as long as you do not press RESET. Once RESET is pressed it will return you to the originally selected step. Turn the Single Step function ON and OFF by pressing the “Single Step” soft key. If Security is enabled, Single Step may not be turned ON and OFF at the Perform Test screen.
Page 68 Using the up and down arrow keys scroll the highlighted area to the step results you wish to review. The left and right arrow keys may be used to page through results if the test contains more than five steps. When the highlighted area is on the step you are reviewing, the test settings will be displayed in the highlighted area and the results will appear on the right in the form of metering screens.
Page 69: Performing A Test
5.3. Performing a Test 1. As instructed in section 4.2. System Setup, select a file and step that is suitable for the test you would like to perform. 2. Attach the appropriate DUT to the instrument (refer to section 5.1. Instrument Connections for more information).
Page 70: Perform Tests Metering
5.4. Perform Tests Metering Each test performed by the 620L contains a unique set of parameters and therefore requires special metering for each test. The following table describes what meters will be displayed for each of the different test types.
Page 71: Displayed Messages
5.5. Displayed Messages Directly above the Metering screens is the Test Status Display. This portion of the display is active during the test, allowing you to view the type of test being performed and status of the test step. At the end of a test the Test Status Display will either inform you that the test has passed or give a direct indication of the kind of failure that occurred during the test.
Page 72 Volt-LO This message appears on the display if the DUT/IP voltage drops below the Volt-LO Trip setting. Amp-HI This message appears on the display if the current exceeds the Amp-HI Trip setting Amp-LO This message appears on the display if the current drops below the Amp-LO Trip setting.
Page 73 This message appears on the display if the power transistors on the DUT Power Switch Board have overheated. When the OTP trips, the Calibration function will be disabled until the power transistors cool down. Interlock Open This message appears on the display if the Remote Interlock feature is activated before or during a test.
Page 74 Fatal Error screen will appear as follows: This type of failure permanently locks the instrument in the “Fatal Error” mode and requires that the instrument be serviced by Associated Research, Inc. The following Fatal Error identification numbers will represent the type of failure that has occurred: Error Code 9001 will appear on the display if the instrument has a recognizable internal component failure.
Page 75: Connection Of Remote I/O
6. CONNECTION OF REMOTE I/O Two 9-pin “D” type connectors mounted on the rear panel provide REMOTE-INPUT- OUTPUT control and information. These connectors mate with a standard 9 pin D- sub-miniature connector provided by the user. The output mates to a male (plug) connector while the input mates to a female (receptacle) connector.
Page 76: Remote Signal Inputs And Memory Access
Hipot or Ground Bond test from another Associated Research, Inc. instrument. 6.2. Remote Signal Inputs and Memory Access The 620L remote connector enables remote operation of the TEST, RESET, and REMOTE INTERLOCK functions, and allows the operator to select one of 10 pre- programmed test files.
Page 77: Remote Interlock
THE CONTROL CIRCUITRY. 6.3. Remote Interlock The 620L is equipped with a Remote Interlock feature. Remote Interlock utilizes a set of closed contacts to enable the instrument’s output. If the Remote Interlock contacts are open the output of the instrument will be disabled. Remote Interlock could also be...
Page 78 referred to as a remote system lockout, utilizing “fail when open” logic. If the Remote Interlock contacts are open and the TEST button is pushed, a pop-up message will be displayed on the screen for two seconds. The message will appear as follows: If the Remote Interlock contacts are opened during a test, the pop-up message will be displayed and the test will abort.
Page 79: Bus Remote Interface Gpib / Rs-232
7. BUS REMOTE INTERFACE GPIB/ USB/RS-232 This section provides information on the proper use and configuration of the bus remote interface. The USB/RS-232 remote interface is standard on the 620L but the GPIB (IEEE-488) interface option can be substituted for the USB/RS-232 interface.
Page 80: Communications Port Configuration
7.1.2. Communications Port Configuration The COM port should have the following configuration: 9600 baud 8 data bits 1 stop bit No parity This interface does not support XON/XOFF protocol or any hardware handshaking. The controller should be configured to ignore the handshaking lines DTR (pin 4), DSR (pin 6) CTS (pin 8) and RTS (pin 7).
Page 81: Sending And Receiving Commands
7.2. GPIB Interface This interface is optional on the 620L and provides all of the control commands and parameter setting commands of the USB/RS-232 interface along with 488.2 Common Commands and SRQ capability. All commands can be found in section 7.4. USB/RS- 232/GPIB Command List.
Page 82: Gpib Address
Each device on the GPIB (IEEE-488) interface must have a unique address. You can set the address of the 620L to any value between 0 and 30. The address can only be set from the front panel. The address is stored in non-volatile memory and does not change when the power has been off or after a remote reset.
Page 83: Test Execution Commands
GPIB Queries and Responses The 620L GPIB bus will not send any data to the controller without being queried. A GPIB read command must be sent after a command string to retrieve any data from a query command (?). Rules for Sending Commands to the Instrument The following conventions are used to describe the commands syntax for the 620L: Braces ({ }) enclose each parameter for a command string.
Page 84 COMMAND DESCRIPTION VALUE FL <file number> File Load file number = 1-50 File Delete Active selected File FD <file number> file number = 1-50 File Delete by Number File Save Active selected File FSA {<file File Save-as file number = 1-50, file name = number>,<file Valid ASCII (1) name>}...
Page 85 Refer to section 7.5, Non Volatile Memory for more information. FD <file number> Deletes a file from non-volatile memory indicated by the file number. The “FD” command writes to the non-volatile memory of the instrument. The non-volatile memory has a limited write cycle life.
Page 86 Refer to section 7.5, Non Volatile Memory for more information. SS <step number> Selects the active selected step to load into RAM. The step must first be selected before any specific parameters can be edited. ADD <test p1,p2,p3…> This command edits all parameters in a step. Parameters will be edited at the step location that has been selected.
Page 87 Voltage-HI Leakage-HI Voltage-LO Leakage-LO Amp-HI Voltage-HI Amp-LO Voltage-LO Dwell Time Delay Time Delay Time Neutral (OPEN/CLOSED) Leakage-HI Reverse (ON/OFF) Leakage-LO Ground (OPEN/CLOSED) Power-HI Meas. Device (UL544NP/UL544P/IEC60601 UL2601/UL1563/IEC60990 FIG4- U2, IEC60950/IEC60990 FIG5- U3/EXTERNAL) Power-LO Probe (Ground To Line/ Probe-HI to Line/Probe-HI To Probe-LO) PF-HI Leakage Mode (Peak/RMS) Extended Meter (ON/OFF)
Page 88 SF {1|0} Sets the Fail Stop function OFF or ON for the active setup file loaded into RAM. 1 sets the Fail Stop = ON, 0 sets the Fail Stop = OFF.
Page 89: Test Parameter Editing Commands And Companion Queries
7.4.4. Test Parameter Editing Commands and Companion Queries These commands are used to modify the test parameter within each step. These commands require a parameter value to be included with the command. The companion query command will read the parameter. The writing of the parameter requires that the unit not be included with the value, only the numeric value should be included with the command.
Page 90: System Parameter Editing Commands And Companion Queries84
EPFL < value > Edit PF-LO 0.000 - 1.000 EPFL? EPOH < value > Edit Power-HI 0 - 4200W EPOH? EPOL < value > Edit Power-LO 0 - 4200W EPOL? EP {0|1|2} Edit Probe 0=Ground to Line 1=Probe-HI to Line 2=Probe-HI to Probe-LO ER {1|0} Edit Reverse...
Page 91: Query Commands
SML {1|0} Memory Lock 1= On, 0=Off SML? SMM {1|0} Main Menu page 1= On, 0=Off SMM? SOI {1|0} 620L Info page 1= Pause, 0=Continue SOI? SPR {1|0} PLC Remote 1= On, 0=Off SPR? SSI {1|0} Single Step 1= On, 0=Off SSI? STM <...
Page 92 COMMAND NAME VALUE List Step Parameters LS <step number>? List Step Parameters by step step number = 1-30 number List Selected Step step number = 1-30 List Fail Stop condition 1=On, 0=Off Read the active data being displayed on the LCD display while the test is in process. Will also read the last data taken when the test sequence has completed.
Page 93: Ieee 488.2 Common Commands
*IDN? command which can be used to retrieve the instrument identification information, and the four status reporting commands *ESR?, *ESE, *ESE? and *STB? COMMAND NAME DESCRIPTION *IDN? Identification Query Associated Research Inc., Model Number, Serial Number, Firmware Revision *RST Reset Command Resets 620L...
Page 94 Service Request Enable Query 0 - 255 *IDN? Read the instrument identification string. Company = Associated Research Inc. *RST Reset the instrument to original power on configuration. Does not clear Enable register for Standard Summary Status or Standard Event Registers. Does not clear the output queue.
Page 95: Status Reporting
*OPC Sets the operation complete bit (bit 0) in the Standard Event register after a command is completed successfully. *OPC? Returns an ASCII "1" after the command is executed. *WAI After the command is executed, it prevents the instrument from executing any further query or commands until the no-operation-pending flag is TRUE.
Page 96: Gpib Service Request
The Summary register is known as the Status Byte register and records high-level summary information acquired by the Event registers. An Event register report defines conditions or messages at each bit. The bits are latched and remain in an active state until the register is either Read or Cleared. Reading the Event register automatically clears the register and sets all bits to an inactive state or 0.
Page 97 After the serial poll (SPOLL) is executed the RQS bit will be cleared to 0 and the remaining bits will remain unchanged. The Status Byte will not change value until the Event register is read and cleared for the corresponding Status Byte bit. For example, after the All Pass SRQ has been enabled, when the test(s) have finished with pass indications the instrument will set the hardware SRQ line and output the Status Byte of 41 hex.
Page 98: Non-Volatile Memory
First, the “FN” command is used to create a blank file. In this case, the file is named TEMP. This file is then stored into the memory of the 620L. When the sequence needs to be recalled, the “FL” (File Load) command is used to recall the TEMP file.
Page 100 FOR MORE INFORMATION ON IEEE (GPIB) PLEASE CONTACT The Institute of Electrical and Electronic Engineers, Inc. 345 East 47th Street, New York, NY 10017  1-212-705-7018 (Communications Society of IEEE) Internet: www.ieee.org...
Page 101: Options
SRQ functions. All commands can be found in section 7. Bus Remote Interface GPIB/USB/RS-232. 02 Run Test Function This option adds Functional Run test capability to the 620L. For detailed information about general test set up procedures, refer to section 4.5. Setting up a Test.
Page 102 From the Run Test Parameter Setting screen the following parameters may be controlled: Voltage-HI, Voltage-LO, Amp-HI, Amp-LO, Delay Time, Dwell Time, Leakage-HI, Leakage-LO, Power-HI, Power-LO, PF-HI, PF-LO and Continuous. For detailed descriptions of these parameters refer to section 4.4.1. Description of Test Parameters.
Page 103 With this option installed, the 620L and the electrical safety tester will operate in a master/slave configuration. The test will be initiated from the front panel TEST button of the 620L. Once the test is complete, the 620L will send a signal to the electrical safety tester to begin any subsequent tests.
Page 104 Note: In this configuration the electrical safety tester will send test signal to the 620L but is not able to send a reset signal once the test on the 620L has started. RESET button on the 620L would need to be pressed at the end of the test sequence in order to reset the 620L or abort a test.
Page 105 The following figure shows how to connect the 620L to an Associated Research HypotULTRA III tester.
Page 106 The following figure shows how to connect the 620L to an Associated Research Omnia 8104 tester.
Page 107 The following figure shows how to connect the 620L to an Associated Research HypotULTRA III tester using special cables to perform hipot test first followed by line leakge test.
Page 108: Scanner
This option allows the 620L to be connected to an Associated Research SC6540 Modular Scanning Matrix, model HN. With this option installed and a Scanner connected to the Scanner control bus on the rear of the instrument, the 620L and accompanying Scanner can be used for multi-point Line Leakage testing. The 620L will provide power and all necessary signals to the corresponding Scanner inputs.
Page 109 (off). Press the Left and Right Arrow keys to move the highlighted cursor to the corresponding Scanner channel. Setting a channel to H will connect the Probe-HI of the 620L to the corresponding Scanner channel. Setting a channel to L will connect the Probe-LO of the 620L to the corresponding Scanner channel.
Page 110: Linechek To Apt 7 Memory
This option provides a dedicated signal output connector that is added to the rear panel of the 620L. The new signal output connector can be used to control a compatible device such as an AC 1000 power supply. The output is a 3-bit digital control signal that is menu selectable at the Run Test or LLT parameter screen.
Page 111 When using this option with an AC 1000, be sure to power up the 620L first and then power up the AC 1000. When powering down the instruments, power down the AC 1000 first and then power down the 620L. The 620L is in an undetermined state without power and may cause inadvertent memory activation of the AC 1000.
Page 112 Setting the PLC Control selection to M1 through M7 will create different digital states at Bit 0, Bit 1, and Bit 2 of the PLC Remote Signal Output (refer to the PLC Signal Output drawing below). The different states are described in the truth table below.
Page 113 The following Test Parameter Editing GPIB commands may be used to control the memory send selection. COMMAND NAME TEST VALUE TYPES EPM n, n=1-7 Edit PLC Memory 1=M1, 2= M2, 3=M3, EPM? Send 4=M4, 5=M5, 6=M6, 7=M7 The ADD command can also be used. The memory selection should be inserted as the last parameter and should use full text as indicated on the LCD screen such as M1 or M2.
Page 114 The Ethernet port is for use with a standard CAT-5 Ethernet cable and may be connected to any compatible PC. The 9-pin D- type subminiature connecter labeled “RS232” is for connection of the 620L to an RS-232 communication bus.
Page 115 Associated Research, Inc. Ethernet Card Communications Information (To be completed by Network Administrator) Ethernet Card Address: ______:______:______:______:______ Device Name: _____________________ Device IP Address: _______._______._______._______ Gateway IP Address: _______._______._______._______ Subnet Mask: _______._______._______._______...
Page 116 “Requesting IP Address. . .” message will appear. Power Up The Ethernet Card will be installed with the default options listed above. After the 620L initially powers up, the following pop-up message will appear:...
Page 117 There are two options to choose from this screen. Press the EXIT key to escape from this screen and stop the 620L from requesting an IP address or allow the 620L to request an IP address automatically from the network to which it is connected.
Page 118 If the 620L fails to receive an IP Address after approximately 20 seconds, the following pop-up message will be displayed: Press the EXIT key to remove the pop-up message and return to the 620L’s Main Menu Screen.
Page 119 Page. IP Setup The “IP Setup” soft key is used to determine how the 620L will request an IP address from the server to which it is connected. The IP Setup may be configured as AUTO or MANUAL by pressing the “IP Setup” soft key.
Page 120 When AUTO is selected, the 620L will attempt to automatically request an IP Address from the server upon power up. To resolve the IP Address automatically, the 620L will use DHCP or BOOTP protocols. When MANUAL is selected, the 620L will request a specific IP Address from the server.
Page 121 Subnet Mask A specific Subnet Mask must be entered into this field if the IP Setup parameter is configured to MANUAL. Use the arrow keys to highlight this parameter. Once the parameter is highlighted, you may enter the Subnet Mask using the numeric keypad. The Subnet Mask must be entered in the following format: XXX.XXX.XXX.XXX.
Page 122 From this screen you may enter a Device Name for the 620L. The Device Name is used to identify the 620L on your server and may be used in place of a dedicated IP Address. Use the arrow keys to highlight a letter and press the “Select” soft key to select the highlighted letter.
Page 123 From this screen, four parameters may be accessed: MAC Address, Barcode I/P, Autostart, and previous page.
Page 124 MAC Address View the MAC address of the Ethernet Card here. This parameter is not adjustable. Barcode I/P Press the “Barcode I/P” soft key to select the type of Barcode input. The Barcode I/P parameter can be set to SERIAL#, PRODUCT#, SER/PROD, OFF or RUN FILE. When the setting is SERIAL#, PRODUCT# or SER/PROD, the user can scan barcodes in the Perform Tests screen before the test is started.
Page 125 After the barcodes are scanned, press TEST to initiate the test sequence. Pressing RESET will abort the TEST sequence.
Page 126 Product A should be named “123456789”. When the product’s barcode is scanned, the 620L will immediately execute the test associated with that barcode. The test file name is limited to 10 characters. However, if the user names a test file with the maximum 10 characters, this function will still initiate a test when a product’s barcode...
Page 127 620L. The 620L will then search for a test file name that matches the product number barcode string. If the 620L finds a match, it will load the file into RAM. When the same product number barcode is scanned a second time, the test will be executed automatically.
Page 128  If there was an error with the command string, the instrument will respond with 15 hex (21 decimal), the Not Acknowledge (NAK) ASCII control code.
Page 129 “Barcode” is a PS/2-type connector that is used for the connection of a barcode scanner. The 9-pin D-type subminiature connector labeled “RS232/RS485” is for the connection of the 620L to an RS232 or RS485 communication bus. To configure all of the features of the Data Storage Card, use the Data Card Settings menu.
Page 130 To navigate to the Data Card Settings menu, select the Setup System softkey from the 620L Main Menu and then select the Data Card Settings softkey in the Setup System menu. A brief description of the settings follows: Results Limit The Results Limit allows the user to receive an alert message on the display of the 620L when the total number of results saved on the Data Storage Card’s internal...
Page 131 The Results Limit allows the user to receive an alert message on the display of the 620L when any of the results saved on the Data Storage Card’s internal Flash memory are older than the predefined setting. The Time Limit can be set to its default value of “0 days”...
Page 132 It is also possible to combine the RS485 address and the desired instrument command all in the same string using the following format: X <RS485 Address>;<Command><line feed> Important note: When communicating with the 620L using the RS485/RS232 port, results are not saved to the Data Storage Card.
Page 133 Barcode Input The Barcode Input setting can be set to SERIAL#, PRODUCT#, SER/PROD, OFF and RUN FILE. When the setting is SERIAL#, PRODUCT# or SER/PROD the user can scan barcodes in the Perform Tests screen before the test is started. When the barcode is scanned, one of the following messages will appear on the display.
Page 134 Product A should be named “123456789”. Upon scanning the barcode, the 620L will immediately execute the test associated with that barcode. The test file name is limited to 10 characters. However, if the user names a test file with the maximum 10 characters, this function will still initiate a test when a product’s barcode begins with those first 10 characters even if the barcode has more...
Page 135 01,LLT,Pass,500,1.0,135.0,90.0,1.0,1.0,CLOSED,OFF,CLOSED,UL544NP,Ground To Line,RMS,ON,123456789,0 Note that there is a “0” in the Product Number field because the Barcode I/P setting is SERIAL#. When the Barcode I/P setting is RUN FILE or OFF, these fields are not included in the TD? and RD x? responses. Operation The Data Storage Card Results menu can be viewed by pressing the Results softkey while in the Perform Tests Screen.
Page 136 From this menu, the user can view the stored results, delete results, and transfer the results to the external USB Flash memory drive. To navigate through the results use the up, down, left and right softkeys on the 620L front panel. The following message will display if the Delete Result softkey is pressed: Pressing Enter will verify that the user wants to delete all of the results on the Data Storage Card, and pressing Exit will cancel deleting the results.
Page 137 The following menu will appear if the Transfer Results softkey is pressed: Follow the instructions on the screen in order to create a name for the file you wish to transfer. There is a limit of 8 characters for the name of the results file. Press the Enter softkey when you have finished entering the file name.
Page 138 Data Storage Card and connect it to a PC with a USB port. Contents of Results File The following is an example entry in the Data Storage Card results file for an arbitrary LLT test: 00000003,12/13/08,11:07,TEST1,620L,9520014,M01,S01,LLT,Pass,135V,102uA,1.0s The following table gives a description of each field for the above LLT test. Field Description...
Page 139 102uA DUT Leakage Current 1.0s Test Dwell Time The first ten fields of the test result shown above are included in each test result regardless of the test type. The remaining entries are specific to each test type. The following table shows, in order, the information that will be included in each test type’s result entry.
Page 140 The above message occurs when the total results accumulated on the Data Storage Card exceeds 100,000. The 620L will not allow any more tests to be run unless the user deletes the results currently on the Data Storage Card or changes the Test Result setting in the Data Card Settings menu to NONE.
Page 141 The above message appears when the user attempts to give a name to a results file that already exists on the Data Storage Card. The above message appears when the total results accumulated by the Data Storage Card exceeds 99,900. This is a warning to the user that the total results are nearing the capacity of the Data Storage Card (100,000).
Page 142 620L, other integrated Associated Research, Inc. instruments and the device under test. The “Offset Current” is the offset current value either specified by the user or calculated automatically by the 620L unit. These two values are used to calculate the actual displayed leakage current measurement. The 620L then calculates the vector sum of the offset value and the total value so that the inherit leakage of the Associated Research, Inc.
Page 143 Touch Current Display accuracy. Operation of the Offset This option adds the offset capability to the line leakage test of the 620L. For detailed information about general test set up procedures, refer to section 4.5. Setting up a Test.
Page 144 This is where the user can set an offset. A value can be manually input in the Offset parameter box or the 620L can be used to automatically take a reading. To manually input a value use the arrow keys to scroll down and highlight the “Offset” parameter.
Page 145 DUT if implementing an offset. For details on how to connect another Associated Research Inc. instrument to the 620L, please refer to Option 3 in this section. For details on how to connect an SC6540 scanner to the 620L, please refer to Option 4 in this section.
Page 146 List Step Parameters by step number The LS? command and ADD command will function the same as the standard 620L but there is an extra parameter for the LLT Offset value included in the list of parameters as shown in the table below. The LLT Offset is added as the 7...
Page 147 620L system is a vector sum calculation. It should be noted that the term “620L system” refers to not only the 620L unit but also any other Associated Research, Inc. safety tester integrated with the 620L unit as well as any fixtures the end user may include to the system.
Page 148 The following example illustrates this point: Consider the network in Figure 1 as a simulation for a 620L system and DUT. The network consists of a 307.3pF capacitor to represent the capacitance of the 620L system. This is in parallel with a 5MΩ resistor to represent the DUT. The voltage source is generating 120V at 60Hz.
Page 149 DUT leakage current is 90°, the LLT Offset works optimally for this application. If the phase shift between the 620L system and the DUT is not 90°, the Displayed Current value will not be a valid representation of the leakage current flowing through the DUT.
Page 150 The introduction of the 1nF capacitor to the DUT in the second circuit causes the phase shift between the 620L system and the DUT to change from 90° to 62° (Idut = 51.2Angle(-62.0°)uA). As a result, the calculated value for displayed current does not match the theoretical value calculated above.
Page 151: Calibration Procedure
Associated Research, Inc. offers a standard three-year manufacturer’s warranty. This warranty can be extended an additional two years provided that the instrument is returned each year to Associated Research, Inc. for its annual recertification. In order to be eligible for the extended warranty instruments must be returned to Associated Research, Inc.
Page 152: Calibration Initialization
9.2. Calibration Initialization Press and hold the calibration key on the rear panel with a pen, pencil or small screwdriver while powering ON the 620L. The 620L enters calibration mode after the power on sequence is complete. The Calibration screen is separated into three sections. The left half of the screen lists all of the calibration points necessary for an accurate calibration of the instrument.
Page 153: Calibration Of Run Test Voltage
Change the output frequency of the Sine Wave Generator to 100 Hz and adjust the output voltage to the same value. Adjust the VR1 on the 620L to have the Leakage current as close as possible to the value recorded above.
Page 154: Calibration Of Run Test Current
9.2.2. Calibration of Run Test Current Upper Right Screen Lower Right Screen Lower Right Screen Load/Meter Prompt Prompt (Cal. Active) Set DUT I/P 120-277VAC. When the load is Enter Standard Current Connect a 40 Amp load at connected, press TEST to Reading.
Page 155: Calibration Of Run Test Current
9.2.3. Calibration of Run Test Current Upper Right Screen Lower Right Screen Lower Right Screen Load/Meter Prompt Prompt (Cal. Active) Set DUT I/P 120-277VAC. When the load is Enter Standard Current Connect a 3.5 Amp load connected, press TEST to Reading.
Page 156: Calibration Of Run Test Power
9.2.4. Calibration of Run Test Power Upper Right Screen Lower Right Screen Lower Right Screen Load/Meter Prompt Prompt (Cal. Active) Set DUT I/P voltage to When the load is Enter Standard Power 220VAC. Connect a 5Ω connected, press TEST to Reading.
Page 157: Calibration Of Run Test Power
9.2.5. Calibration of Run Test Power Upper Right Screen Lower Right Screen Lower Right Screen Load/Meter Prompt Prompt (Cal. Active) Set DUT I/P voltage to When the load is Enter Standard Power 220VAC. Connect a 60Ω connected, press TEST to Reading.
Page 158: Calibration Of Run Test Leakage
9.2.6. Calibration of Run Test Leakage Upper Right Screen Lower Right Screen Lower Right Screen Load/Meter Prompt Prompt (Cal. Active) Connect 18 VAC to the When the power supply Enter Standard Current DUT I/P input. Connect a and meter are connected, Reading.
Page 159: Calibration Of Llt Md V Offset
9.2.7. Calibration of LLT MD V-Offset Upper Right Screen Lower Right Screen Lower Right Screen Load/Meter Prompt Prompt (Cal. Active) Disconnect power to the When the leads are Automatic Calibration DUT I/P input. disconnected, press TEST Processing. Disconnect Probe-HI+ to start the calibration and Probe-LO-.
Page 160: Calibration Of Llt Md Volts X 0.1
9.2.8. Calibration of LLT MD Volts DC x 0.1 Upper Right Screen Lower Right Screen Lower Right Screen Load/Meter Prompt Prompt (Cal. Active) Connect 30.0VDC and a When the power supply Enter Standard Voltage voltmeter to Probe-HI + and meter are connected, Reading.
Page 161: Calibration Of Llt Md Volts X 1
9.2.9. Calibration of LLT MD Volts DC x 1 Upper Right Screen Lower Right Screen Lower Right Screen Load/Meter Prompt Prompt (Cal. Active) Connect 8.0VDC and a When the power supply Enter Standard Voltage voltmeter to Probe-HI + and meter are connected, Reading.
Page 162: Calibration Of Llt Md Volts X 4
9.2.10. Calibration of LLT MD Volts DC x 4 Upper Right Screen Lower Right Screen Lower Right Screen Load/Meter Prompt Prompt (Cal. Active) Connect 2.0VDC and a When the power supply Enter Standard Voltage voltmeter to Probe-HI + and meter are connected, Reading.
Page 163: Calibration Of Llt Md Volts X 16
9.2.11. Calibration of LLT MD Volts DC x 16 Upper Right Screen Lower Right Screen Lower Right Screen Load/Meter Prompt Prompt (Cal. Active) Connect 0.5VDC and a When the power supply Enter Standard Voltage voltmeter to Probe-HI + and meter are connected, Reading.
Page 164: Calibration Of Llt Md Volts X 64
9.2.12. Calibration of LLT MD Volts DC x 64 Upper Right Screen Lower Right Screen Lower Right Screen Load/Meter Prompt Prompt (Cal. Active) Connect 0.125VDC and a When the power supply Enter Standard Voltage voltmeter to Probe-HI + and meter are connected, Reading.
Page 165: Calibration Of Llt Md Volts X 256
9.2.13. Calibration of LLT MD Volts DC x 256 Upper Right Screen Lower Right Screen Lower Right Screen Load/Meter Prompt Prompt (Cal. Active) Connect 0.032VDC and a When the power supply Enter Standard Voltage voltmeter to Probe-HI + and meter are connected, Reading.
Page 166: Calibration Of Llt Md Volts X 0.1
9.2.14. Calibration of LLT MD Volts AC x 0.1 Upper Right Screen Lower Right Screen Lower Right Screen Load/Meter Prompt Prompt (Cal. Active) Connect 18.0VAC supply When the power supply Enter Standard Voltage and a voltmeter to Probe- and meter are connected, Reading.
Page 167 9.2.15. Calibration of LLT MD Volts AC Peak x 0.1 Upper Right Screen Lower Right Screen Lower Right Screen Load/Meter Prompt Prompt (Cal. Active) Connect 30.0Vp AC When the power supply Enter Standard Voltage supply and a voltmeter to and meter are connected, Reading.
Page 168: Calibration Of Llt Md Volts X 1
9.2.16. Calibration of LLT MD Volts AC x 1 Upper Right Screen Lower Right Screen Lower Right Screen Load/Meter Prompt Prompt (Cal. Active) Connect 5.0VAC supply When the power supply Enter Standard Voltage and a voltmeter to Probe- and meter are connected, Reading.
Page 169 9.2.17. Calibration of LLT MD Volts AC Peak x 1 Upper Right Screen Lower Right Screen Lower Right Screen Load/Meter Prompt Prompt (Cal. Active) Connect 8.0Vp AC supply When the power supply Enter Standard Voltage and a voltmeter to Probe- and meter are connected, Reading.
Page 170: Calibration Of Llt Md Volts X 1
9.2.18. Calibration of LLT MD Volts AC x 4 Upper Right Screen Lower Right Screen Lower Right Screen Load/Meter Prompt Prompt (Cal. Active) Connect 1.25VAC supply When the power supply Enter Standard Voltage and a voltmeter to Probe- and meter are connected, Reading.
Page 171 9.2.19. Calibration of LLT MD Volts AC Peak x 4 Upper Right Screen Lower Right Screen Lower Right Screen Load/Meter Prompt Prompt (Cal. Active) Connect 2.0Vp AC supply When the power supply Enter Standard Voltage and a voltmeter to Probe- and meter are connected, Reading.
Page 172: Calibration Of Llt Md Volts X 4
9.2.20. Calibration of LLT MD Volts AC x 16 Upper Right Screen Lower Right Screen Lower Right Screen Load/Meter Prompt Prompt (Cal. Active) Connect 0.32VAC supply When the power supply Enter Standard Voltage and a voltmeter to Probe- and meter are connected, Reading.
Page 173: Calibration Of Llt Md Volts X 16
9.2.21. Calibration of LLT MD Volts AC Peak x 16 Upper Right Screen Lower Right Screen Lower Right Screen Load/Meter Prompt Prompt (Cal. Active) Connect 0.5Vp AC supply When the power supply Enter Standard Voltage and a voltmeter to Probe- and meter are connected, Reading.
Page 174: Calibration Of Llt Md Volts X 4
9.2.22. Calibration of LLT MD Volts AC x 64 Upper Right Screen Lower Right Screen Lower Right Screen Load/Meter Prompt Prompt (Cal. Active) Connect 0.08VAC supply When the power supply Enter Standard Voltage and a voltmeter to Probe- and meter are connected, Reading.
Page 175: Calibration Of Llt Md Volts X 64
9.2.23. Calibration of LLT MD Volts AC Peak x 64 Upper Right Screen Lower Right Screen Lower Right Screen Load/Meter Prompt Prompt (Cal. Active) Connect 0.13Vp AC When the power supply Enter Standard Voltage supply and a voltmeter to and meter are connected, Reading.
Page 176: Calibration Of Llt Md Volts X 16
9.2.24. Calibration of LLT MD Volts AC x 256 Upper Right Screen Lower Right Screen Lower Right Screen Load/Meter Prompt Prompt (Cal. Active) Connect 0.02VAC supply When the power supply Enter Standard Voltage and a voltmeter to Probe- and meter are connected, Reading.
Page 177: Calibration Of Llt Md Volts X 256
9.2.25. Calibration of LLT MD Volts AC Peak x 256 Upper Right Screen Lower Right Screen Lower Right Screen Load/Meter Prompt Prompt (Cal. Active) Connect 0.03Vp AC When the power supply Enter Standard Voltage supply and a voltmeter to and meter are connected, Reading.
Page 178: Calibration Of Llt Md: Ul544Np Measuring Device
9.2.26. Calibration of LLT MD: UL 544NP measuring device Upper Right Screen Lower Right Screen Lower Right Screen Load/Meter Prompt Prompt (Cal. Active) Connect 2.0VDC in series When the power supply Enter Standard Current with a current meter to and meter are connected, Reading.
Page 179: Calibration Of Llt Md: Ul 544P Measuring Device
9.2.27. Calibration of LLT MD: UL 544P measuring device Upper Right Screen Lower Right Screen Lower Right Screen Load/Meter Prompt Prompt (Cal. Active) Connect 2.0VDC in series When the power supply Enter Standard Current with a current meter to and meter are connected, Reading.
Page 180: Calibration Of Llt Md: Ice601-1 Measuring Device
9.2.28. Calibration of LLT MD: ICE601-1 measuring device Upper Right Screen Lower Right Screen Lower Right Screen Load/Meter Prompt Prompt (Cal. Active) Connect 2.0VDC in series When the power supply Enter Standard Current with a current meter to and meter are connected, Reading.
Page 181: Calibration Of Llt Md: Ul1563 Measuring Device
9.2.29. Calibration of LLT MD: UL1563 measuring device Upper Right Screen Lower Right Screen Lower Right Screen Load/Meter Prompt Prompt (Cal. Active) Connect 2.0VDC in series When the power supply Enter Standard Current with a current meter to and meter are connected, Reading.
Page 182: Calibration Of Llt Md: External
9.2.30. Calibration of LLT MD: External Upper Right Screen Lower Right Screen Lower Right Screen Load/Meter Prompt Prompt (Cal. Active) Connect 2.0VDC in series When the power supply Enter Standard Current with a current meter to and meter are connected, Reading.
Page 183: Calibration Of Llt Md: Iec60990 Fig4 Measuring Device
9.2.31. Calibration of LLT MD: IEC60990 FIG4 Upper Right Screen Lower Right Screen Lower Right Screen Load/Meter Prompt Prompt (Cal. Active) Connect 2.0VDC in series When the power supply Enter Standard Current with a current meter to and meter are connected, Reading.
Page 184 9.2.32. Calibration of LLT MD: IEC60990 FIG5 Upper Right Screen Lower Right Screen Lower Right Screen Load/Meter Prompt Prompt (Cal. Active) Connect 2.0VDC in series When the power supply Enter Standard Current with a current meter to and meter are connected, Reading.
Page 185 10. REPLACEMENT PARTS LIST Rev. D 4/9/14 ECO 5673-3 PART REF. DESCRIPTION NUMBER DESIGNATOR Supplied Accessories 38787 3U Rack Mount Handle 38788 3U Rack Mount Bracket 38549 Screw for Rack Mount Handle 37923 Fuse 2A 250V Slow Blow 20mm 02100A-13 Cable Assembly Probe 38841 Cable Assembly Input LINE...
Page 186 PART REF. DESCRIPTION NUMBER DESIGNATOR 39063 USB/RS232 USB/RS232 Interface Board 38305 CGP-03 GPIB Interface Board 38801 Data Storage Card (DISCONTINUED) 38819 38818 Ethernet Card Internal Components 38845 Input Transformer 38847 Isolation Transformer 39114 IC 37 IC 39SF020A EEPROM PLCC 39350 IC 42 IC SM59128 Microcontroller PLCC Part Number...
Page 187 11. APPENDIX A These are additional specifications for the 620L for the AC and DC filtering. LEAKAGE LIMIT SETTING Range: 0.0uA ~ 999.9uA Touch Current High Limit 1000uA ~ 9999uA (AC+DC) 10.00mA ~ 20.00mA Resolution: 0.1uA / 1uA / 0.01mA Range: 0.0uA ~ 999.9uA...
Page 188 DISPLAY AUTO RANGE Touch Current Display (RMS) 0.0uA ~ 32.0uA, frequency Range 1 DC, 15Hz – 1MHz (AC+DC) Resolution 0.1uA DC , 15Hz < f <100KHz: ±(2% of reading + 3counts) Accuracy 100KHz < f < 1MHZ : ±5% of reading (10.0uA - 999.9uA) 28.0uA ~ 130.0uA, frequency Range 2...
Page 189 Resolution 0.01mA DC, 15Hz < f < 100KHz : ±5% Accuracy of reading (0.01mA -20.00mA ) DISPLAY FIXED RANGE (>6% OF RANGE) Touch Current Display (RMS) 0.0uA ~ 32.0uA, frequency DC - Range 1 (AC+DC) 1MHz Resolution 0.1uA DC, 15Hz < f < 100KHz: ±(2% of reading + 3counts) Base Accuracy 100KHz <...
Page 190 Resolution 1uA, 0.01mA DC, 15Hz < f < 100KHz : ±5% Base Accuracy of reading (0.01mA -20.00mA ) DISPLAY FIXED RANGE (<6% OF RANGE) Touch Current Display (RMS) Range 1 (AC+DC) Resolution Additional Error 0.0uA ~ 7.8uA, frequency DC - Range 2 1MHz Resolution...
Page 191 DC, 15Hz < f < 100KHz: add ±(2% of reading + 0.2% of range) to base accuracy Additional Error 100KHz < f < 1MHZ : add ±(2% of reading + 0.5% of range) to base accuracy 0.0uA ~ 999.9uA, 1000uA ~ 1200uA, frequency DC –...
Page 192 15Hz < f <30Hz: ±(3% of reading + 5counts) 30Hz < f < 100KHz : ±(2% of Accuracy reading + 3counts) 100KHz < f < 1MHZ : ±5% of reading (10.0uA - 999.9uA) 1800uA ~ 8400uA, Range 5 frequency 15Hz - 1MHz Resolution 15Hz <...
Page 193 15Hz < f <30Hz: ±(3% of reading + 5counts) 30Hz < f < 100KHz : ±(2% of Base Accuracy reading + 3counts) 100KHz < f < 1MHZ : ±5% of reading (10.0uA - 999.9uA) 126.0uA ~ 999.9uA, 1000uA ~ Range 4 2100uA, frequency 15Hz - 1MHz Resolution...
Page 194 15Hz < f <30Hz: add ±(2% of reading + 0.2% of range) to base accuracy 30Hz < f < 100KHz : add ±(2% Additional Error of reading + 0.2% of range) to base accuracy 100KHz < f < 1MHZ : add ±(2% of reading + 0.5% of range) to base accuracy 0.0uA ~ 31.5uA,...
Page 195 15Hz < f <30Hz: add ±(2% of reading + 0.2% of range) to base accuracy 30Hz < f < 100KHz : add ±(2% Additional Error of reading + 0.2% of range) to base accuracy 100KHz < f < 1MHZ : add ±(2% of reading + 0.5% of range) to base accuracy 0.0uA ~ 999.9uA, 1000uA ~...
Page 196 DC : ±5% of reading (0.01mA - Accuracy 20.00mA ) DISPLAY FIXED RANGE (>6% OF RANGE) Touch Current Display Range 1 0.0uA ~ 32.0uA, DC (DC Only) Resolution 0.1uA DC : ±(2% of reading + 3counts) Base Accuracy (>10uA) Range 2 7.8uA ~ 130.0uA, DC Resolution 0.1uA...
Page 197 Additional Error Range 2 0.0uA ~ 7.8uA, DC Resolution 0.1uA DC: add ±(2% of reading + 0.2% Additional Error of range) to base accuracy Range 3 0.0uA ~ 31.5uA, DC Resolution 0.1uA DC: add ±(2% of reading + 0.2% Additional Error of range) to base accuracy Range 4 0.0uA ~ 126.0uA, DC...
Page 198 reading + 2uA) 120.0uA ~ 525.0uA, frequency Range 3 DC, 15Hz - 1MHz Resolution 0.1uA DC: ±(2% of reading + 3counts) Accuracy ,15Hz < f <1MHz: ±(10% of reading + 2uA) 400uA ~ 999.9uA, 1000uA- Range 4 2100uA, frequency DC, 15Hz - 1MHz Resolution 0.1uA, 1uA...
Page 199 DC: ±(2% of reading + 2uA) 15Hz < f < 100KHz : ±(10% of Base Accuracy reading + 2uA) 100KHz < f < 1MHZ : ±(10% of reading + 2uA) 31.5uA ~ 525.0uA, Range 3 frequency 15Hz - 1MHz Resolution 0.1uA DC: ±(2% of reading + 2uA) 15Hz <...
Page 200 0.0uA ~ 7.8uA, Range 2 frequency 15Hz - 1MHz Resolution 0.1uA DC: add ±(2% of reading + 0.2% of range) to base accuracy 15Hz < f < 100KHz : add ±(2% of reading + 0.2% of range) to Additional Error base accuracy 100KHz <...
Page 201 DC: add ±(2% of reading + 0.2% of range) to base accuracy 15Hz < f < 100KHz : add ±(2% of reading + 0.2% of range) to Additional Error base accuracy 100KHz < f < 1MHZ : add ±(2% of reading + 0.5% of range) to base accuracy 0.0uA ~ 999.9uA, 1000uA ~ 1800uA, frequency DC –...
Page 202 15Hz < f <1MHz: ±(10% of Accuracy reading + 2uA) 8000uA ~ 8399uA, 8.40mA ~ 30.00mA, frequency DC, 15Hz – Range 6 100KHz Resolution 1uA, 0.01mA 15Hz < f <100KHz: ±(10% of Accuracy reading + 2counts) DISPLAY FIXED RANGE (>6% OF RANGE) Touch Current Display (Peak) 0.0uA ~ 32.0uA, Range 1...
Page 203 15Hz < f < 100KHz : ±(10% of reading + 2uA) Base Accuracy 100KHz < f < 1MHZ : ±(10% of reading + 2uA) 1800uA ~ 8399uA, 8.40mA ~ Range 6 30.00mA, frequency 15Hz - 1MHz Resolution 1uA, 0.01mA 15Hz < f <100KHz: ±(10% of Base Accuracy reading + 2counts) DISPLAY FIXED RANGE (<6% OF RANGE)
Page 204 0.0uA ~ 504uA, Range 5 frequency 15Hz - 1MHz Resolution 0.1uA 15Hz < f < 100KHz : add ±(2% of reading + 0.2% of range) to base accuracy Additional Error 100KHz < f < 1MHZ : add ±(2% of reading + 0.5% of range) to base accuracy 0.0uA ~ 999.9uA, 1000uA ~ 1800uA, frequency DC –...
Page 205 DC , 15Hz < f <100KHz: ±(2% of reading + 3counts) Accuracy 100KHz < f < 1MHZ : ±5% of reading (10mV - 8500mV) 1800mV ~ 8400mV, frequency Range 5 DC, 15Hz - 1MHz Resolution DC , 15Hz < f <100KHz: ±(2% of reading + 3counts) Accuracy 100KHz <...
Page 206 100KHz < f < 1MHZ : ±5% of reading (10mV - 8500mV) 504.0mV ~ 999.9mV, 1000mV Range 5 ~ 8400mV, frequency DC, 15Hz - 1MHz Resolution 0.1mV, 1mV DC , 15Hz < f <100KHz: ±(2% of reading + 3counts) Basic Accuracy 100KHz <...
Page 207 0.0mV ~ 126.0mV, Range 4 frequency 15Hz - 1MHz Resolution 0.1mV 15Hz < f < 100KHz : add ±(2% of reading + 0.2% of range) to base accuracy Additional Error 100KHz < f < 1MHZ : add ±(2% of reading + 0.5% of range) to base accuracy 0.0mV ~ 504mV, Range 5...
Page 208 reading (10.0mV - 999.9mV) 120.0mV ~ 525.0mV, frequency Range 3 DC, 15Hz - 1MHz Resolution 0.1mV 15Hz < f <30Hz: ±(3% of reading + 5counts) 30Hz < f <100KHz: ±(2% of Accuracy reading + 3counts) 100KHz < f < 1MHZ : ±5% of reading (10.0mV - 999.9mV) 400mV ~ 999.9mV,1000mV ~ Range 4...
Page 209 reading (10.0mV - 999.9mV) 7.8mV ~ 130.0mV, frequency Range 2 DC, 15Hz - 1MHz Resolution 0.1mV 15Hz < f <30Hz: ±(3% of reading + 5counts) 30Hz < f <100KHz: ±(2% of Basic Accuracy reading + 3counts) 100KHz < f < 1MHZ : ±5% of reading (10.0mV - 999.9mV) 31.5mV ~ 525.0mV, frequency Range 3...
Page 210 15Hz < f < 100KHz : ±5% of Basic Accuracy reading (0.01V -20.00V ) DISPLAY FIXED RANGE (<6% OF RANGE) Touch Voltage Display (RMS) Range 1 (AC Only) Resolution Additional Error 0.0mV ~ 7.8mV, Range 2 frequency 15Hz - 1MHz Resolution 0.1mV 15Hz <...
Page 211 15Hz < f < 30Hz : add ±(2% of reading + 0.2% of range) to base accuracy 30Hz < f < 100KHz: add ±(2% of Additional Error reading + 0.2% of range) to base accuracy 100KHz < f < 1MHZ : add ±(2% of reading + 0.5% of range) to base accuracy 0.0mV ~ 504mV,...
Page 212 Resolution DC : ±(2% of reading + 3counts) Accuracy (>10.0mV) Range 5 1800mV ~ 8400mV, DC Resolution DC : ±(2% of reading + 3counts) Accuracy (>10.0mV) Range 6 8.00V ~ 20.00V, DC Resolution 0.01V DC : ±5% of reading (0.01V - Accuracy 20.00V ) DISPLAY FIXED RANGE (>6% OF RANGE)
Page 213 1200mV ~ 8399mV, 8.40mA ~ Range 6 20.00mA, DC Resolution 1mV, 0.01V DC : ±5% of reading (0.01V - Base Accuracy 20.00V ) DISPLAY FIXED RANGE (<6% OF RANGE) Touch Voltage Display Range 1 (DC Only) Resolution Additional Error Range 2 0.0mV ~ 7.8mV, DC Resolution 0.1mV...
Page 214 DC, 15Hz – 1MHz (AC+DC) Resolution 0.1mV DC: ±(2% of reading + 3counts) Accuracy ,15Hz < f <1MHz: ±(10% of reading + 2mV) 28.0mV ~ 130.0mV, frequency Range 2 DC, 15Hz - 1MHz Resolution 0.1mV DC: ±(2% of reading + 3counts) Accuracy ,15Hz <...
Page 215 DC: ±(2% of reading + 2uA) 15Hz < f < 100KHz : ±(10% of Base Accuracy reading + 2mV) 100KHz < f < 1MHZ : ±(10% of reading + 2mV) 7.8mV ~ 130.0mV, Range 2 frequency 15Hz - 1MHz Resolution 0.1mV DC: ±(2% of reading + 2uA) 15Hz <...
Page 216 DC: ±(2% of reading + 3counts) Base Accuracy ,15Hz < f <100KHz: ±(10% of reading + 2counts) DISPLAY FIXED RANGE (<6% OF RANGE) Touch Voltage Display (Peak) Range 1 (AC+DC) Resolution Additional Error 0.0mV ~ 7.8mV, Range 2 frequency 15Hz - 1MHz Resolution 0.1mV DC: add ±(2% of reading + 0.2%...
Page 217 0.0mV ~ 504mV, Range 5 frequency 15Hz - 1MHz Resolution 0.1mV DC: add ±(2% of reading + 0.2% of range) to base accuracy 15Hz < f < 100KHz : add ±(2% of reading + 0.2% of range) to Additional Error base accuracy 100KHz <...
Page 218 1800mV ~ 8400mV, frequency Range 5 DC, 15Hz - 1MHz Resolution 15Hz < f <1MHz: ±(10% of Accuracy reading + 2mV) 8000mV ~ 8399mV, 8.40V ~ 30.00V, frequency DC, 15Hz – Range 6 100KHz Resolution 1mV, 0.01V 15Hz < f <100KHz: ±(10% of Accuracy reading + 2counts) DISPLAY FIXED RANGE (>6% OF RANGE)
Page 219 504mV ~ 999.9mV, 1000mV ~ Range 5 8400mV, frequency 15Hz - 1MHz Resolution 0.1mV, 1mV 15Hz < f < 100KHz : ±(10% of reading + 2mV) Base Accuracy 100KHz < f < 1MHZ : ±(10% of reading + 2mV) 1800mV ~ 8399mV, 8.40V ~ Range 6 30.00V, frequency...
Page 220 15Hz < f < 100KHz : add ±(2% of reading + 0.2% of range) to base accuracy Additional Error 100KHz < f < 1MHZ : add ±(2% of reading + 0.5% of range) to base accuracy 0.0mV ~ 504mV, Range 5 frequency 15Hz - 1MHz Resolution 0.1mV...
Page 221 12. INDEX ADAPTER BOX ............10, 11, 25, 57, 59, 99, 176 ARC ........................3 BREAKDOWN ....................3, 4 CALIBRATION ..11, 23, 28, 30, 31, 32, 142, 143, 144, 145, 146, 147, 148, 149, 150, 151, 152, 153, 154, 155, 156, 157, 158, 159, 160, 161, 162, 163, 164, 165, 166, 167, 168, 169, 170, 171, 172, 173, 174, 175 CALIBRATION ALERT ...............
Page 222 INSULATION RESISTANCE ................25 INTERLOCK ..........8, 19, 24, 60, 68, 72, 73, 86, 87, 176 LCD ................. 8, 19, 21, 33, 79, 87, 105, 176 LEAKAGE ..1, 4, 9, 13, 23, 24, 25, 40, 44, 45, 46, 47, 48, 50, 53, 54, 55, 56, 57, 58, 59, 65, 67, 82, 84, 97, 98, 100, 101, 105, 137, 149 Applied Part ....................
Page 223 Parameter ....................... 44 Schematic ..................... 178 Setup ......................100 SECURITY ............8, 19, 28, 35, 36, 37, 39, 43, 62 SEQUENCE ......40, 43, 48, 49, 50, 61, 62, 64, 71, 78, 82, 87, 143 SERVICE ..............1, 3, 5, 11, 77, 89, 90, 91, 142 SERVICE INTERVAL ....................

Associated Research 620L Operation And Service Manual

1 Introduction

2 Getting Started

3 Specifications and Controls

4 Programming Instructions

5 Operating Instructions

6 Connection of Remote I/O

7 Bus Remote Interface Gpib / Rs-232

8 Options

9 Calibration Procedure

Quick Links

Need help?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Associated Research 620L

Summary of Contents for Associated Research 620L

Table of Contents
