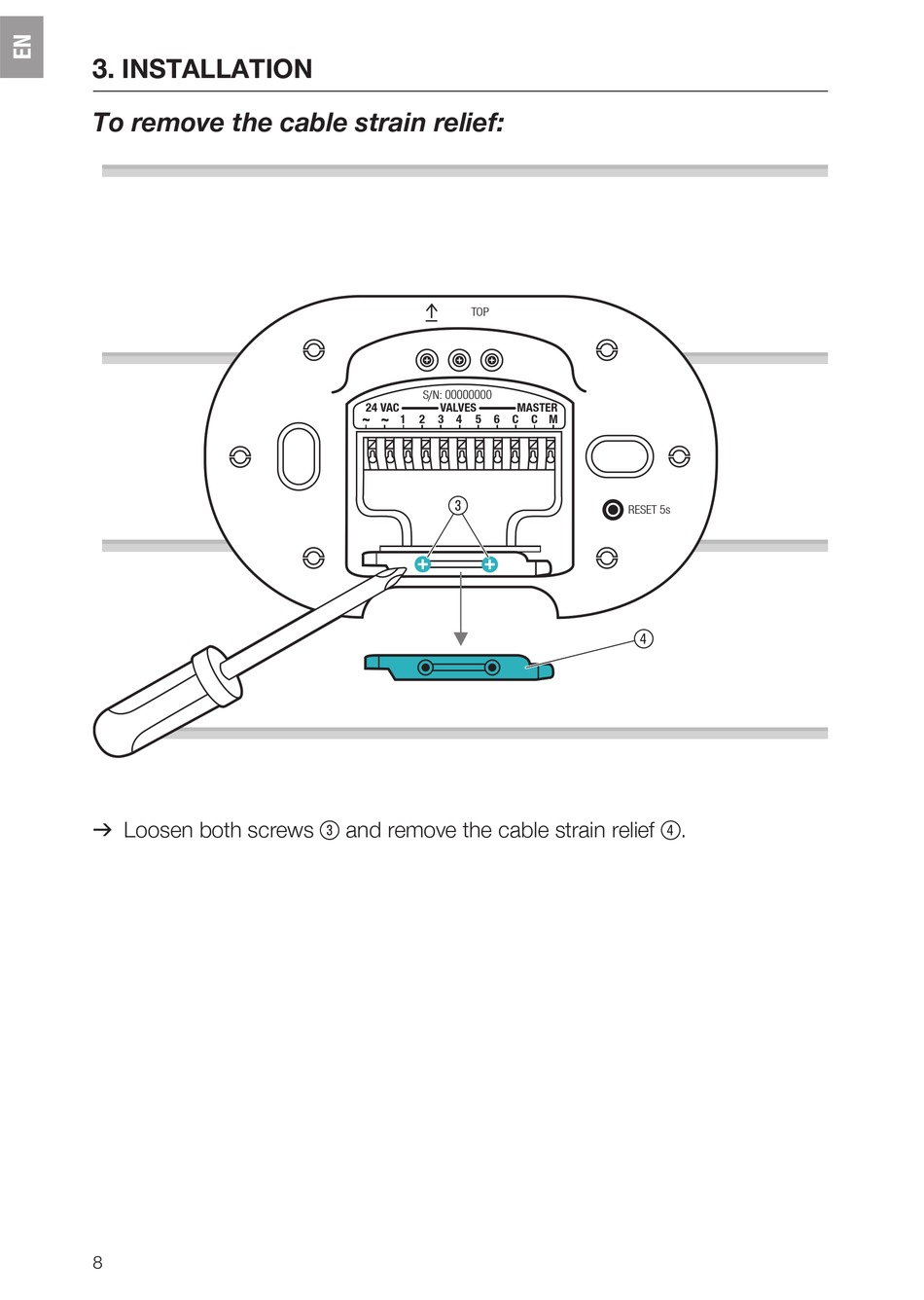

3. INSTALLATION

To remove the cable strain relief:
TOP
S/N: 00000000
24 VAC
VALVES
MASTER
1
2
3 4
5 6 C C M
(3)
RESET 5s
(4)
v Loosen both screws
(3)
and remove the cable strain relief
(4)
.
8
