Gardena 19032 Operator's Manual page 17

/
S/N: 00000000
24 VAC
1 2
24 VAC
POWER
SUPPLY
1 2 3 4 5 6 C C C C

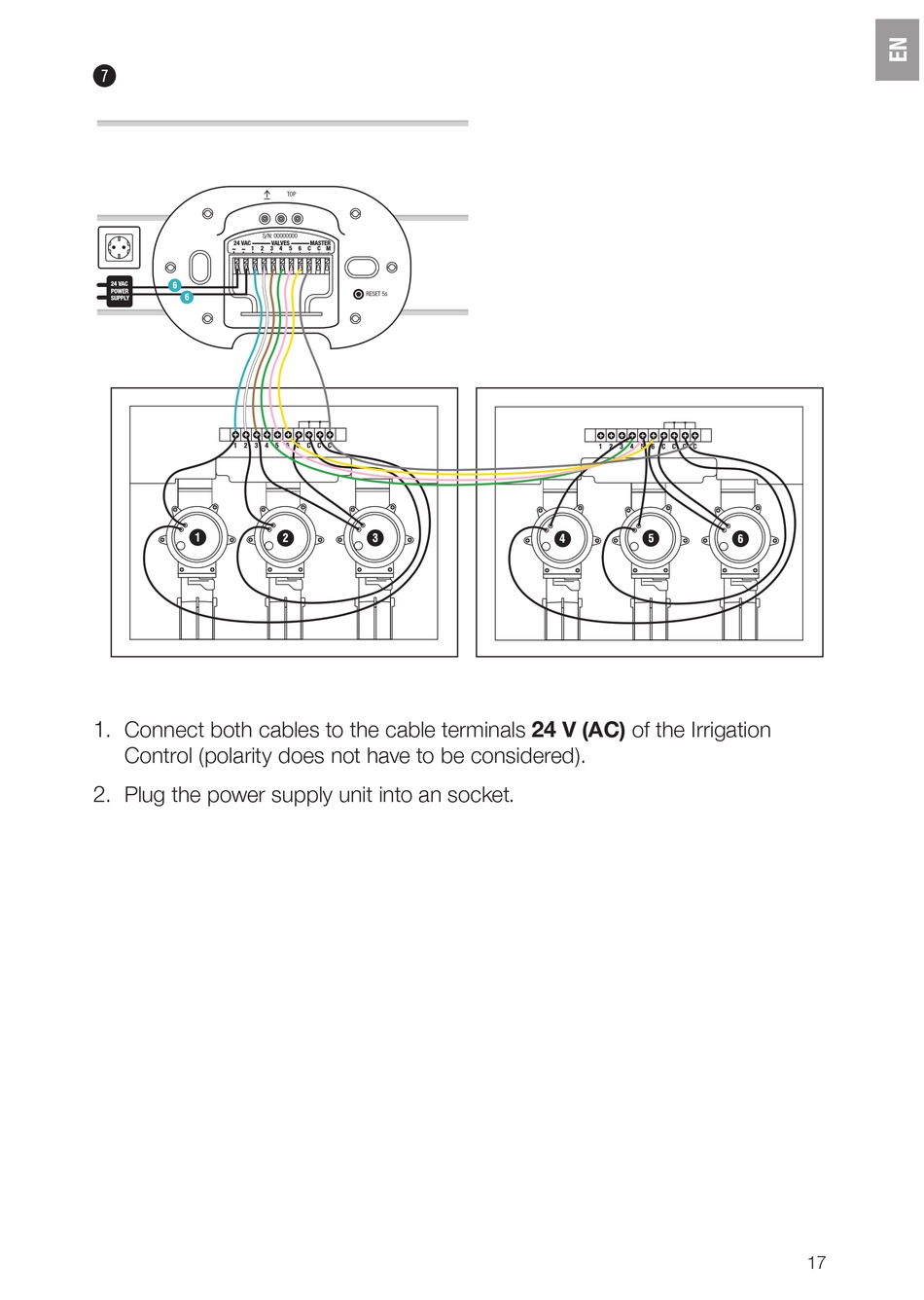

1. Connect both cables to the cable terminals 24 V (AC) of the Irrigation
Control (polarity does not have to be considered).
2. Plug the power supply unit into an socket.
TOP
VALVES MASTER
3 4 5 6 C C M
RESET 5s
1 2 3 4 5 6 C C C C
