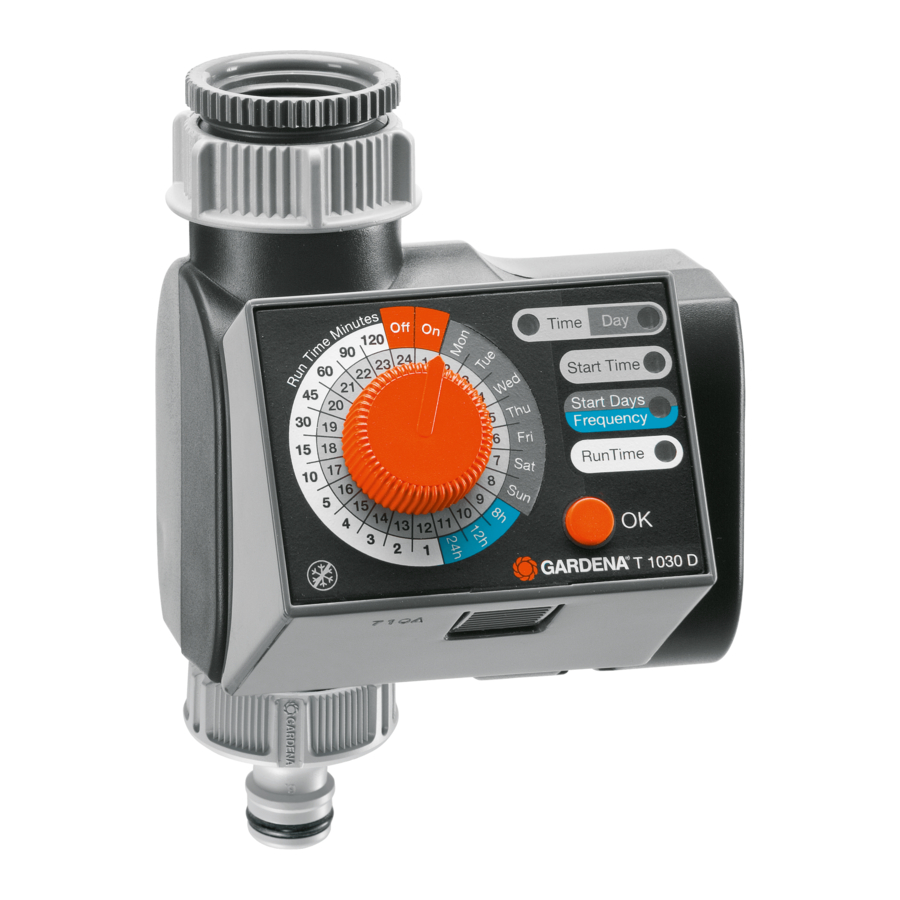

Gardena T 1030 D Operating Instructions Manual
  1. Manuals
  2. Brands
  3. Gardena Manuals
  4. Lawn and Garden Equipment
  5. T 1030 D
  6. Operating instructions manual

Gardena T 1030 D Operating Instructions Manual

Hide thumbs Also See for T 1030 D:

Advertisement

Quick Links

GARDENA
T 1030 D
Art. 1825-28
®
Operating Instructions
GB
Water Timer electronic
Käyttöohje
FIN
Elektroninen kasteluajastin
S
Bruksanvisning
Bevattningstimer electronic
Brugsanvisning
DK
Vandingsur electronic
Bruksanvisning
N
Vanningstimer electronic
EST
Kasutusjuhend
Kastmistaimer electronic
Eksploatavimo instrukcija
LT
Elektroninis laistymo laikmatis
Lietošanas instrukcija
LV
Elektroniskais laistīšanas taimeris

Advertisement

loading

Related Manuals for Gardena T 1030 D

Summary of Contents for Gardena T 1030 D

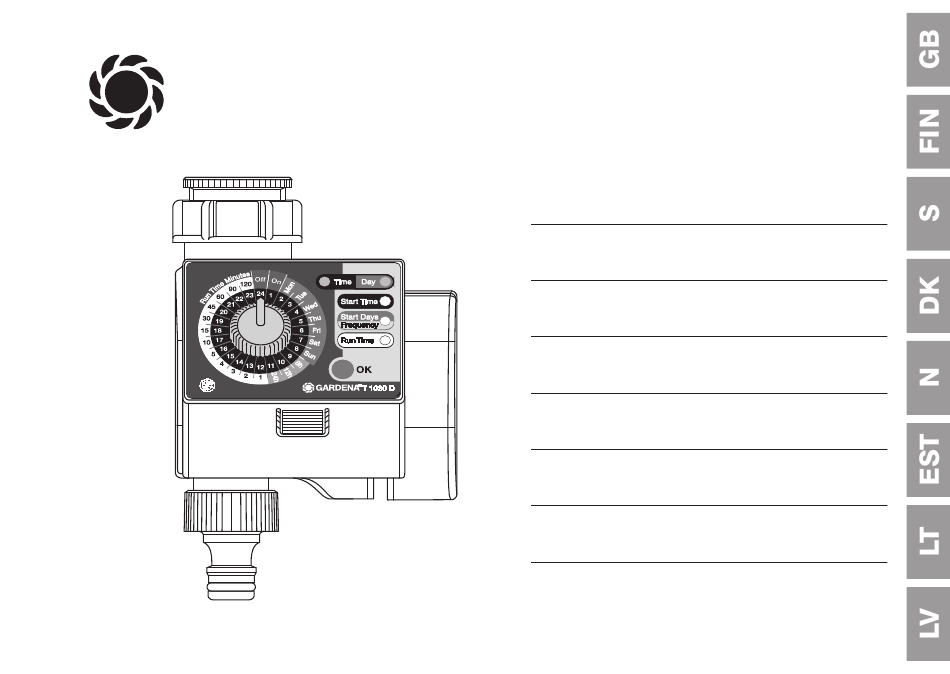

  • Page 1 GARDENA ® Operating Instructions T 1030 D Water Timer electronic Art. 1825-28 Käyttöohje Elektroninen kasteluajastin Bruksanvisning Bevattningstimer electronic Brugsanvisning Vandingsur electronic Bruksanvisning Vanningstimer electronic Kasutusjuhend Kastmistaimer electronic Eksploatavimo instrukcija Elektroninis laistymo laikmatis Lietošanas instrukcija Elektroniskais laistīšanas taimeris...

  • Page 2: Table Of Contents

    GARDENA Water Timer electronic T 1030 D Welcome to the Garden of GARDENA... Translation of the original instructions from German. Please read these operating instructions carefully and observe the notes given. Use these instructions to familiarise yourself with the Water Timer electronic and its proper use as well as the notes on safety.

  • Page 3: Where To Use Your Gardena Water Timer

    1. Where to Use Your GARDENA Water Timer Intended use The GARDENA Water Timer is intended for private use in domestic and hobby gardens, exclusively for outdoor use, to control sprinklers and watering systems. Please note The GARDENA Water Timer must not be used for industrial purposes or in conjunction with chemicals, foodstuffs, easily flammable and explosive materials.
  • Page 4 Battery : For functional safety reasons, only use a 9 V alkali- manganese (alkaline) battery type IEC 6LR61. The Water Timer will only run for approx. 1 year if the new alkaline battery has a nominal voltage of at least 9 V. v Check the battery before you buy it.

  • Page 5: Function

    3. Function The GARDENA Water Timer electronic allows you to set different Control knob and OK button : watering cycles for different watering times independent of whether you are using a sprinkler, a sprinkler system installation or drip- head watering system to irrigate your garden.

  • Page 6: Putting Your Water Timer Into Operation

    4. Putting Your Water Timer into Operation Inserting the battery : 1. Press the release button remove the control unit from the housing of the Water Timer. 2. Insert the battery in the battery compartment. Pay attention to the polarity (+/ –...
  • Page 7 The Water Timer is fitted with a sleeve nut for taps with G 1 " Connecting your Water Timer : (33.3 mm) thread. The adaptor supplied allows the Water Timer to be connected to taps with a G ³⁄₄ " (26.5 mm) thread. 1.
  • Page 8 Installing the anti-theft To protect your Water Timer against theft, the GARDENA Anti- protection (optional) : Theft Protection Art. No. 1815-00.791.00 is available from the GARDENA Service. 1. Fasten the bracket to the back of the Water Timer using the screw 2.
  • Page 9 1. Turn the control knob to Off and confirm by pressing the OK button. The program stored in the memory is overwritten. The Time LED flashes. Setting the current time : 2. Set the current time on the inner black scale by turning the control knob and confirm the time you have selected by pressing the OK button (e.g.: 10:00 am).
  • Page 10 Setting the watering starting time : 4. Set the watering starting time on the inner black scale by turning the control knob and confirm the time you have selected by pressing the OK button (e.g.: 20:00). The Start Time LED lights up for half a second and the watering starting time has been stored.
  • Page 11 Setting the watering cycle (Frequency) : 24h : 1 watering cycle per day 12h : 2 watering cycles per day from start time 8h : 3 watering cycles per day from start time 6. Set the watering cycle on the outer blue scale using the control knob and confirm your selection by pressing the OK button (e.g.: 12 hour cycle = 2 x daily).
  • Page 12 Changing the On hot or cooler days you can change the watering time. watering time : The program you have set remains unchanged. v Select the new watering time on the outer white scale (Run Time Minutes) by turning the control knob and confirm your selection by pressing the OK button (e.g.: 15 minutes).

  • Page 13: Putting Your Water Timer Out Of Operation

    Store your Water Timer in a dry place away from frost before the first frost sets in. Disposing of flat batteries : v Please return flat batteries to a GARDENA dealer or dispose of them properly at your nearest recycling centre. Only dispose of batteries when they are flat.

  • Page 14: Trouble-Shooting

    The battery you inserted v Use an alkaline battery. for a short time is not an alkaline battery. In the event of other faults please contact GARDENA Service. Repairs should only be carried out by GARDENA service centres or dealers authorised by GARDENA.

  • Page 15: Technical Data

    8. Technical Data Min. / max. operating pressure : 0.5 bar / 12 bar Minimum flow rate : 20 I / h Flow medium : clean fresh water Max. water temperature : 40 °C Number of program-controlled every 8, 12, 24 hours watering cycles per day : Watering cycles per week : each day can be selected / not selected...

  • Page 16: Service / Warranty

    9. Service / Warranty GARDENA guarantees this product for 2 years (from date of purchase). This guarantee covers all serious defects of the unit that can be proved to be material or manufacturing faults. Under warranty we will either replace the unit or repair it free of charge if the following conditions apply: •...
  • Page 17 We expressly point out that, in accordance with the product liability law, we are not liable for any damage caused by our units if it is due to improper repair or if parts exchanged are not original GARDENA parts or parts approved by us, and, if the repairs were not carried out by a GARDENA Service Centre or an authorised specialist.
  • Page 18 GARDENA dalys arba dalys, kurių mes neleidome naudoti, o remontą atliko ne GARDENA serviso centras ar įgaliotas specialistas. Tas pats galioja papildomoms dalims ir priedams.
  • Page 19 EU Overensstemmelse certificat Undertegnede Husqvarna AB, 561 82 Huskvarna, Sweden bekræfter hermed, at en-heder listet herunder, ved afsendelse fra fabrikken, er i overensstemmelse med harmoniserede EU retningslinier, EU sikkerhedsstandarder og produkt-specifikationsstandarder. Dette certifikat træder ud af kraft hvis enhederne er ændret uden vor god- kendelse.
  • Page 20 CE-märgistuse paigaldamise aasta : 2011 / 65 / EC ES direktyvos : CE- marķējuma uzlikšanas gads : ES-direktīvas : Metai, kuriais paženklinta CE-ženklu : Hinterlegte Dokumentation : GARDENA Technische Dokumentation Ulm, 20.11.2008 Authorised representative E. Renn 89079 Ulm Ulmissa, 20.11.2008 Valtuutettu edustaja Ulm, 2008.11.20.
  • Page 21 Deutschland / Germany Belgium China Denmark Georgia GARDENA GmbH GARDENA Belgium NV / SA Husqvarna (China) Machinery GARDENA / Husqvarna ALD Group Central Service Sterrebeekstraat 163 Manufacturing Co., Ltd. Consumer Outdoor Products Beliashvili 8 Hans-Lorenser-Straße 40 1930 Zaventem Salgsafdelning Danmark 1159 Tleilisi No.
  • Page 22 KAKUICHI Co. Ltd. Portugal Slovenia Turkey Sumitomo Realty & Moldova Husqvarna Portugal , SA Husqvarna Austria GmbH GARDENA Dost Diþ Ticaret Development Kojimachi Convel S.R.L. Lagoa - Albarraque Consumer Products Mümessillik A.Þ. BLDG., 8F 290A Muncesti Str. 2635 - 595 Rio de Mouro Industriezeile 36 Sanayi Çad.
